Front Passenger Side Power Window Switch Power Source Circuit: Procedure

1. Disconnect the P19 connector.

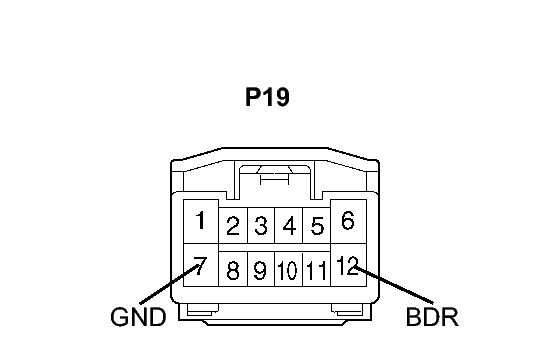

   Fig 1: Identifying P19 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   P19-12 (BDR) - Body ground	Always	10 to 14 V

   Standard resistance

   Tester Connection	Condition	Specified Condition
   P19-7 (GND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
