LEXUS Navigation System and Parking Assist (Rear View Monitor): Notes

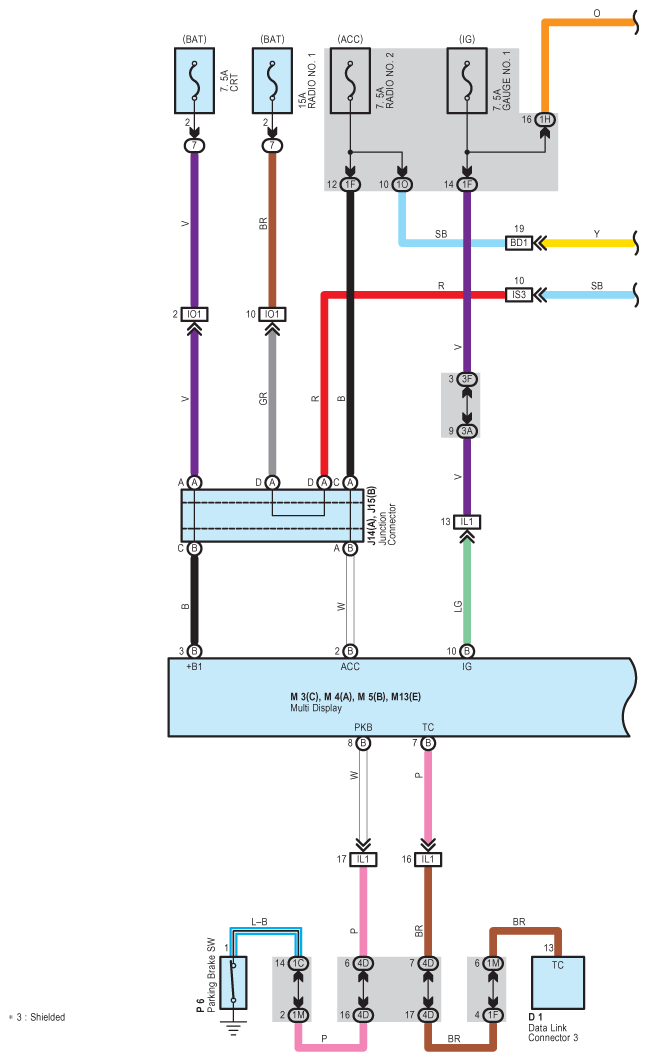

Fig 1: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

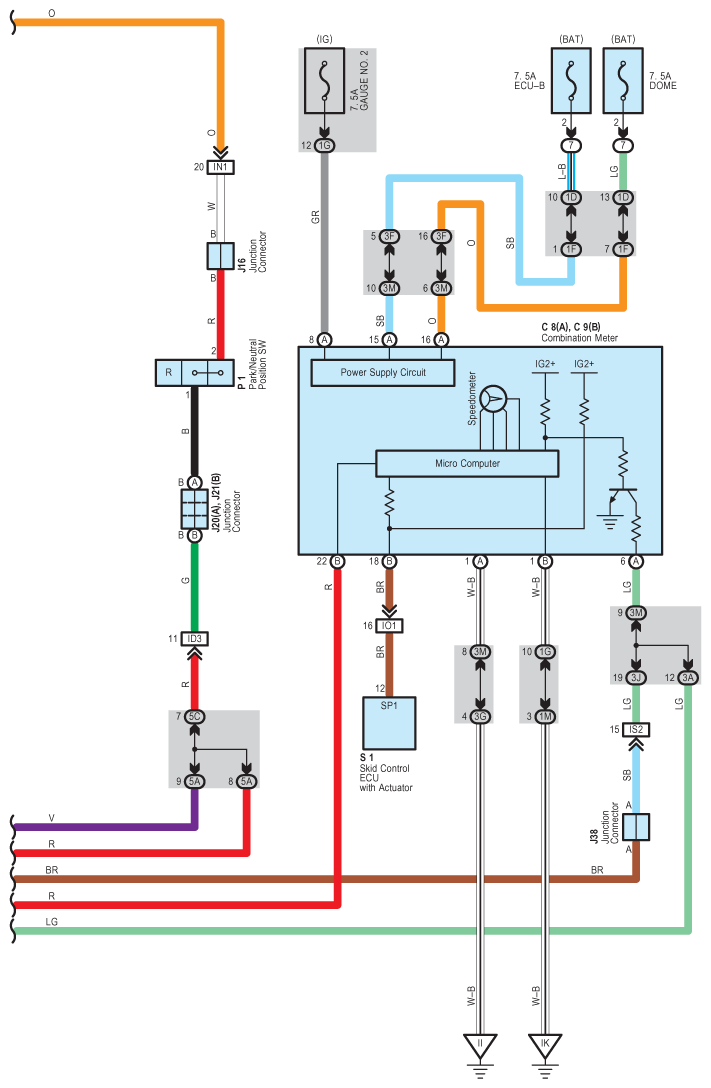

Fig 2: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

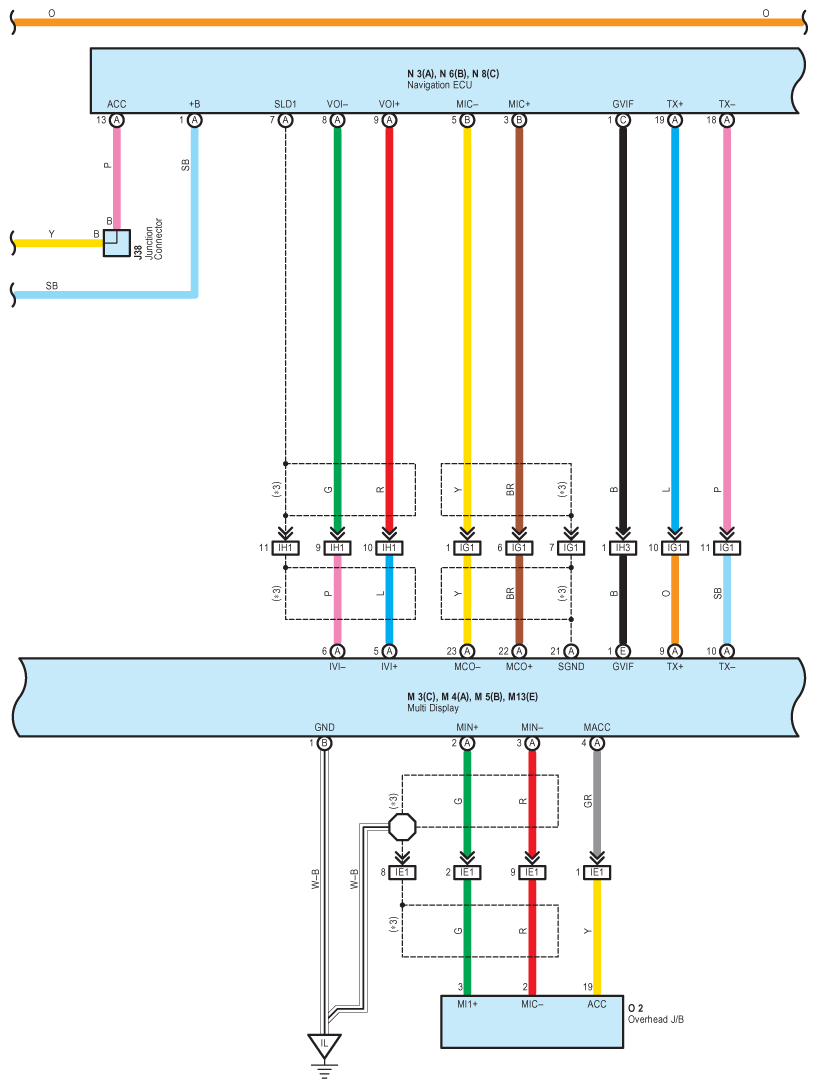

Fig 3: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

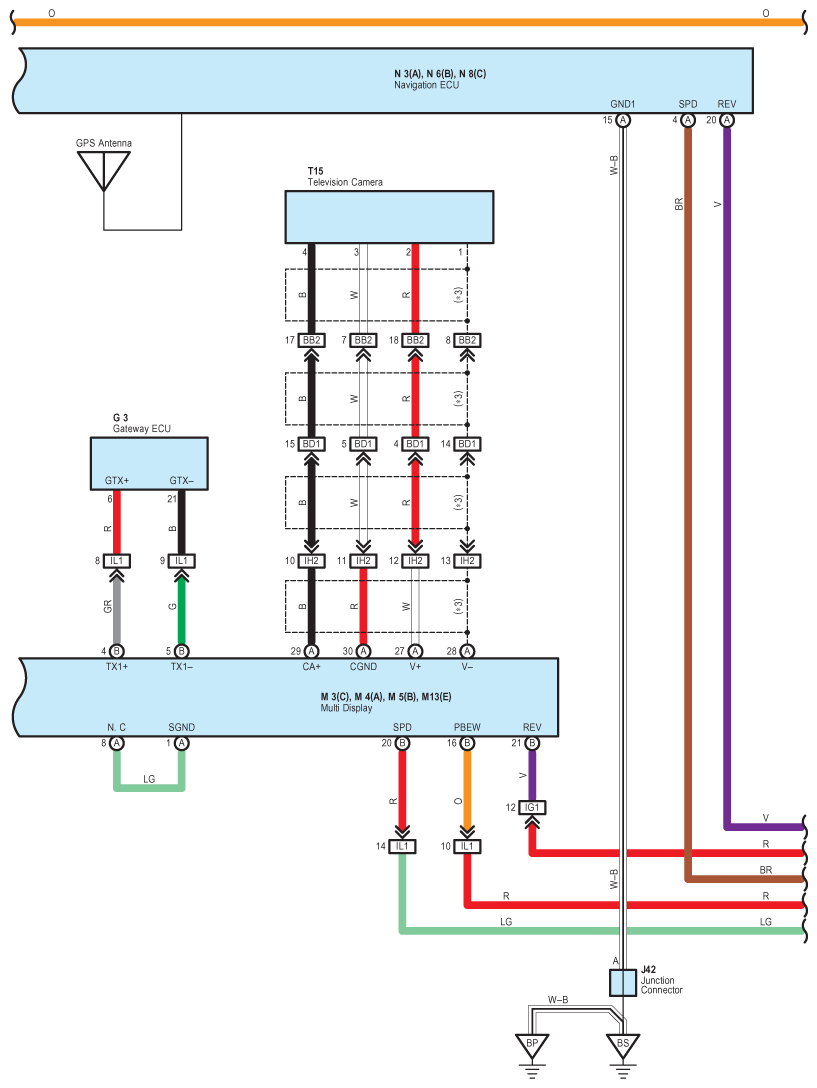

Fig 4: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

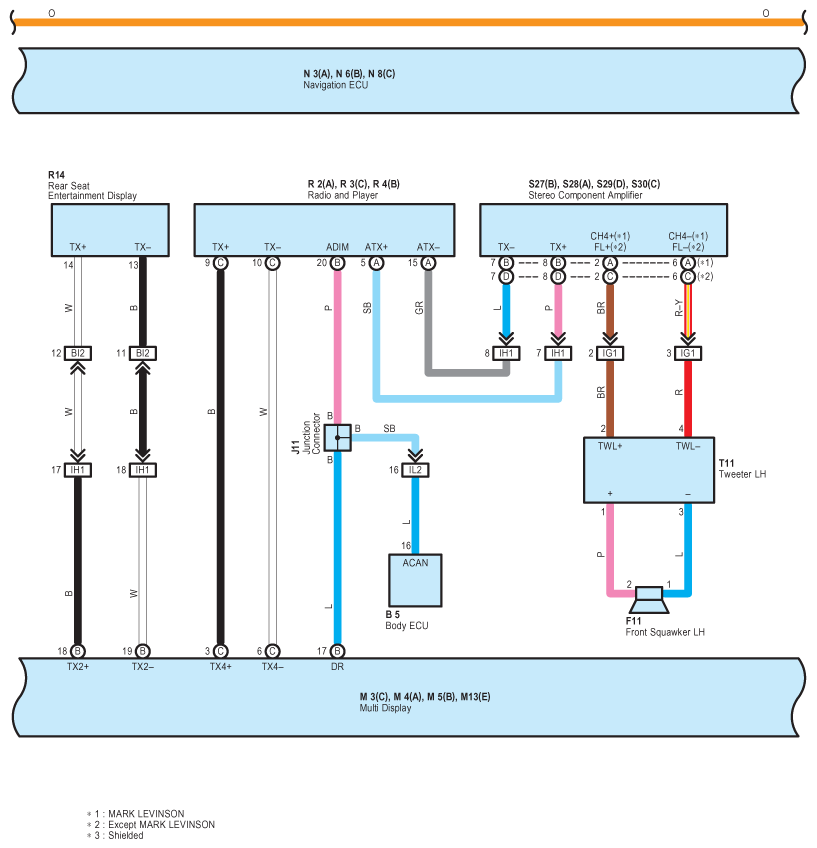

Fig 5: Lexus Navigation System And Parking Assist (Rear View Monitor) - Circuit Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
