Ignition Coil: Components: Illustration

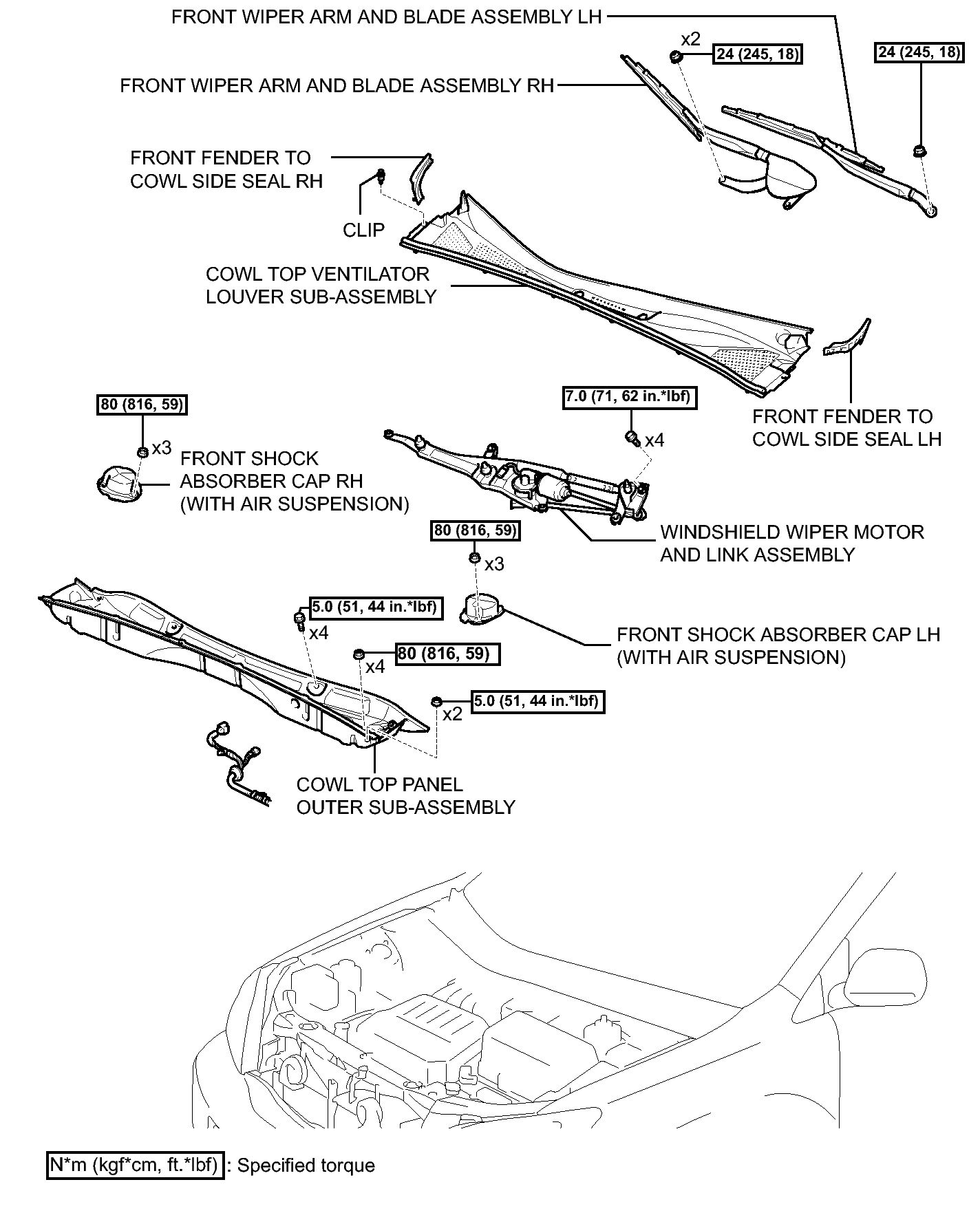

Fig 1: Identifying Ignition Coil Replacement Components With Torque Specifications (1 Of 4)
GTY141988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

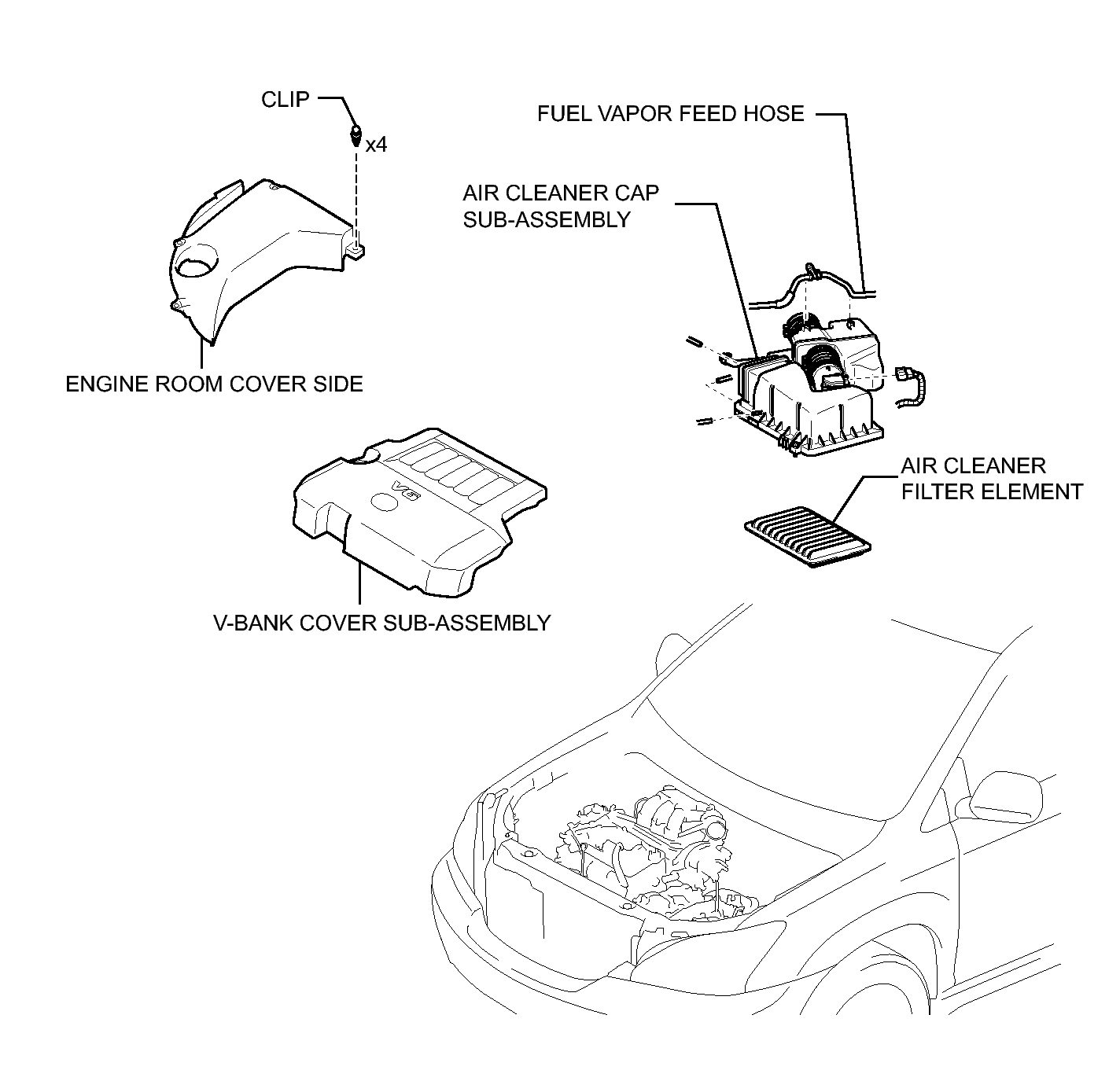

Fig 1: Identifying Ignition Coil Replacement Components (2 Of 4)
GTY147211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

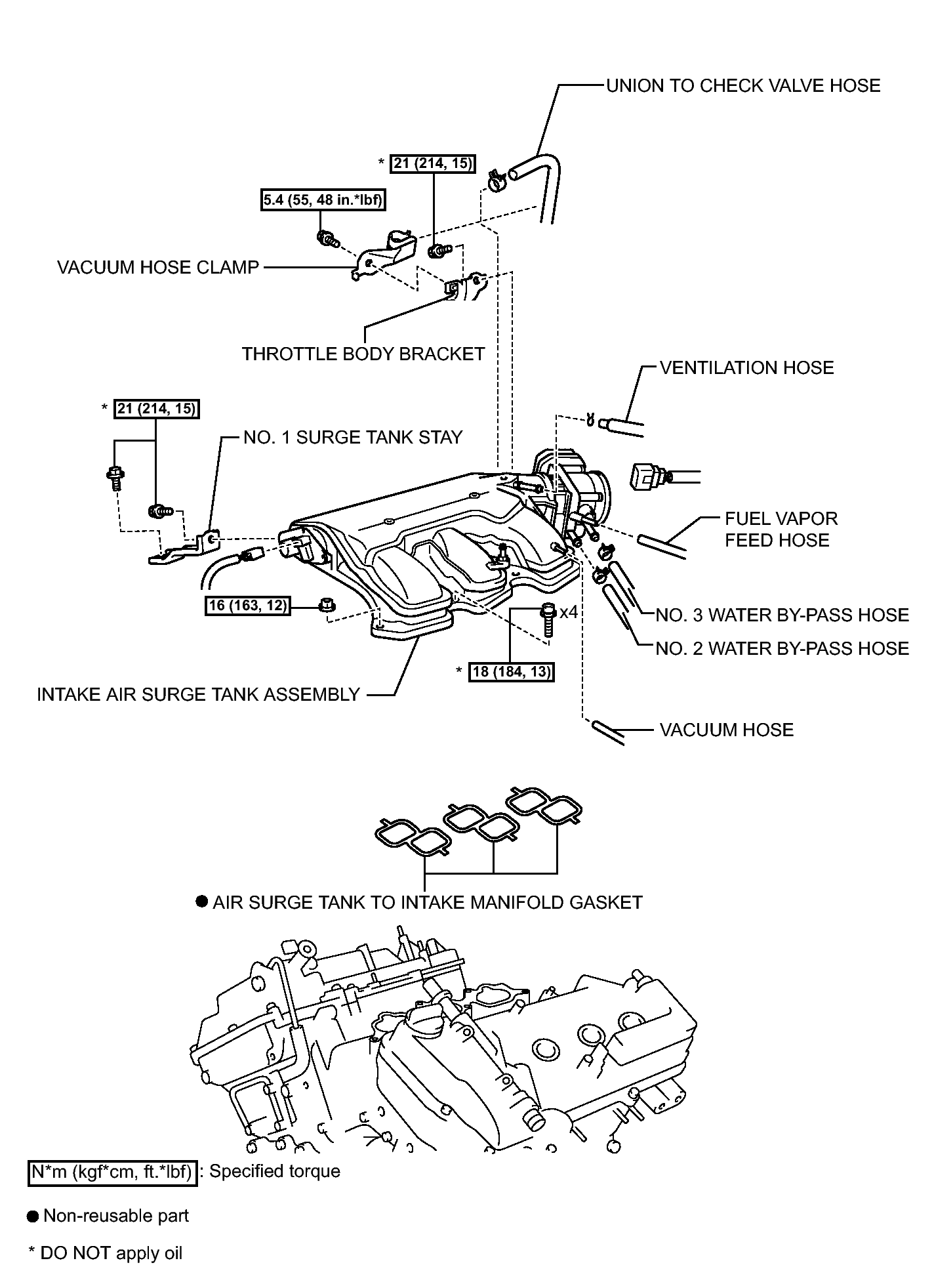

Fig 1: Identifying Ignition Coil Replacement Components With Torque Specifications (3 Of 4)
GTY147318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

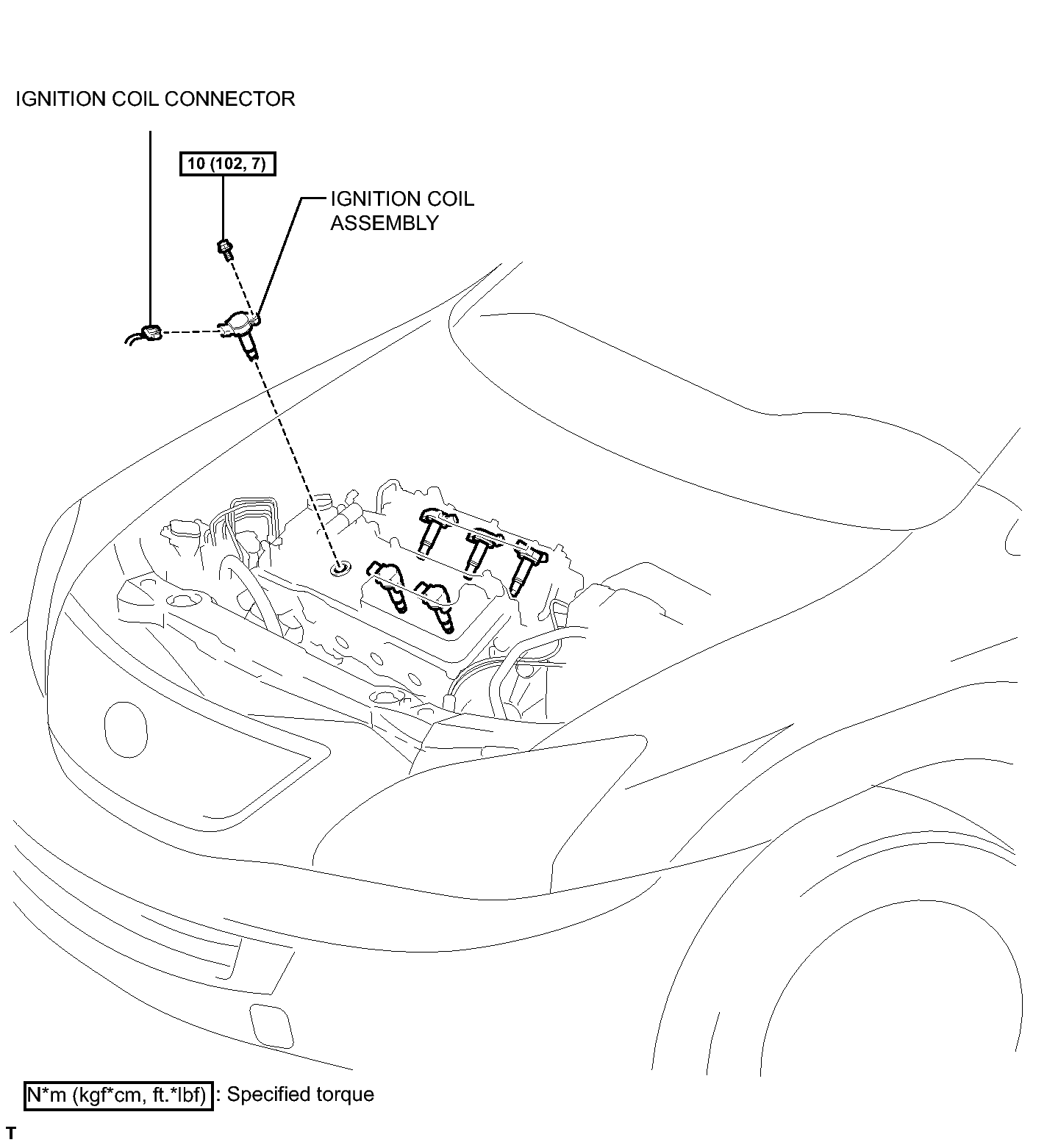

Fig 1: Identifying Ignition Coil Replacement Components With Torque Specifications (4 Of 4)
GTY147107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
