Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

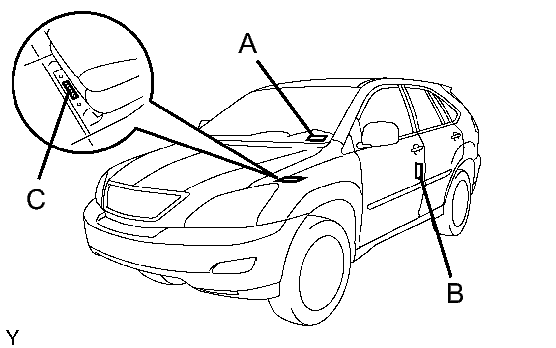

Fig 1: Identifying Vehicle Identification Number
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  A

  Vehicle Identification Number

  B

  Certification Label

  C

  Frame Number
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustration.

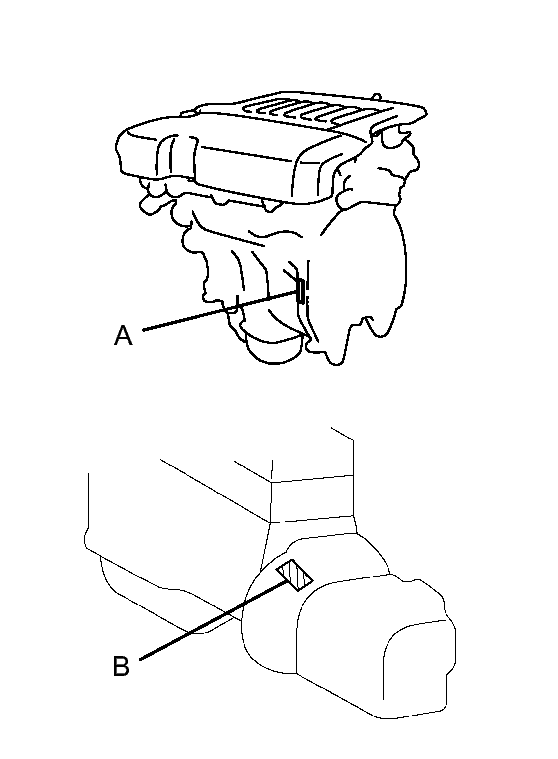

  Fig 2: Identifying Engine Serial Number & Transaxle Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  Engine Serial Number

  B

  Transaxle Serial Number
