Crankshaft Position Sensor: Inspection: Inspection
- INSPECT CRANKSHAFT POSITION SENSOR

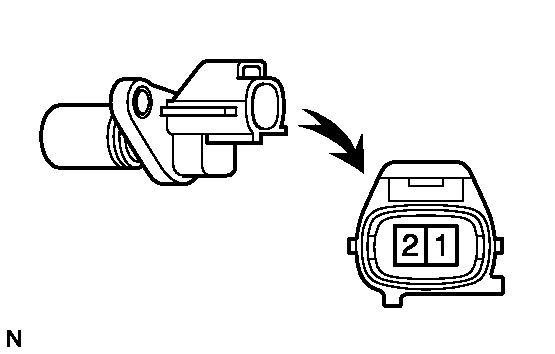

- Using an ohmmeter, measure the resistance between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
Temperature Specified Condition Cold 1,630 to 2,740 Ω Hot 2,065 to 3,225 Ω NOTE:- "Cold" and "Hot" mean the temperature of the coils themselves.
- "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
If the resistance is not as specified, replace the sensor.
- Using an ohmmeter, measure the resistance between the terminals.
