VVT Sensor: Removal: Removal

REMOVE WINDSHIELD WIPER LINK ASSEMBLY
HINT:

Refer to REMOVAL
REMOVE COWL TOP PANEL OUTER SUB-ASSEMBLY See step 2
DRAIN ENGINE COOLANT . Refer to ON-VEHICLE INSPECTION - Step 3
REMOVE NO. 1 V-BANK COVER BRACKET . Refer to REMOVAL - Step 17
REMOVE NO. 2 AIR CLEANER INLET . Refer to REMOVAL - Step 19
REMOVE NO. 1 AIR CLEANER INLET . Refer to REMOVAL - Step 22
REMOVE AIR CLEANER CAP SUB-ASSEMBLY See step 7
REMOVE AIR CLEANER CASE SUB-ASSEMBLY . Refer to REMOVAL - Step 21
REMOVE INTAKE AIR SURGE TANK ASSEMBLY See step 8
REMOVE VVT SENSOR (for Bank 1 Intake Side)
1. Disconnect the VVT sensor connector.

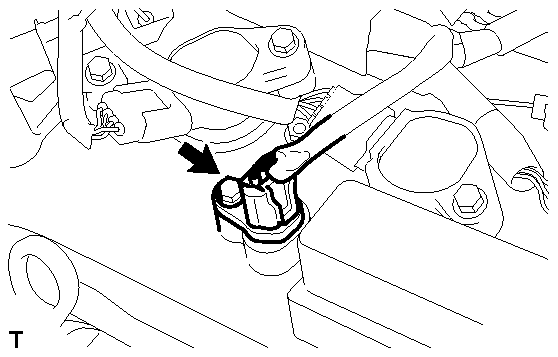

  Fig 1: Identifying Bolt On VVT Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and VVT sensor.
REMOVE VVT SENSOR (for Bank 1 Exhaust Side)
1. Disconnect the VVT sensor connector.

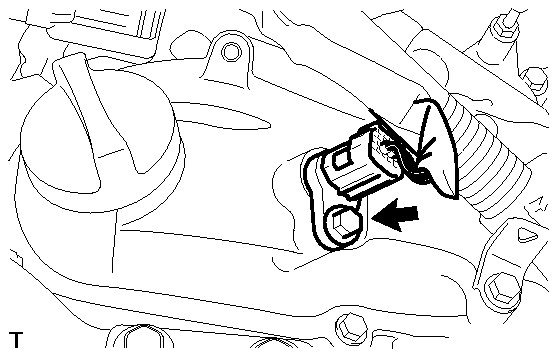

  Fig 2: Identifying Bolt On VVT Sensor For Bank 1 Exhaust Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and VVT sensor.
REMOVE VVT SENSOR (for Bank 2 Intake Side)
1. Disconnect the VVT sensor connector.

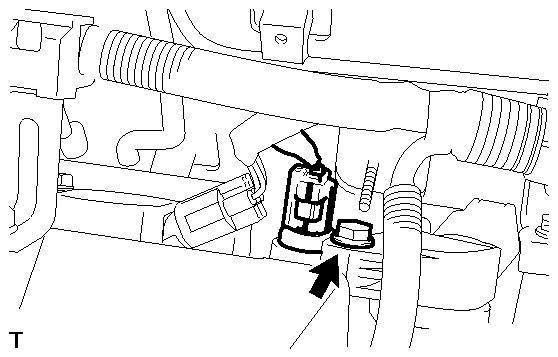

  Fig 3: Identifying Bolt On VVT Sensor For Bank 2 Intake Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and VVT sensor.
REMOVE VVT SENSOR (for Bank 2 Exhaust Side)
1. Disconnect the VVT sensor connector.

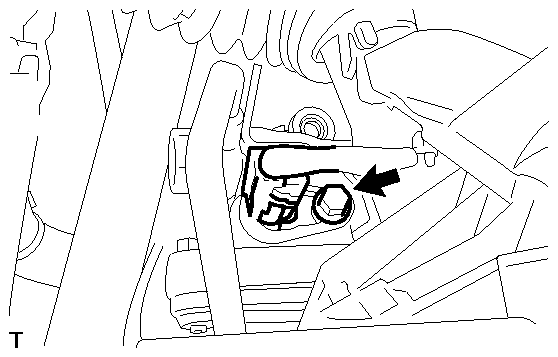

  Fig 4: Identifying Bolt On VVT Sensor For Bank 2 Exhaust Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and VVT sensor.
