Mirror Heater without Memory: Notes

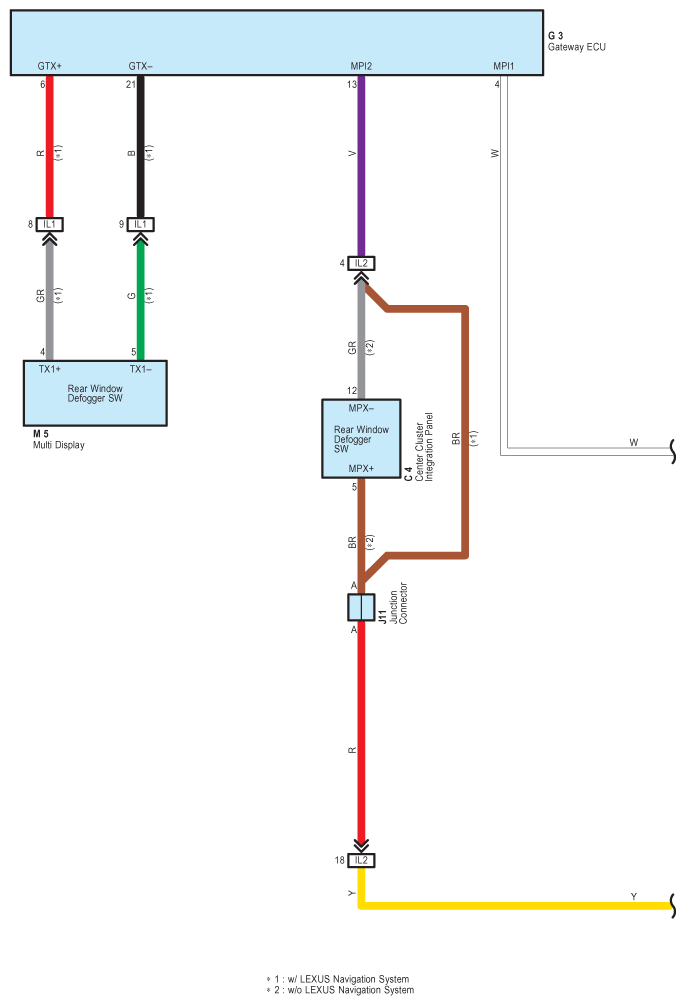

Fig 1: Mirror Heater Without Memory - Circuit Diagram (1 Of 2)
G07614592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

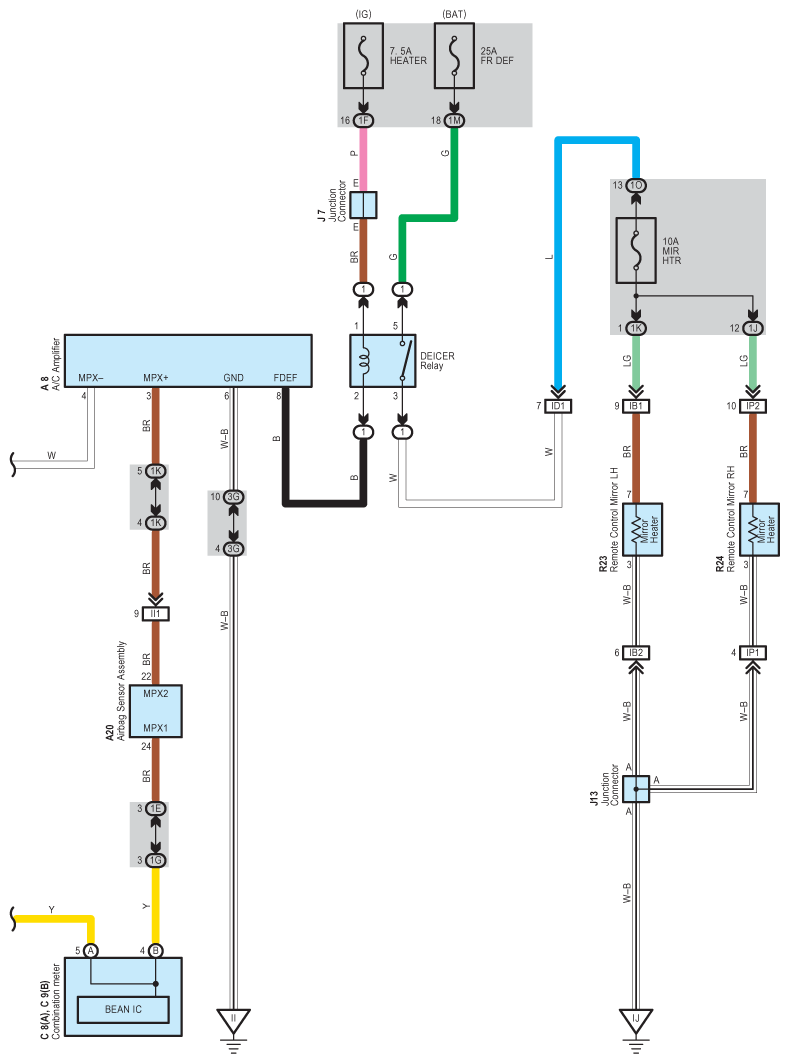

Fig 2: Mirror Heater Without Memory - Circuit Diagram (2 Of 2)
G07614593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
