Theft Deterrent: Notes

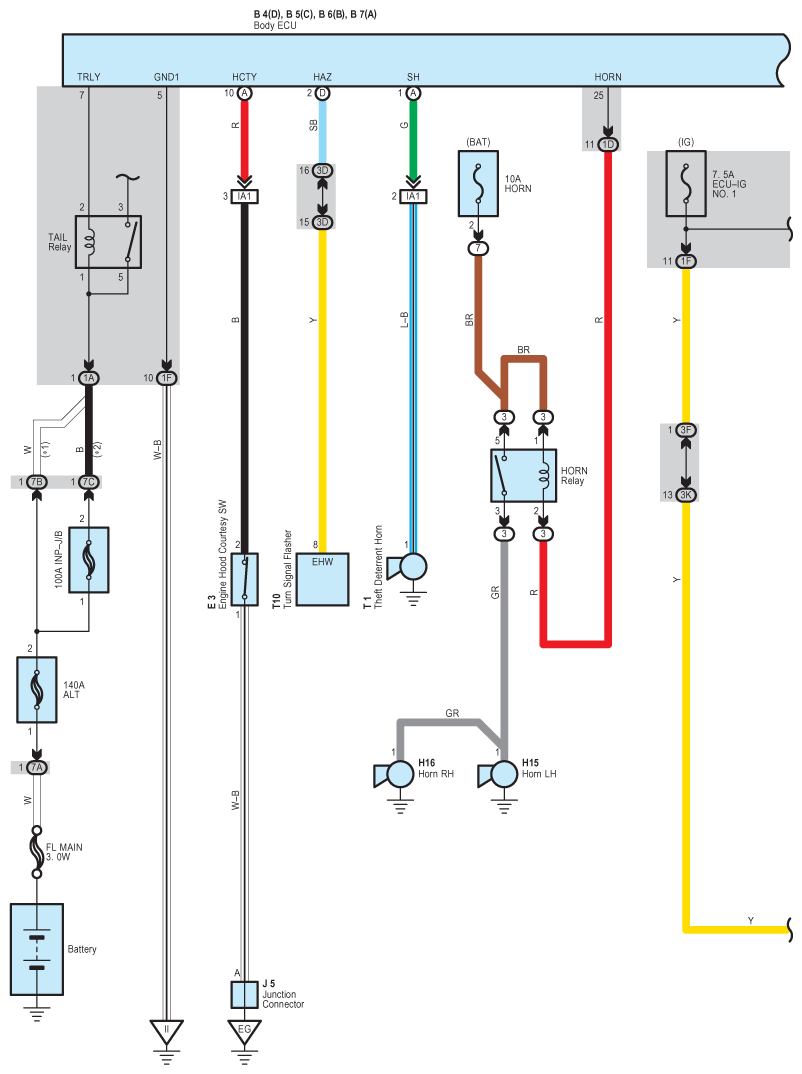

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 8)

G07614562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

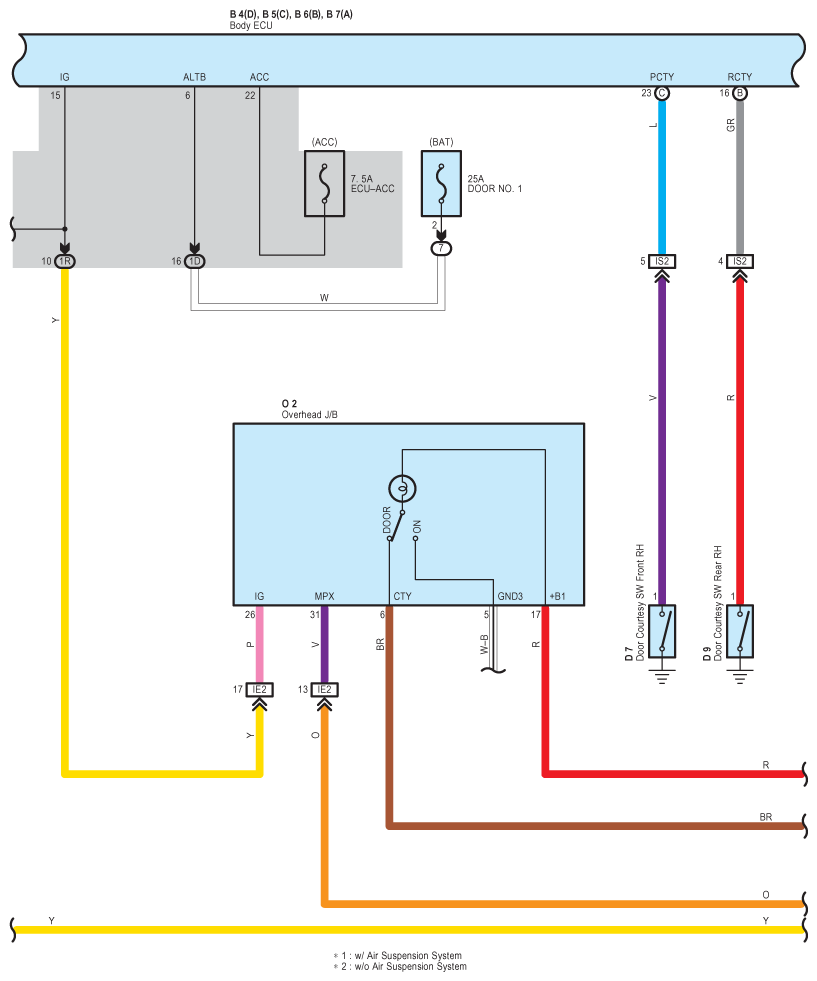

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 8)

G07614563

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 8)

G07614564

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

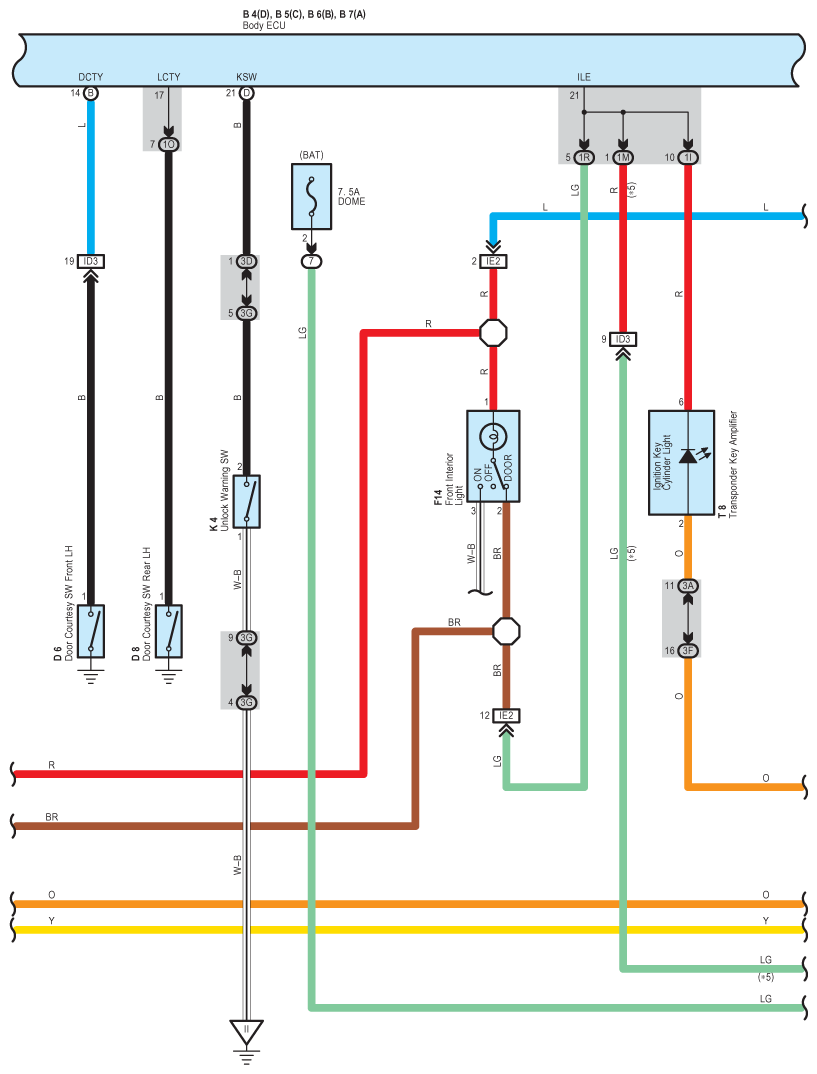

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 8)

G07614565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

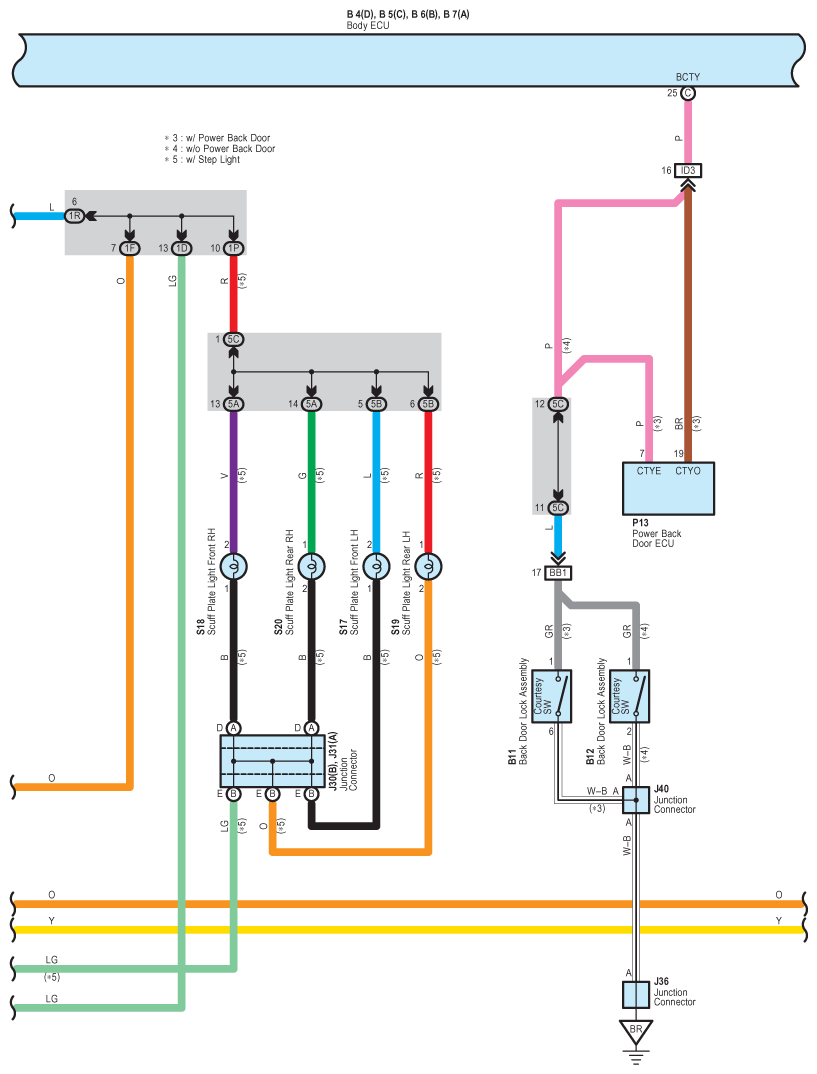

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 8)

G07614566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

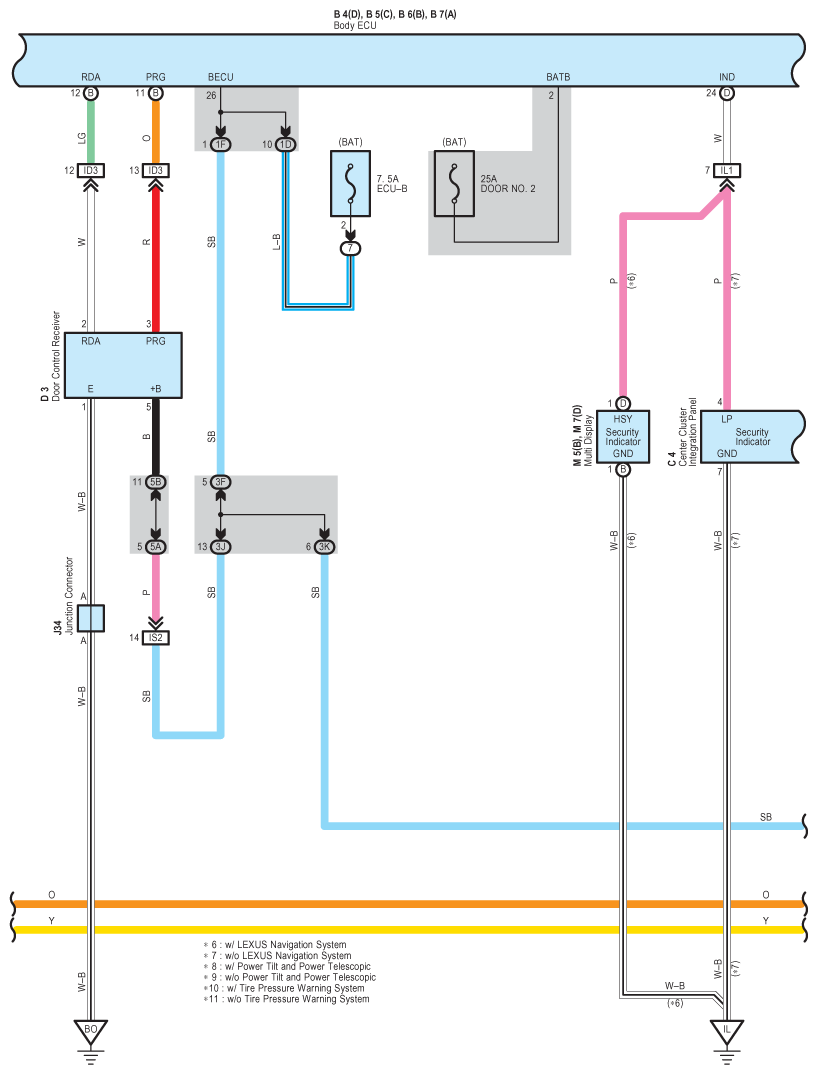

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 8)

G07614567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

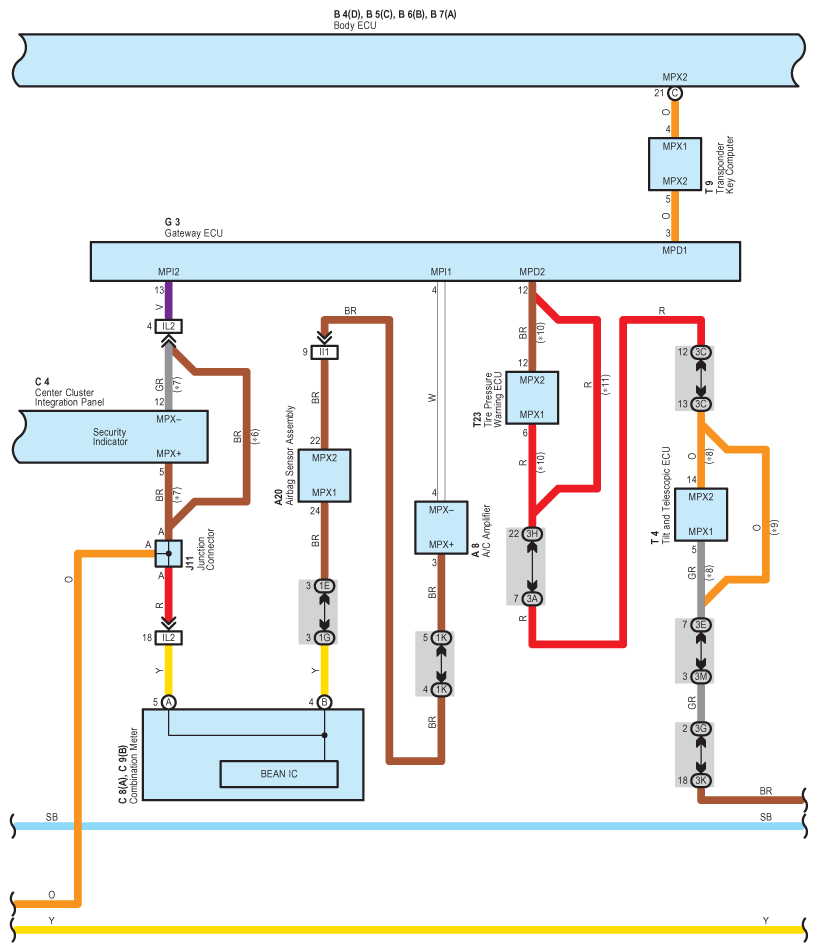

Fig 7: Theft Deterrent - Circuit Diagram (7 Of 8)

G07614568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

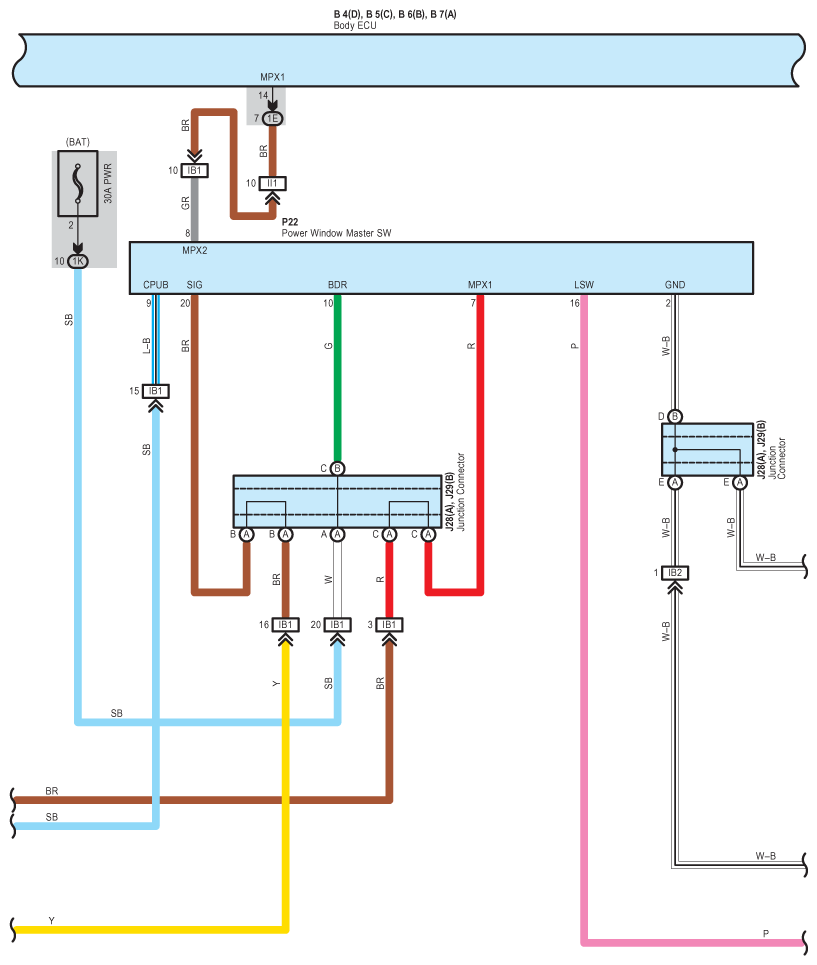

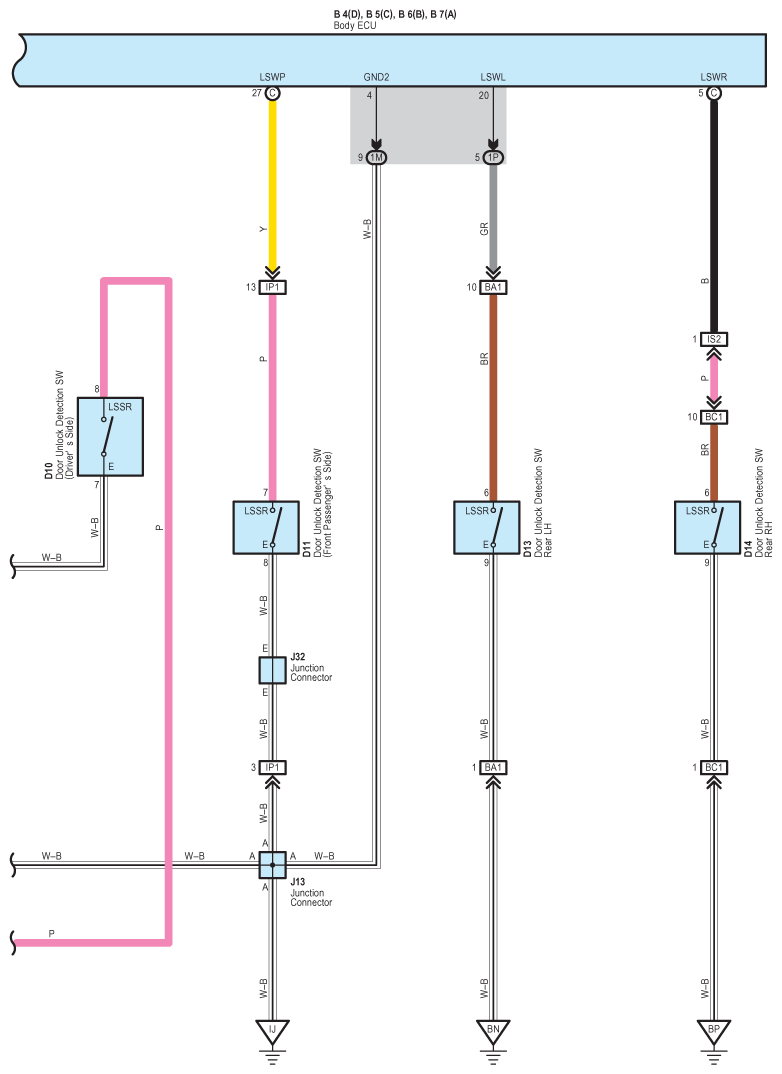

Fig 8: Theft Deterrent - Circuit Diagram (8 Of 8)

G07614569

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
