Installation

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION

INSTALLATION

1. INSTALL WIRELESS DOOR LOCK BUZZER





(a) Connect the connector.

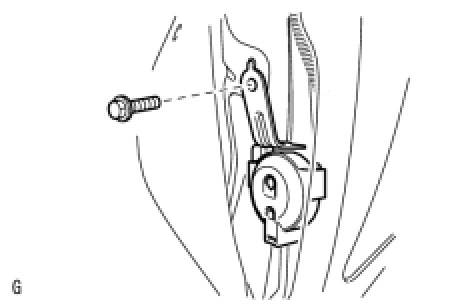

(b) Install the buzzer with the bolt.

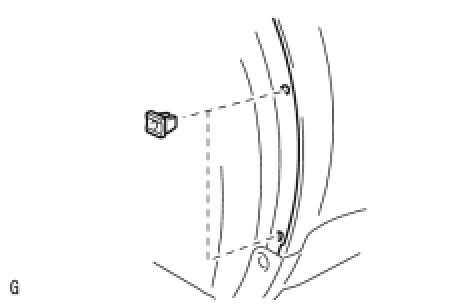

(c) Install the 2 clips.

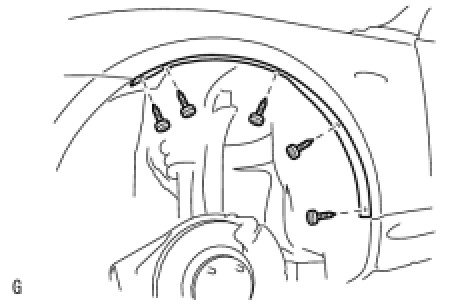

2. INSTALL FRONT FENDER WHEEL OPENING MOULDING RH
(a) Install the moulding with the 5 screws.
3. INSTALL TIRE
