Installation

AIR CONDITIONING: AIR CONDITIONING PANEL: INSTALLATION

INSTALLATION

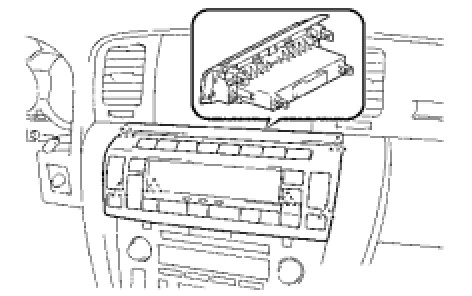

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY





(a) Connect the 3 connectors and install the A/C control.
(b) Push the A/C control towards the front of the vehicle and attach the 6 clips.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
