Emission Control Systems








SERVICE SPECIFICATIONS: 3UZ-FE EMISSION CONTROL: SERVICE DATA

SERVICE DATA

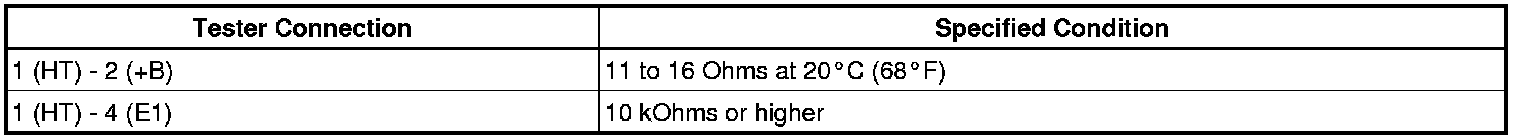

Purge VSV

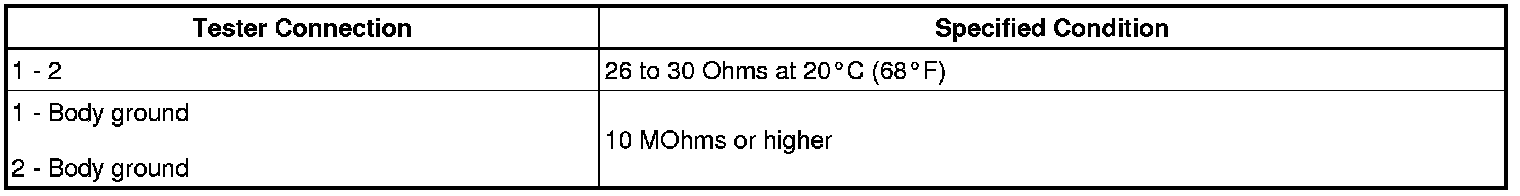

Heated oxygen sensor (for sensor 1)





Heated oxygen sensor (for sensor 2)
