Crankshaft Position Sensor: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  2. REMOVE ENGINE UNDER COVER  . Refer to REMOVAL - Step 2
  3. REMOVE CRANKSHAFT POSITION SENSOR

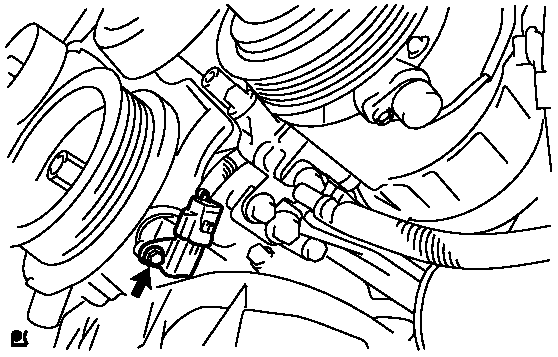

    Fig 1: Locating Bolt And Sensor
    GTY143590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
