Pattern Select Switch Power Mode Circuit: Procedure

CHECK WIRE HARNESS (PATTERN SELECT SWITCH - BODY GROUND)

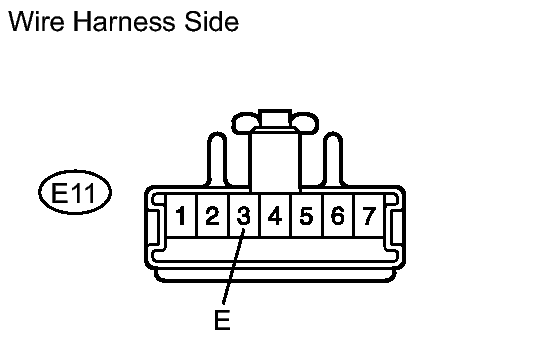

Fig 1: Identifying E11 Pattern Select Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance of the wire harness side connector.

Standard resistance

Tester Connection	Specified Condition
E11-3 (E) - Body ground	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

INSPECT PATTERN SELECT SWITCH

Measure the resistance of the switch.

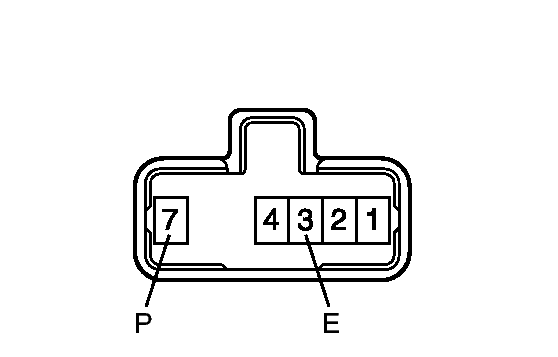

Fig 2: Identifying E3 And P7 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

Tester Connection	Switch Condition	Specified Condition
3 (E) - 7 (P)	Pattern select switch (PWR)	Below 1 Ω
3 (E) - 7 (P)	Pattern select switch (NORM)	10 kΩ or higher

NG → REPLACE PATTERN SELECT SWITCH

OK: Go to next step

CHECK WIRE HARNESS (PASSENGER SIDE JUNCTION BLOCK ECU - PATTERN SELECT SWITCH)

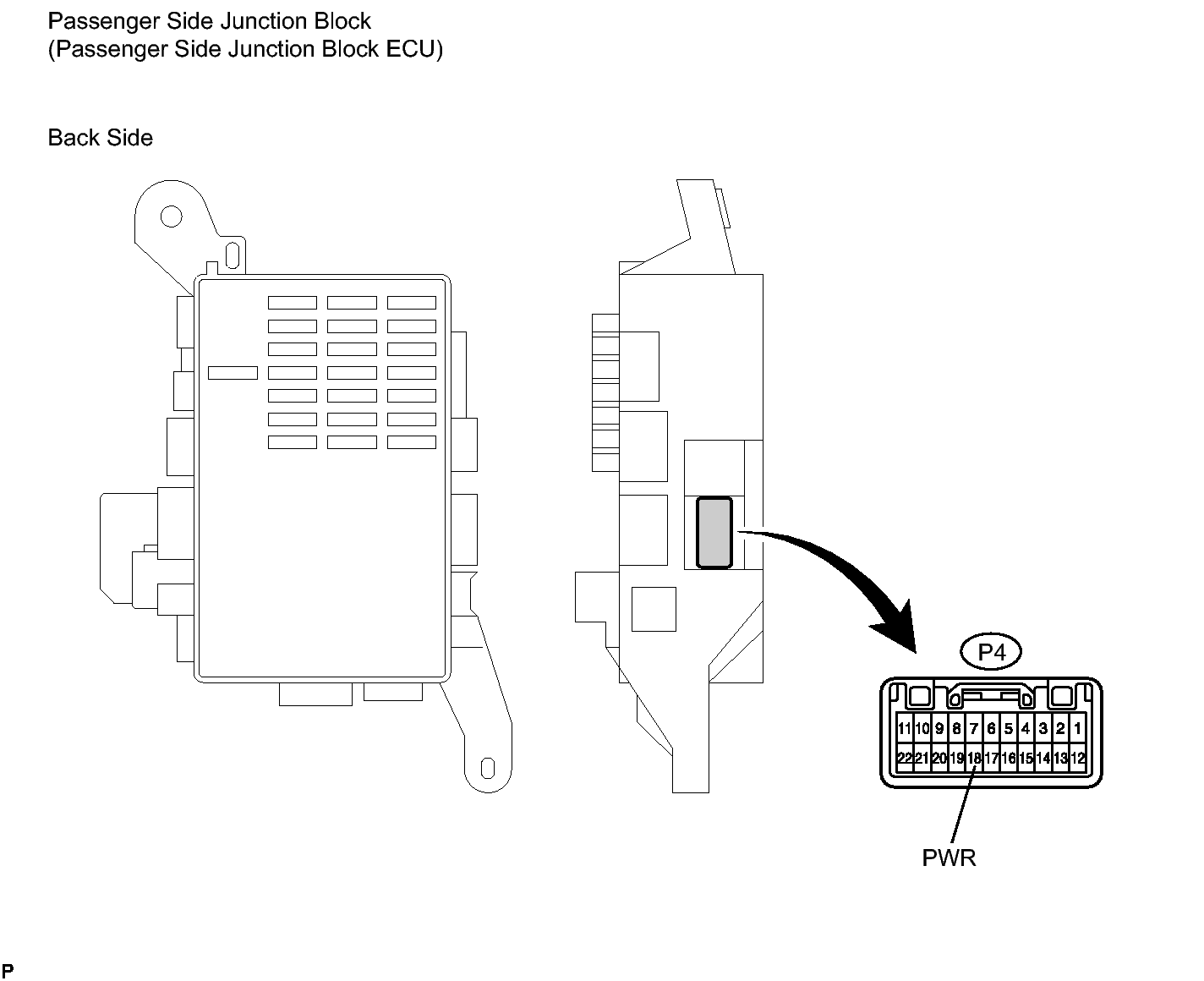

Fig 3: Identifying P4 Passenger Side Junction Block Connector Terminals

Measure the resistance of the passenger side junction block ECU.

Standard resistance

Tester Connection	Switch Condition	Specified Condition
P4-18 (PWR) - Body ground	Pattern select switch (PWR)	Below 1 Ω
P4-18 (PWR) - Body ground	Pattern select switch (NORM)	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
