Mirror Retract Switch Circuit: Procedure

1. Check the Data List for proper functioning of the mirror retract switch.
   TESTER DISPLAY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Outer Mirror Fold SW	Mirror retract signal / ON or OFF	ON: Switch is ON OFF: Switch is OFF	-
   Outer Mirror Return SW	Mirror return signal / ON or OFF	ON: Switch is OFF OFF: Switch is ON	-

   OK

   On Techstream screen, each item changes between ON and OFF according to above chart.

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

NG: Go to next step

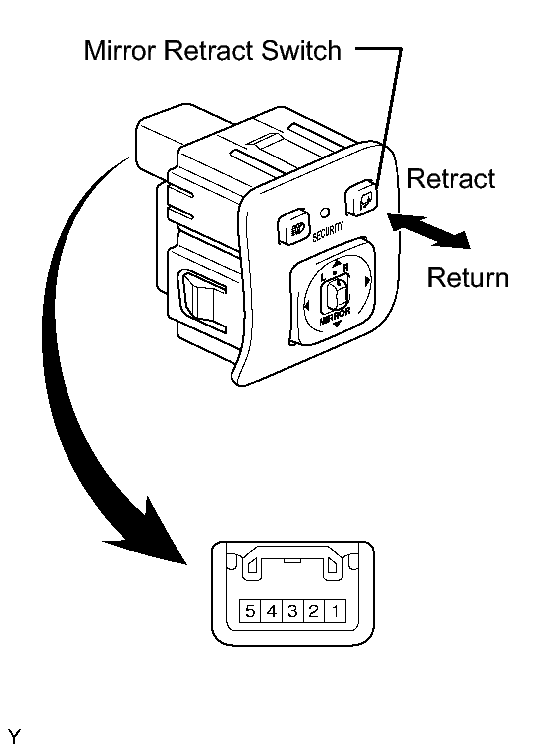

Fig 1: Inspecting Outer Mirror Switch Assembly (Mirror Retract Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance of the switch.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   4 - 5	ON (Retract)	10 kΩ or higher
   4 - 5	OFF (Return)	Below 1 Ω

NG → REPLACE OUTER MIRROR SWITCH ASSEMBLY

OK: Go to next step

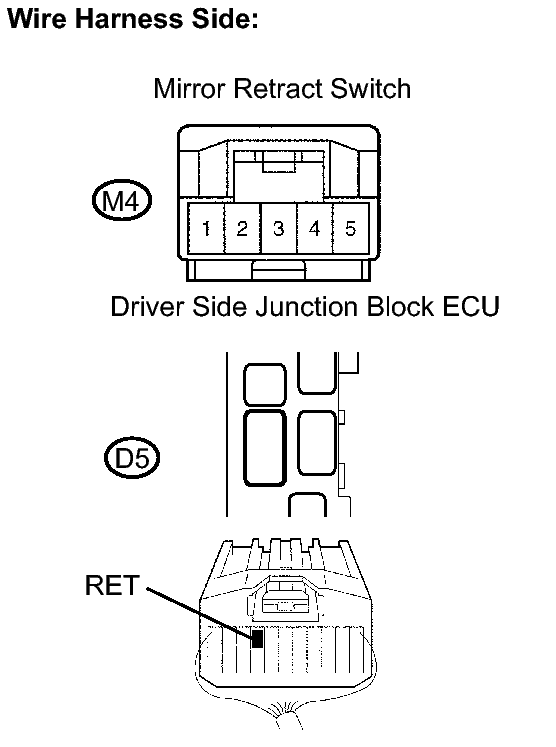

Fig 2: Identifying Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the M4 switch connector.
2. Disconnect the D5 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   Tester Connection	Specified Condition
   M4-4 - D5-8 (RET)	Below 1 Ω
   M4-5 - Body ground	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE DRIVER SIDE JUNCTION BLOCK (DRIVER SIDE JUNCTION BLOCK ECU)
