Skid Control Ecu: Components: Illustration

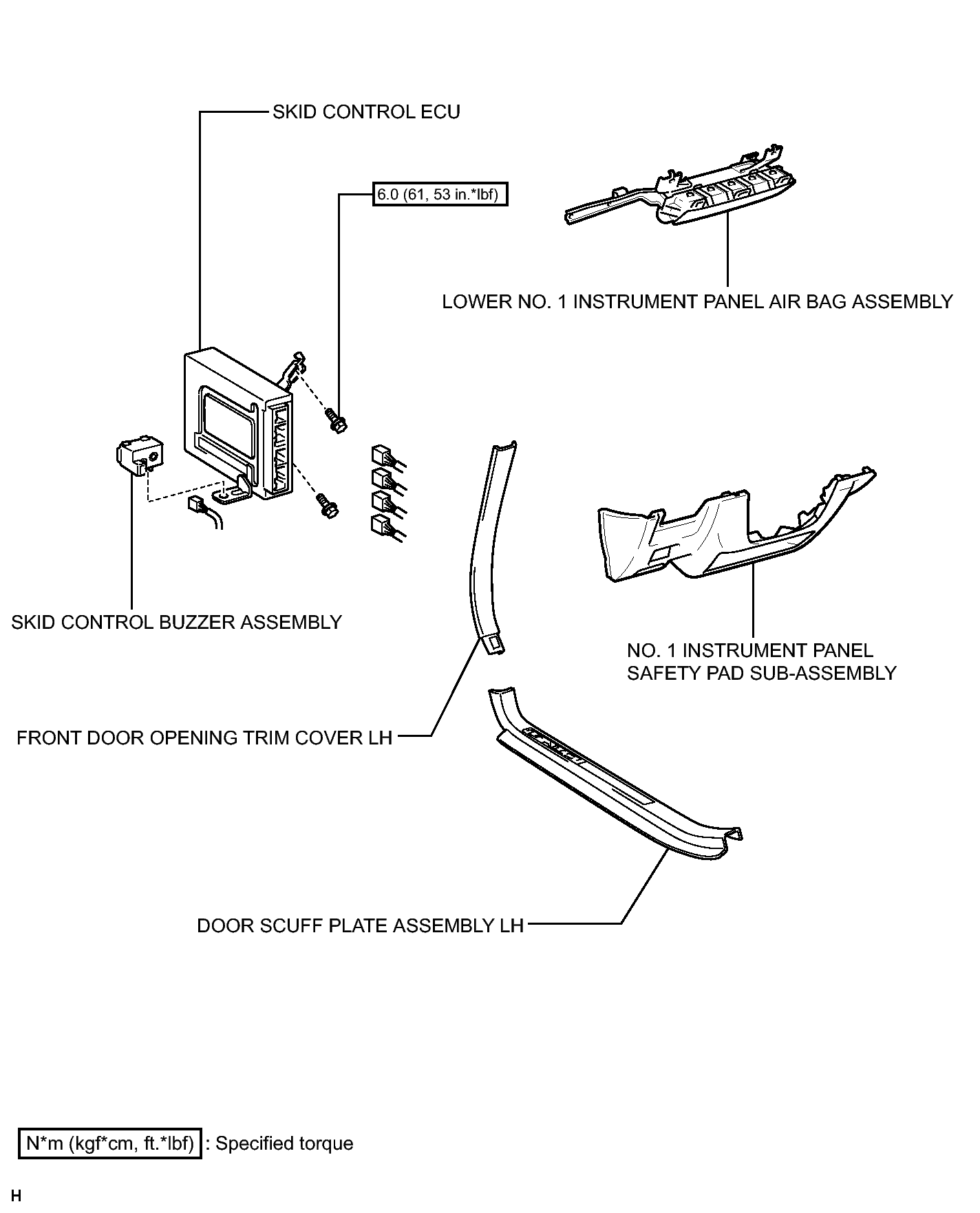

Fig 1: Identifying Skid Control ECU Replacement Components With Torque Specifications
GTY133088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
