Installation (To 10/2008)

  1. INSTALL SKID CONTROL BUZZER ASSEMBLY
  2. INSTALL SKID CONTROL ECU
    1. Install the ECU with the 2 bolts.

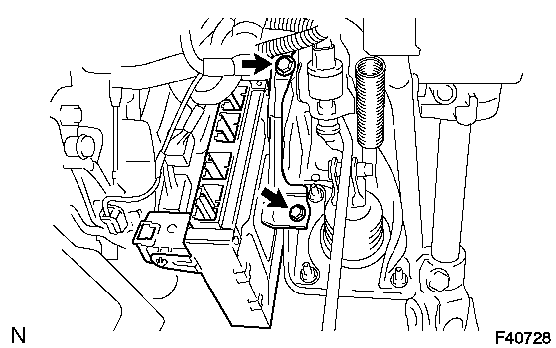

      Fig 1: Identifying Bolts And ECU
      GTY134313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 6.0 N*m ( 61 kgf*cm, 53 in.*lbf)

    2. Connect the ECU and skid control buzzer connectors.
  3. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIR BAG ASSEMBLY  . Refer to INSTALLATION - Step 1
  4. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 26
  5. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION - Step 27
  6. INSTALL DOOR SCUFF PLATE ASSEMBLY LH  . Refer to INSTALLATION - Step 29
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  8. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  9. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light. Refer to DIAGNOSIS SYSTEM .
  10. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
    1. Perform the yaw rate sensor zero point calibration. Refer to CALIBRATION .
  11. CHECK VSC SENSOR SIGNAL
    1. Check the VSC sensor signal. Refer to TEST MODE PROCEDURE .
