Ground Point: Notes

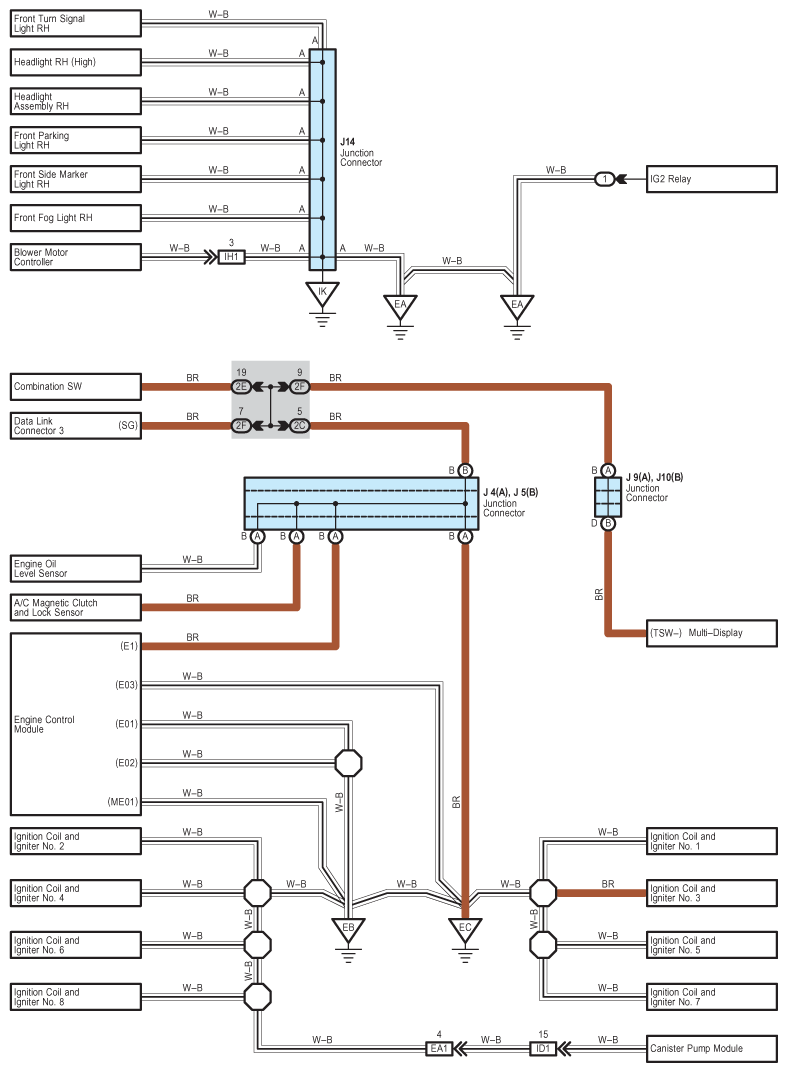

Fig 1: Ground Point - Wiring Diagram (1 Of 5)
G07607836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

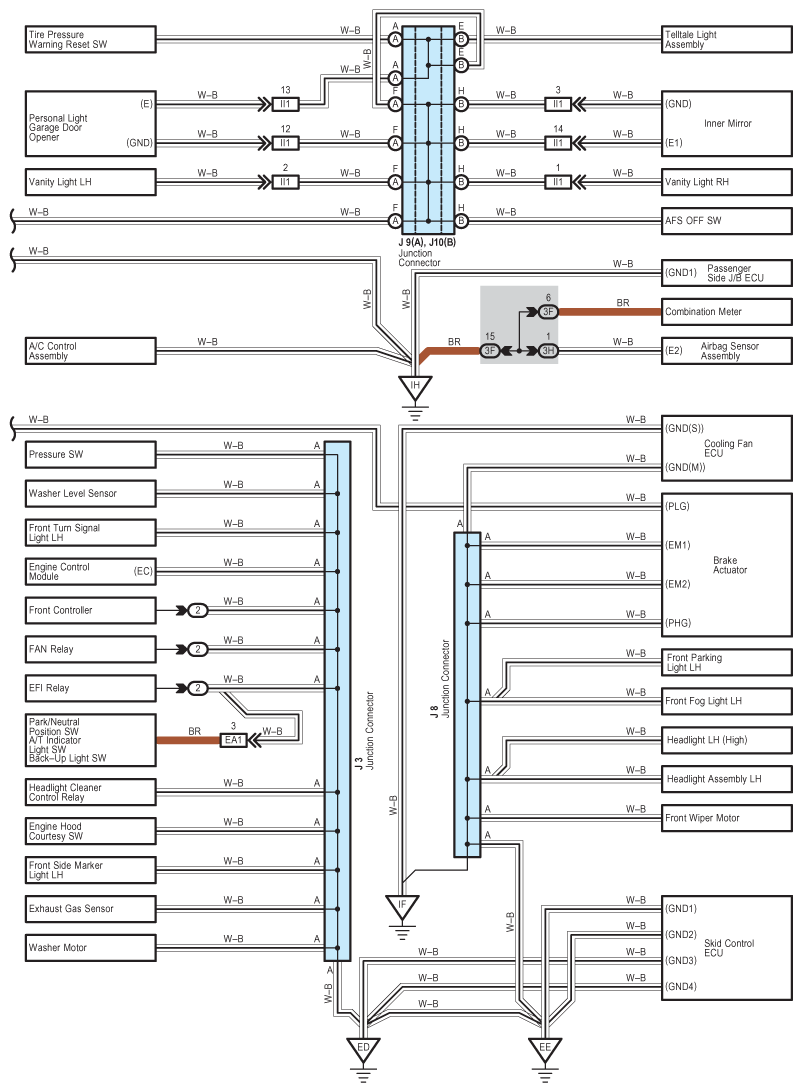

Fig 2: Ground Point - Wiring Diagram (2 Of 5)
G07607837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

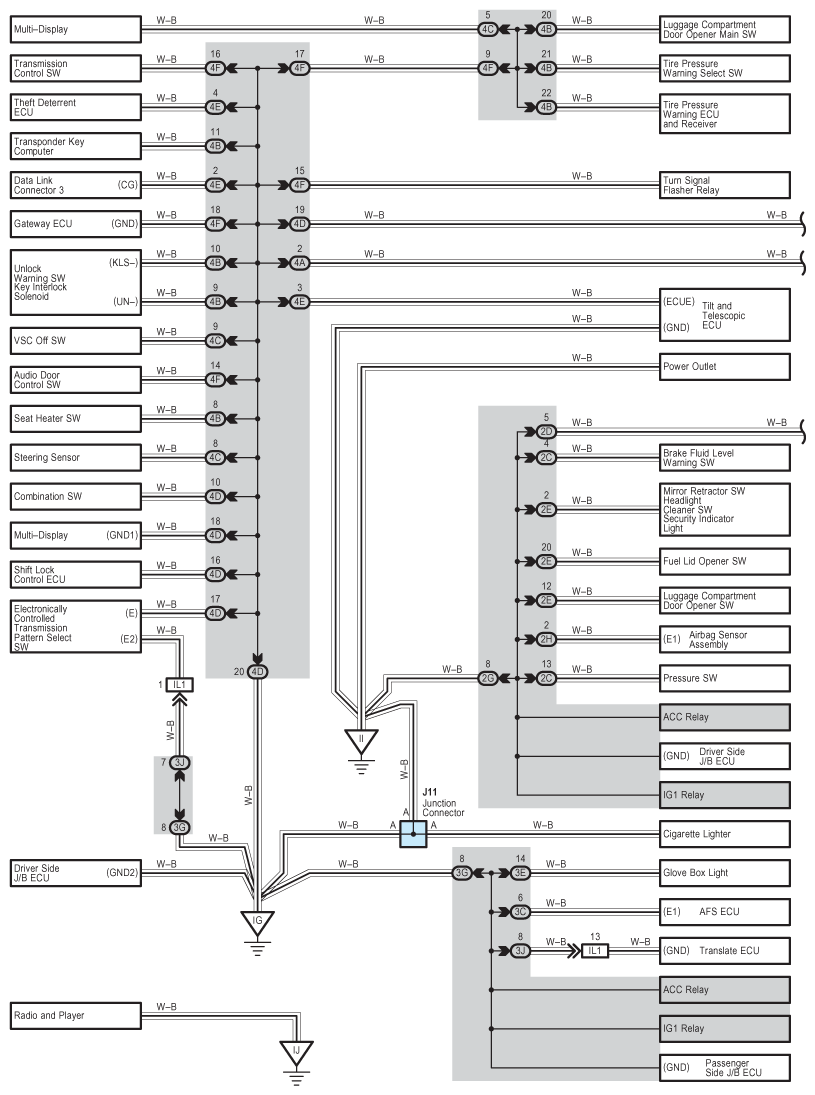

Fig 3: Ground Point - Wiring Diagram (3 Of 5)
G07607838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

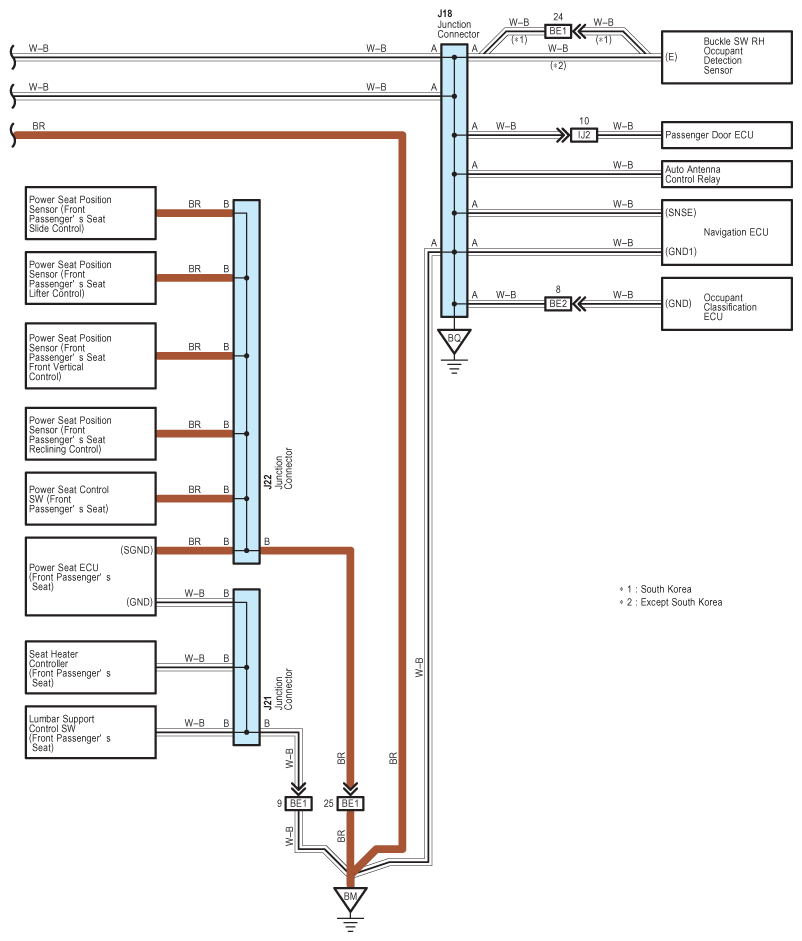

Fig 4: Ground Point - Wiring Diagram (4 Of 5)
G07607839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

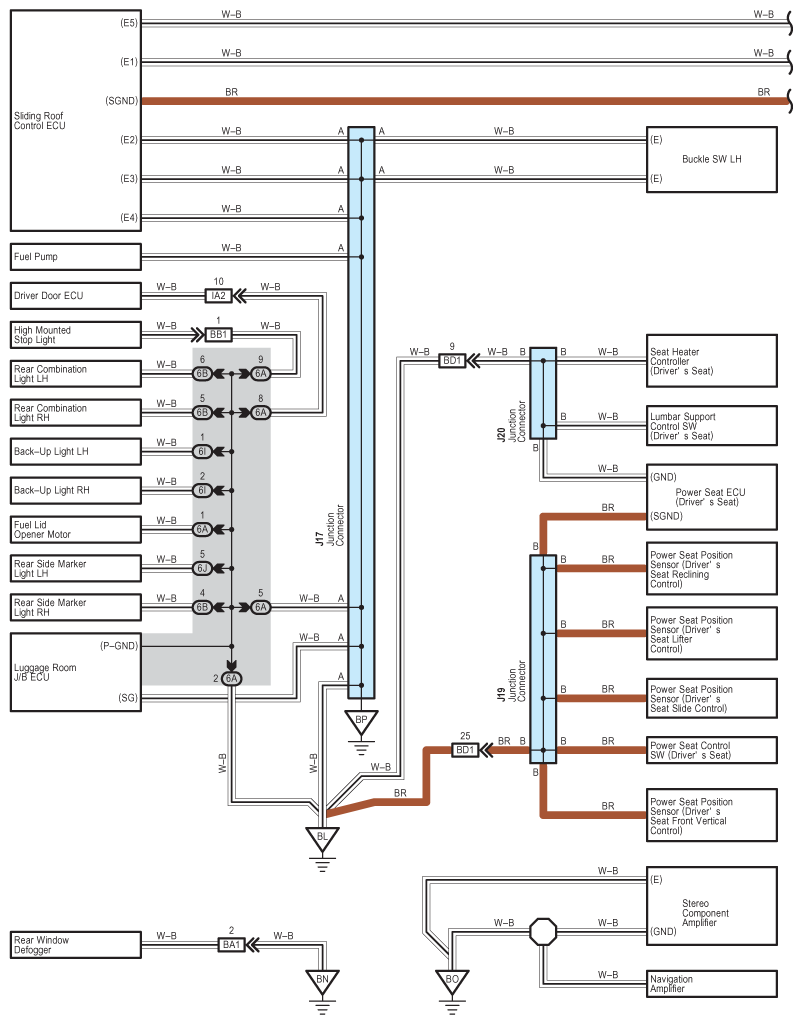

Fig 5: Ground Point - Wiring Diagram (5 Of 5)
G07607840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
