POWER SOURCE (Current Flow Chart)

The chart below shows the route by which current flows from the battery to each electrical source (Fusible Link, Circuit Breaker, Fuse, etc.) and other Parts.

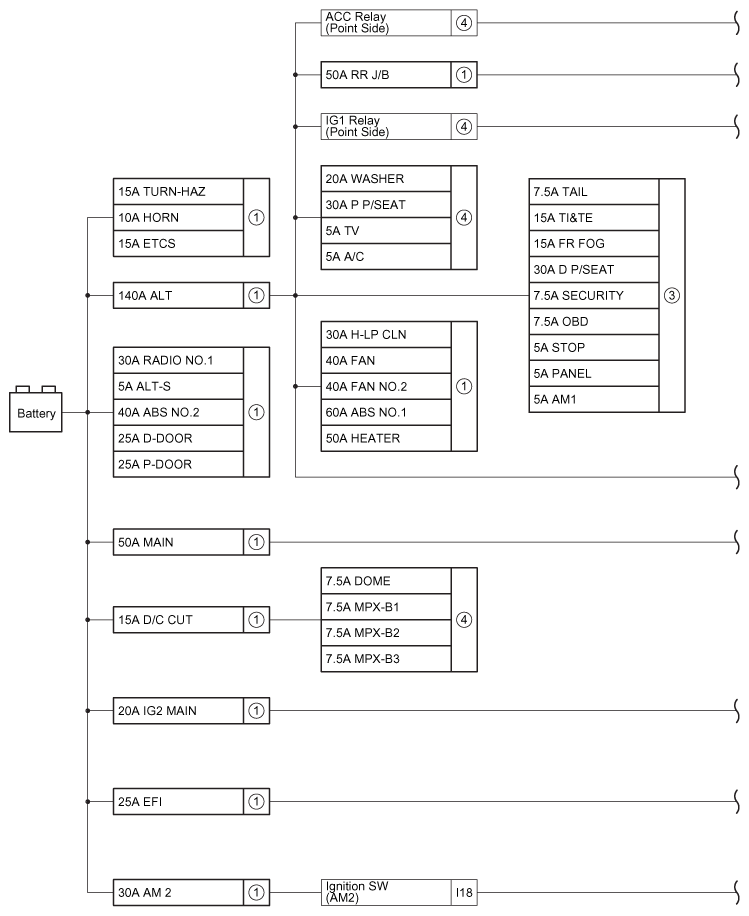

Fig 1: Power Source Current Flow Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

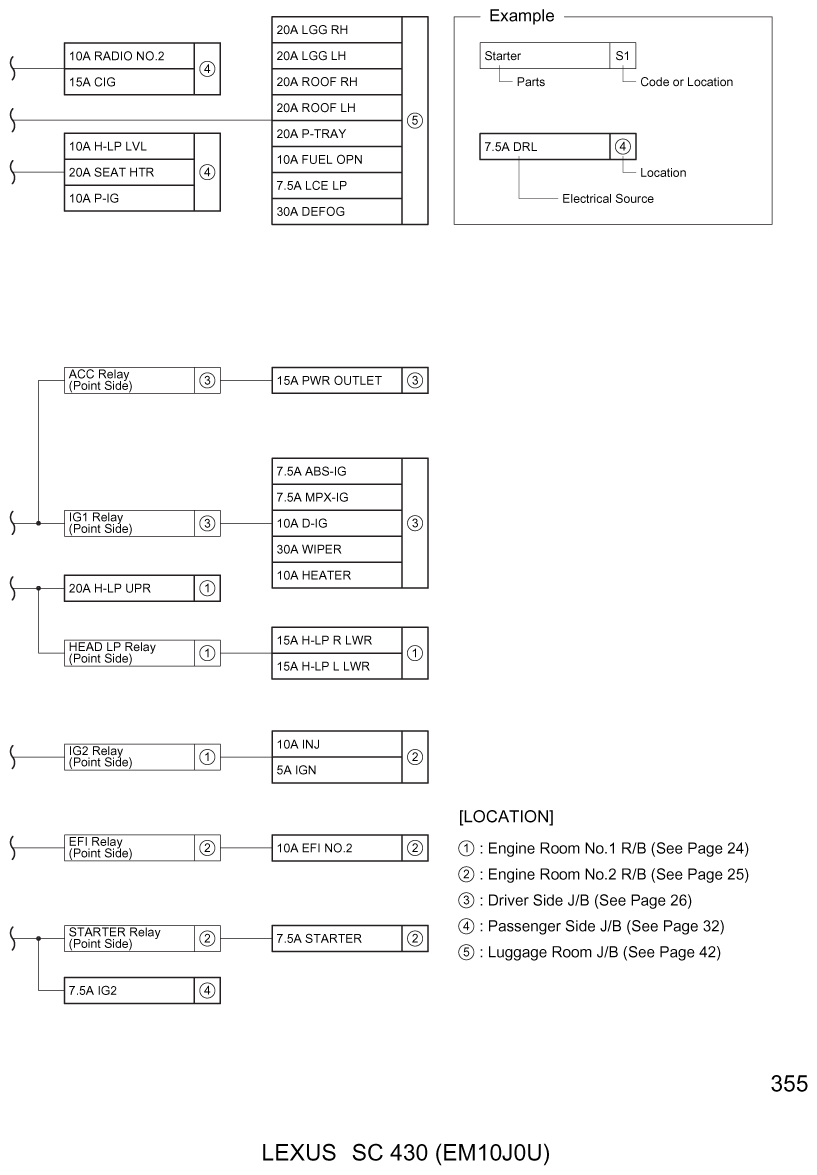

Fig 2: Power Source Current Flow Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
