Luggage Compartment Door Opener: Notes

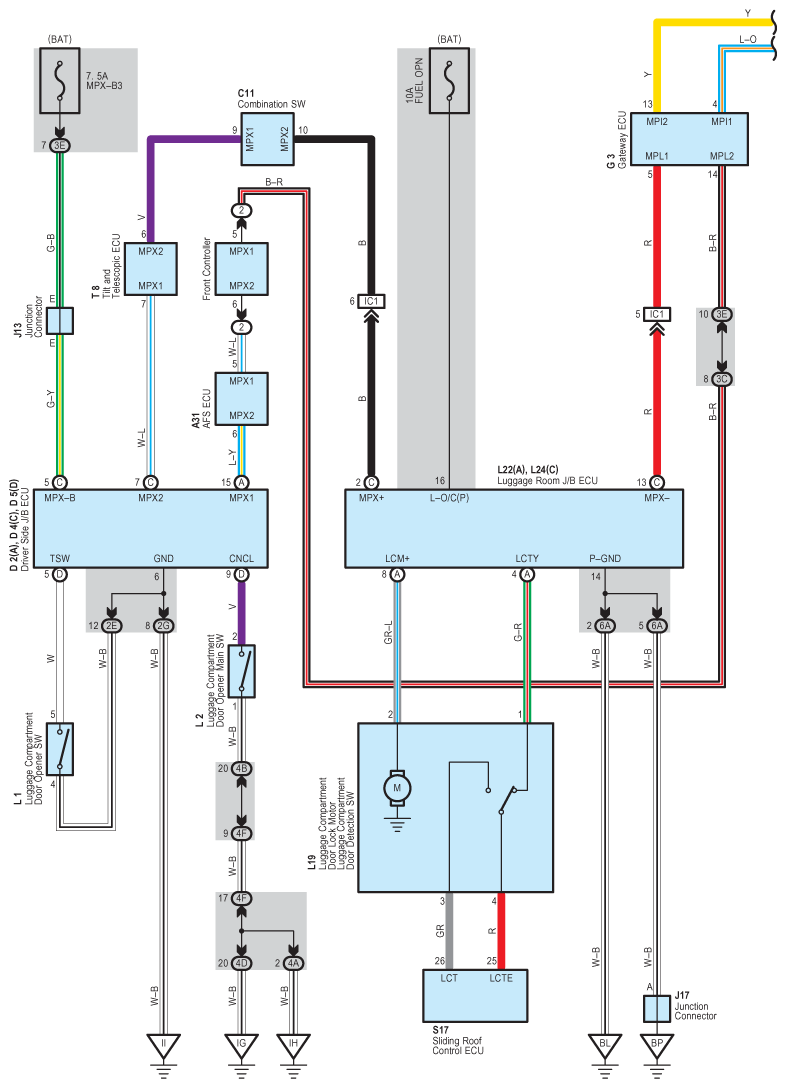

Fig 1: Luggage Compartment Door Opener - Circuit Diagram (1 Of 2)
G07607754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

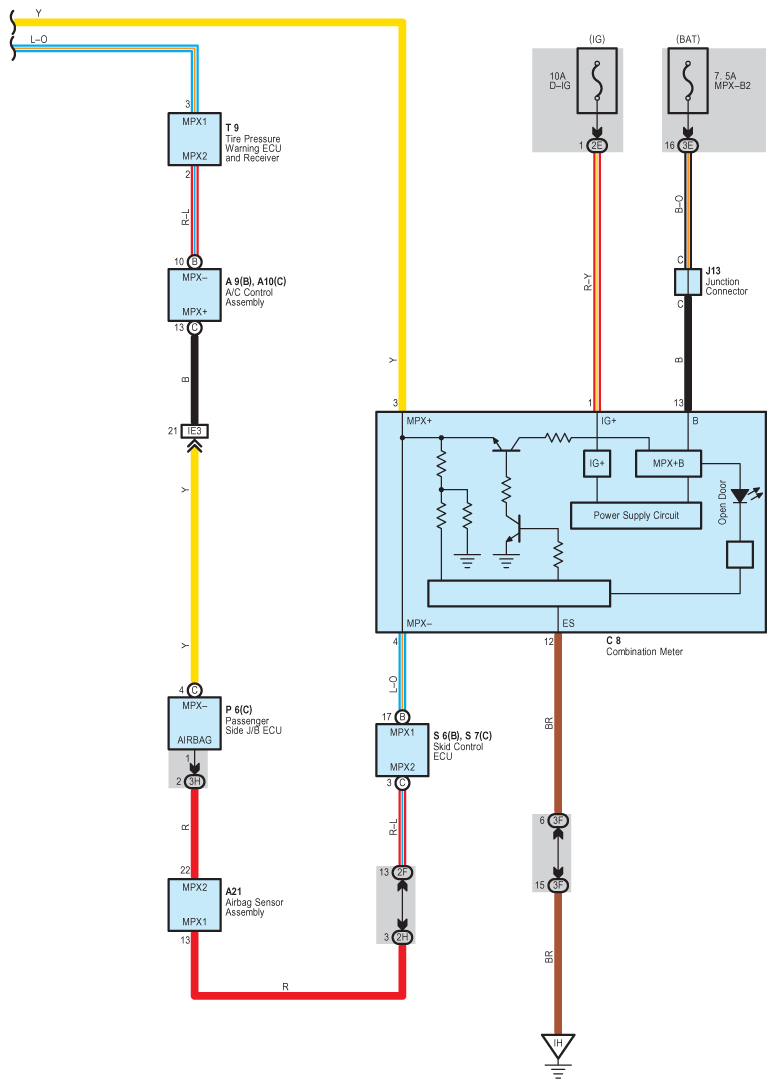

Fig 2: Luggage Compartment Door Opener - Circuit Diagram (2 Of 2)
G07607755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
