Fuel Pump Resistor: Inspection: Inspection

  1. INSPECT FUEL PUMP RESISTOR

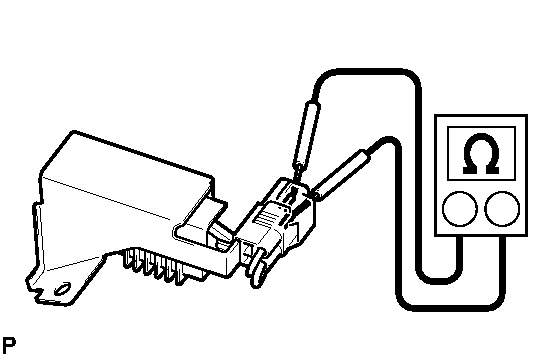

    Fig 1: Measuring Resistance Between Terminals
    GTY143181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance between the terminals.

      Standard resistance

      0.53 to 0.57 Ω at 20°C (68°F)

      If the result is not as specified, replace the fuel pump resistor.
