Ignition Switch: Inspection: Inspection
- INSPECT IGNITION SWITCH ASSEMBLY

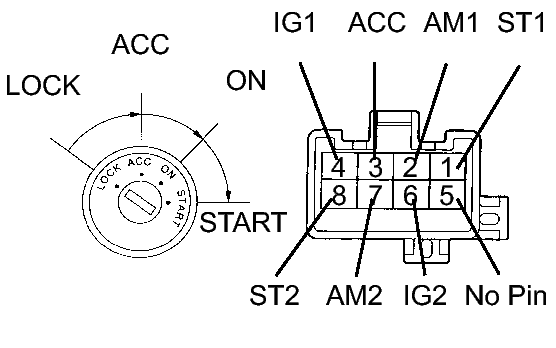

- Measure the resistance of the switch.
Standard resistance
Tester Connection Switch Position Specified Condition - LOCK 10 kΩ or higher 2 (AM1) - 3 (ACC) ACC Below 1 Ω 2 (AM1) - 3 (ACC)
3 (ACC) - 4 (IG1)
6 (IG2) - 7 (AM2)ON Below 1 Ω 1 (ST1) - 2 (AM1)
2 (AM1) - 4 (IG1)
6 (IG2) - 7 (AM2)
7 (AM2) - 8 (ST2)START Below 1 Ω If the result is not as specified, replace the switch assembly.
- Measure the resistance of the switch.
