Installation (To 10/2008): Installation

  1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
    1. Install a new O-ring to the oil control valve.

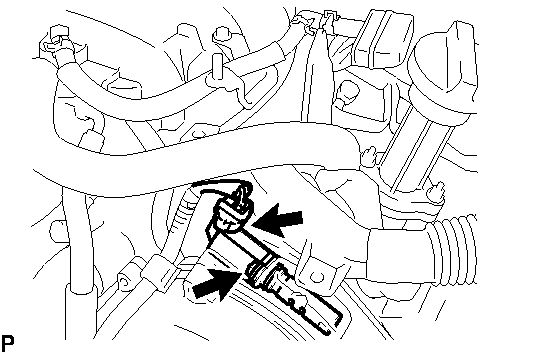

      Fig 1: Locating Bolt And Oil Control Valve
      GTY145240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil control valve with the bolt.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    3. Connect the oil control valve connector.
    4. Connect the engine wire protector with the 2 bolts.

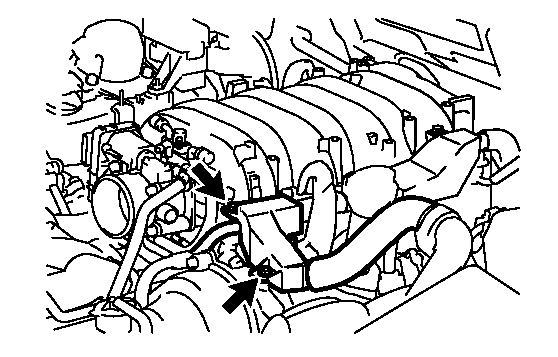

      Fig 2: Locating Wire Harness With Bolts
      GTY146082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  2. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
    1. Install a new O-ring to the oil control valve.

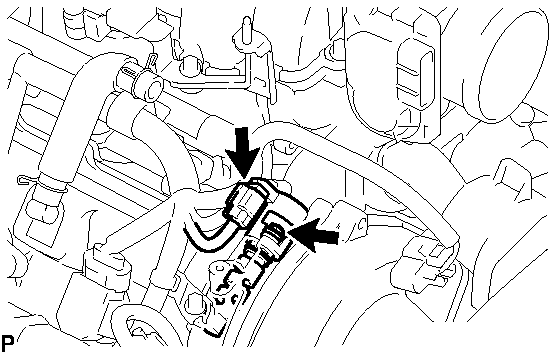

      Fig 3: Locating Bolt And Oil Control Valve
      GTY143205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil control valve with the bolt.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    3. Connect the oil control valve connector.
  3. INSTALL INTAKE AIR CONNECTOR PIPE
    1. Connect the air hose and ventilation hose.
    2. Install the bolt and intake air connector pipe with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Tighten the 2 hose clamps.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  4. INSTALL V-BANK COVER
    1. Install the cover with the 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.



  1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
    1. Install a new O-ring to the oil control valve.
      Fig 1: Locating Bolt And Oil Control Valve
      GTY145240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil control valve with the bolt.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    3. Connect the oil control valve connector.
    4. Connect the engine wire protector with the 2 bolts.
      Fig 2: Locating Wire Harness With Bolts
      GTY146082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  2. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
    1. Install a new O-ring to the oil control valve.
      Fig 3: Locating Bolt And Oil Control Valve
      GTY143205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil control valve with the bolt.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    3. Connect the oil control valve connector.
  3. INSTALL INTAKE AIR CONNECTOR PIPE
    1. Connect the air hose and ventilation hose.
    2. Install the bolt and intake air connector pipe with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Tighten the 2 hose clamps.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  4. INSTALL V-BANK COVER
    1. Install the cover with the 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
