Fuel Tank: Components: Illustration

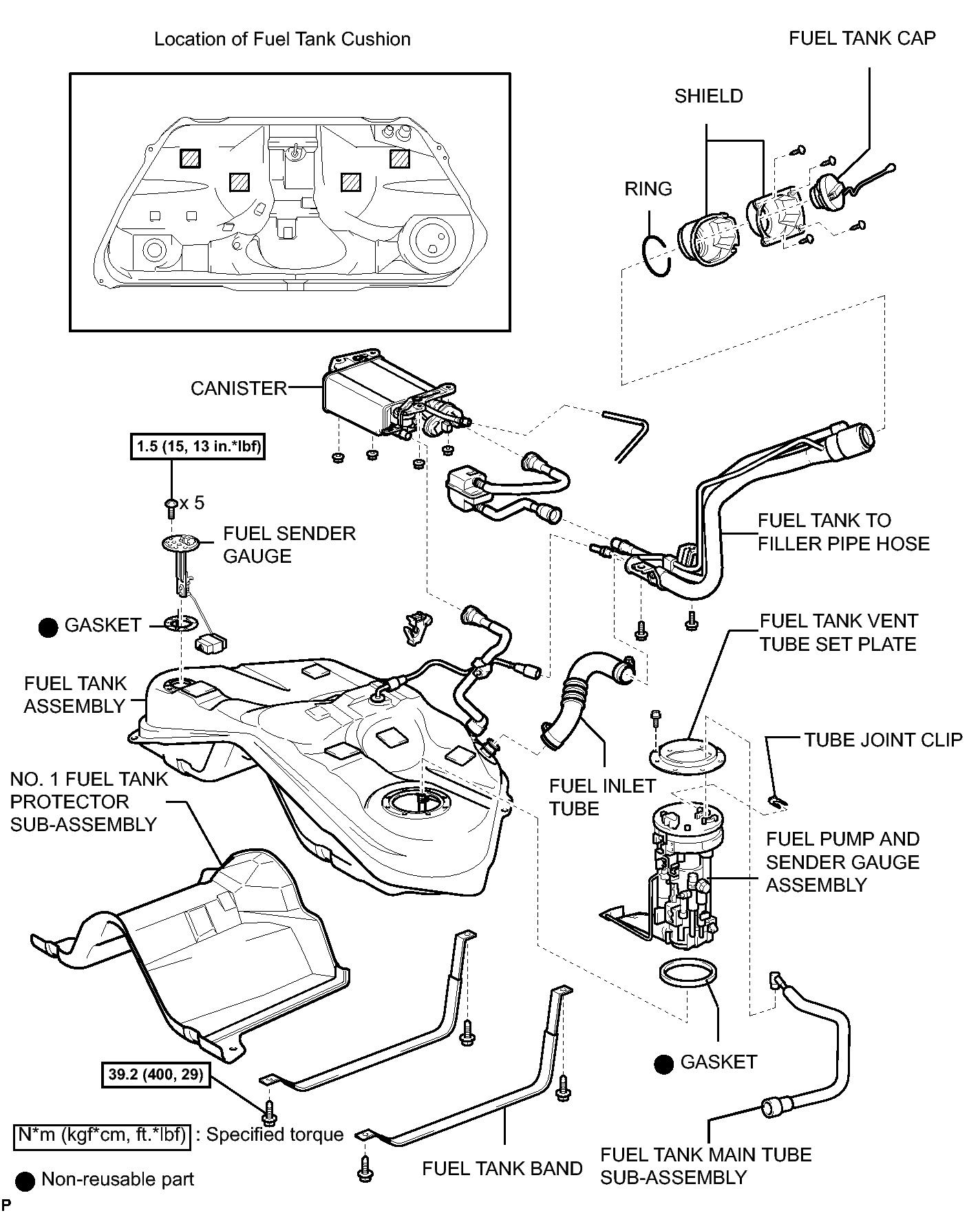

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications
GTY146162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
