Steering Column Assembly: Disassembly: Disassembly

REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
1. Place matchmarks on the No. 2 intermediate shaft and main shaft.

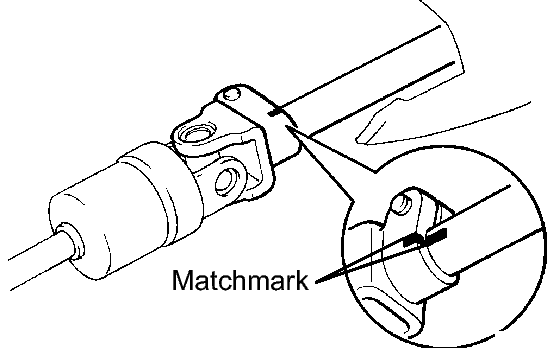

  Fig 1: Aligning Matchmarks On Intermediate Shaft And Main Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and No. 2 intermediate shaft.
REMOVE TRANSPONDER KEY COIL

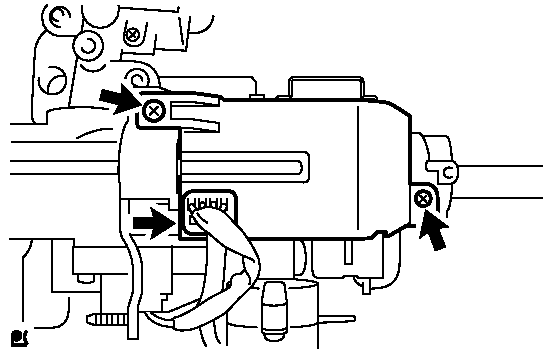

Fig 2: Identifying Ignition Protector Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and ignition protector.
2. Disconnect the connector.
3. Remove the screw and transponder key coil, key cylinder light.

  Fig 3: Identifying Transponder Key Coil Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING COLUMN BRACKET ASSEMBLY UPPER
1. Using a centering punch, mark the center of the 2 tapered-head bolts.

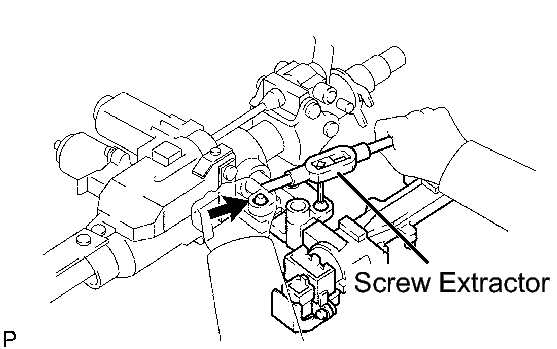

  Fig 4: Identifying Column Upper Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a 4 to 5 mm (0.16 to 0.20 in.) drill, drill into the 2 bolts.
3. Using a screw extractor, remove the 2 bolts and column upper bracket.
REMOVE KEY CYLINDER

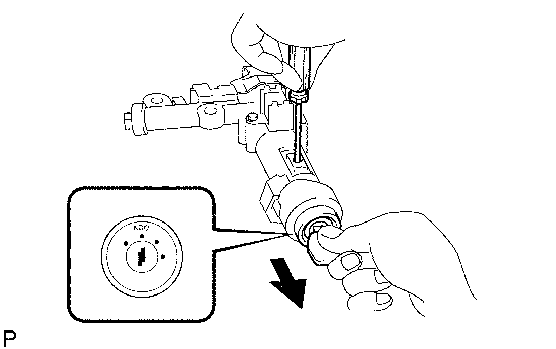

Fig 5: Identifying Down Stop Pin Of Cylinder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn the ignition switch to ACC.
2. Using a screwdriver, push down the stop pin of the cylinder, and pull out the key cylinder.
REMOVE KEY INTERLOCK SOLENOID

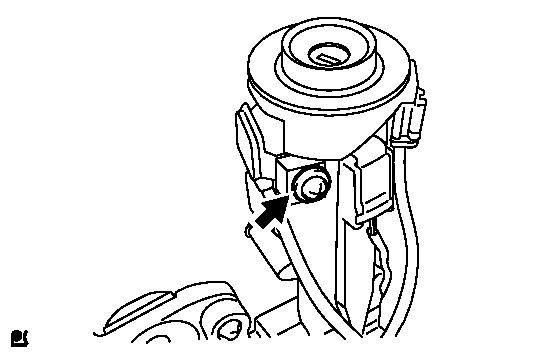

Fig 6: Identifying Key Interlock Solenoid Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and key unlock warning switch (with key interlock solenoid).
REMOVE TRANSPONDER KEY AMPLIFIER
1. Remove the screw and transponder key amplifier.
REMOVE IGNITION SWITCH ASSEMBLY

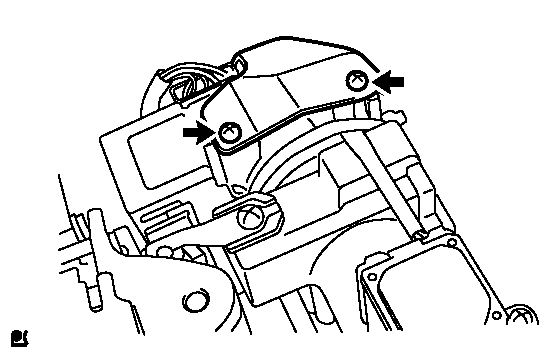

Fig 7: Identifying Ignition Switch Assembly Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and ignition switch.
REMOVE TILT STEERING SLIDER SUB-ASSEMBLY
1. Using a hexagon wrench, remove the 4 bolts, 2 washers and tilt steering slider.

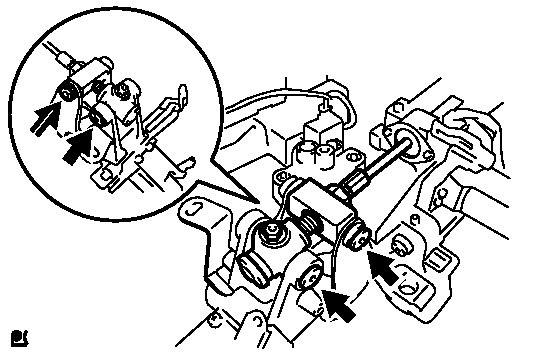

  Fig 8: Identifying Tilt Steering Slider Sub-Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bushes and 2 plates from the tilt steering slider.

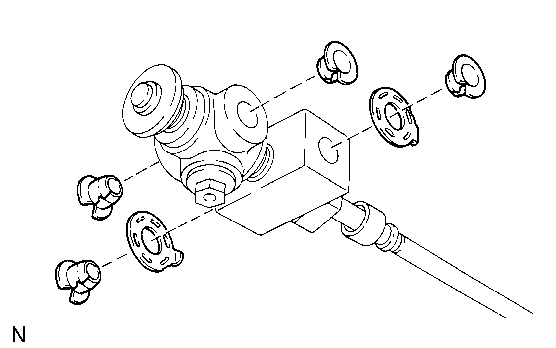

  Fig 9: Identifying Tilt Steering Slider Bushes And Plates
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTIPLEX TILT AND TELESCOPIC ECU

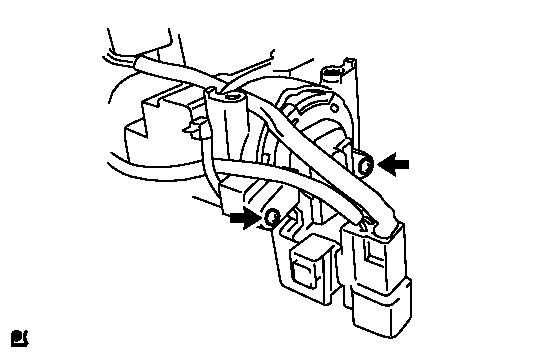

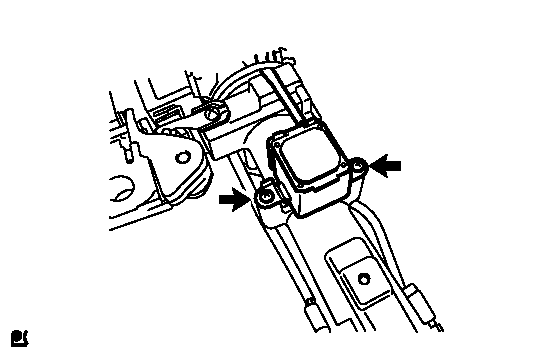

Fig 10: Identifying Multiplex Tilt And Telescopic ECU Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the connector.
2. Remove the 2 screws and ECU.
