Transmission Wire: Components: Illustration

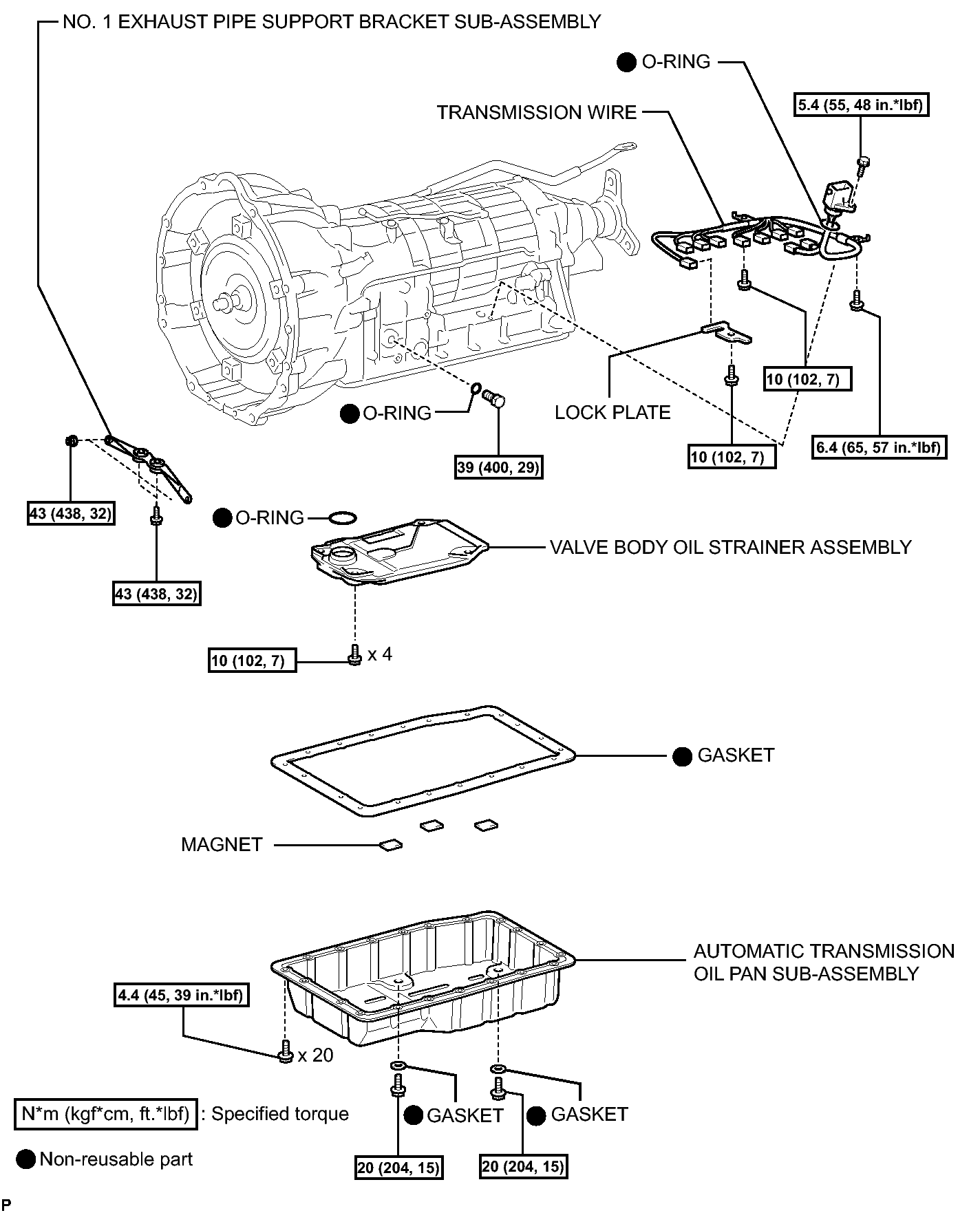

Fig 1: Identifying Transmission Wire Replacement Components With Torque Specifications
GTY113265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
