Circuit Opening Relay: Inspection: Inspection

  1. INSPECT CIRCUIT OPENING RELAY
    1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.

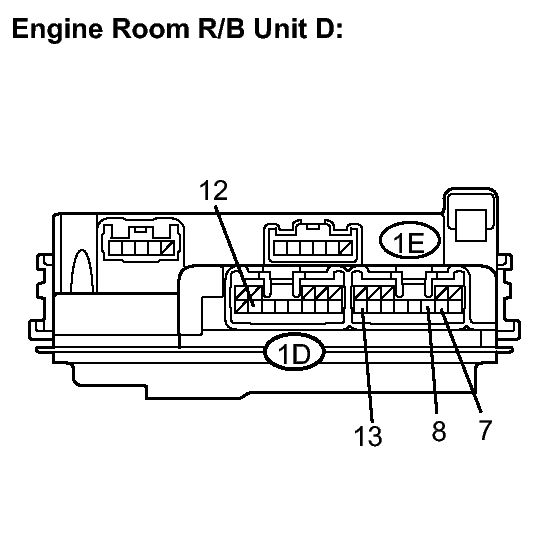

      Fig 1: Identifying Circuit Opening Relay Connector Terminals
      GTY134143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester connection Specified Condition
      1E-7 - 1E-13 10 kΩ or higher
      1E-7 - 1E-13 Below 1 Ω (Battery voltage applied between terminals 1E-8 and 1D-12)
