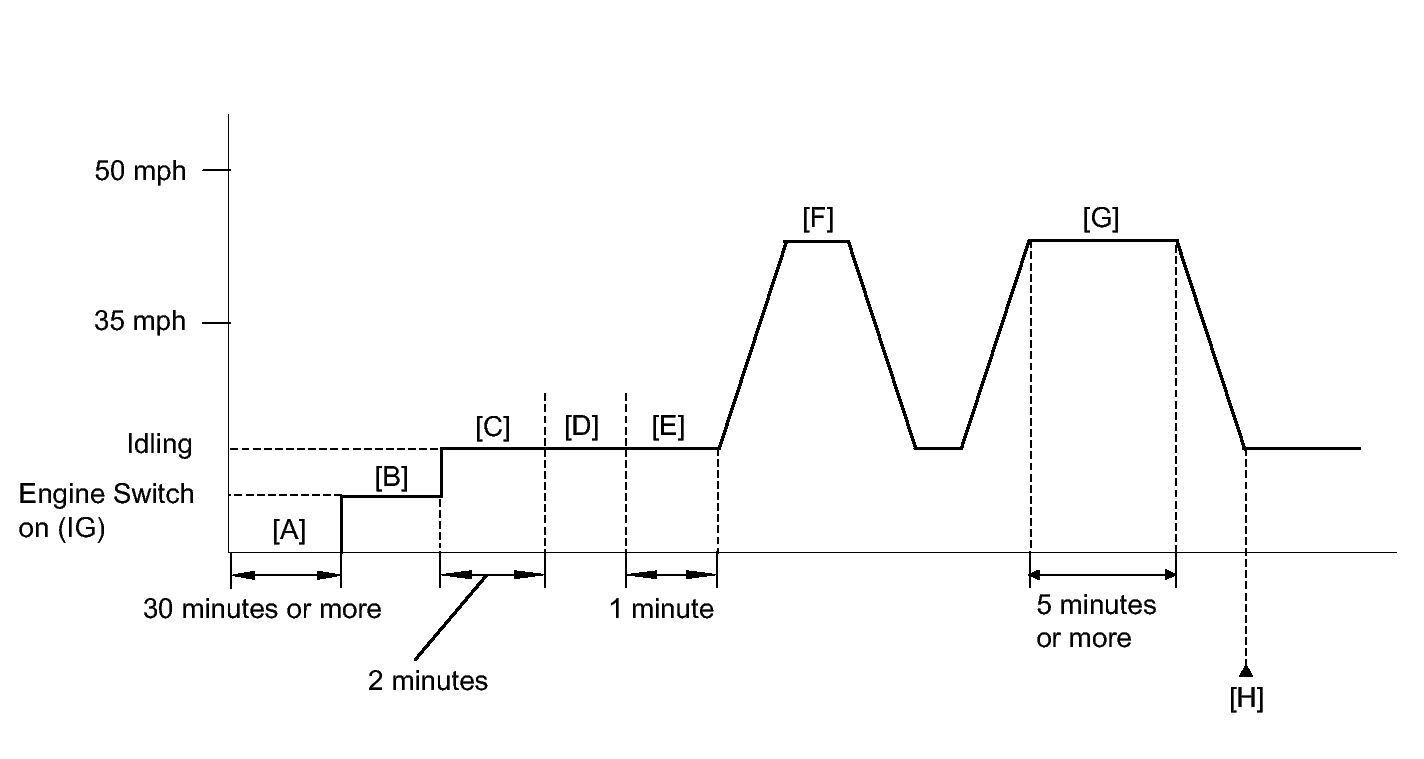

Confirmation Driving Pattern
- Stop the engine for 30 minutes or more [A].
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG) and turn the Techstream on.
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to DTC CHECK / CLEAR .
- Turn the engine switch off and wait for 30 seconds.
- Turn the engine switch on (IG) and turn the Techstream on [B].
- Start the engine, and wait 2 minutes [C].
- Warm up the engine until the engine coolant temperature is 75 °C (167 °F) or higher [D].
- Idle the engine for 1 minute [E].
- Accelerate the vehicle to 50 mph (80 km/h) and stop the vehicle [F].
- Drive the vehicle at 35 to 50 mph (56 to 80 km/h) for 5 minutes or more [G].
- Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
- Read the pending DTC [H].
- If a pending DTC is output, the system is malfunctioning.
HINT:
If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine / Utility / All Readiness.
- Input the DTC: P0607, P0136, P0137, P0138, P0156, P0157 or P0158.
- Check the DTC judgment result.
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
UNKNOWN - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
WARNING:When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] through [G].
- Enter the following menus: Powertrain / Engine / Utility / All Readiness.
- Check the judgment result.
HINT:
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to DTC CHECK / CLEAR
.
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
