VSC Off Switch: Installation: Installation

INSTALL VSC OFF SWITCH
1. Engage the 2 claws and install the VSC OFF switch to the No. 1 switch hole base.

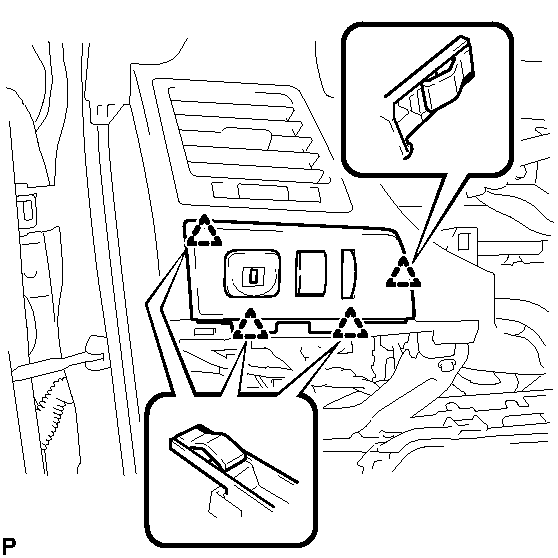

  Fig 1: Identifying VSC OFF Switch Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 claws and install the VSC OFF switch with No. 1 switch hole base to the lower instrument panel finish panel sub-assembly.

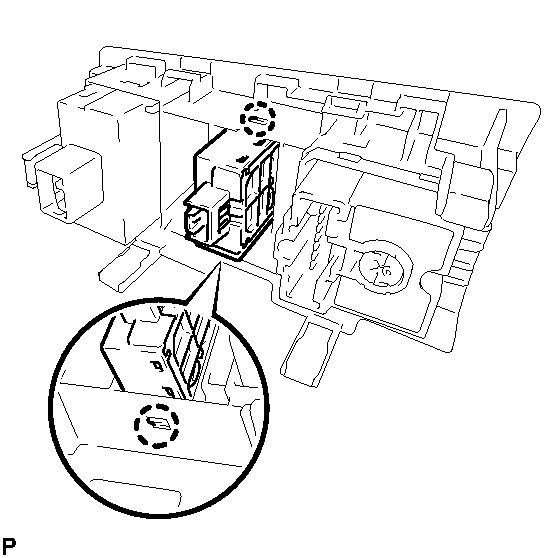

  Fig 2: Identifying VSC OFF Switch Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 44
INSTALL SIDE INSTRUMENT PANEL LH . Refer to INSTALLATION - Step 46
INSTALL FRONT DOOR OPENING TRIM COVER LH . Refer to INSTALLATION - Step 42
INSTALL FRONT DOOR SCUFF PLATE LH . Refer to INSTALLATION - Step 43
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
