Clock (w/ LEXUS Navigation System): Notes

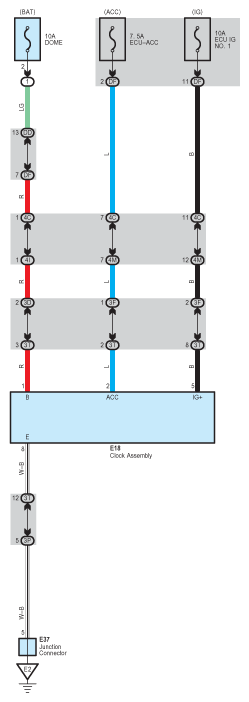

Fig 1: Clock (w/ Lexus Navigation System) - Circuit Diagram
G07550583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
