Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00441846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Vehicle Overview

G00441848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front Seats

G00441849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

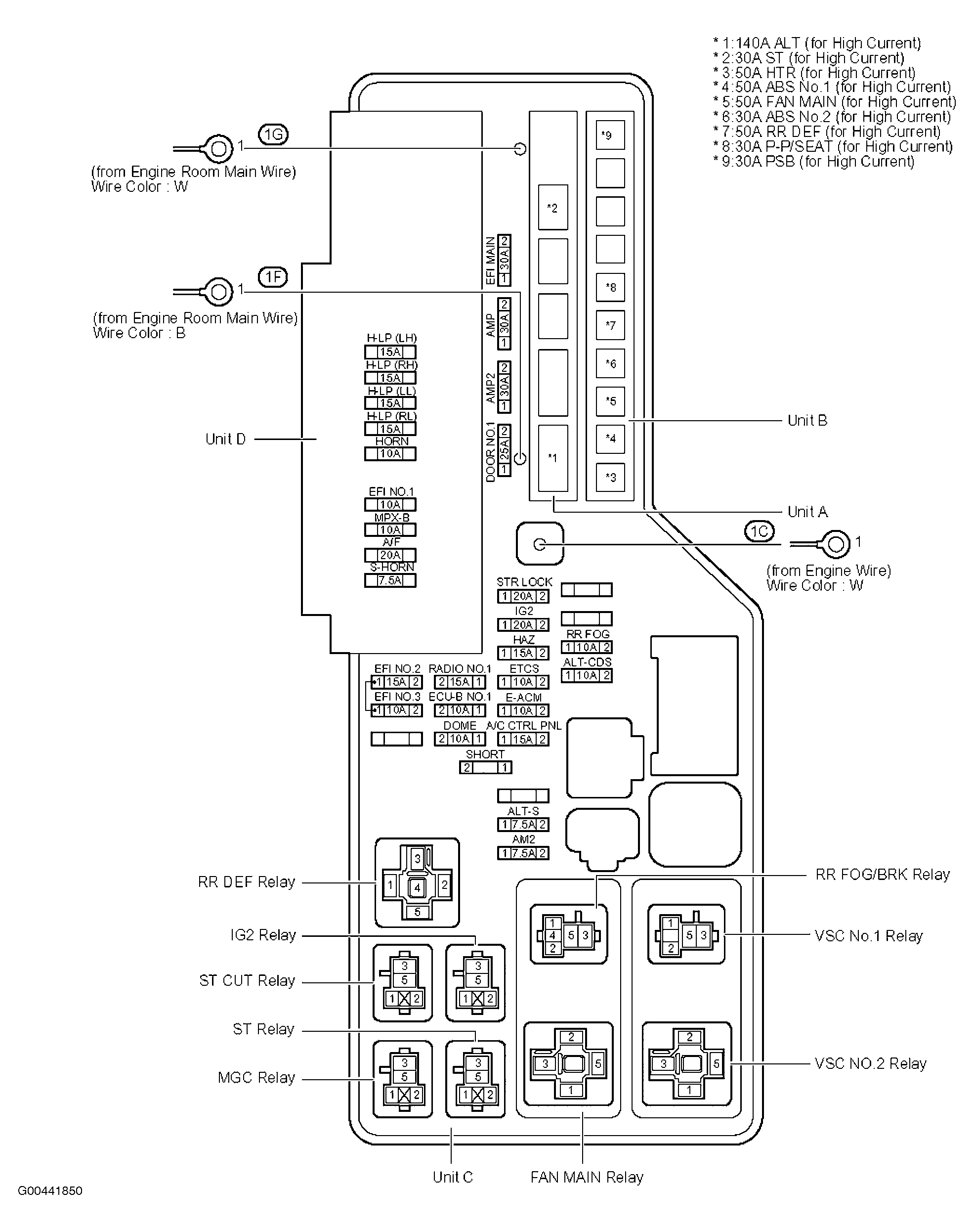

Fig 4: Engine Room R/B - J/B

G00441850

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

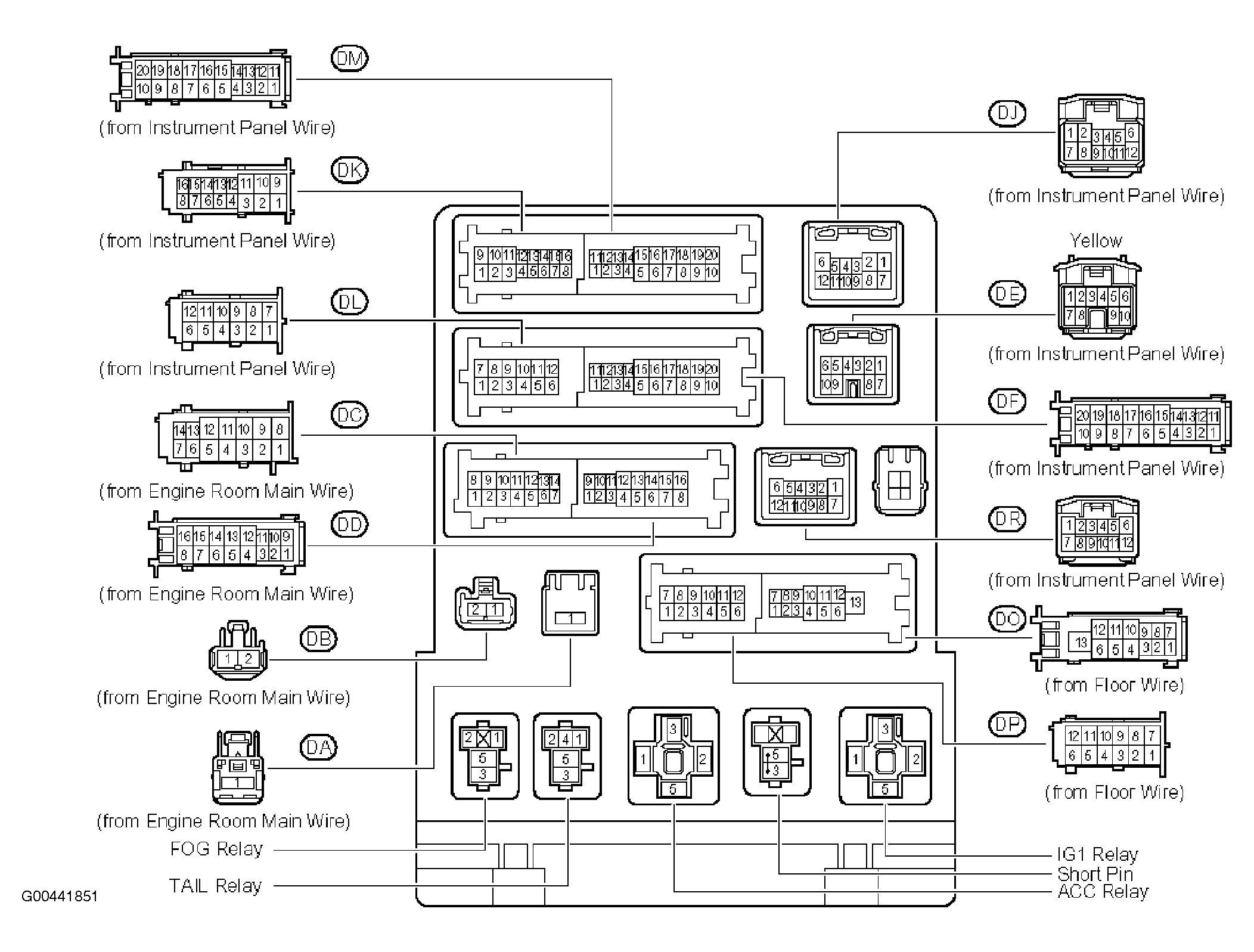

Fig 5: Instrument Panel J/B

G00441851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

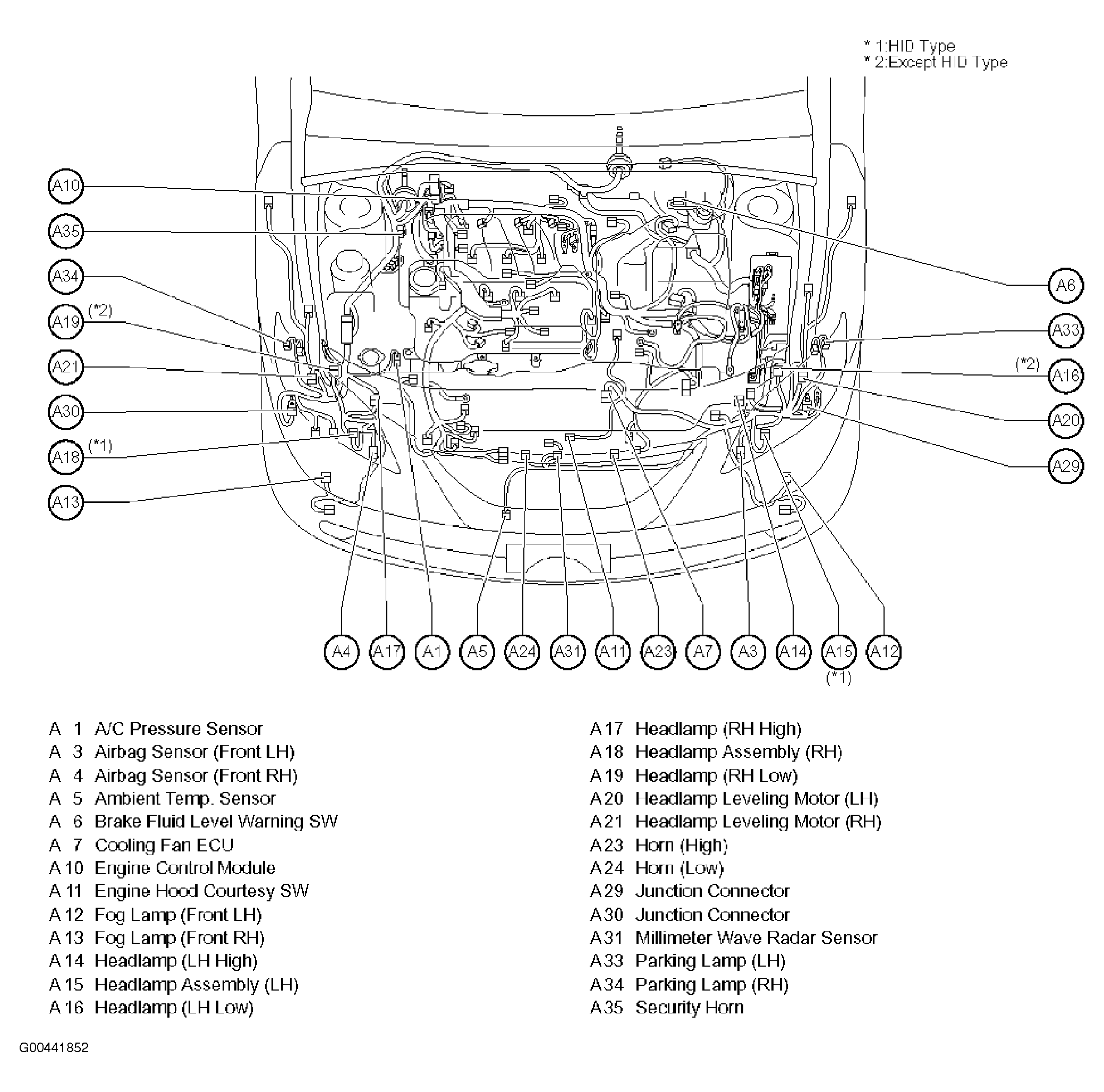

Fig 6: Engine Compartment

G00441852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

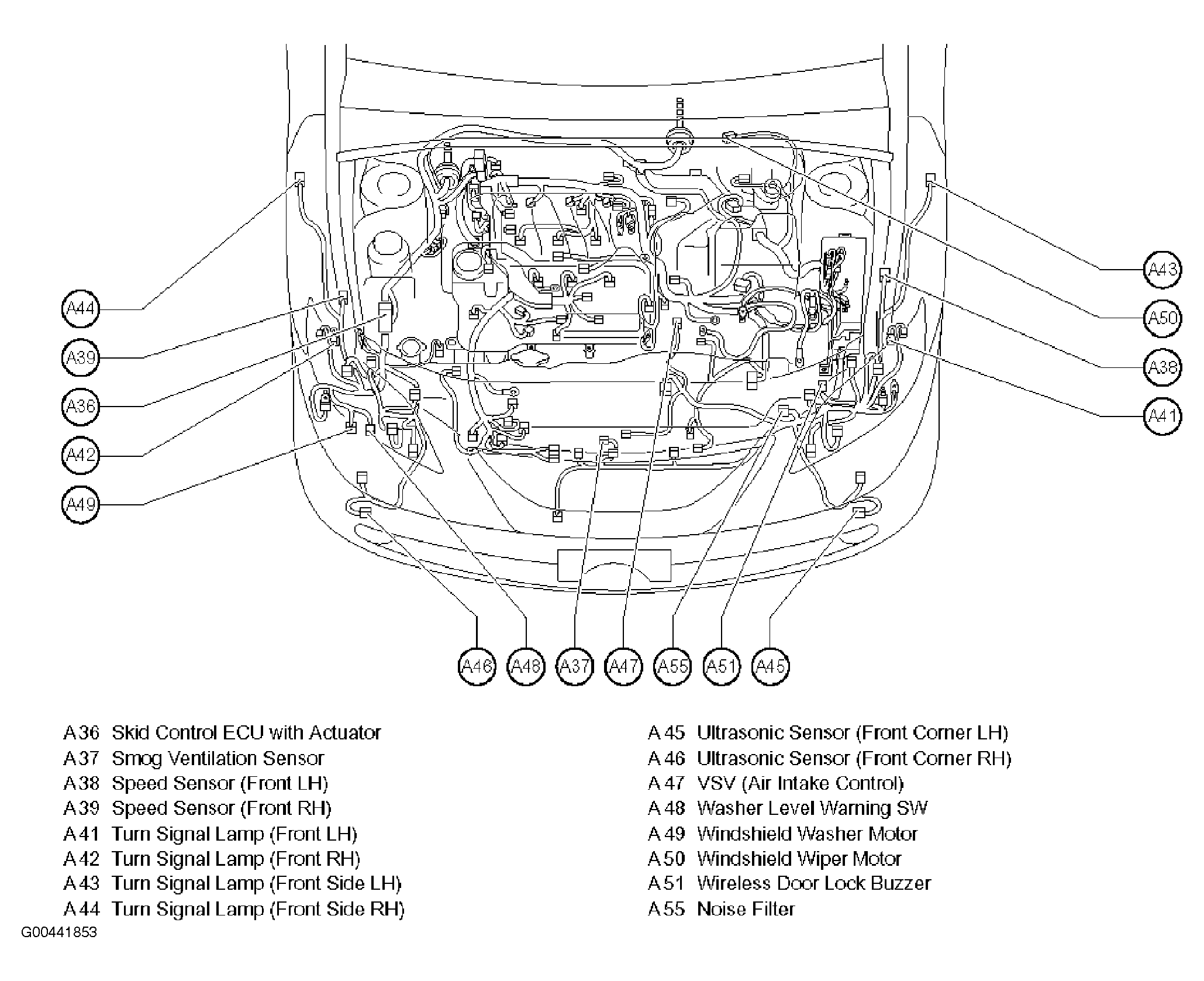

Fig 7: Engine Compartment

G00441853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

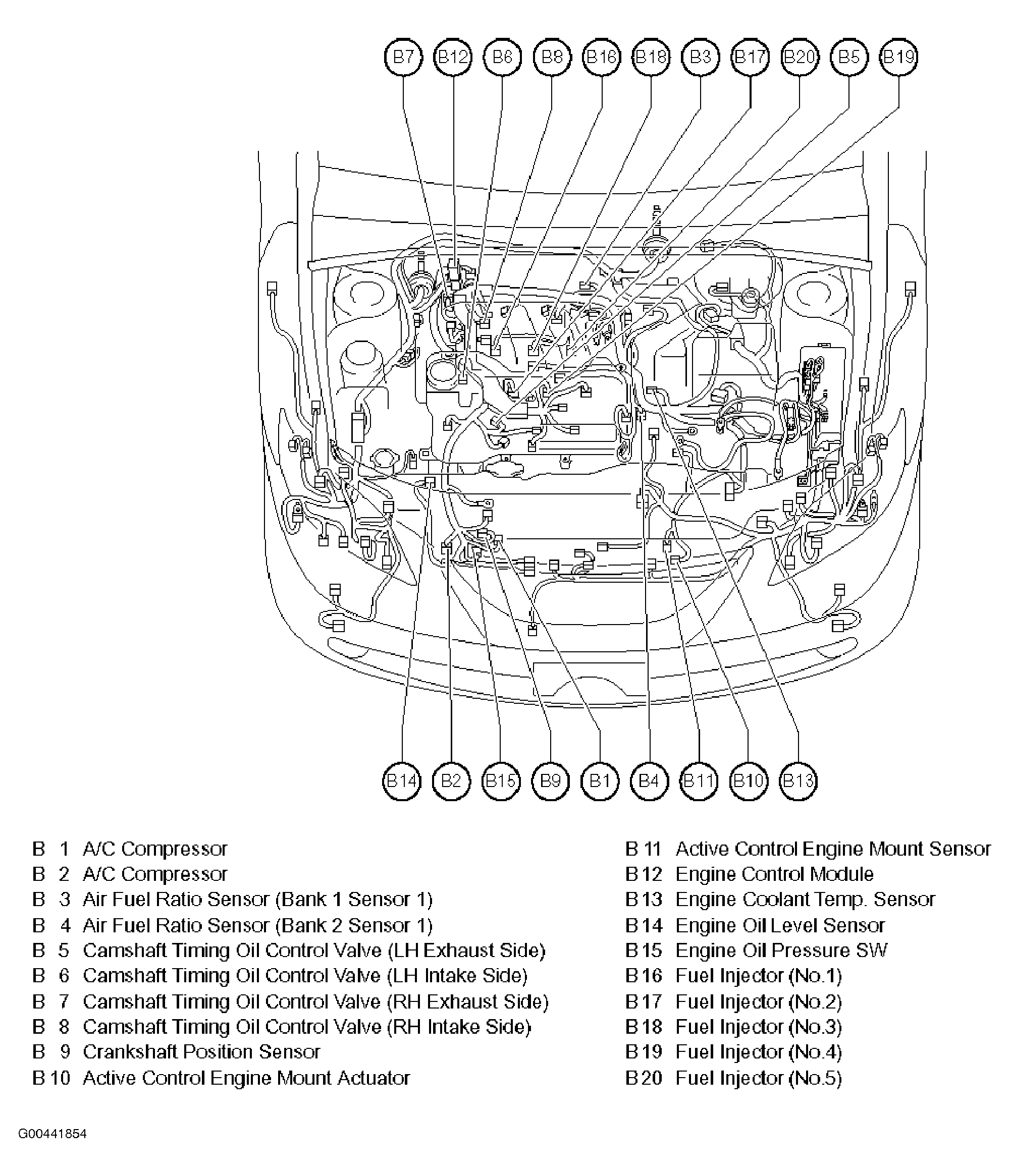

Fig 8: Engine Compartment

G00441854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

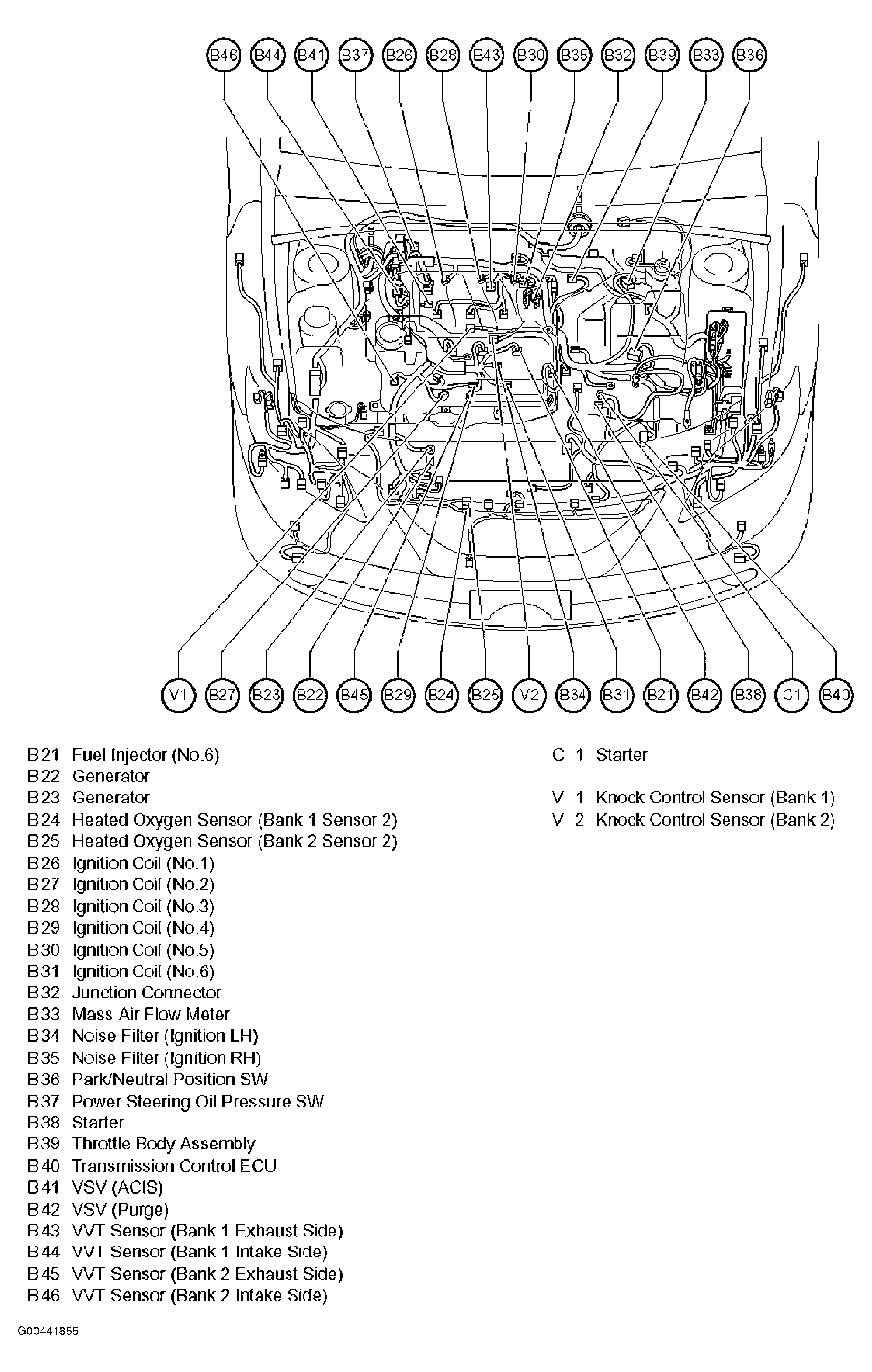

Fig 9: Engine Compartment

G00441855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

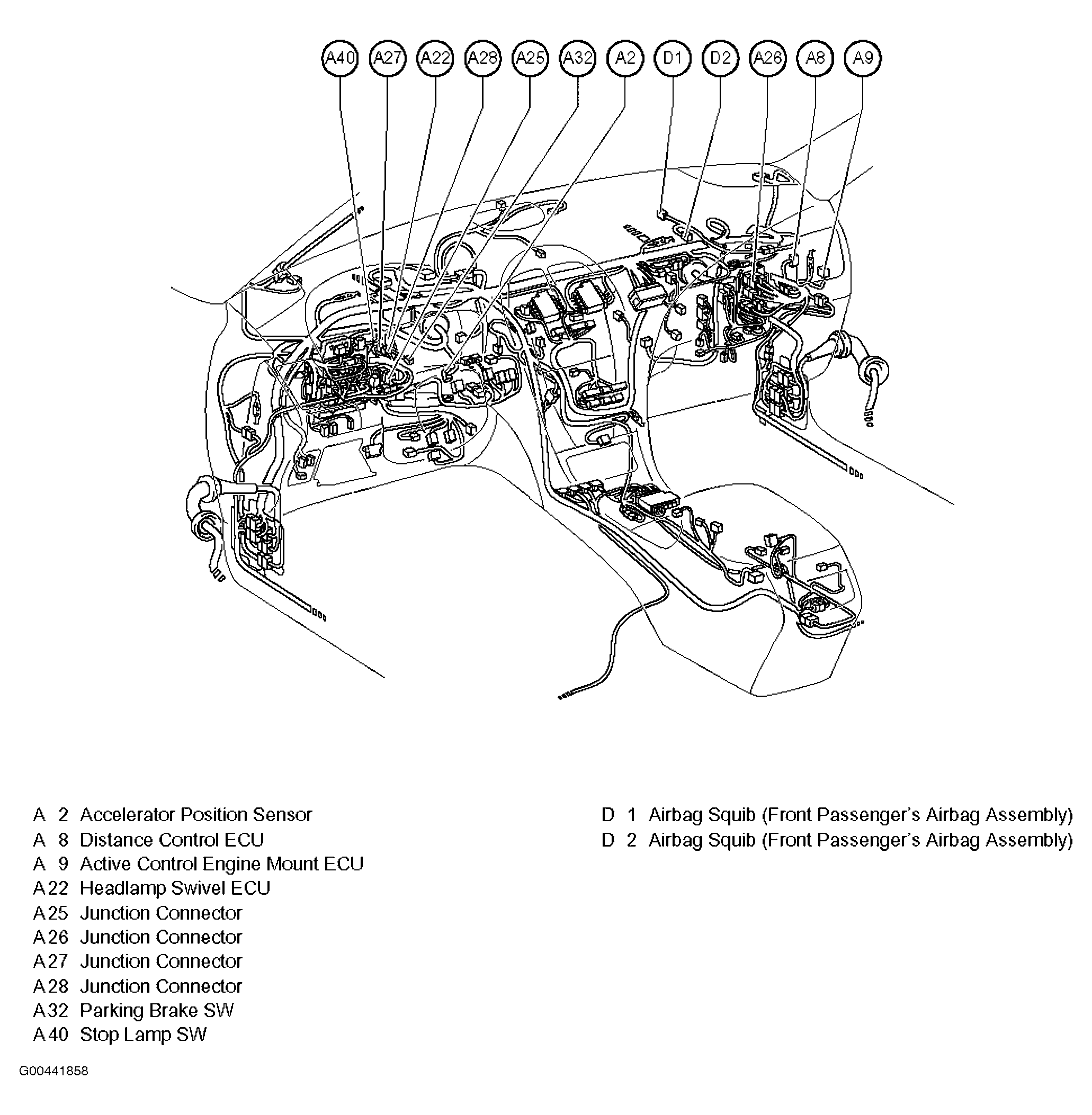

Fig 10: Dash & Center Console

G00441858

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

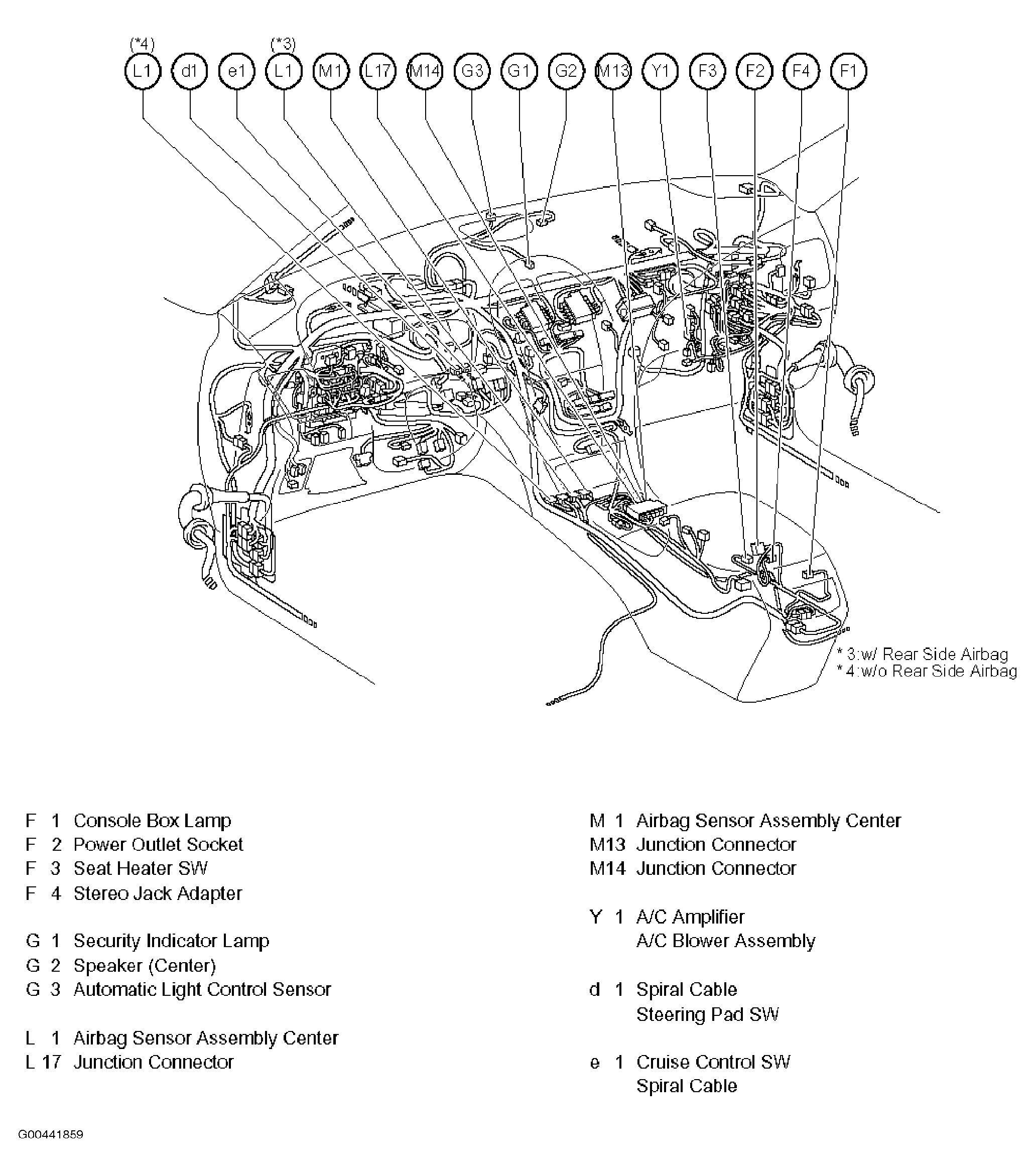

Fig 11: Dash & Center Console

G00441859

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

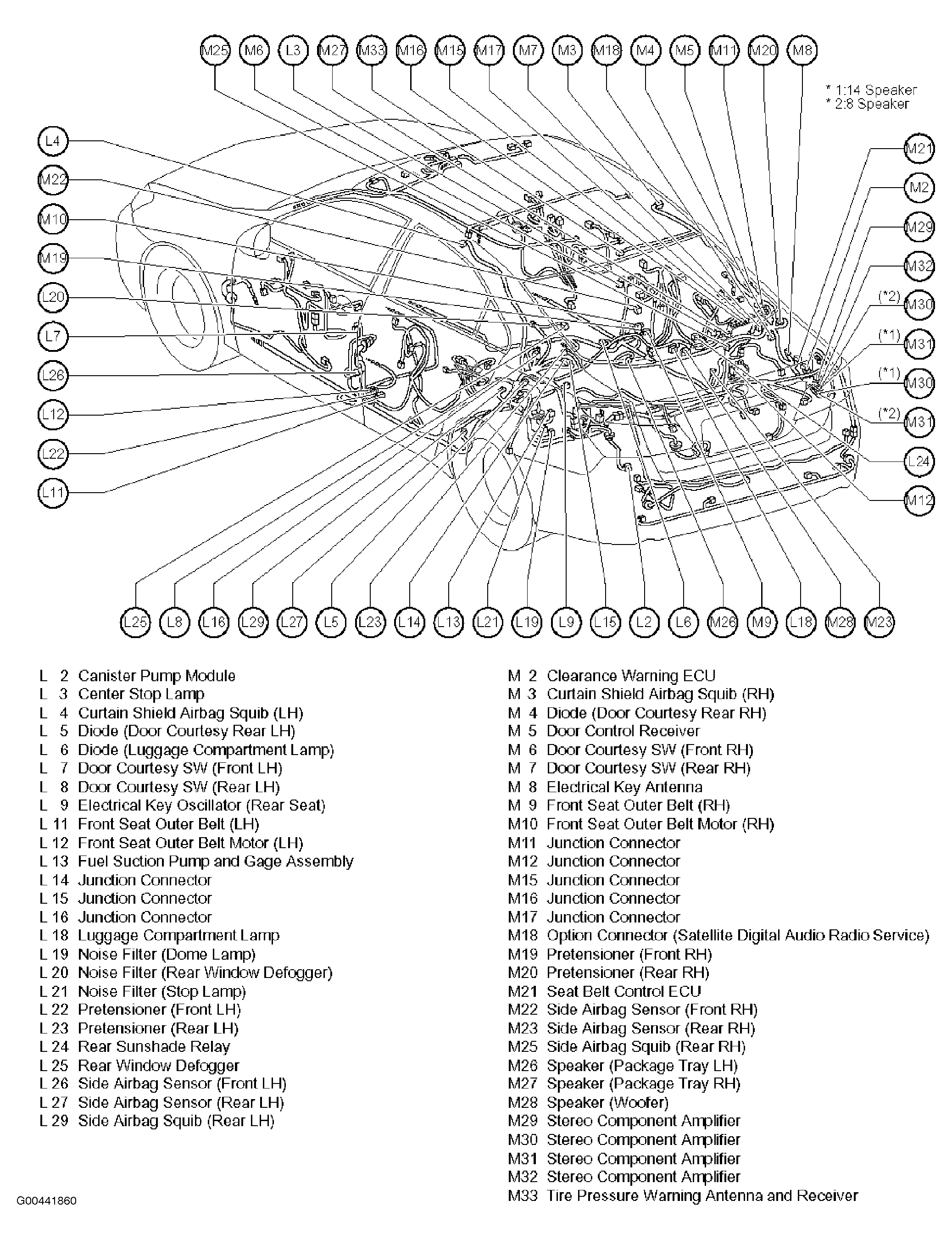

Fig 12: Vehicle Overview

G00441860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

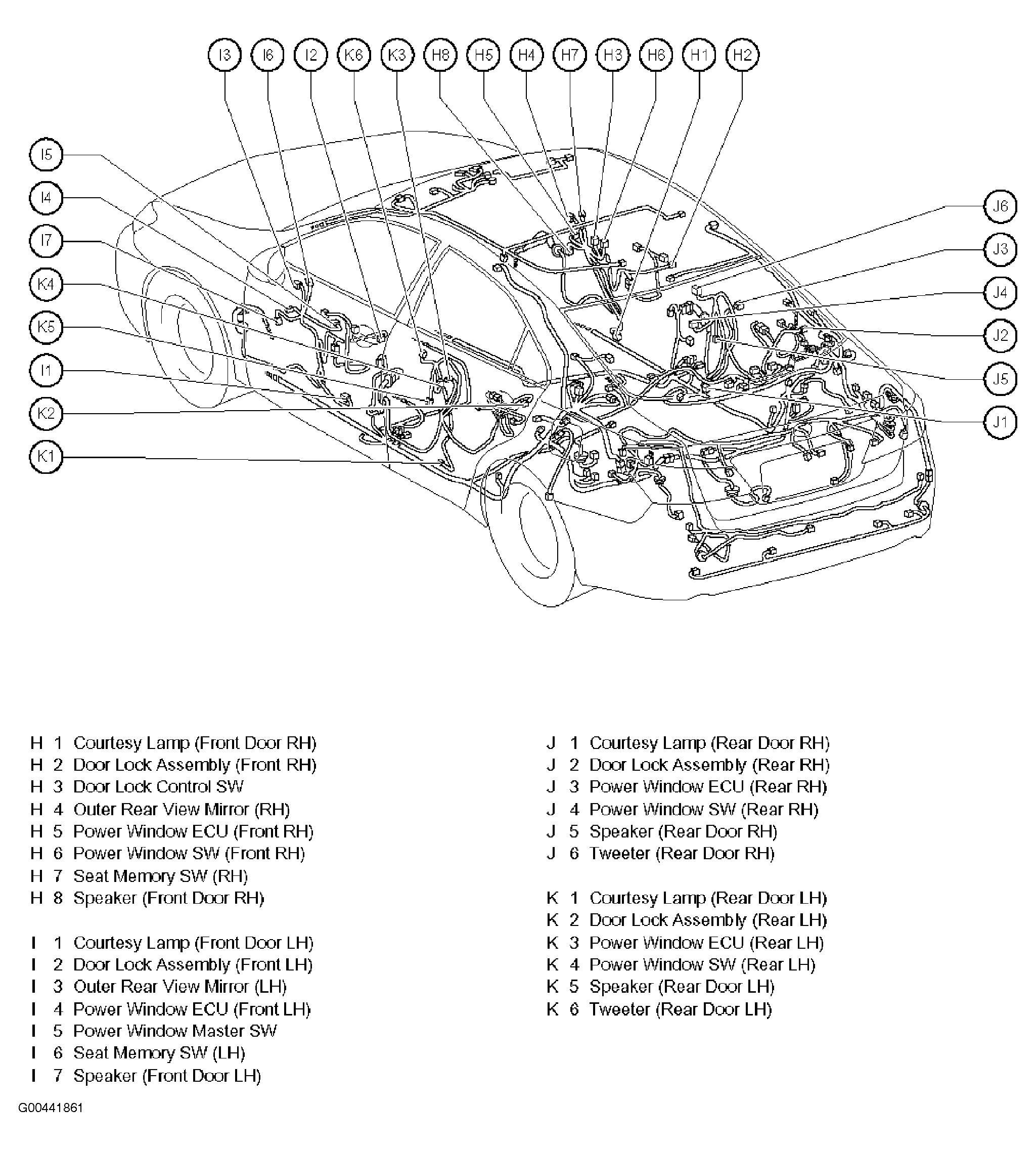

Fig 13: Vehicle Overview

G00441861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Vehicle Overview

G00441862

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

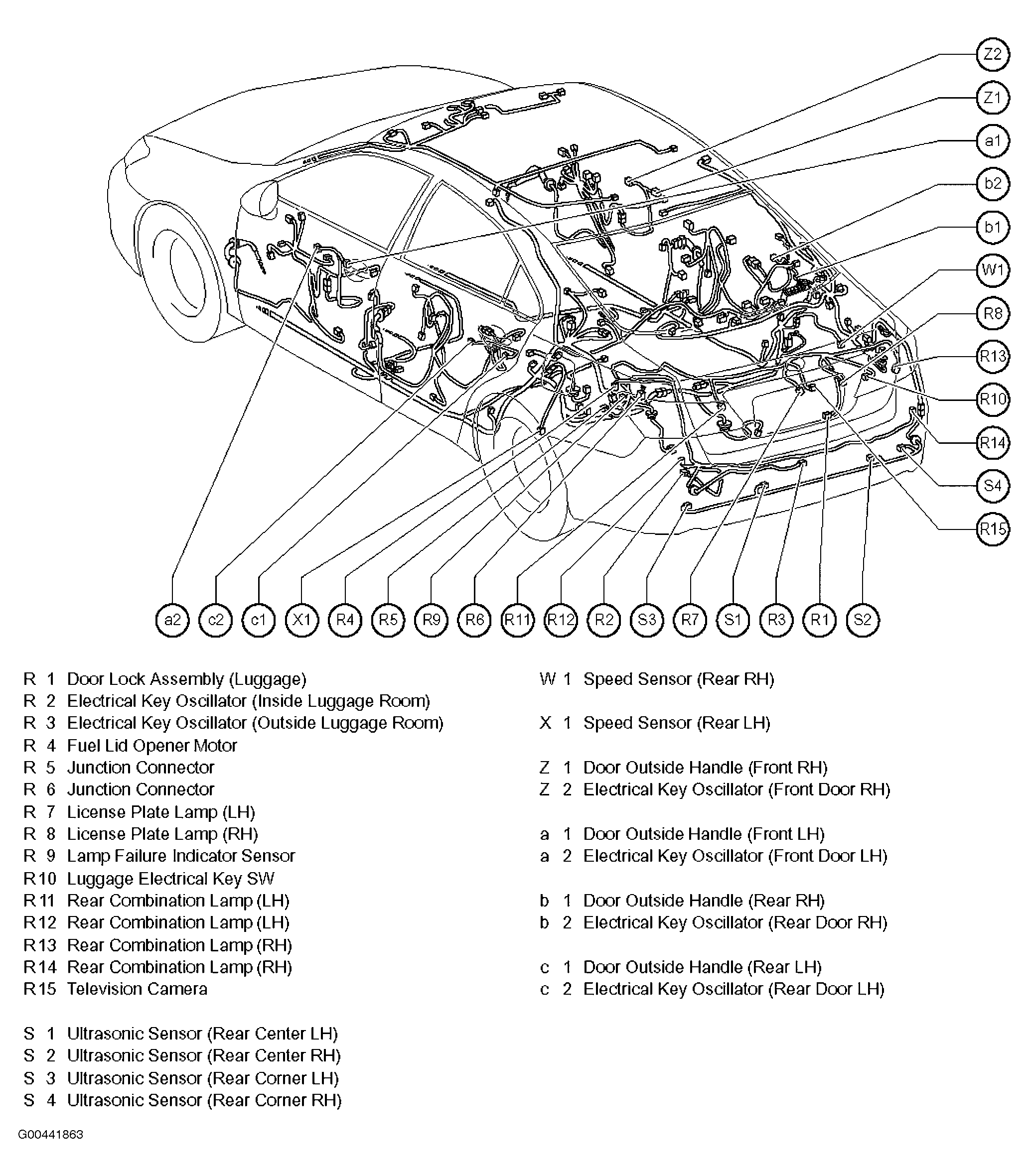

Fig 15: Vehicle Overview

G00441863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

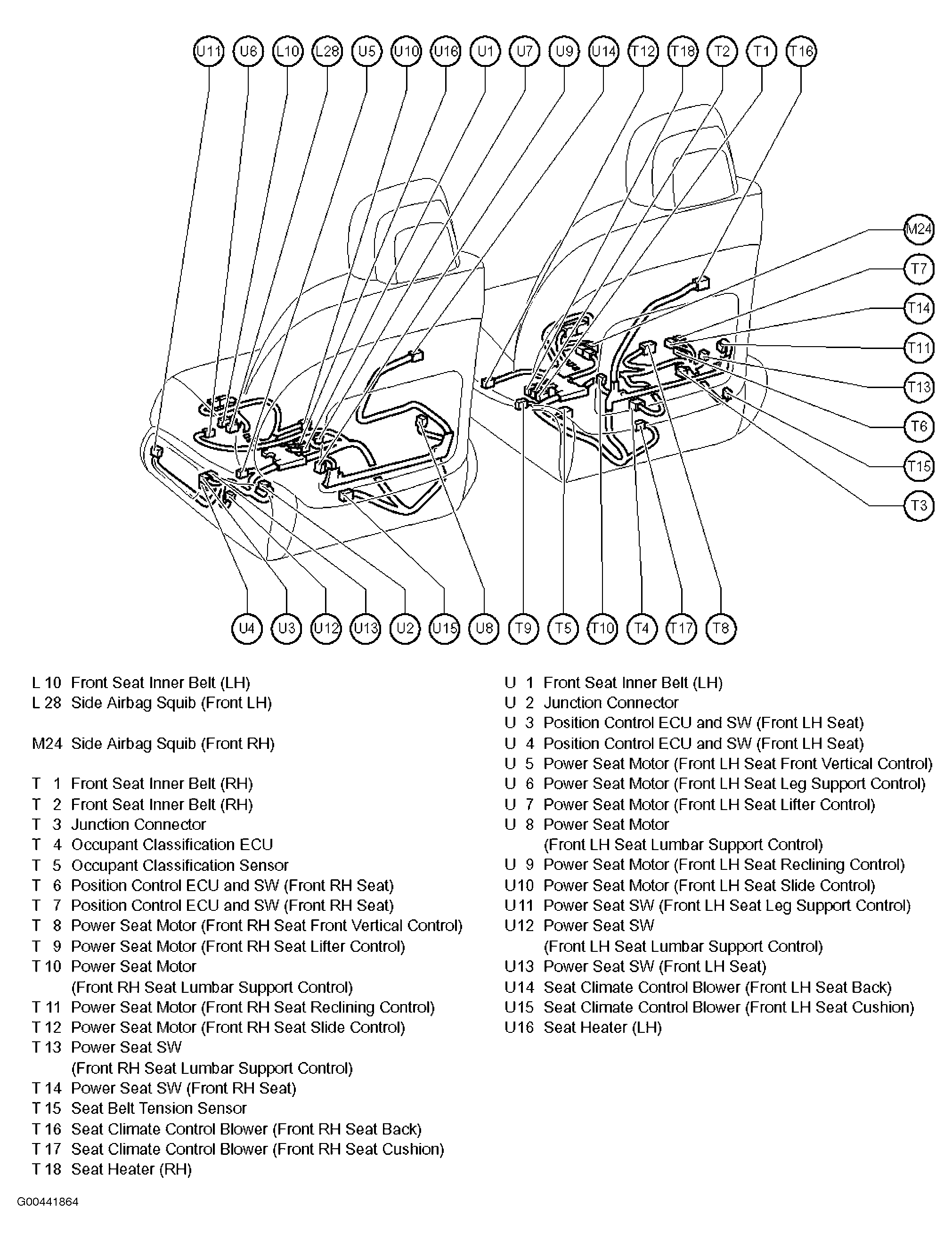

Fig 16: Front Seats

G00441864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

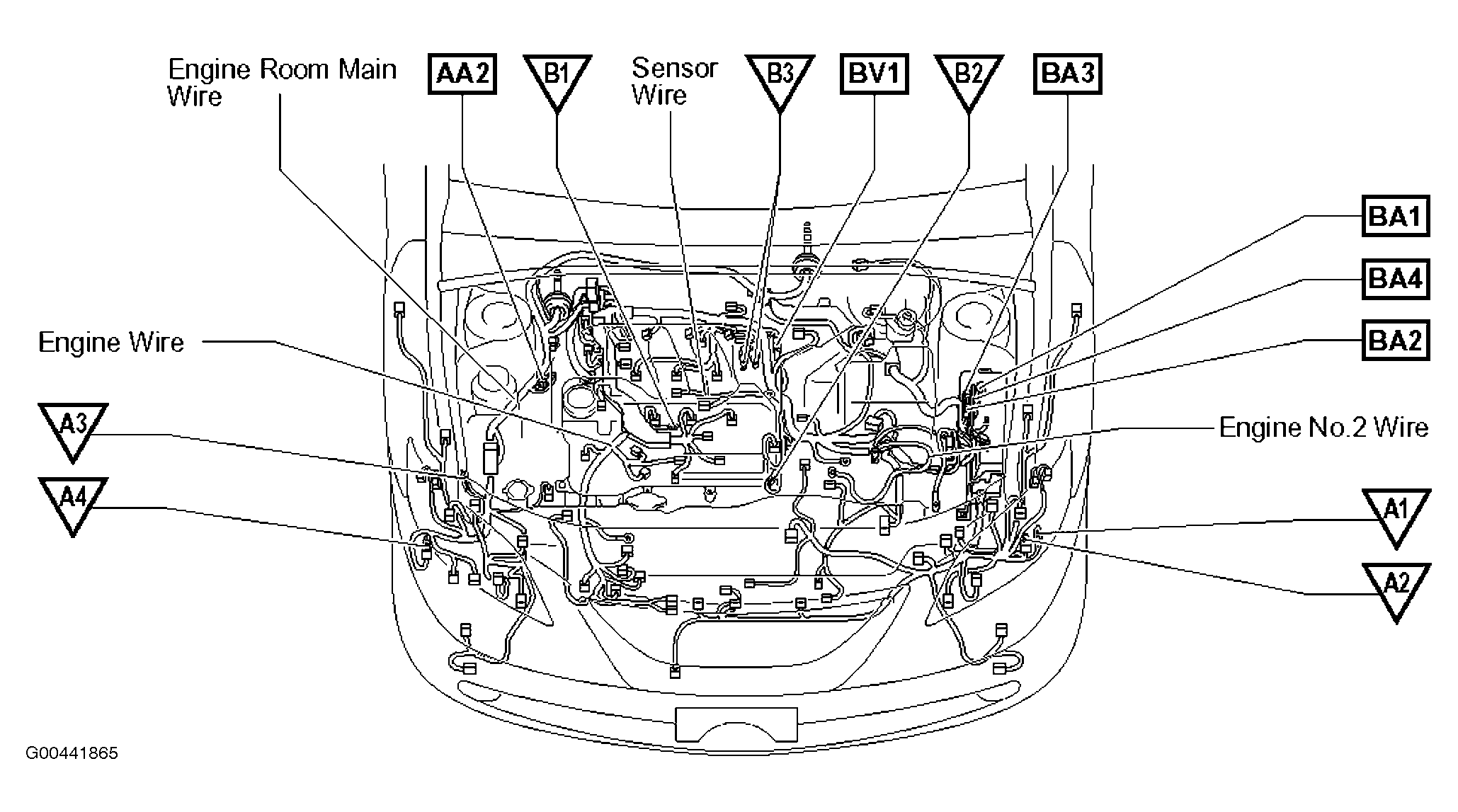

Fig 17: Engine Compartment

G00441865

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

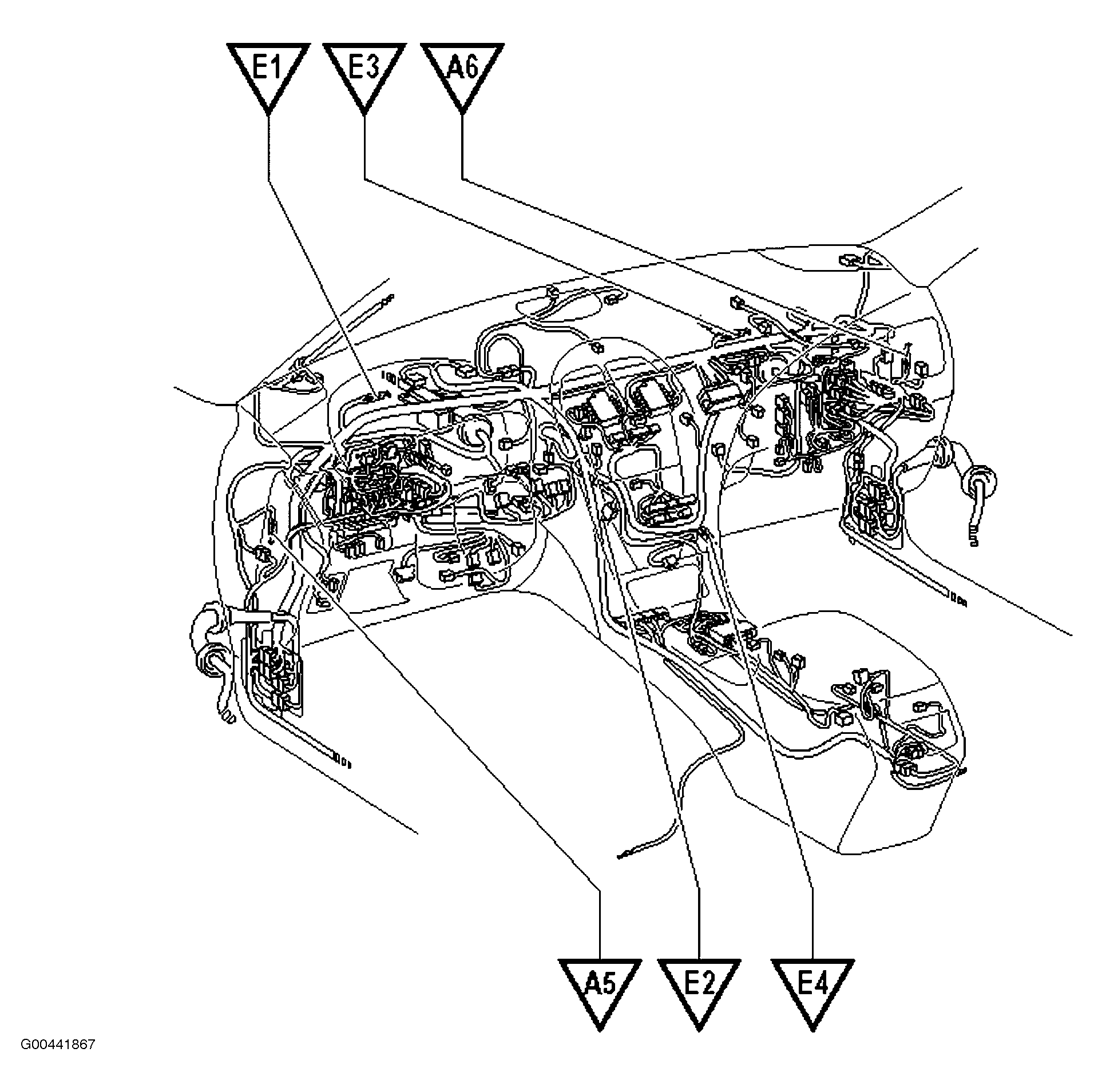

Fig 18: Dash & Center Console

G00441867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

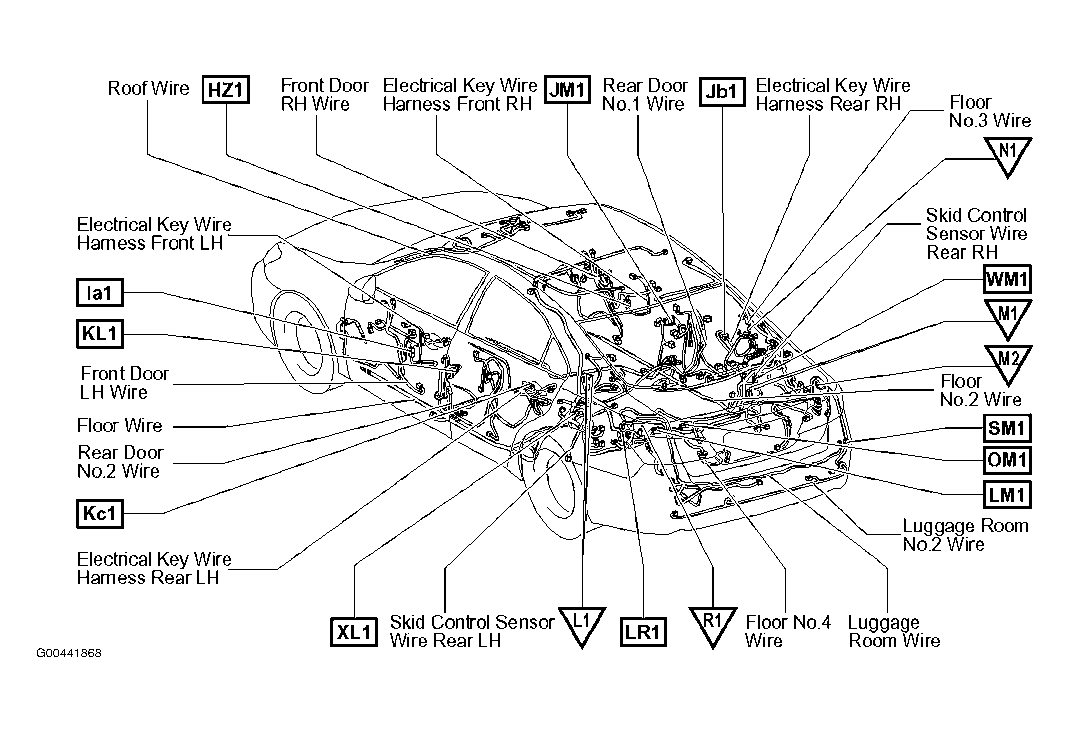

Fig 19: Vehicle Overview

G00441868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

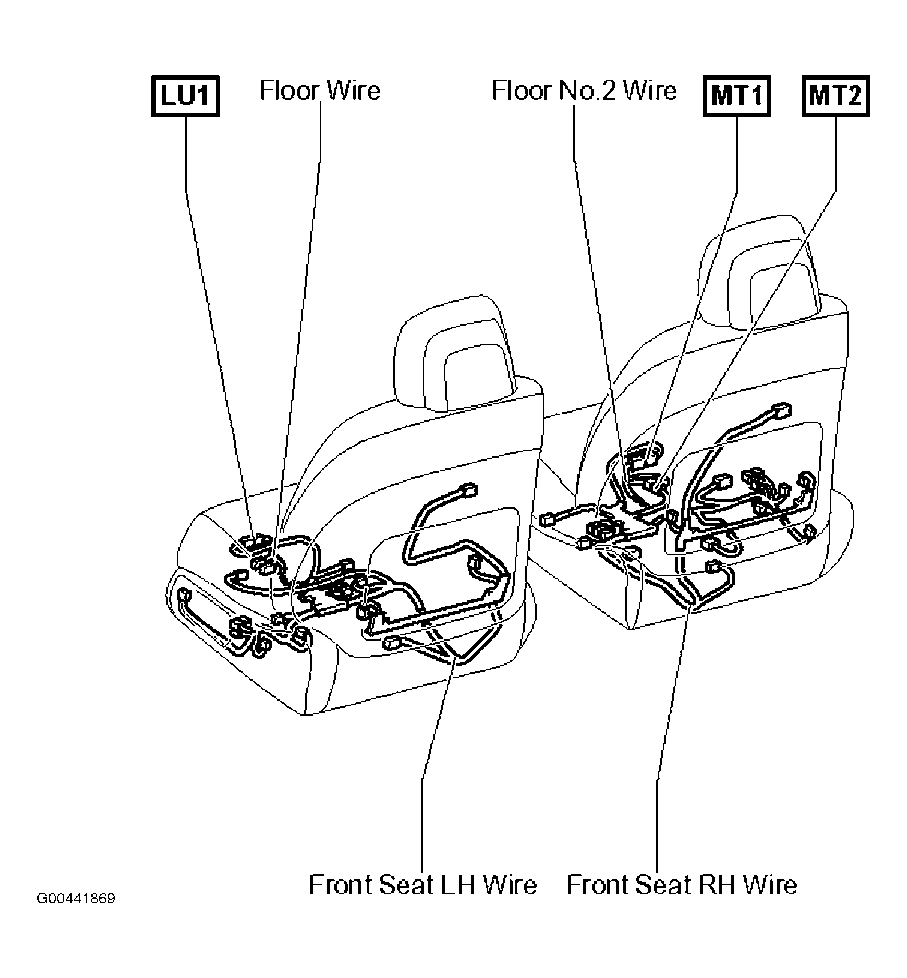

Fig 20: Front Seats

G00441869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Dash & Center Console

G00475506

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

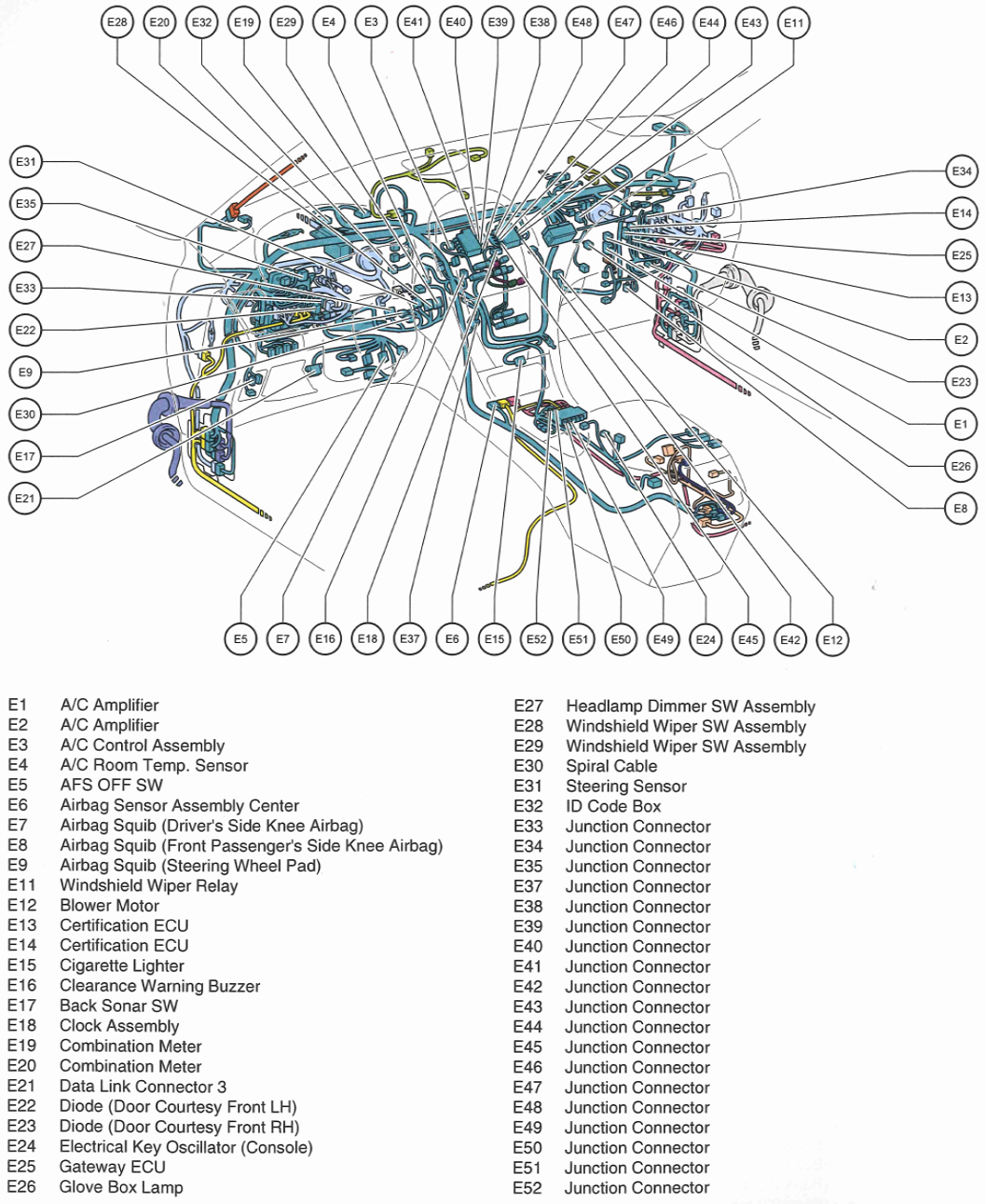

Fig 22: Dash & Center Console

G00475507

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

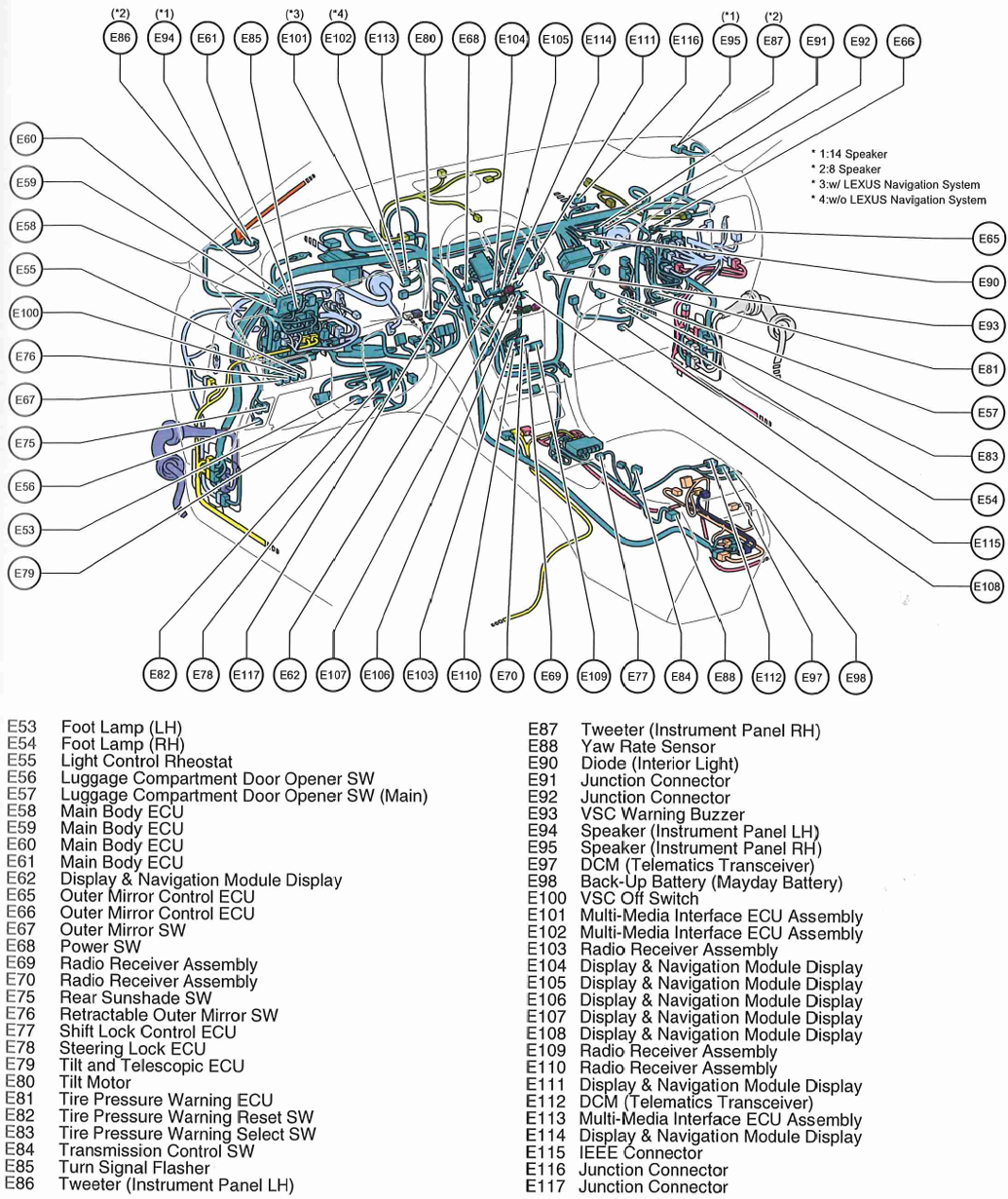

Fig 23: Dash & Center Console

G00475508

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

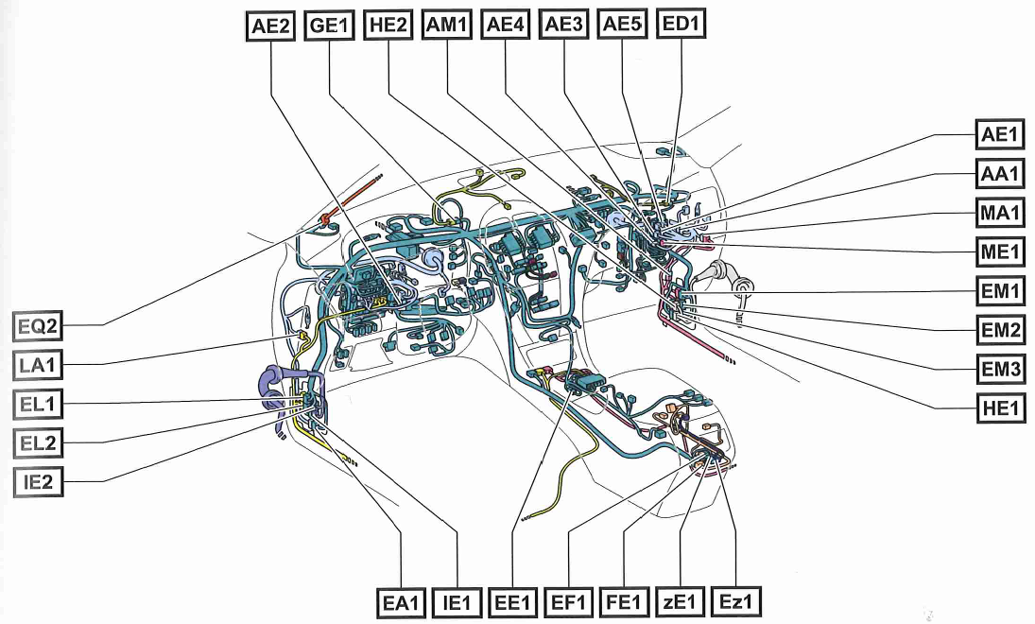

Fig 24: Dash & Center Console

G00475509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
