Active Control Engine Mount: Installation: Installation

INSTALL ACTIVE CONTROL ENGINE MOUNT
1. Install the acceleration sensor with the 2 nuts.

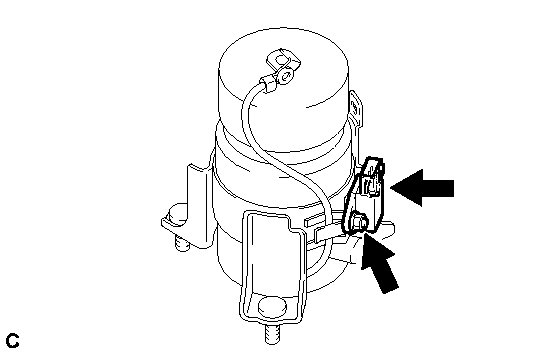

  Fig 1: Identifying Acceleration Sensor With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (81 kgf*cm, 71 in.*lbf)
2. Install the active control engine mount with the 3 nuts.

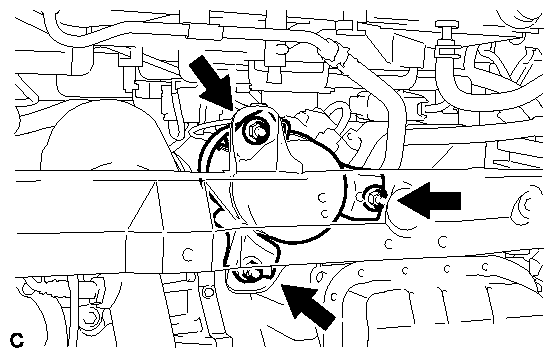

  Fig 2: Identifying Active Control Engine Mount With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)
INSTALL ENGINE MOUNTING BRACKET FR
1. Install the engine mounting bracket FR with the 4 bolts.

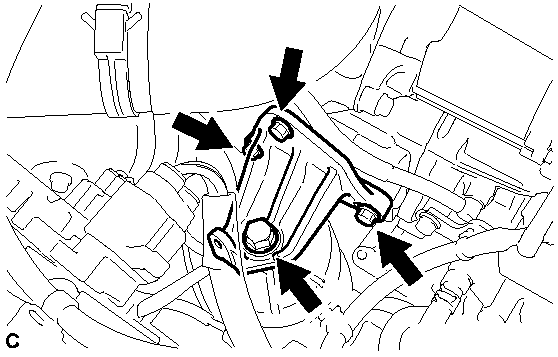

  Fig 3: Identifying Engine Mounting Bracket FR & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Automatic Transaxle Side

  Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

  Active Engine Mounting Side

  Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)
2. Connect the earth cable with the bolt.

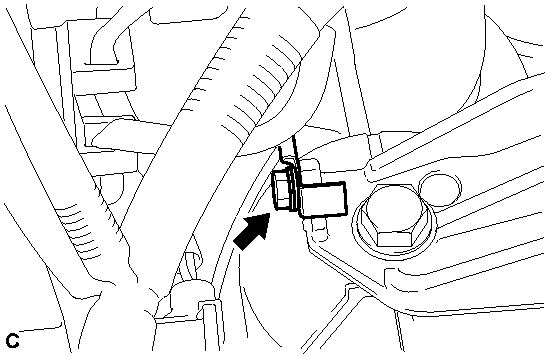

  Fig 4: Identifying Earth Cable With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
3. Connect the 2 connectors and clamp.

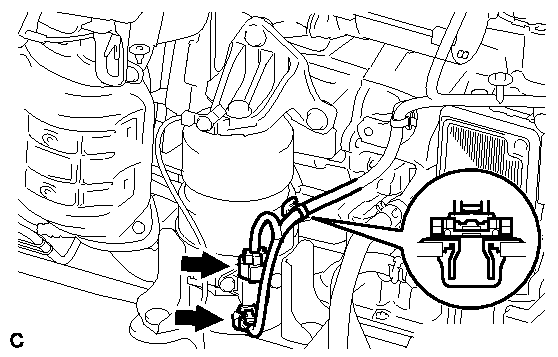

  Fig 5: Identifying Connectors & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AIR CLEANER INLET . Refer to INSTALLATION - Step 71
INSTALL AIR CLEANER INLET ASSEMBLY . Refer to INSTALLATION - Step 74
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 97
INSTALL ENGINE ROOM SIDE COVER LH . Refer to INSTALLATION - Step 98
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 100
INSTALL ENGINE UNDER COVER RH
INSTALL ENGINE UNDER COVER LH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
