Parts Location: Illustration

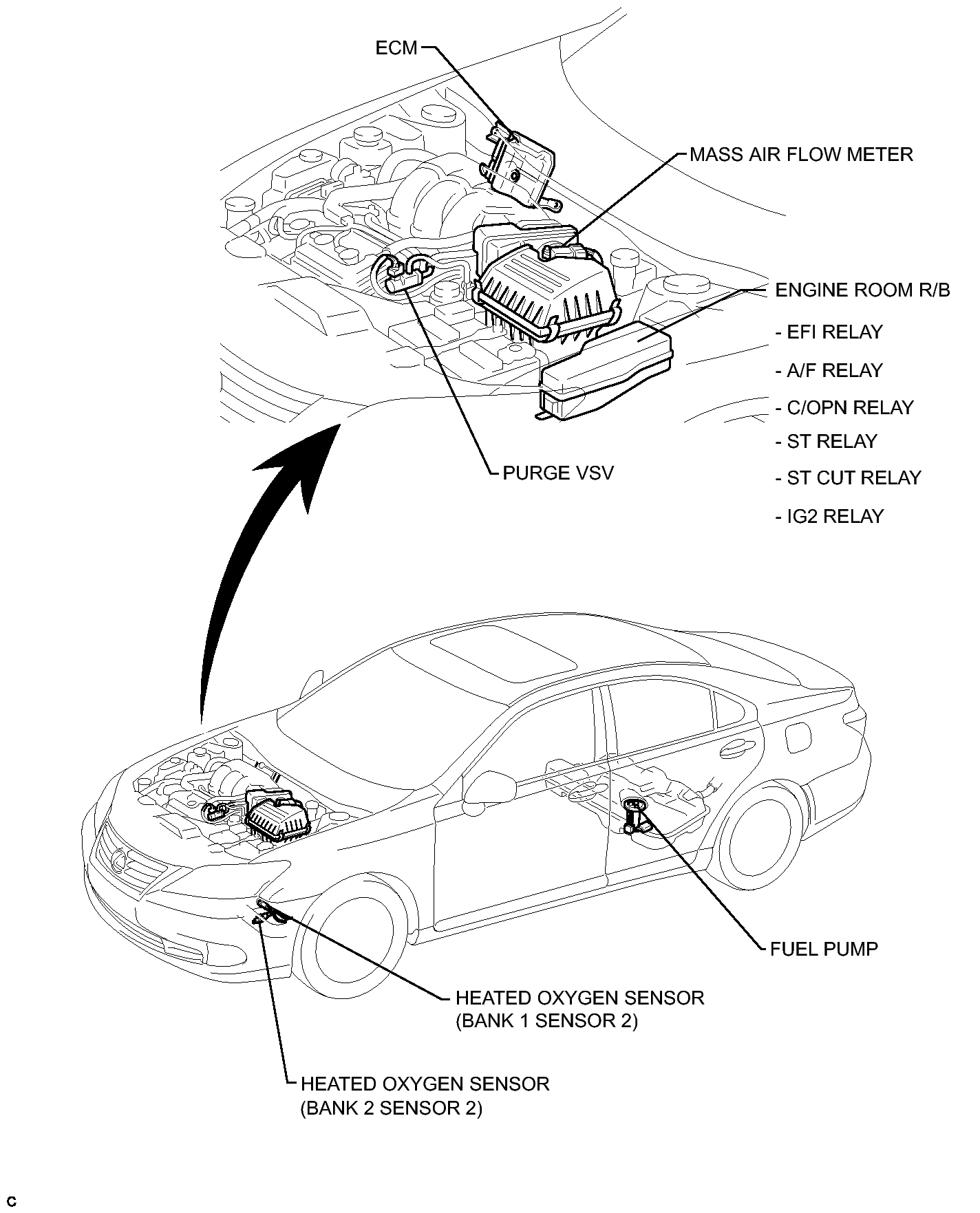

Fig 1: Identifying SFI System Components (1 Of 4)
GTY255804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

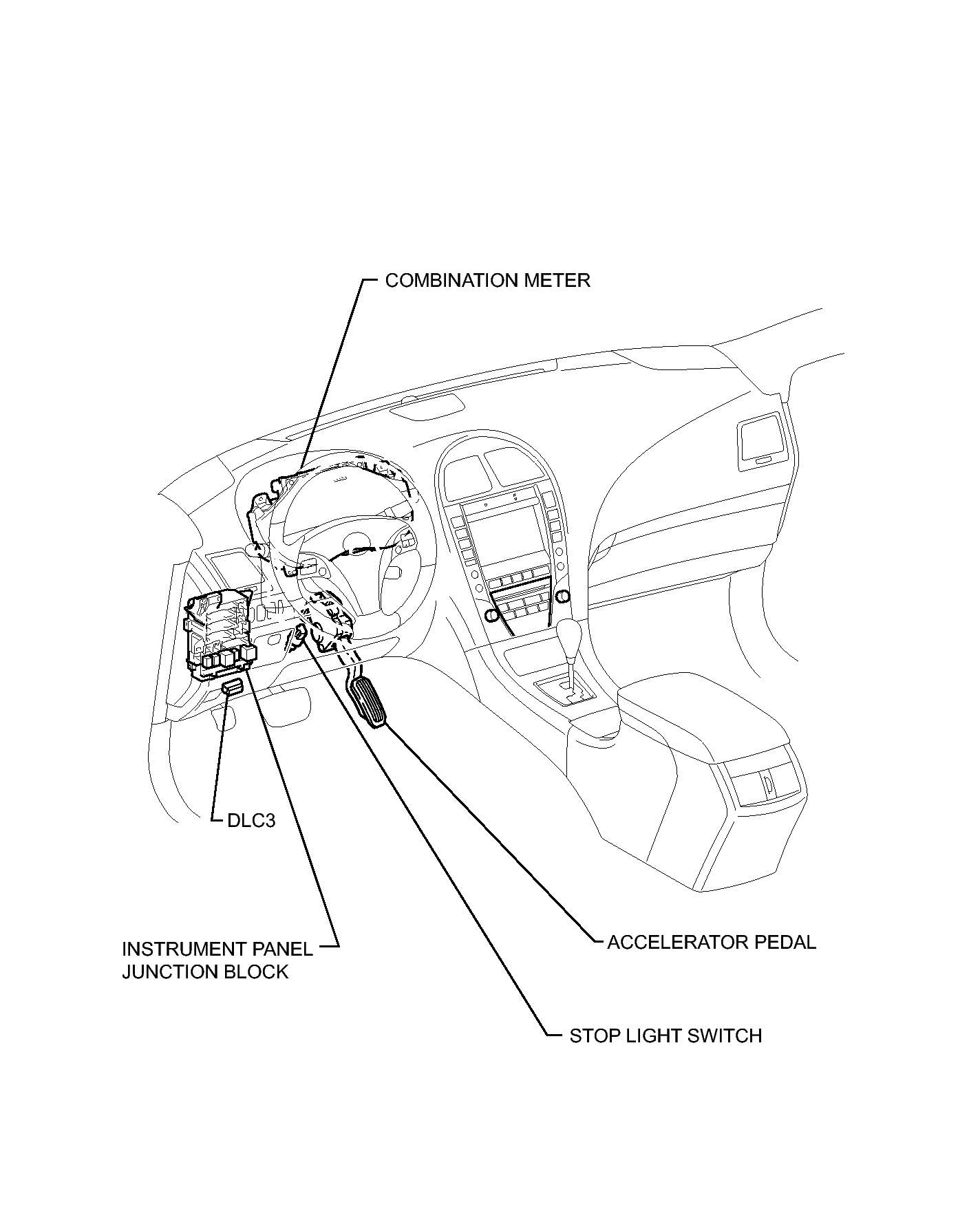

Fig 1: Identifying SFI System Components (2 Of 4)
GTY254688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

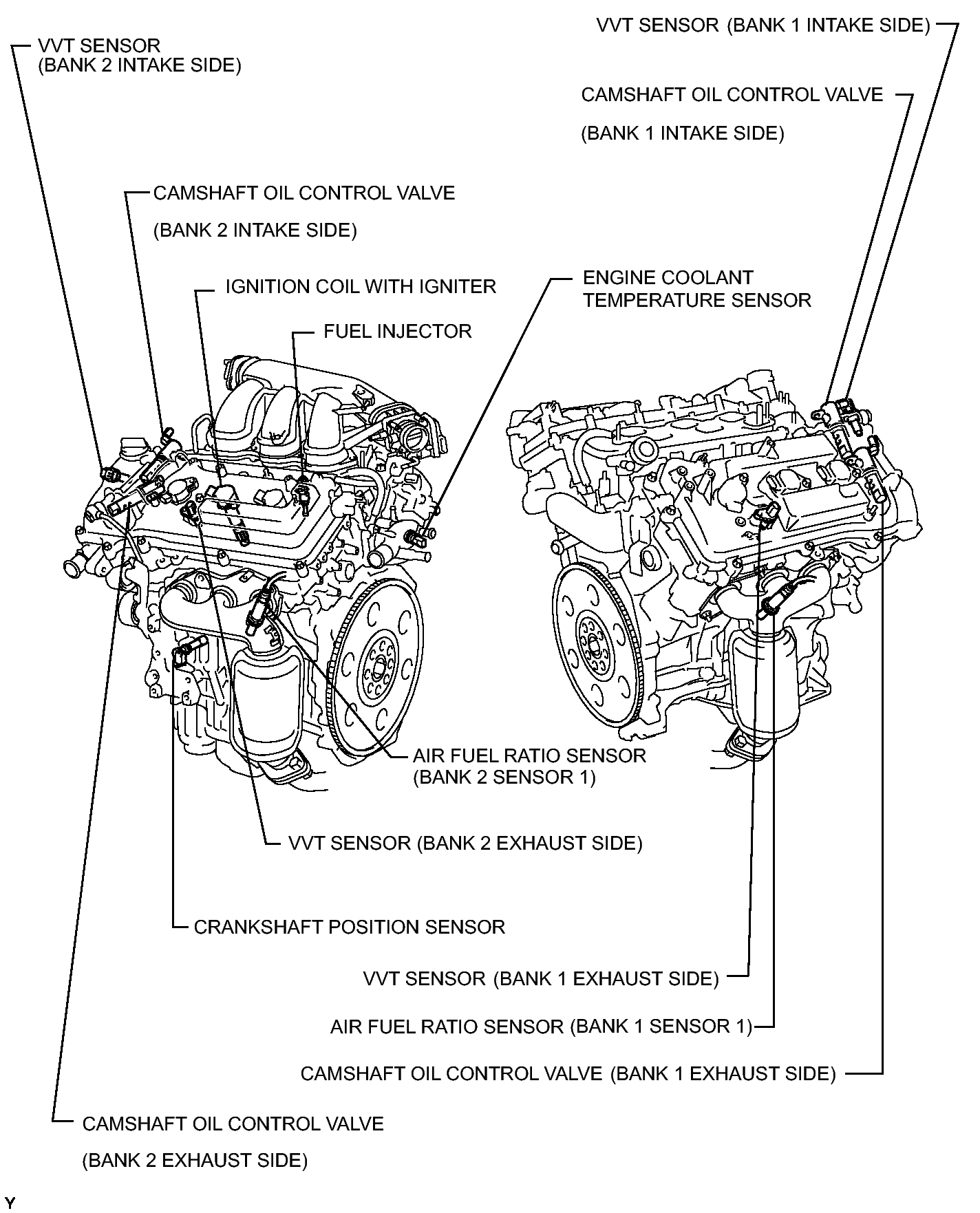

Fig 1: Identifying SFI System Components (3 Of 4)
GTY276274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

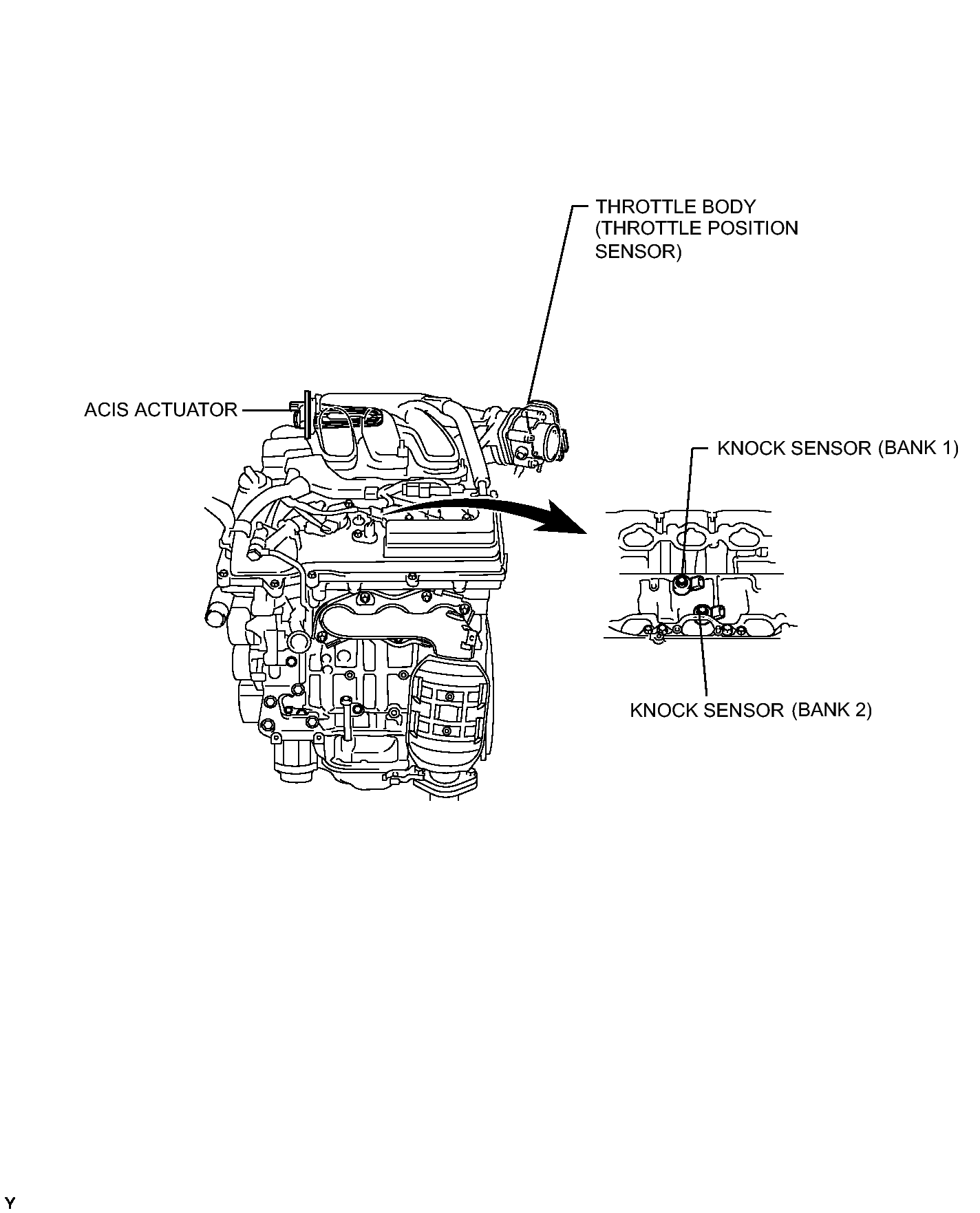

Fig 1: Identifying SFI System Components (4 Of 4)
GTY145716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
