Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|

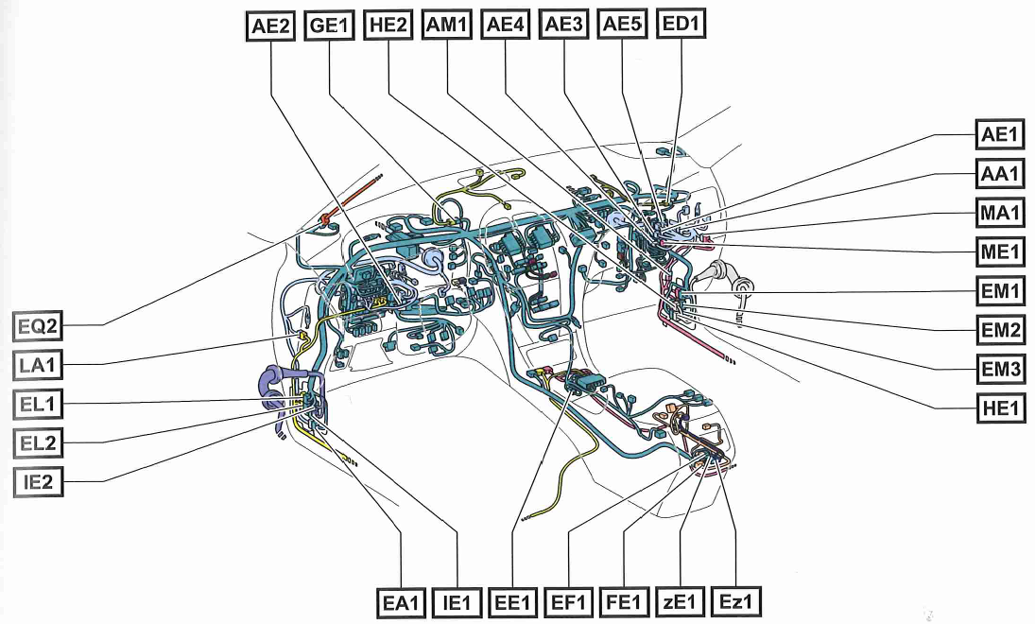

| AA1 (White, 6 Pin) | Right side of dash. See Figure. |
| AA2 (Black, 2 Pin) | Right side of engine compartment. See Figure. |
| AE1 (Gray, 25 Pin) | Right side of dash. See Figure. |
| AE2 (Gray, 25 Pin) | Left side of dash. See Figure. |
| AE3 (White, 6 Pin) | Left side of dash. See Figure. |
| AE4 (Yellow, 4 Pin) | Right side of dash. See Figure. |
| AE5 (White, 20 Pin) | Right side of dash. See Figure. |
| AM1 (White, 1 Pin) | Right kick panel. See Figure. |
| BA1 (White, 2 Pin) | Left side of engine compartment. See Figure. |
| BA2 (Black, 20 Pin) | Left side of engine compartment. See Figure. |
| BA3 (White, 12 Pin) | Left rear of engine compartment. See Figure. |
| BA4 (Gray, 10 Pin) | Left side of engine compartment. See Figure. |
| BV1 (Gray, 4 Pin) | Right rear of engine. See Figure. |
| EA1 (White, 18 Pin) | Left kick panel. See Figure. |
| ED1 (Yellow, 4 Pin) | Right side of dash. See Figure. |
| EE1 (White, 2 Pin) | Under center console. See Figure. |
| EF1 (White, 5 Pin) | Under center console. See Figure. |
| EL1 (White, 17 Pin) | Left kick panel. See Figure. |
| EL2 (Blue, 20 Pin) | Left kick panel. See Figure. |
| EM1 (White, 17 Pin) | Right kick panel. See Figure. |
| EM2 (Blue, 20 Pin) | Right kick panel. See Figure. |
| EM3 (White, 18 Pin) | Right kick panel. See Figure. |
| EQ2 (White, 25 Pin) | Base of left "A" pillar. See Figure. |
| Ez1 (White, 5 Pin) | Under rear of center console. See Figure. |
| FE1 (White, 20 Pin) | Under center console. See Figure. |
| GE1 (White, 13 Pin) | Left side of dash. See Figure. |
| HE1 (White, 17 Pin) | Right kick panel. See Figure. |
| HE2 (Gray, 25 Pin) | Right kick panel. See Figure. |
| HZ1 (Gray, 8 Pin) | Right front door. See Figure. |
| Ia1 (Gray, 8 Pin) | Left front door. See Figure. |
| IE1 (White, 17 Pin) | Left kick panel. See Figure. |
| IE2 (Gray, 25 Pin) | Left kick panel. See Figure. |
| Jb1 (Gray, 8 Pin) | Right rear wiring harness. See Figure. |
| JM1 (White, 20 Pin) | Right rear door. See Figure. |
| Kc1 (Gray, 8 Pin) | Left rear door. See Figure. |
| KL1 (White, 20 Pin) | Left "C" pillar. See Figure. |
| LA1 (Black, 18 Pin) | Left side of dash. See Figure. |
| LM1 (White, 10 Pin) | Left rear of vehicle chassis. See Figure. |
| LR1 (White, 25 Pin) | Left "C" pillar. See Figure. |
| LU1 (White, 17 Pin) | Left front seat. See Figure. |
| MA1 (Black, 18 Pin) | Right side of dash. See Figure. |
| ME1 (Blue, 20 Pin) | Right side of dash. See Figure. |
| MT1 (White, 17 Pin) | Right front seat. See Figure. |
| MT2 (White, 6 Pin) | Right front seat. See Figure. |
| OM1 (Gray, 3 Pin) | Left side of luggage compartment. See Figure. |
| SM1 (White, 10 Pin) | Behind right side of rear bumper. See Figure. |
| WM1 (Gray, 2 Pin) | Right side of luggage compartment. See Figure. |
| XL1 (Gray, 2 Pin) | Left rear quarter panel. See Figure. |
| ZE1 (Brown, 4 Pin) | Under rear of center console. See Figure. |
