Front Speed Sensor (For 4WD): Components: Illustration

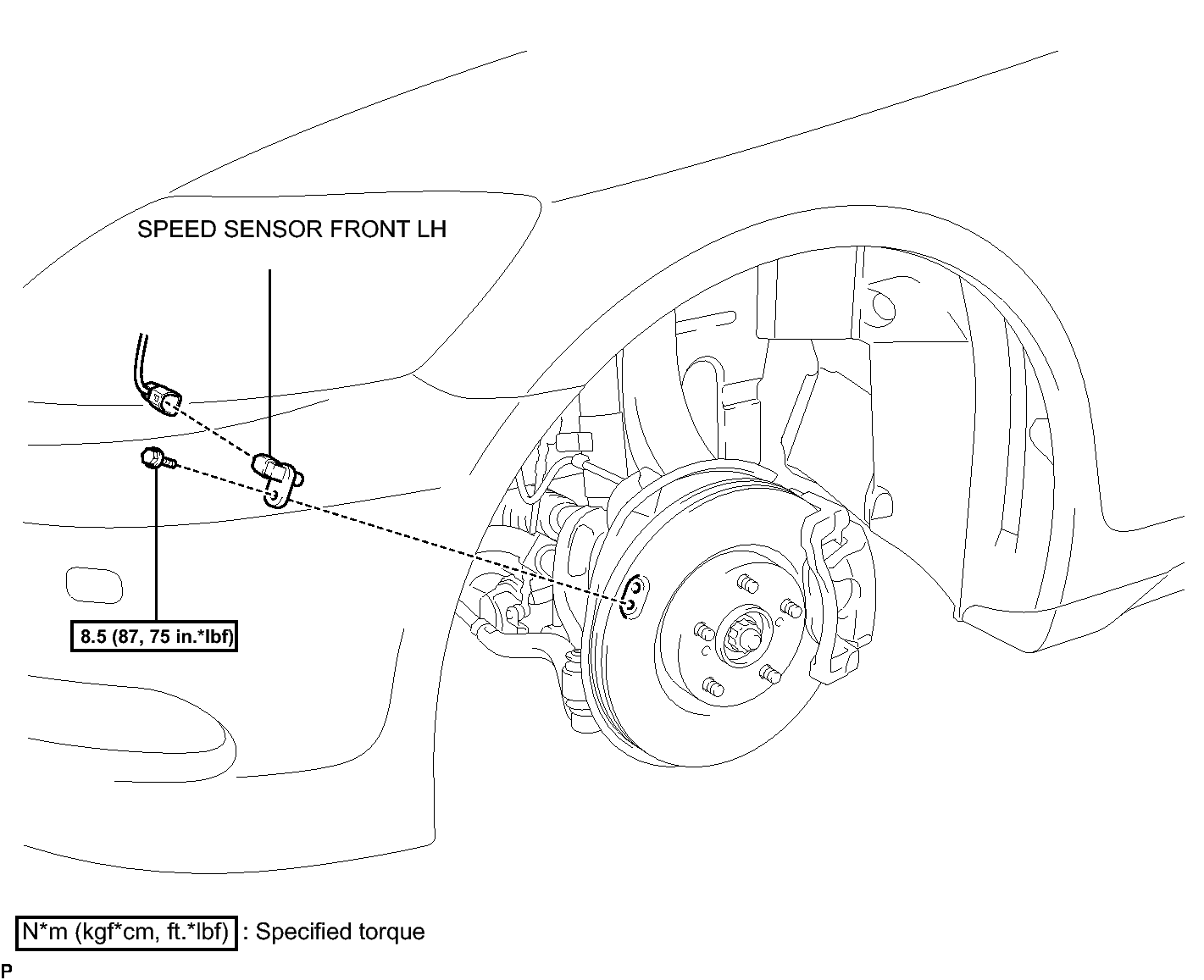

Fig 1: Identifying Front Speed Sensor (For 4WD) Replacement Components With Torque Specification
GTY106648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
