Climate Control Seat: Notes

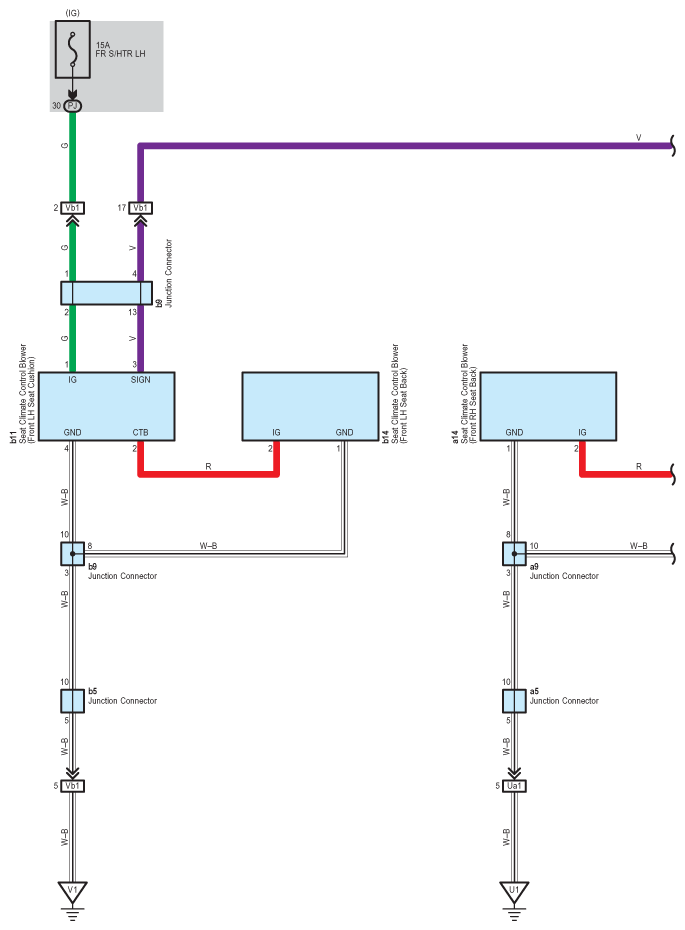

Fig 1: Climate Control Seat - Wiring Diagram (1 Of 5)
G07558053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Climate Control Seat - Wiring Diagram (2 Of 5)
G07558054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

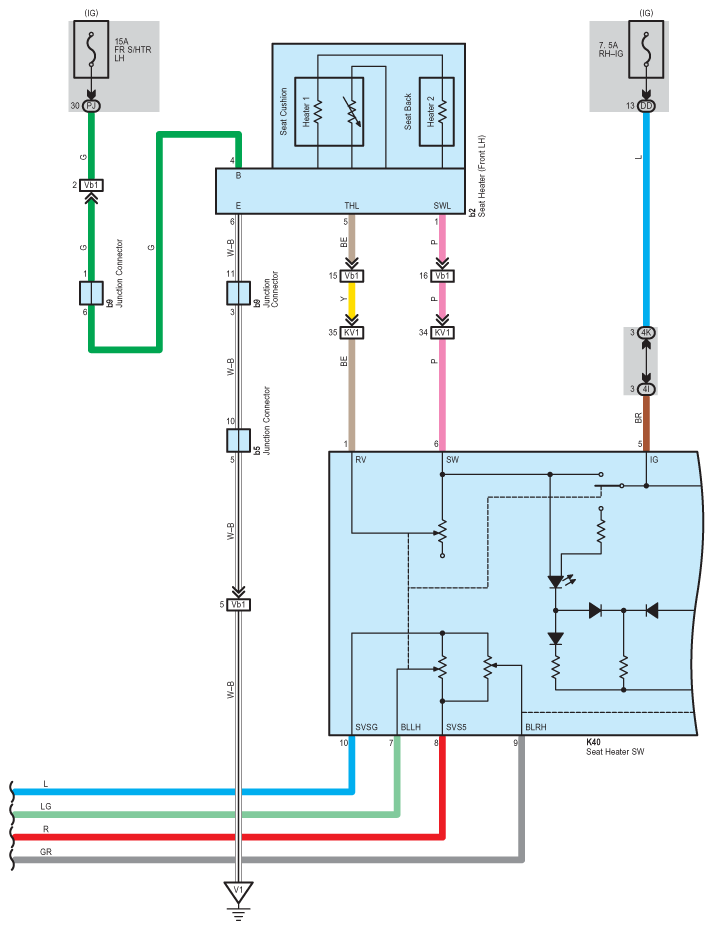

Fig 3: Climate Control Seat - Wiring Diagram (3 Of 5)
G07558055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

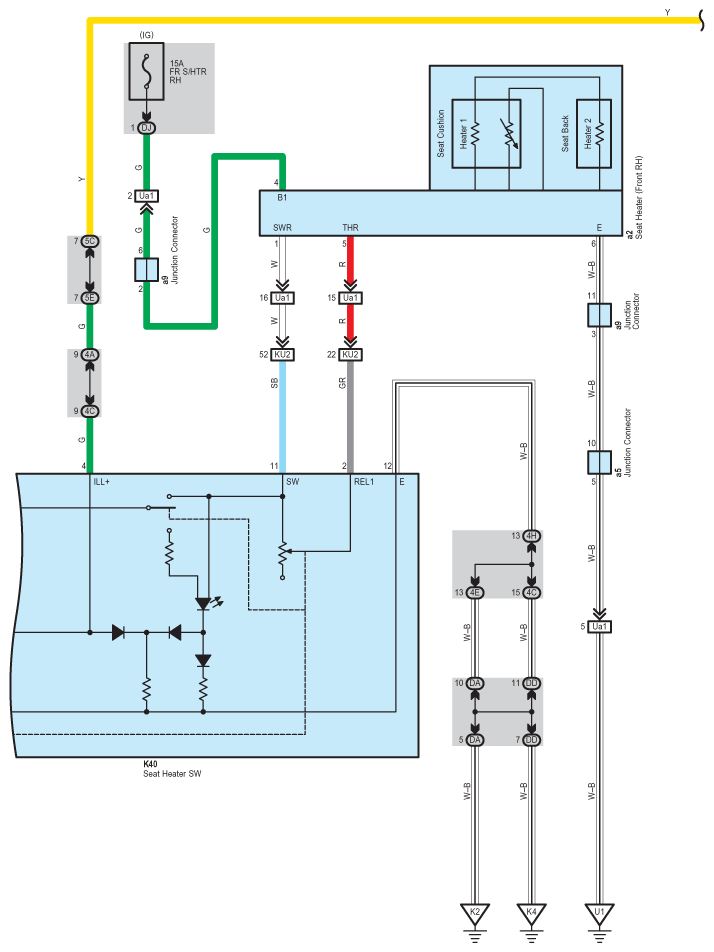

Fig 4: Climate Control Seat - Wiring Diagram (4 Of 5)
G07558056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

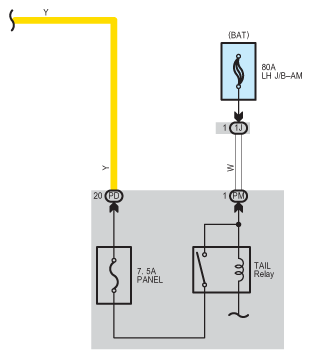

Fig 5: Climate Control Seat - Wiring Diagram (5 Of 5)
G07558057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
