Combination Meter: Notes

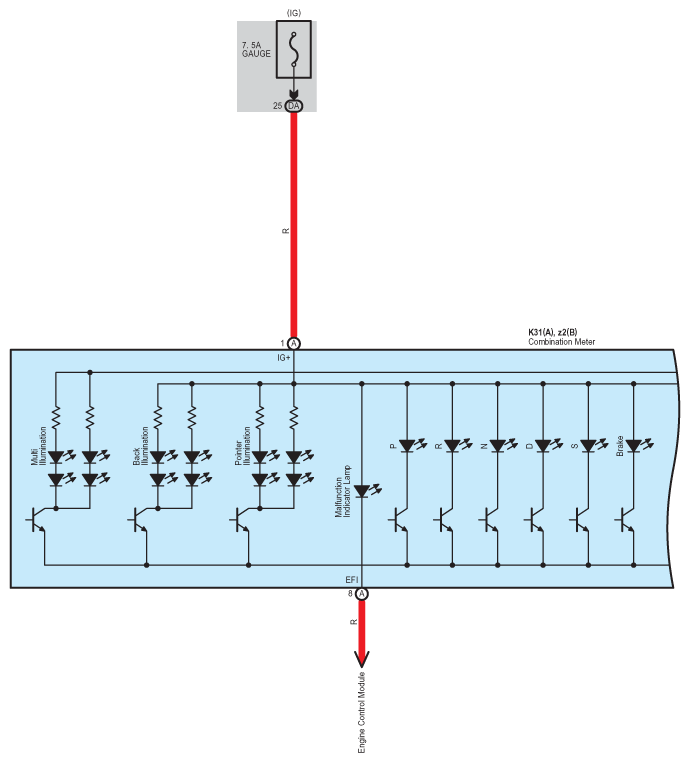

Fig 1: Combination Meter - Wiring Diagram (1 Of 12)
G07558106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

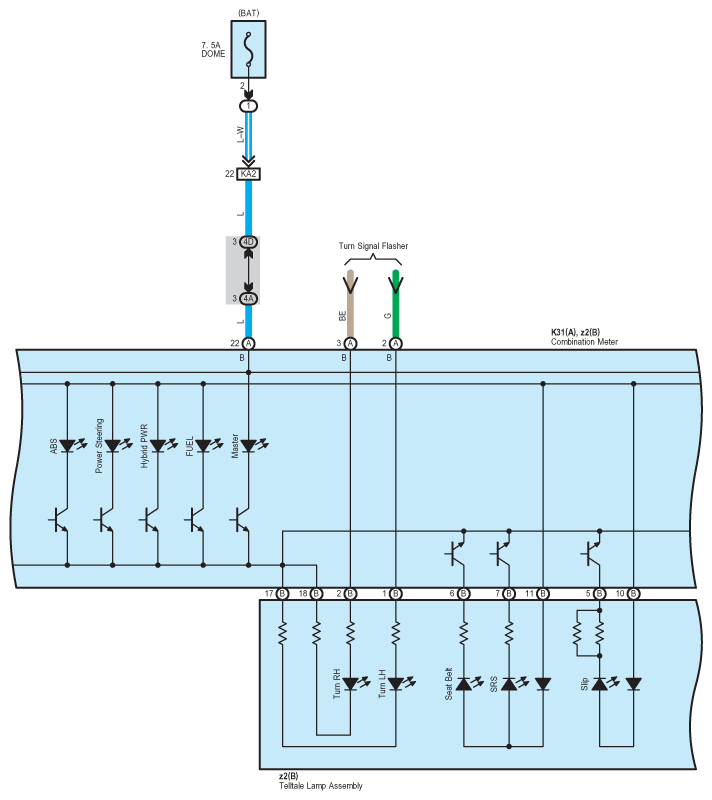

Fig 2: Combination Meter - Wiring Diagram (2 Of 12)
G07558107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

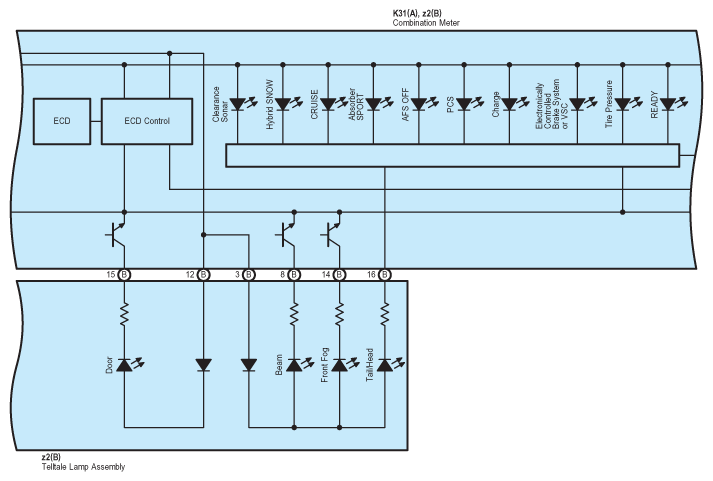

Fig 3: Combination Meter - Wiring Diagram (3 Of 12)
G07558108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

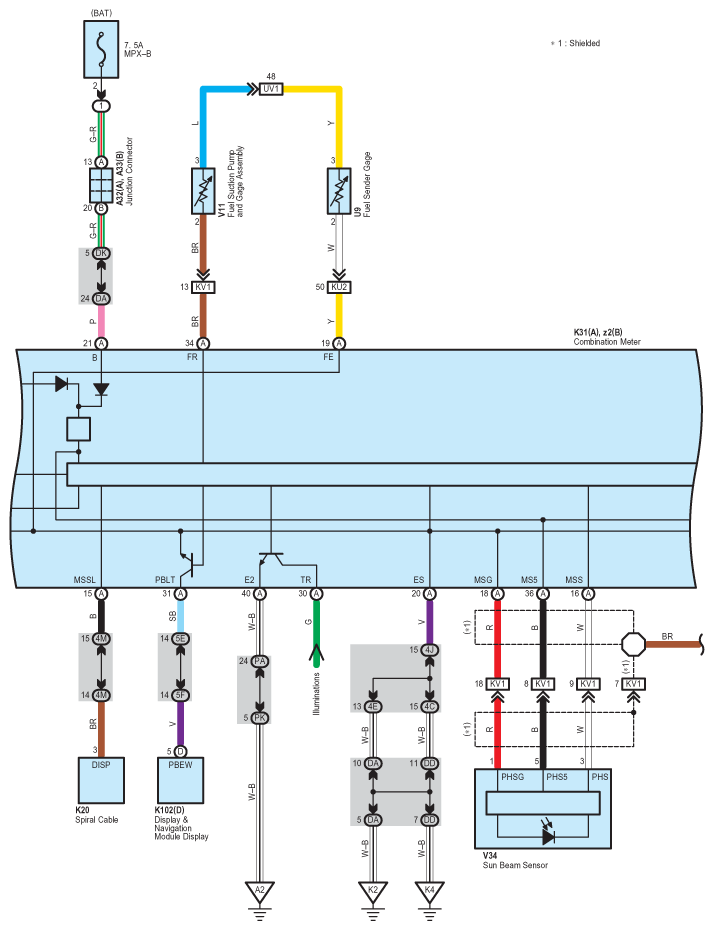

Fig 4: Combination Meter - Wiring Diagram (4 Of 12)
G07558109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

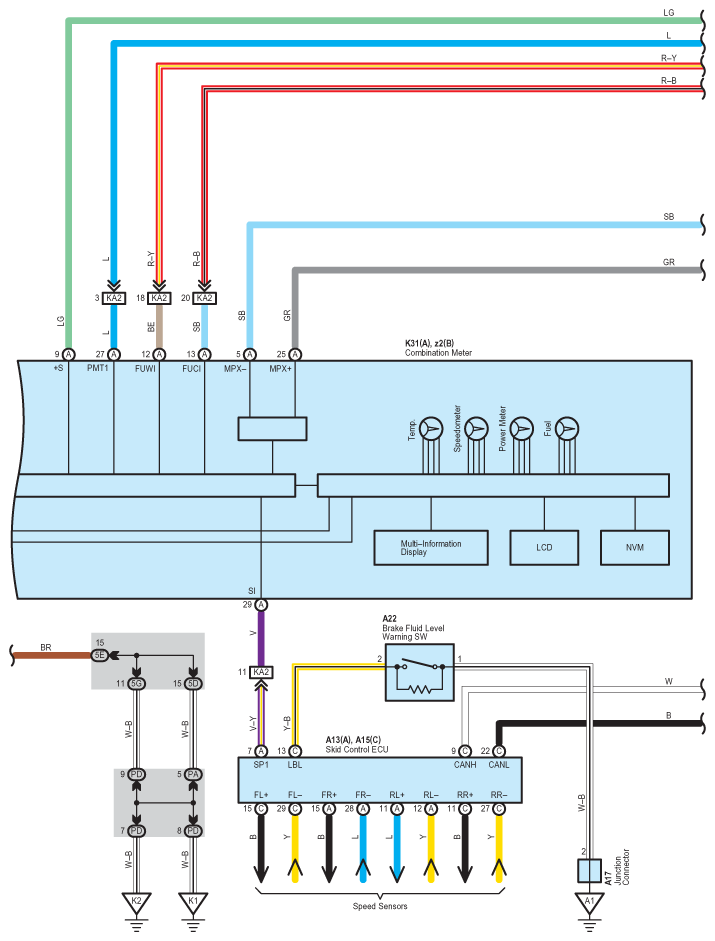

Fig 5: Combination Meter - Wiring Diagram (5 Of 12)
G07558110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

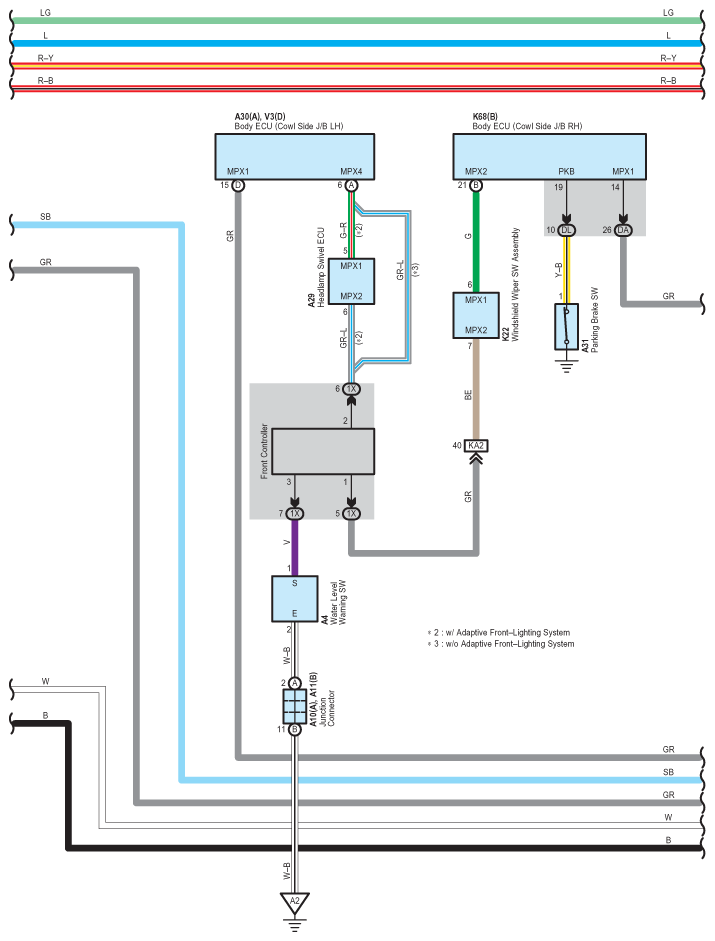

Fig 6: Combination Meter - Wiring Diagram (6 Of 12)
G07558111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

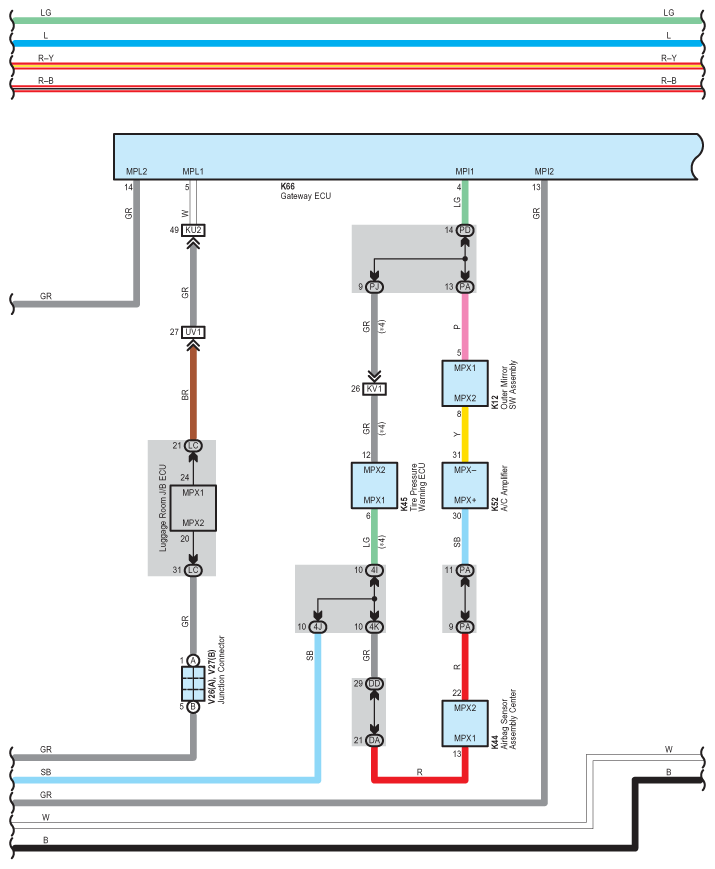

Fig 7: Combination Meter - Wiring Diagram (7 Of 12)
G07558112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

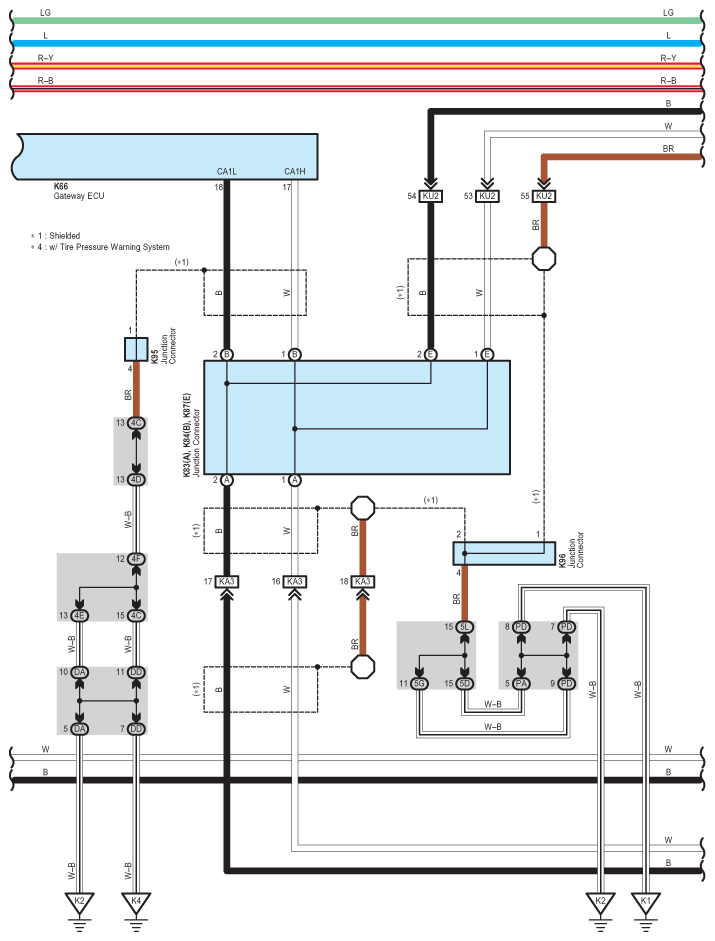

Fig 8: Combination Meter - Wiring Diagram (8 Of 12)
G07558113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

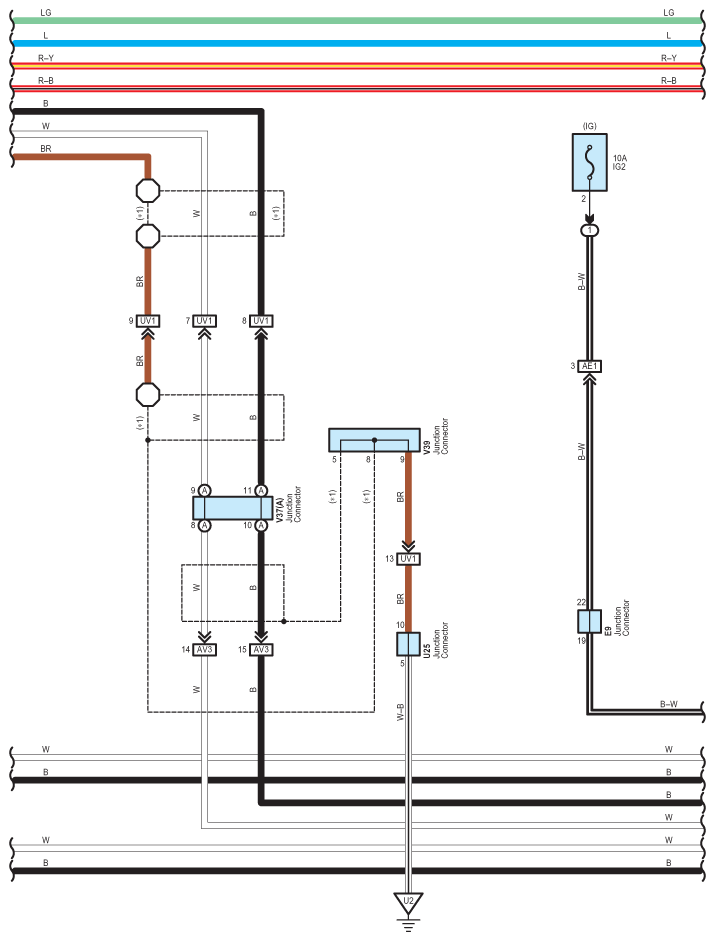

Fig 9: Combination Meter - Wiring Diagram (9 Of 12)
G07558114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

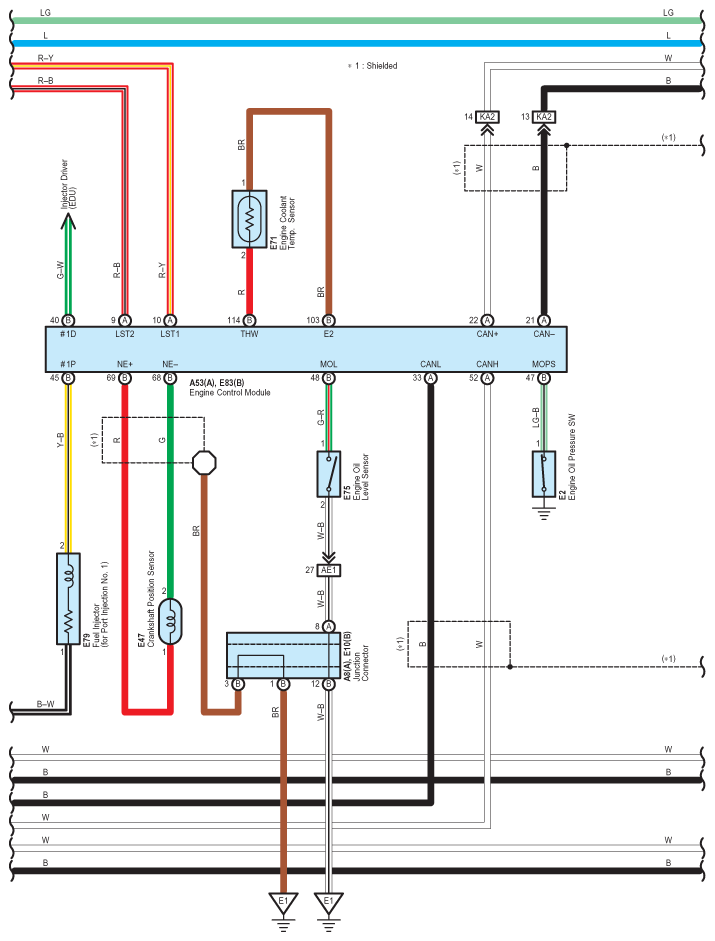

Fig 10: Combination Meter - Wiring Diagram (10 Of 12)
G07558115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

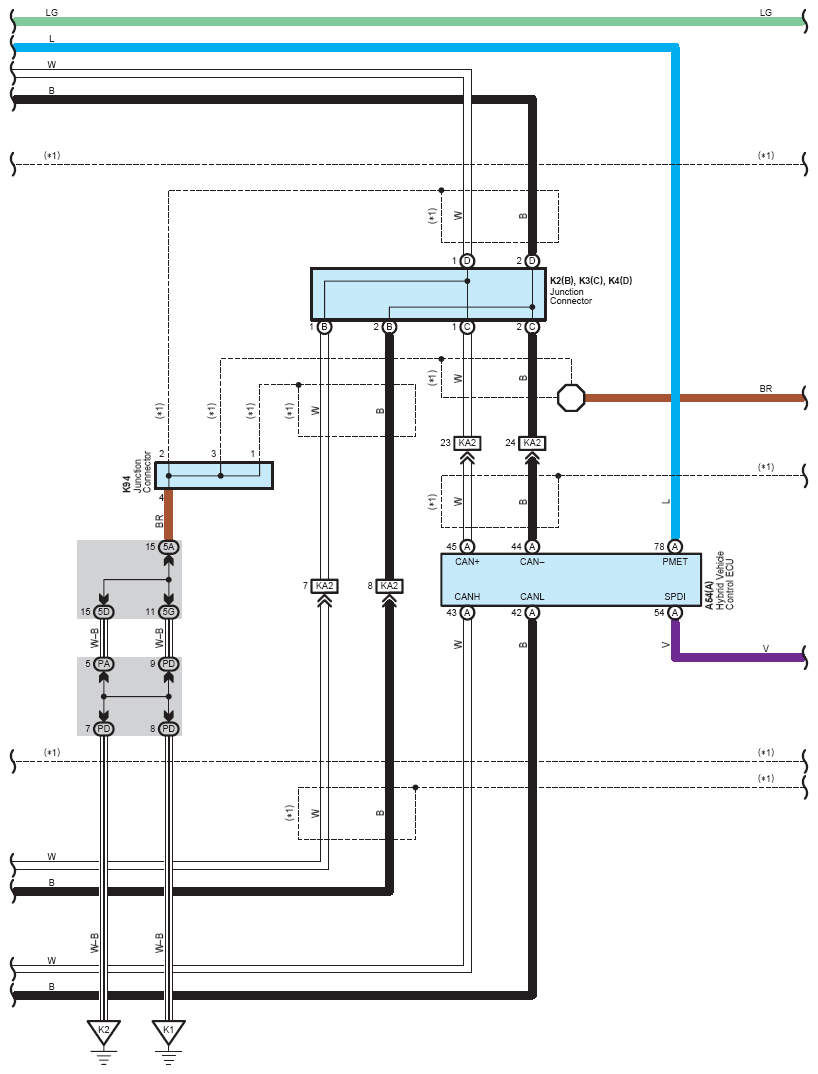

Fig 11: Combination Meter - Wiring Diagram (11 Of 12)
G07558116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

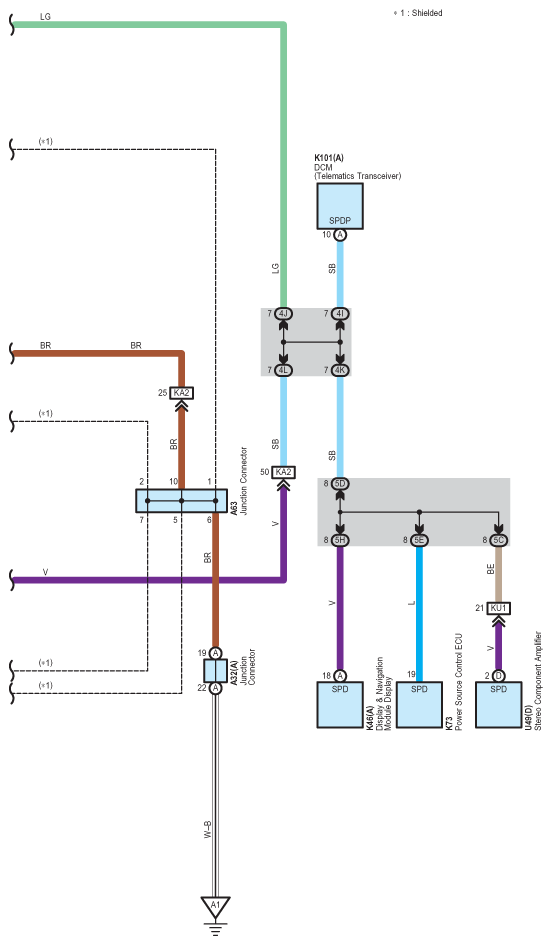

Fig 12: Combination Meter - Wiring Diagram (12 Of 12)
G07558117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
