Dynamic Radar Cruise Control: Notes

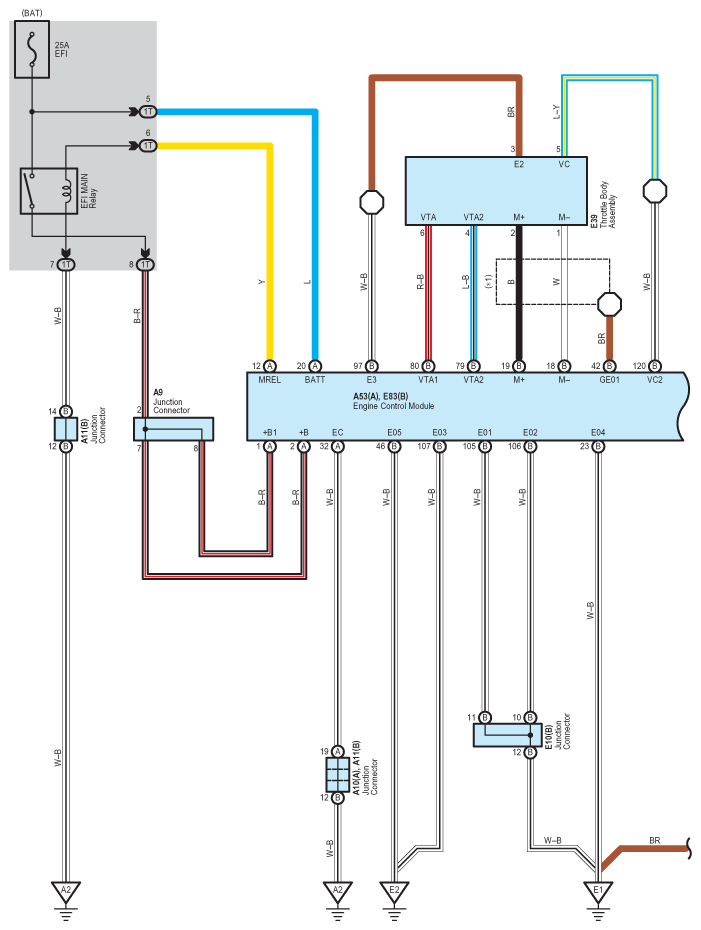

Fig 1: Dynamic Radar Cruise Control - Wiring Diagram (1 Of 23)

G07557899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

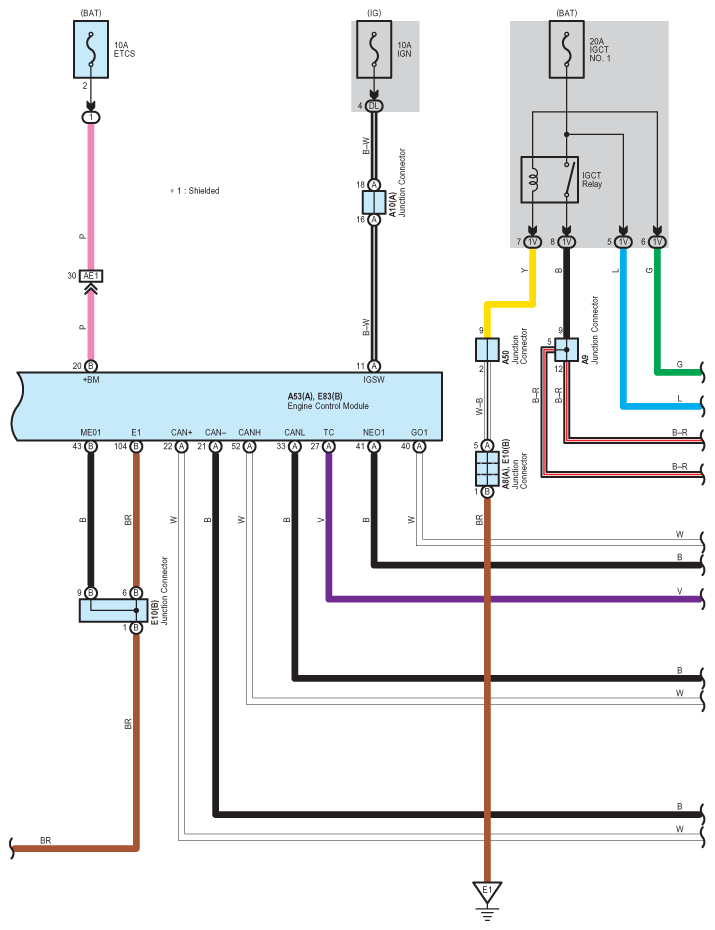

Fig 2: Dynamic Radar Cruise Control - Wiring Diagram (2 Of 23)

G07557900

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

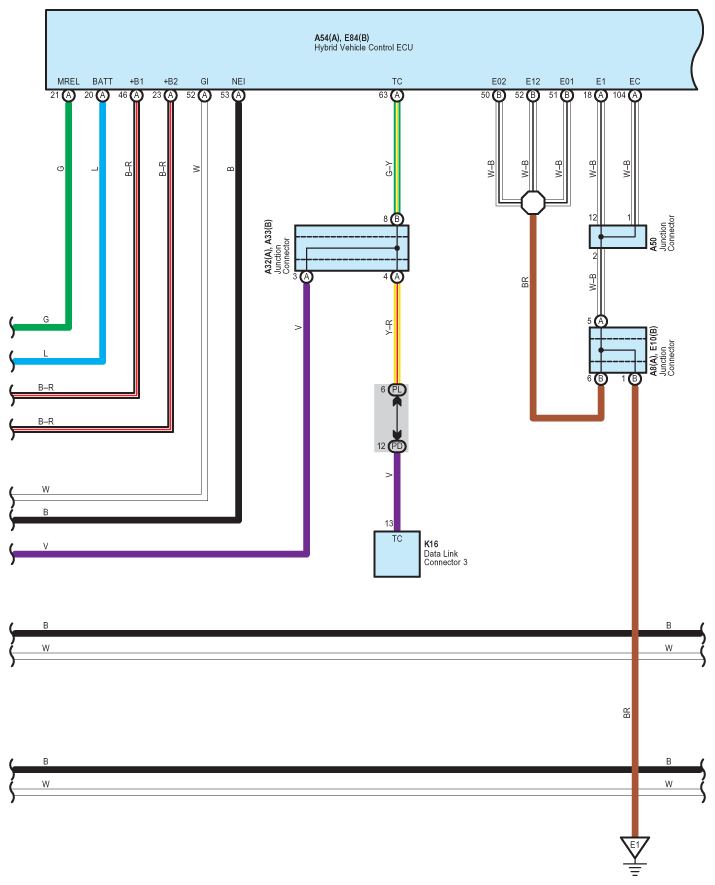

Fig 3: Dynamic Radar Cruise Control - Wiring Diagram (3 Of 23)

G07557901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

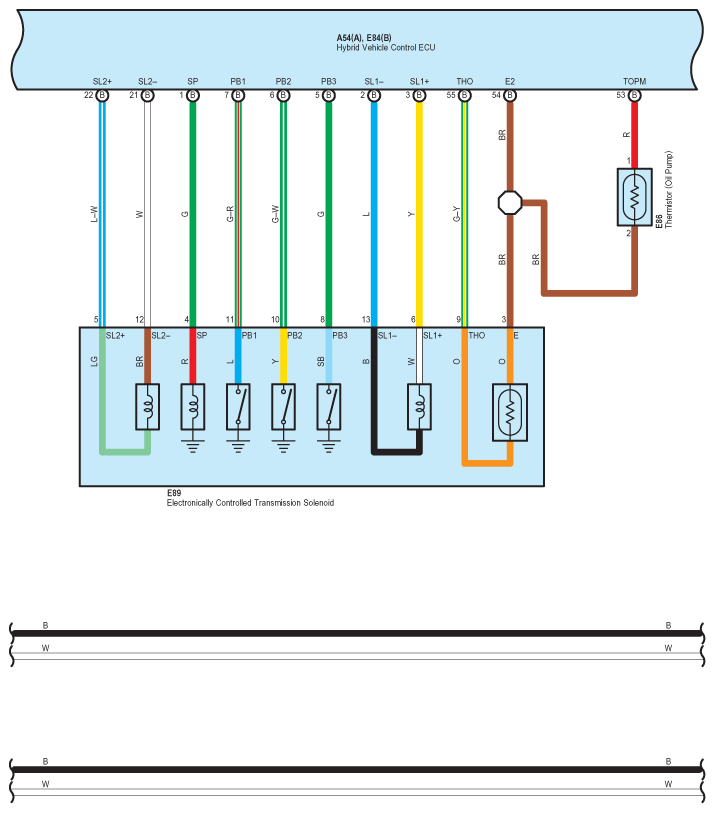

Fig 4: Dynamic Radar Cruise Control - Wiring Diagram (4 Of 23)

G07557902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

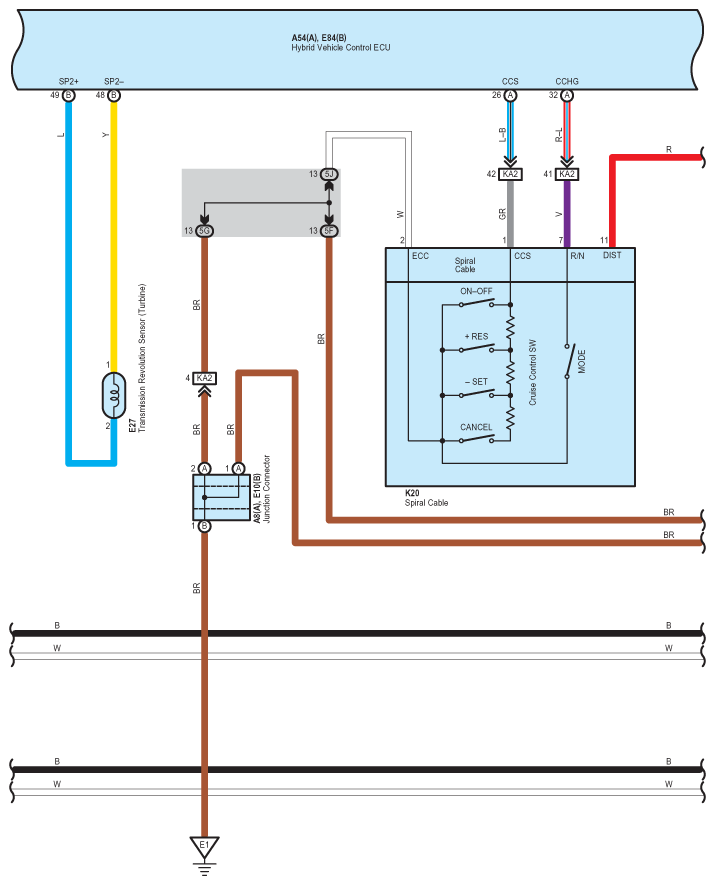

Fig 5: Dynamic Radar Cruise Control - Wiring Diagram (5 Of 23)

G07557903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

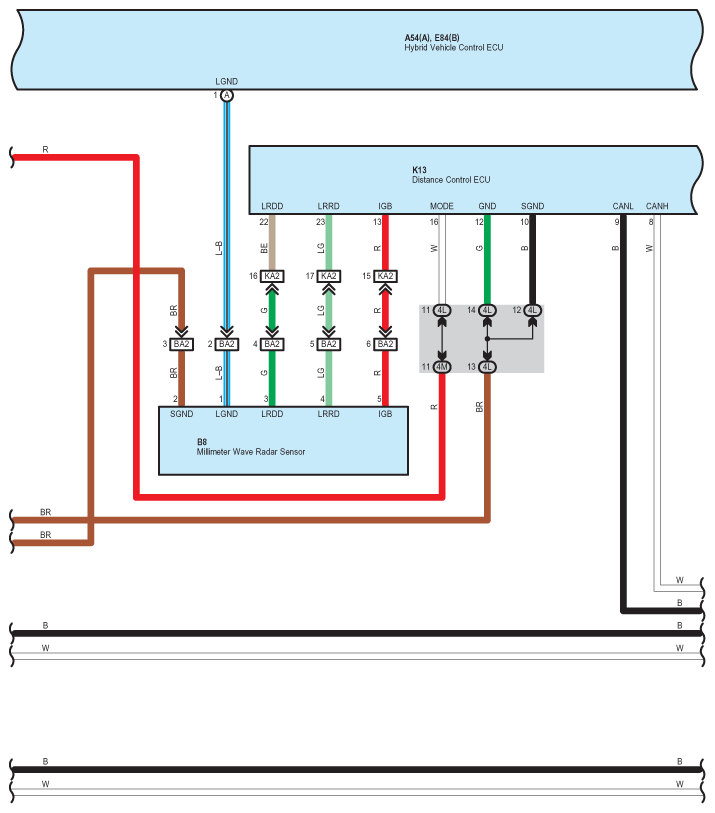

Fig 6: Dynamic Radar Cruise Control - Wiring Diagram (6 Of 23)

G07557904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

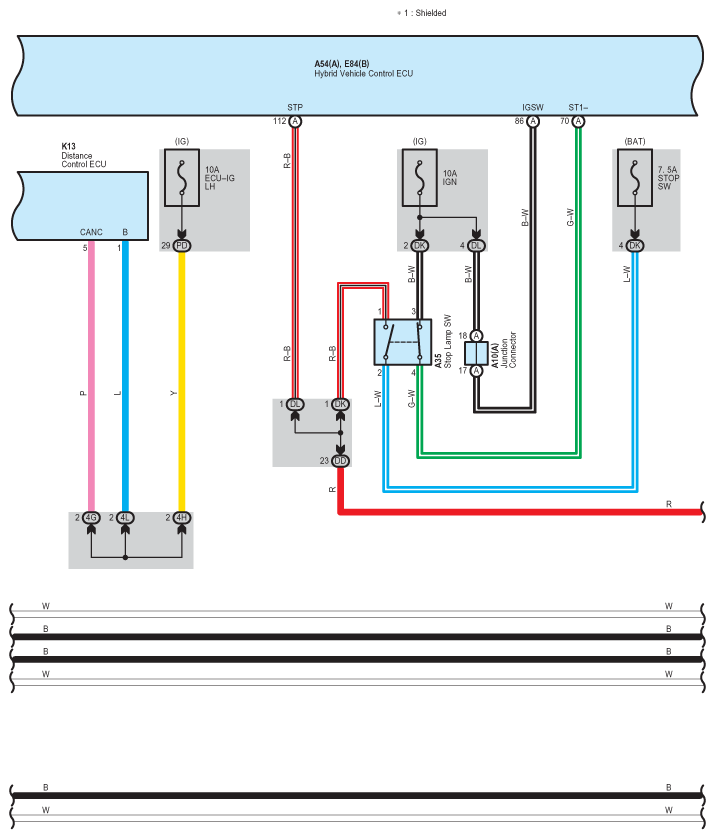

Fig 7: Dynamic Radar Cruise Control - Wiring Diagram (7 Of 23)

G07557905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

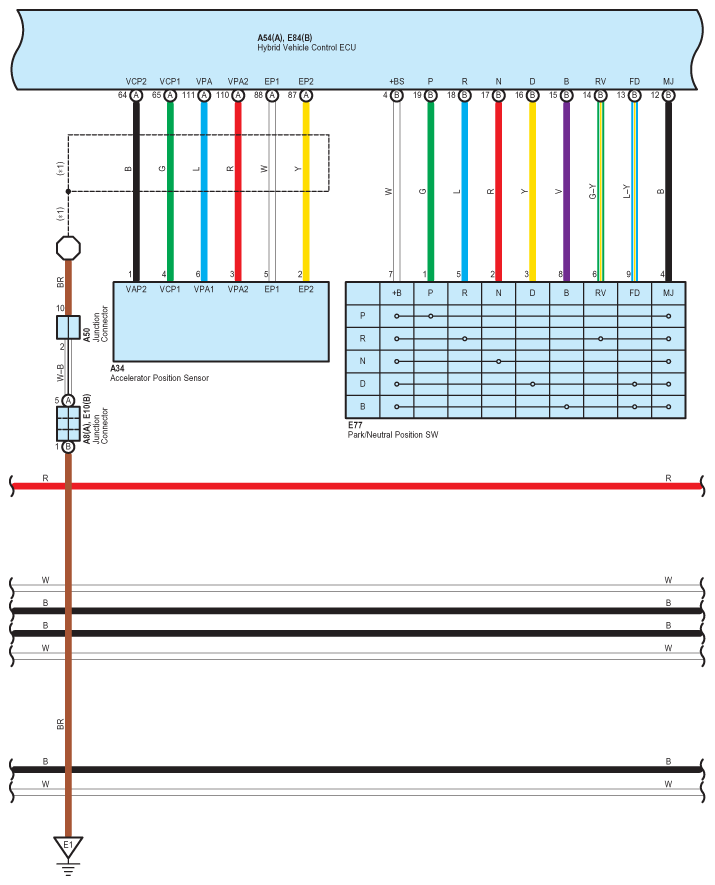

Fig 8: Dynamic Radar Cruise Control - Wiring Diagram (8 Of 23)

G07557906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

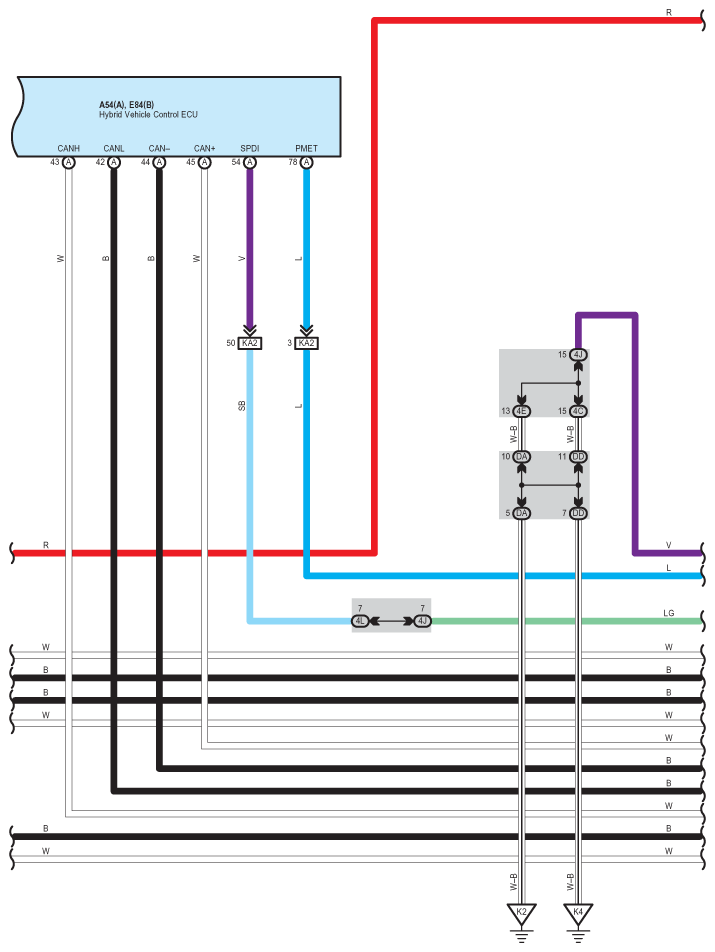

Fig 9: Dynamic Radar Cruise Control - Wiring Diagram (9 Of 23)

G07557907

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

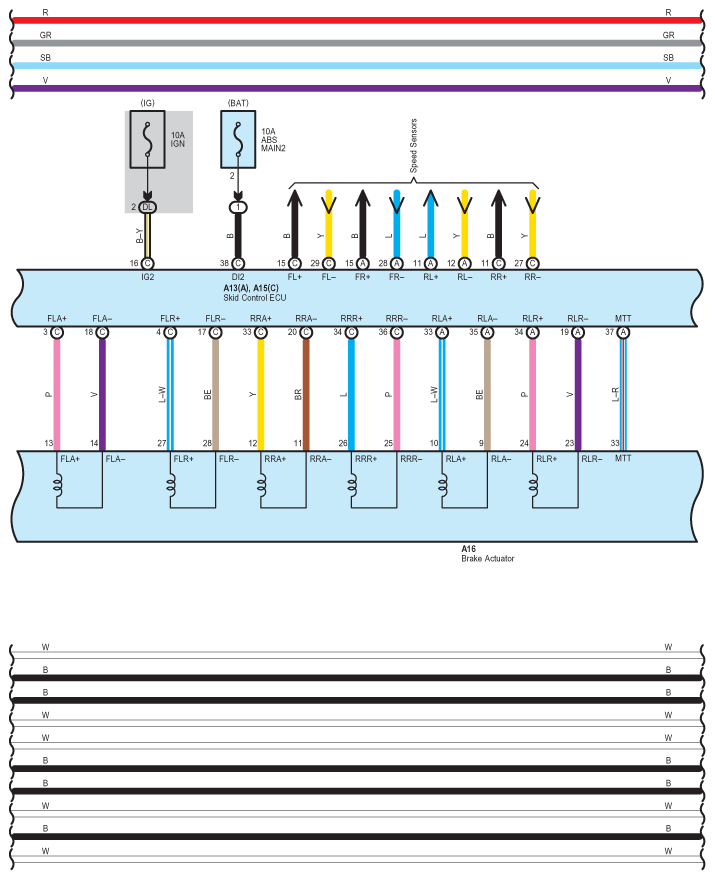

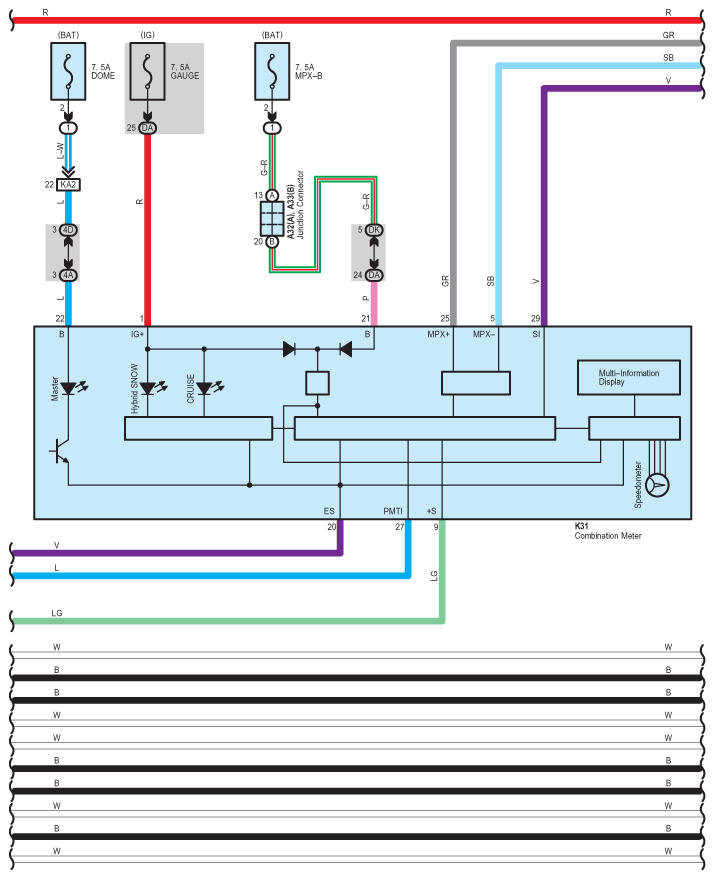

Fig 10: Dynamic Radar Cruise Control - Wiring Diagram (10 Of 23)

G07557908

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

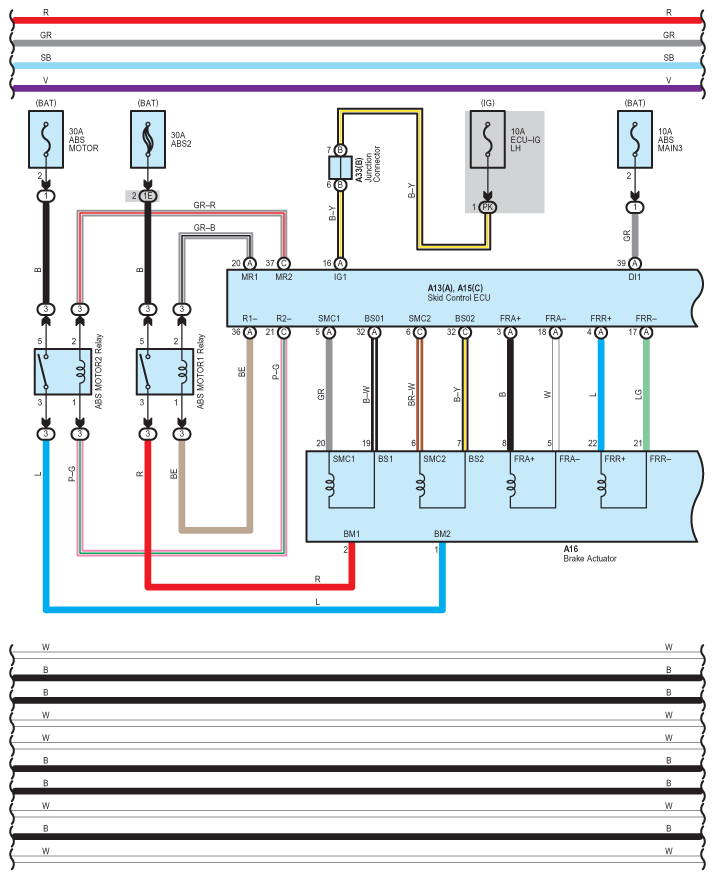

Fig 11: Dynamic Radar Cruise Control - Wiring Diagram (11 Of 23)

G07557909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

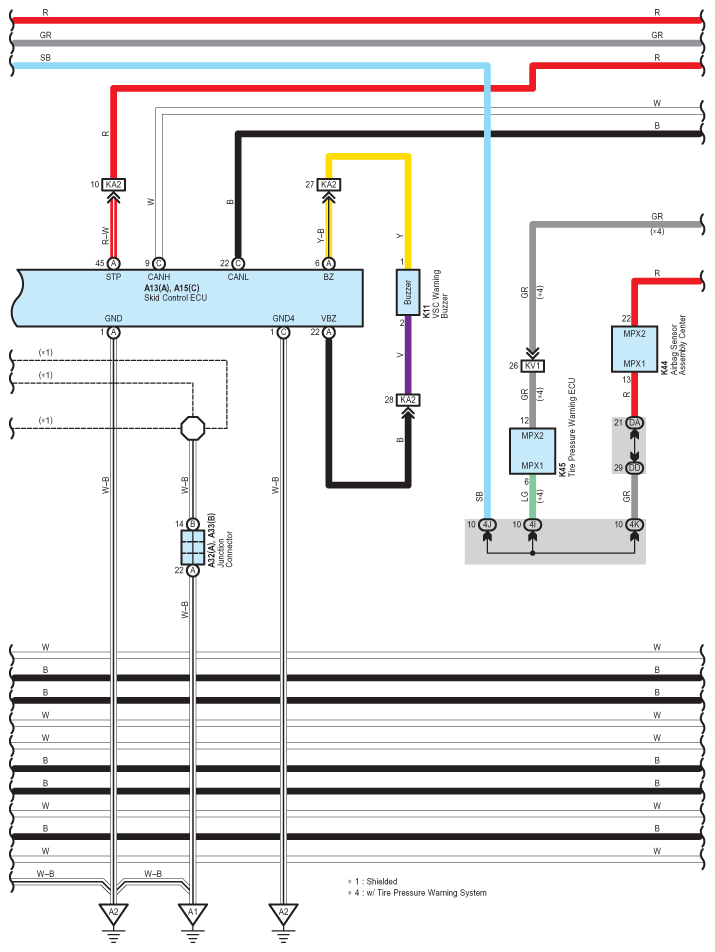

Fig 12: Dynamic Radar Cruise Control - Wiring Diagram (12 Of 23)

G07557910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

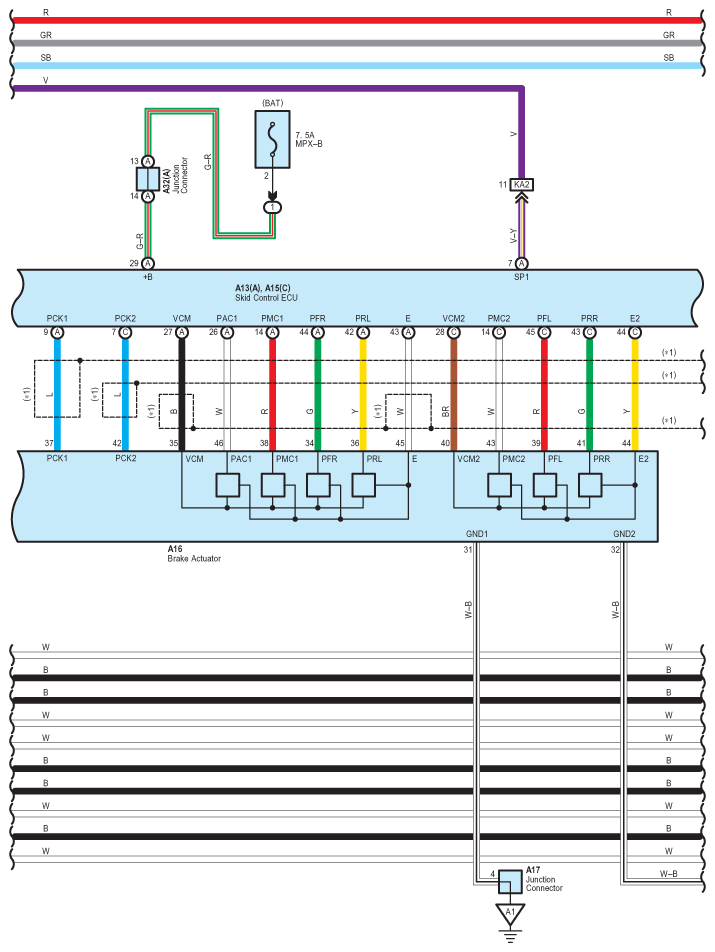

Fig 13: Dynamic Radar Cruise Control - Wiring Diagram (13 Of 23)

G07557911

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dynamic Radar Cruise Control - Wiring Diagram (14 Of 23)

G07557912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

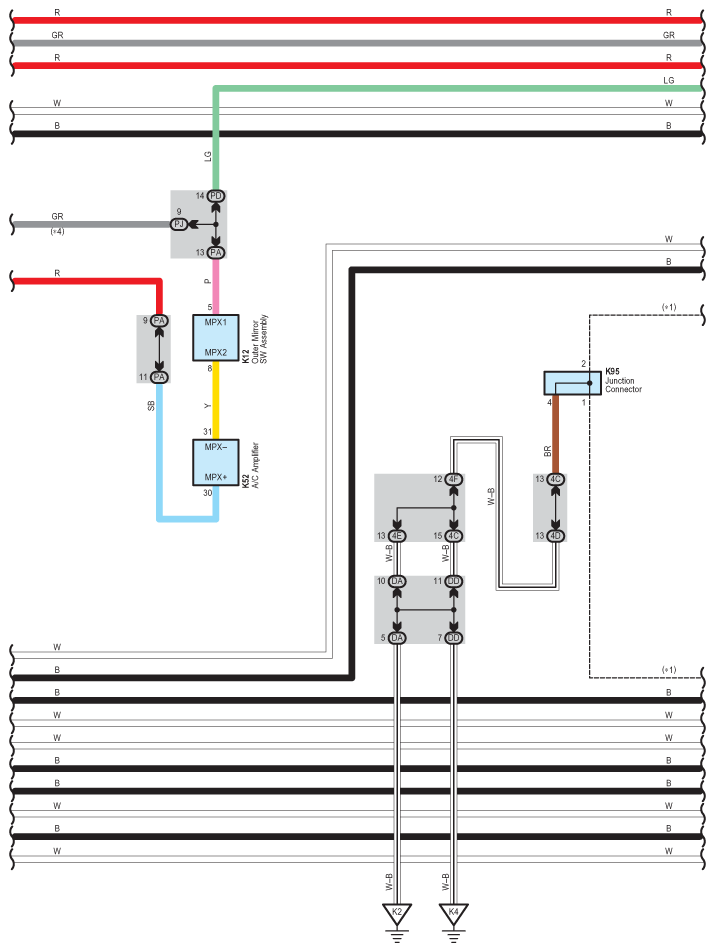

Fig 15: Dynamic Radar Cruise Control - Wiring Diagram (15 Of 23)

G07557913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

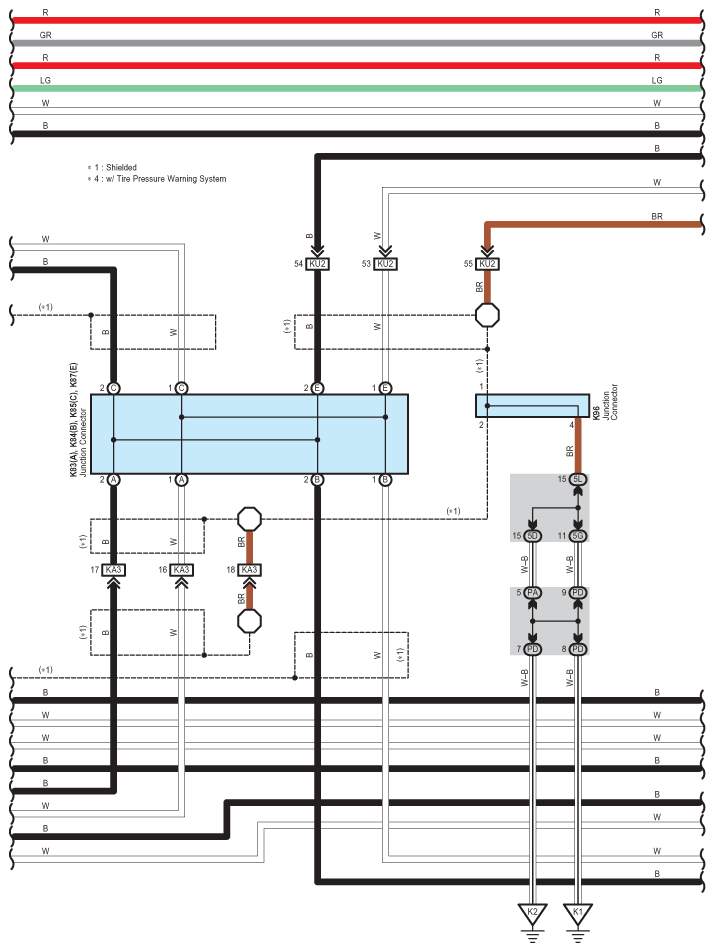

Fig 16: Dynamic Radar Cruise Control - Wiring Diagram (16 Of 23)

G07557914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

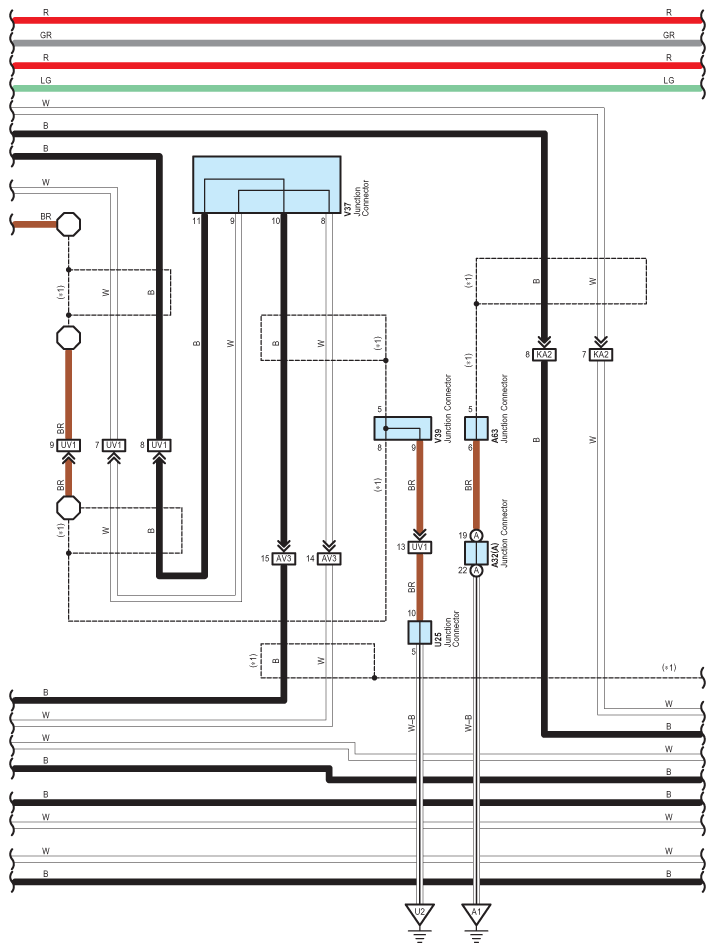

Fig 17: Dynamic Radar Cruise Control - Wiring Diagram (17 Of 23)

G07557915

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

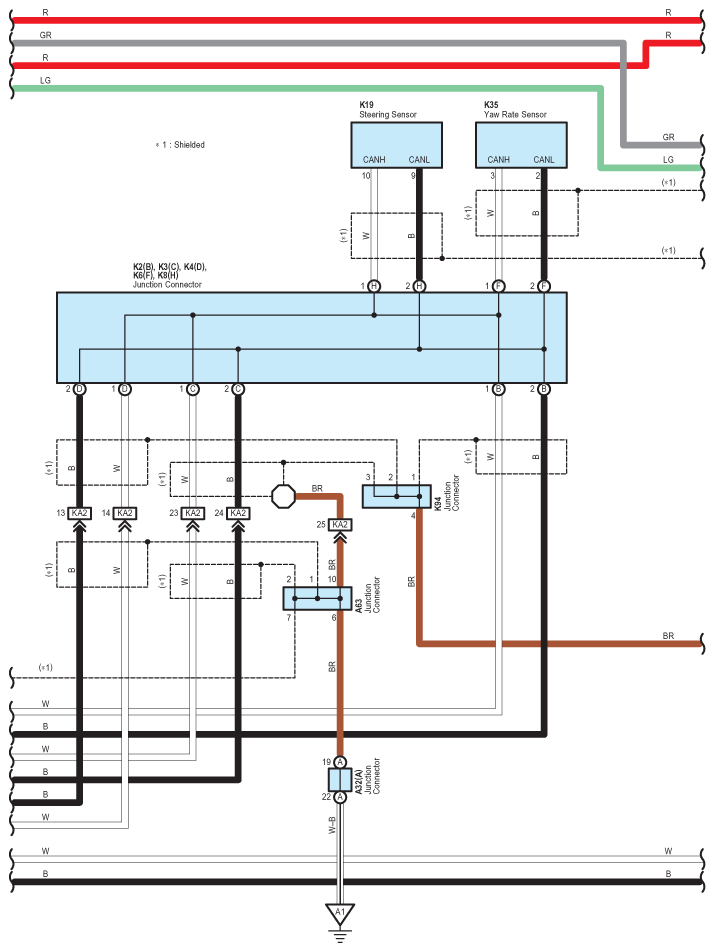

Fig 18: Dynamic Radar Cruise Control - Wiring Diagram (18 Of 23)

G07557916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

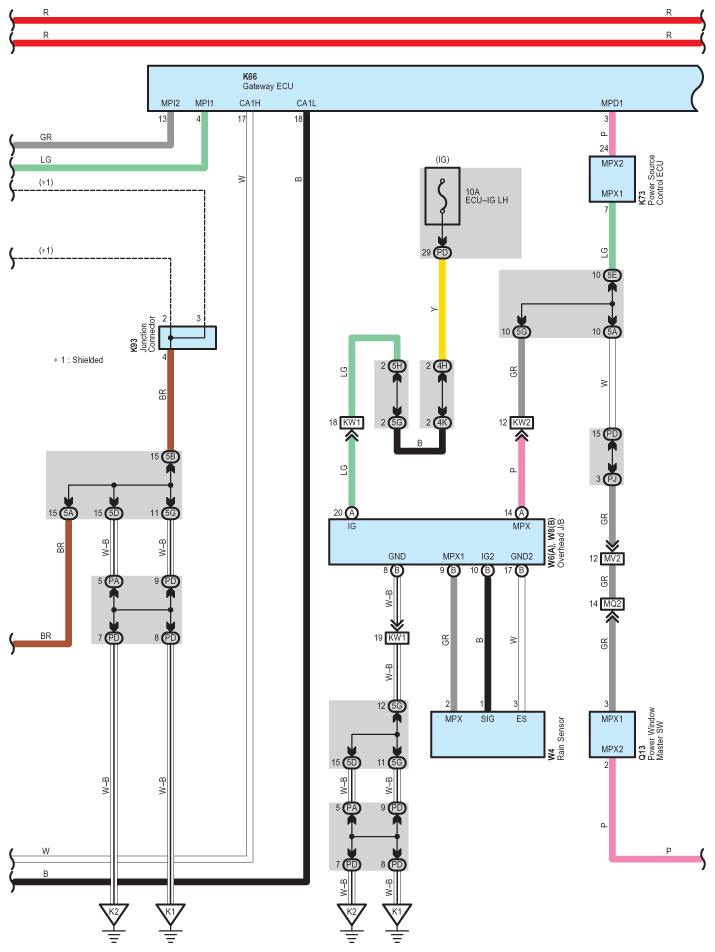

Fig 19: Dynamic Radar Cruise Control - Wiring Diagram (19 Of 23)

G07557917

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

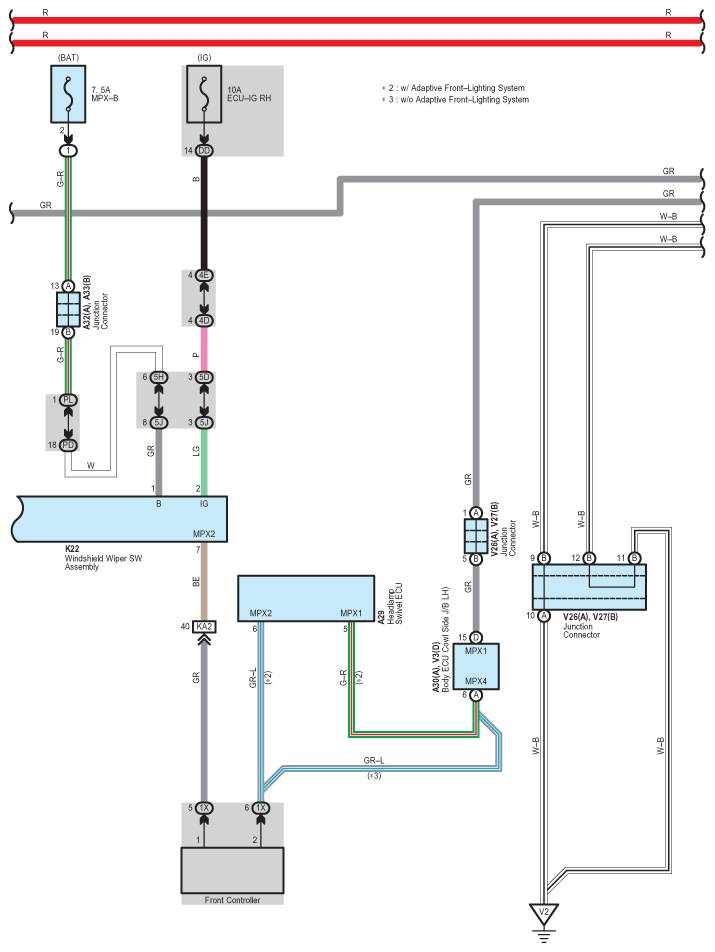

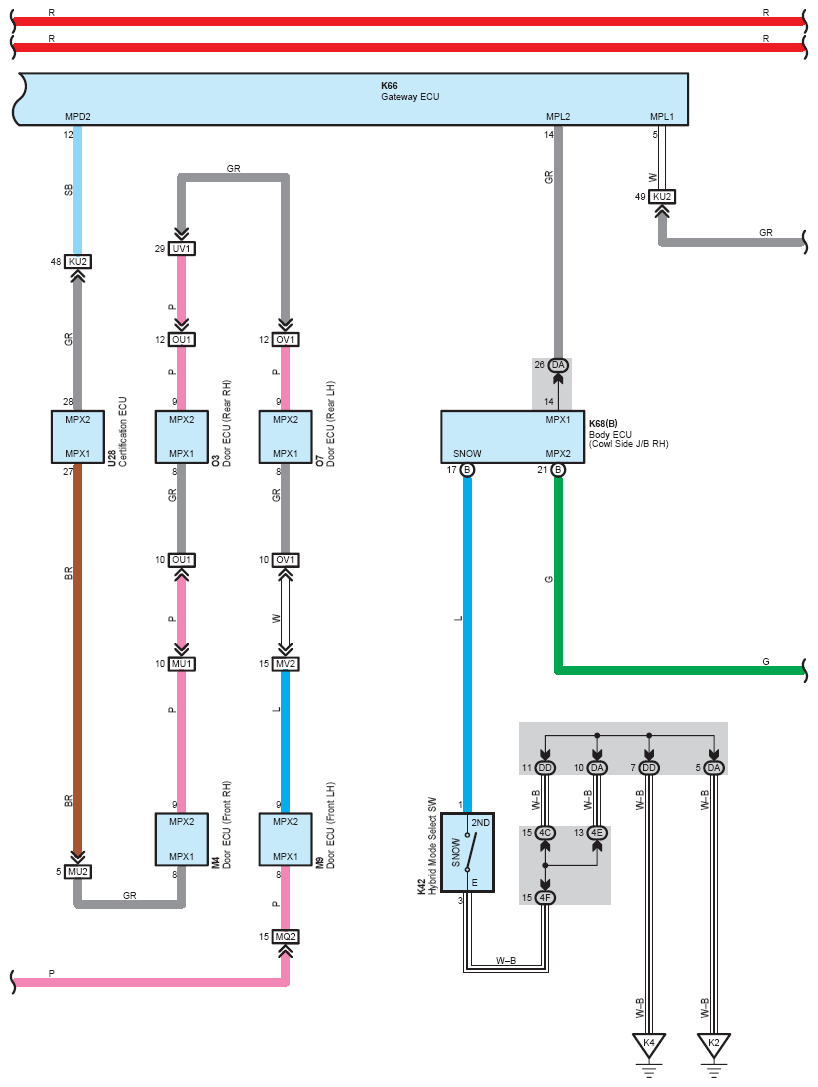

Fig 20: Dynamic Radar Cruise Control - Wiring Diagram (20 Of 23)

G07557918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

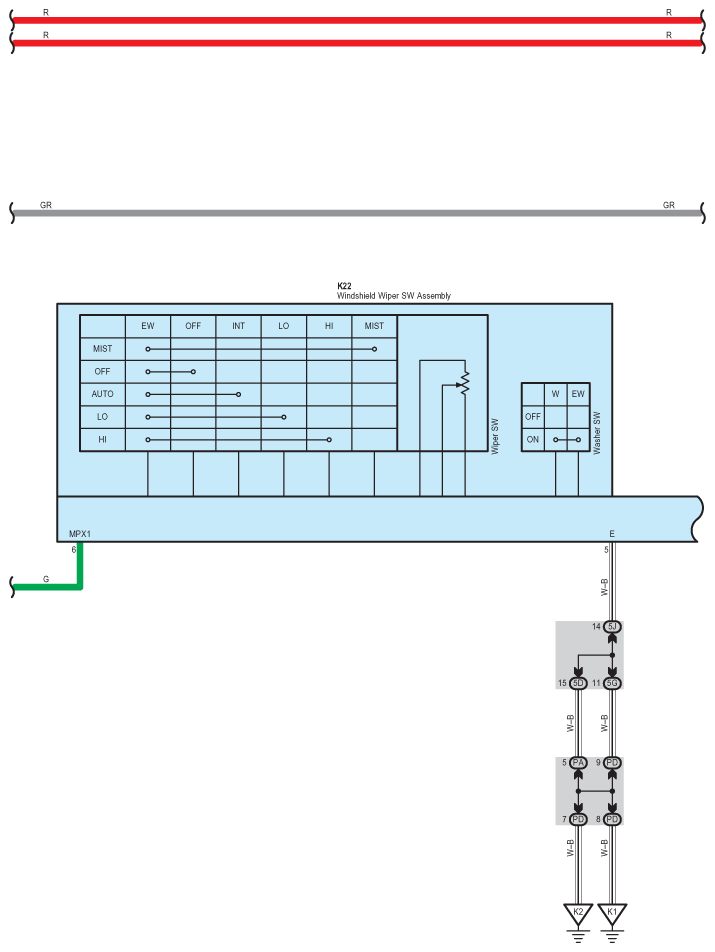

Fig 21: Dynamic Radar Cruise Control - Wiring Diagram (21 Of 23)

G07557919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Dynamic Radar Cruise Control - Wiring Diagram (22 Of 23)

G07557920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

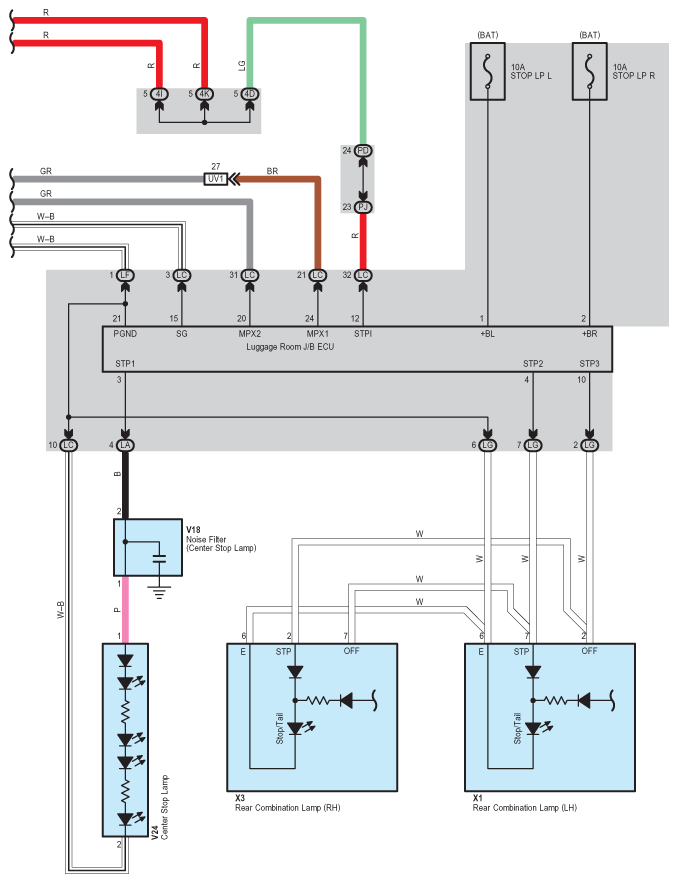

Fig 23: Dynamic Radar Cruise Control - Wiring Diagram (23 Of 23)

G07557921
