OEM System Circuits: EPS: Notes

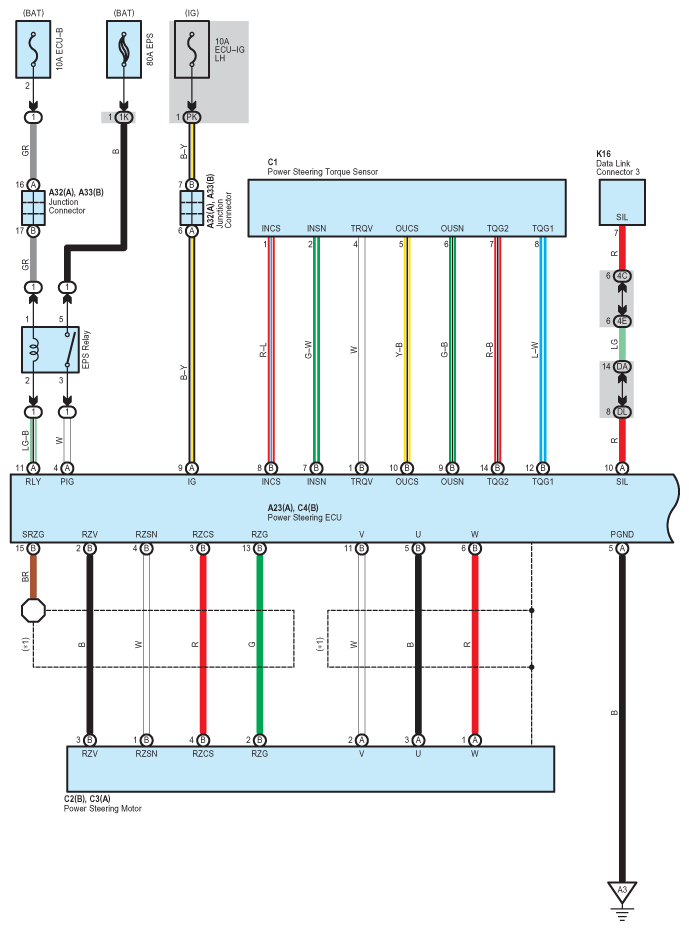

Fig 1: EPS - Wiring Diagram (1 Of 7)

G07557953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

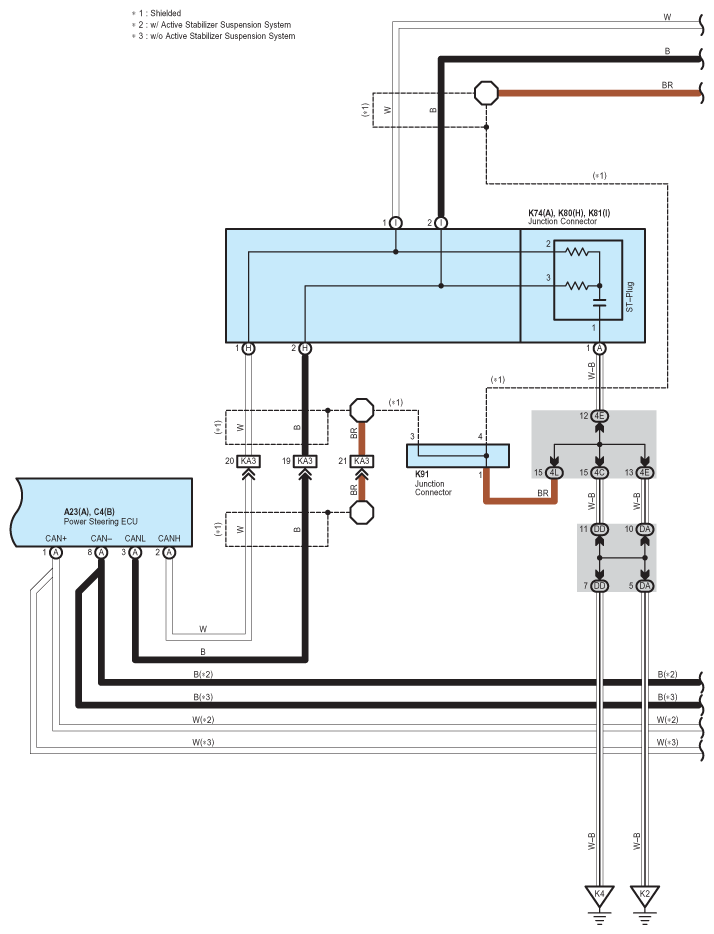

Fig 2: EPS - Wiring Diagram (2 Of 7)

G07557954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

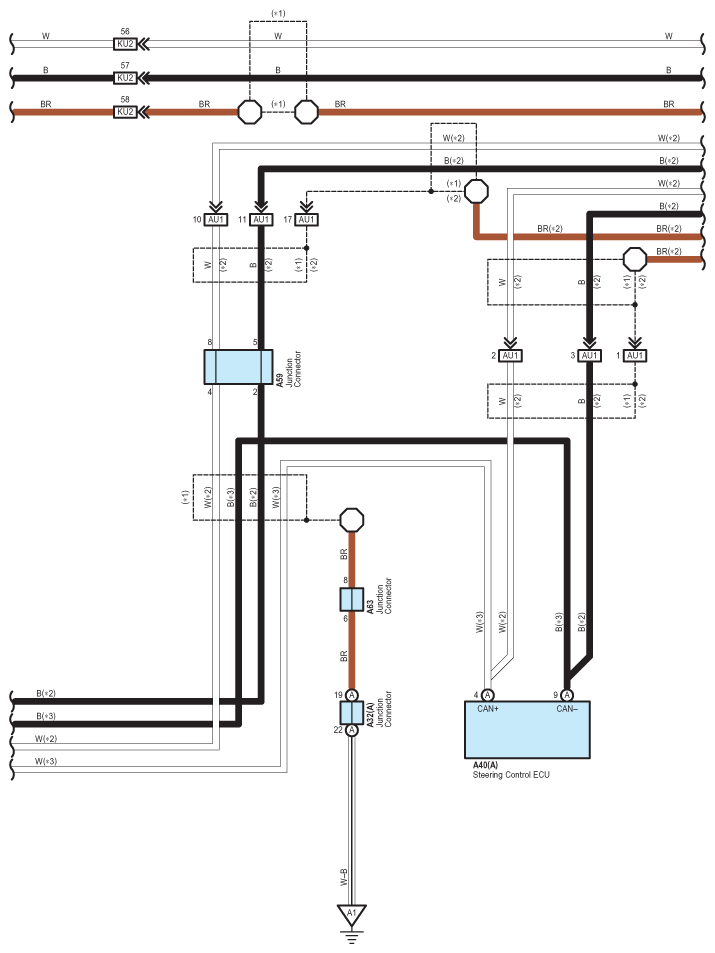

Fig 3: EPS - Wiring Diagram (3 Of 7)

G07557955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

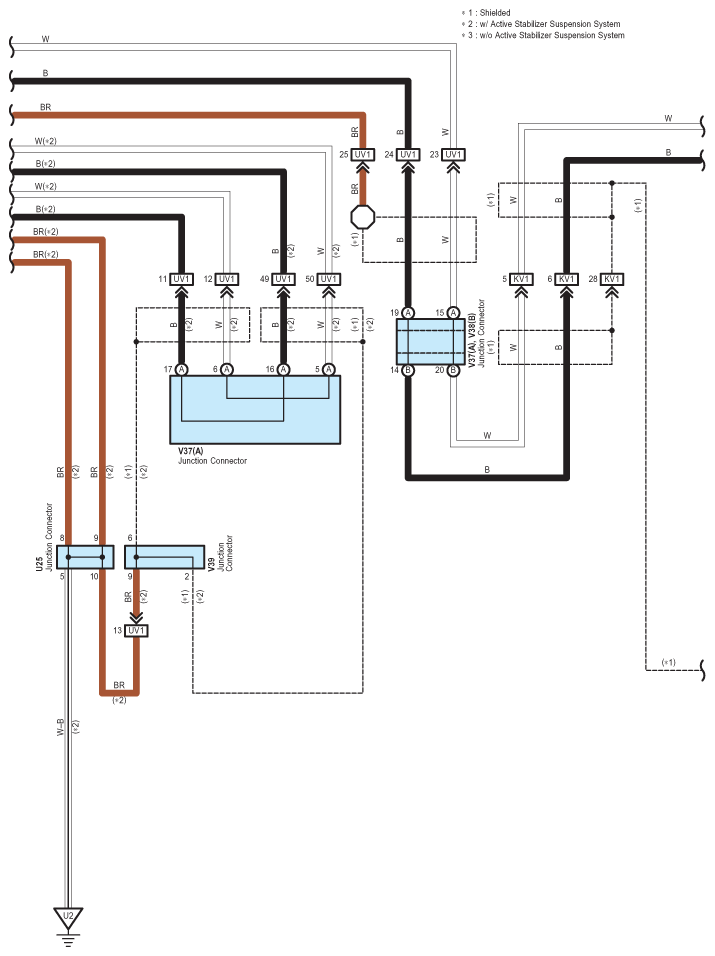

Fig 4: EPS - Wiring Diagram (4 Of 7)

G07557956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

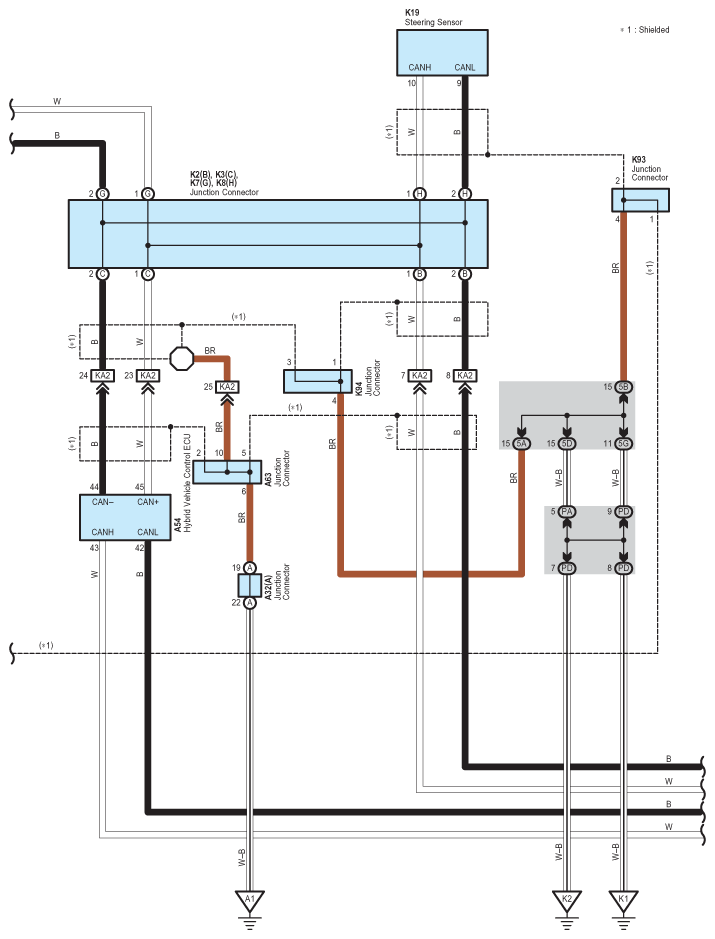

Fig 5: EPS - Wiring Diagram (5 Of 7)

G07557957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

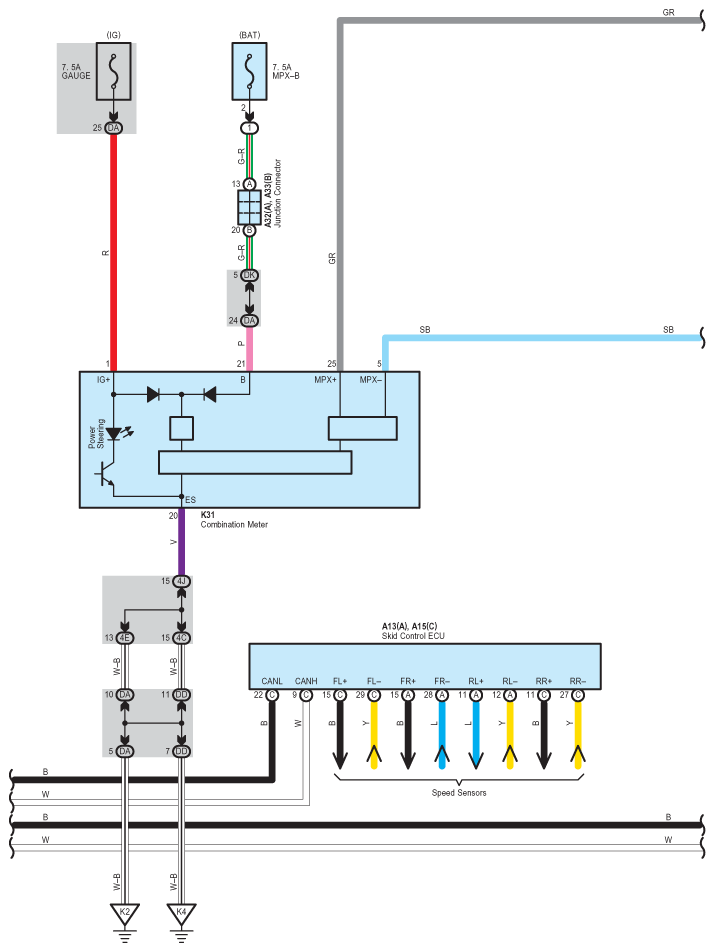

Fig 6: EPS - Wiring Diagram (6 Of 7)

G07557958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

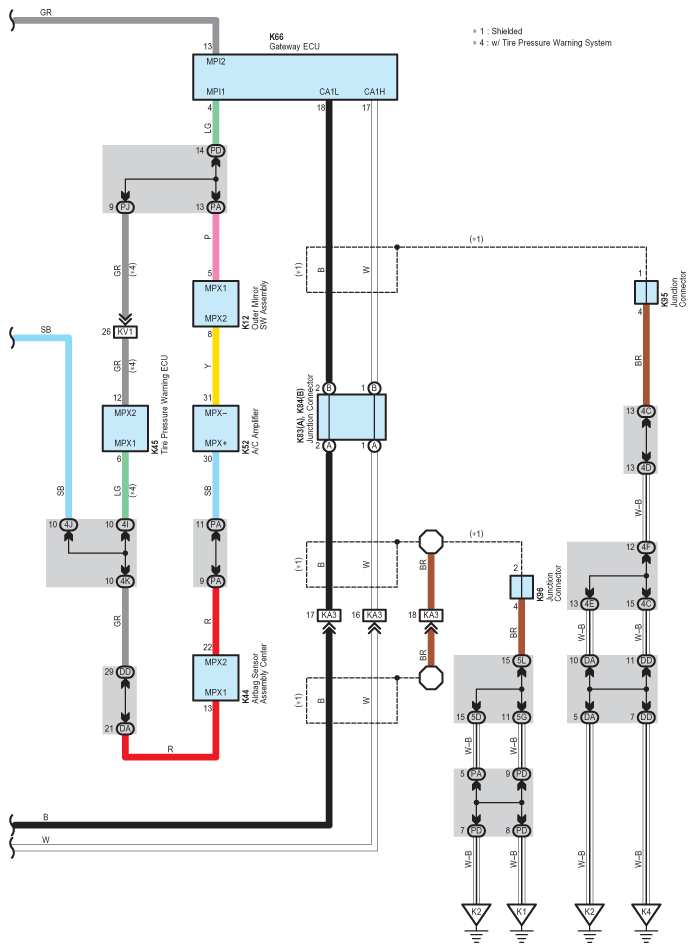

Fig 7: EPS - Wiring Diagram (7 Of 7)

G07557959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
