Electronic Modulated Suspension: Notes

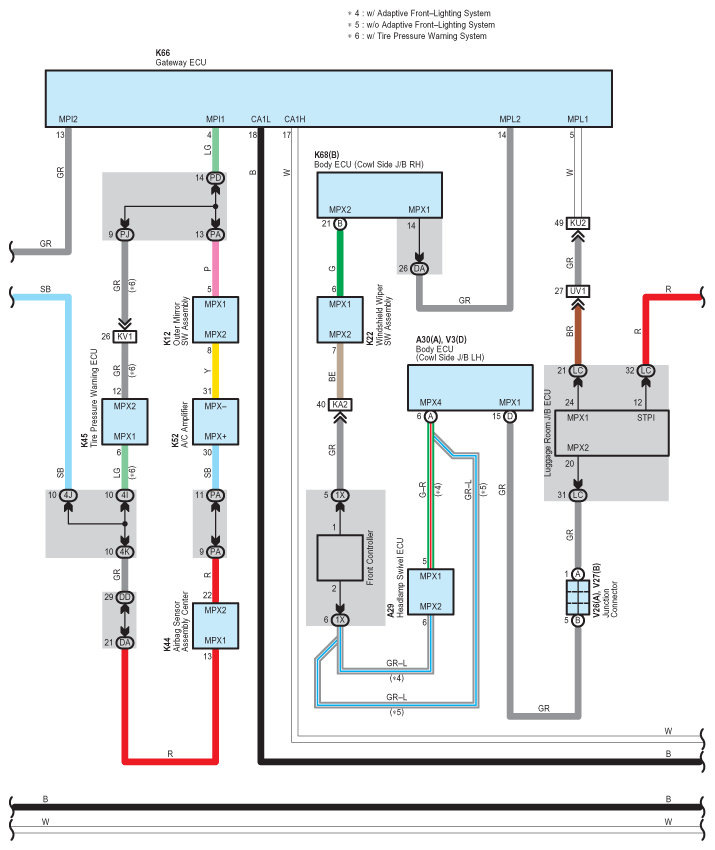

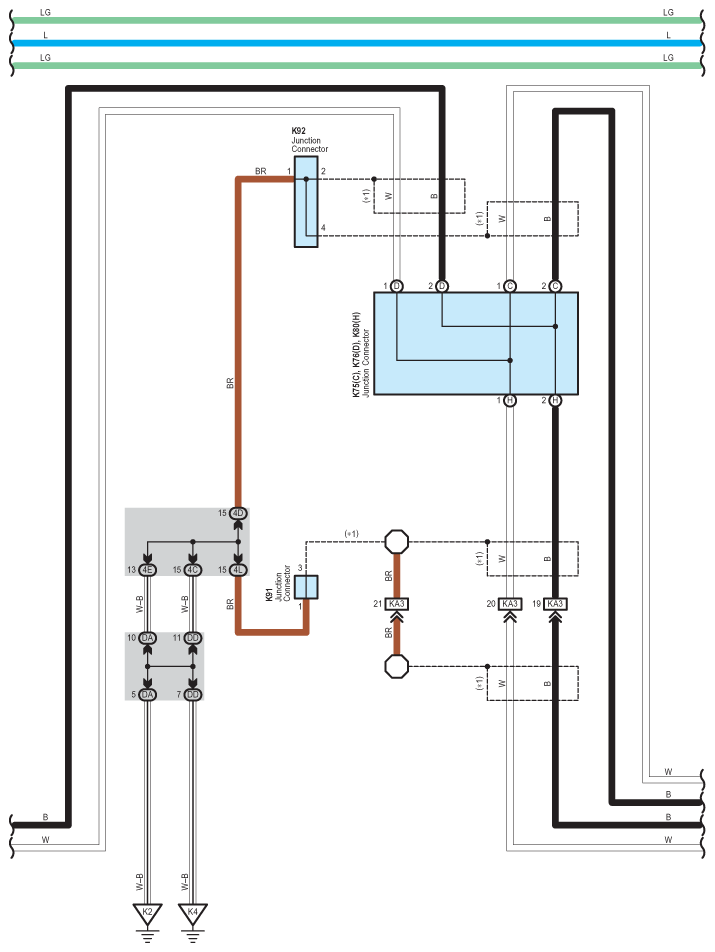

Fig 1: Electronic Modulated Suspension - Wiring Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

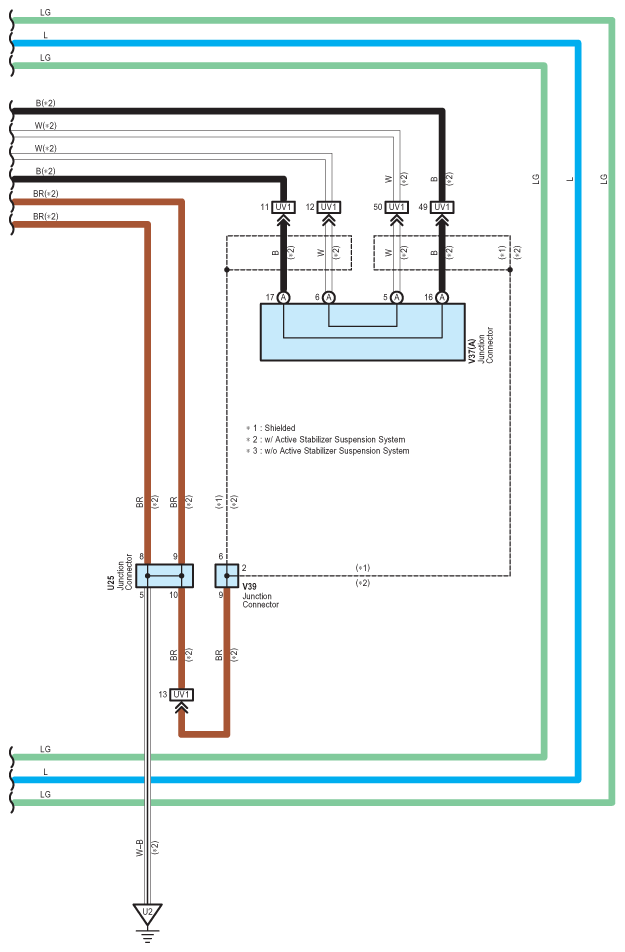

Fig 2: Electronic Modulated Suspension - Wiring Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

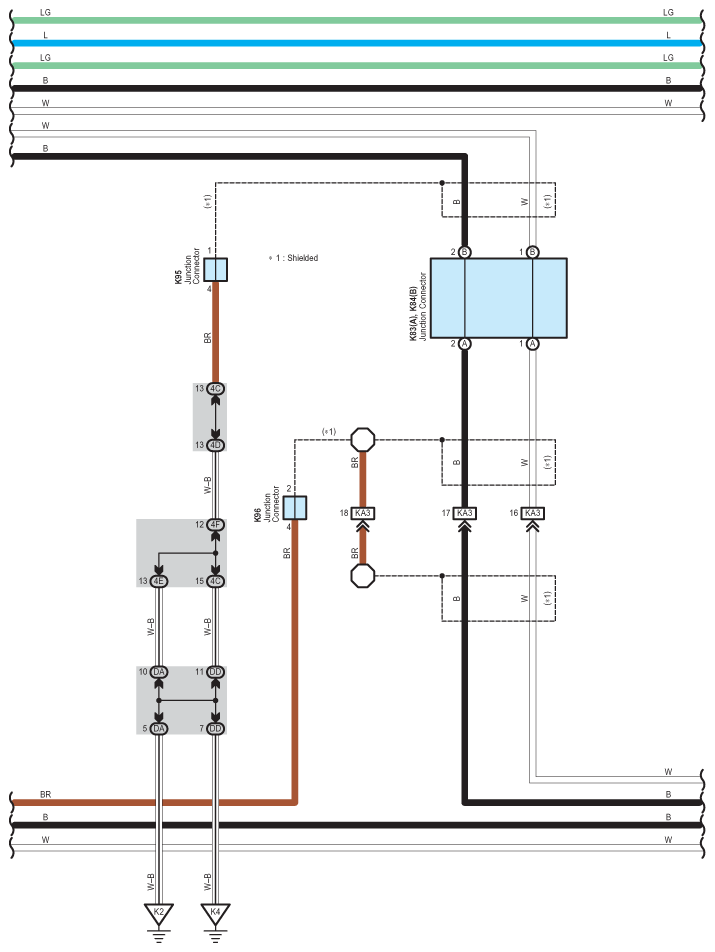

Fig 3: Electronic Modulated Suspension - Wiring Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

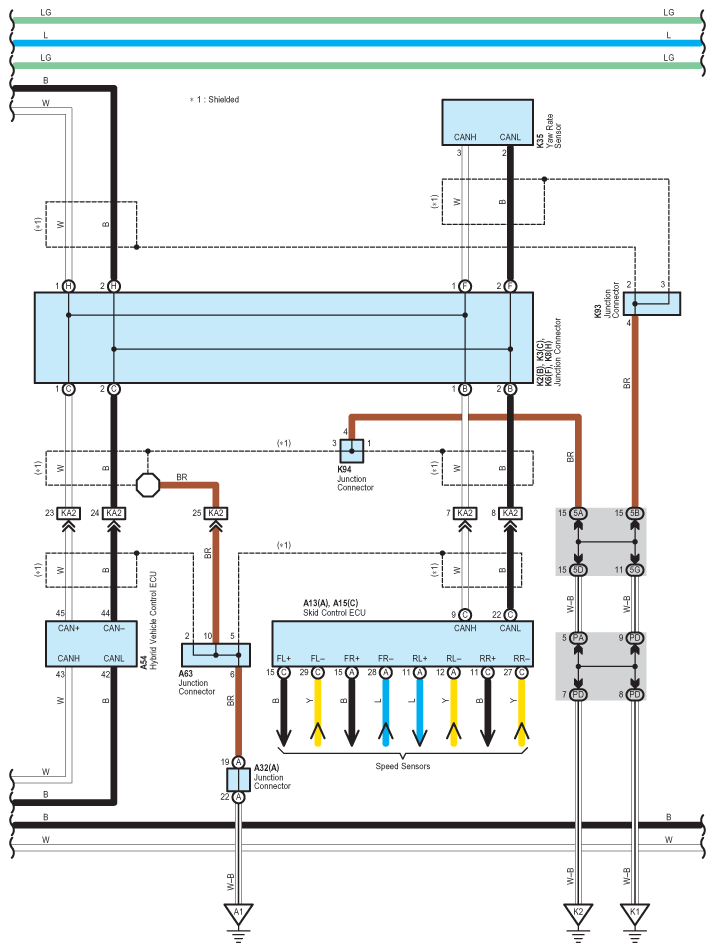

Fig 4: Electronic Modulated Suspension - Wiring Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

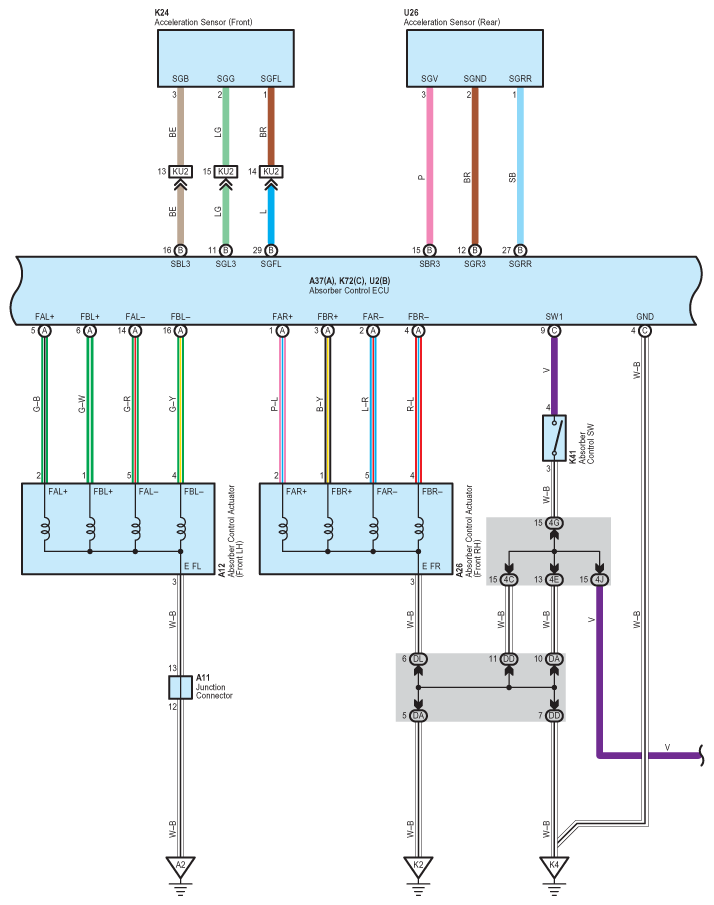

Fig 5: Electronic Modulated Suspension - Wiring Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

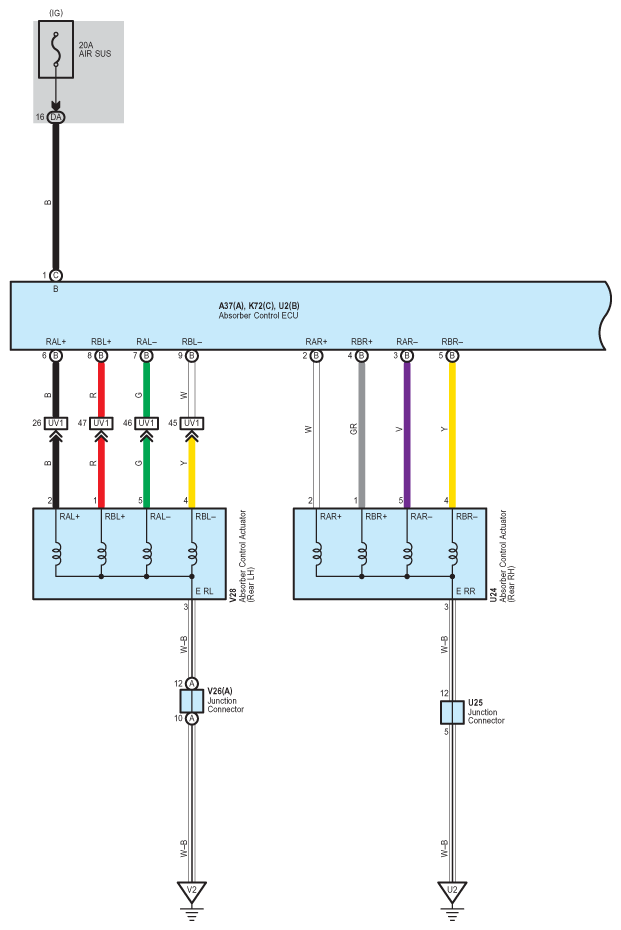

Fig 6: Electronic Modulated Suspension - Wiring Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

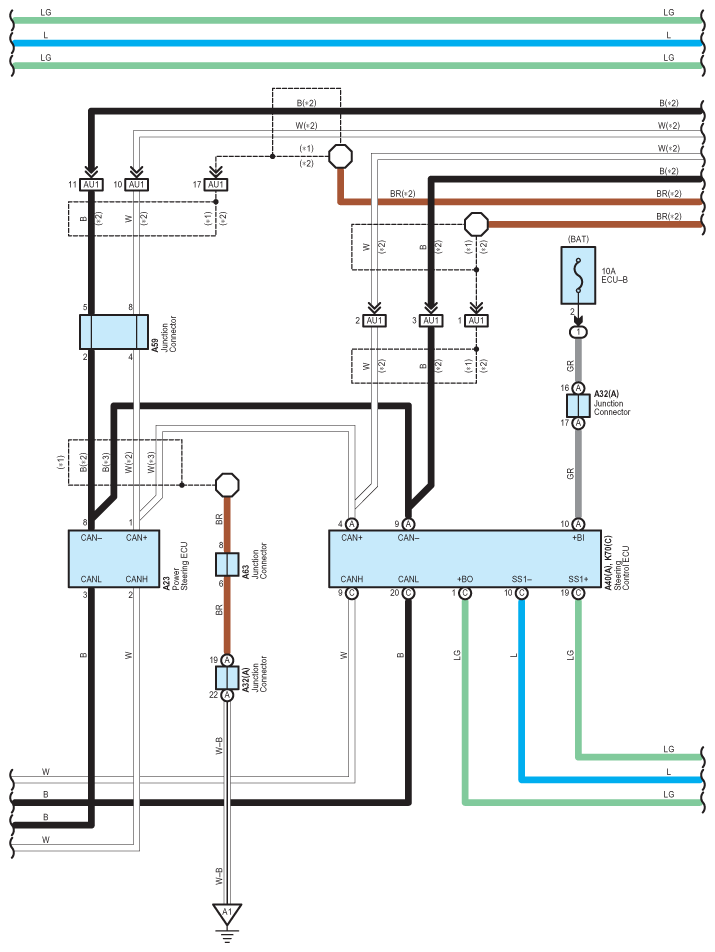

Fig 7: Electronic Modulated Suspension - Wiring Diagram (7 Of 10)

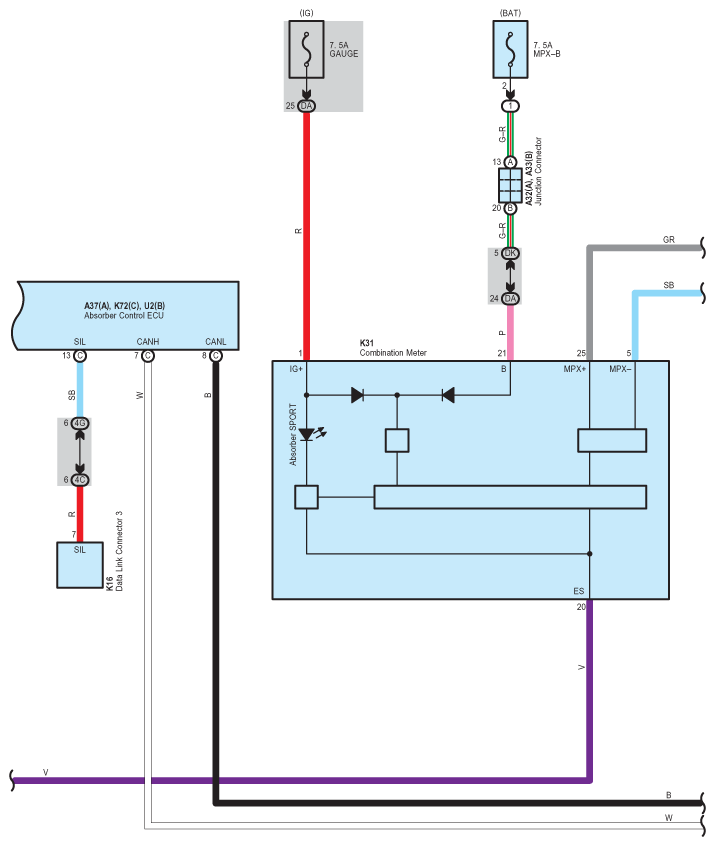

Fig 8: Electronic Modulated Suspension - Wiring Diagram (8 Of 10)

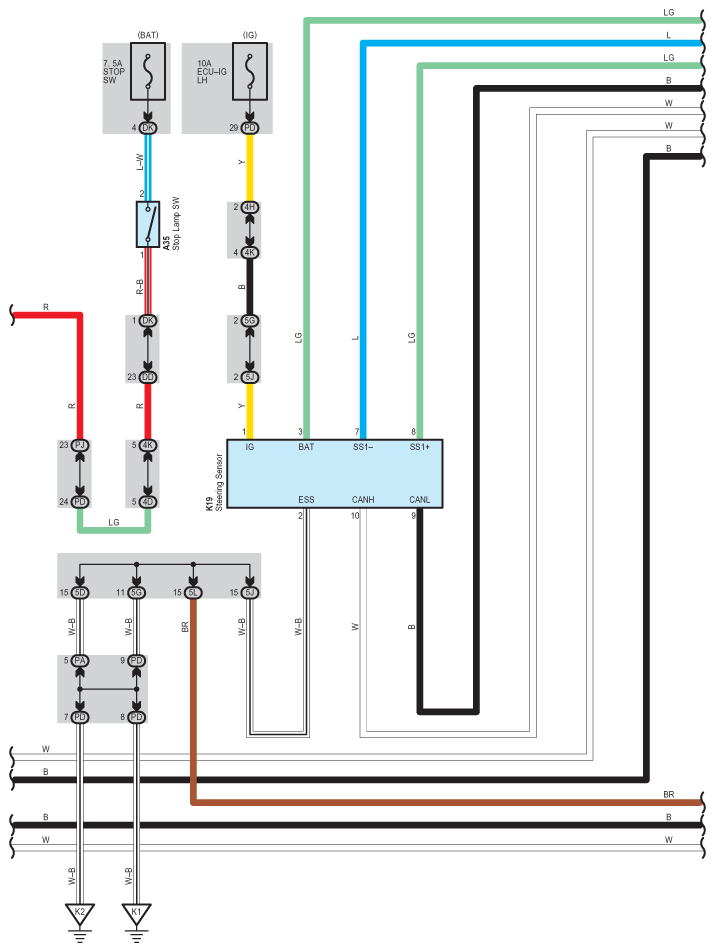

Fig 9: Electronic Modulated Suspension - Wiring Diagram (9 Of 10)

Fig 10: Electronic Modulated Suspension - Wiring Diagram (10 Of 10)
