Fuel Lid Opener: Notes

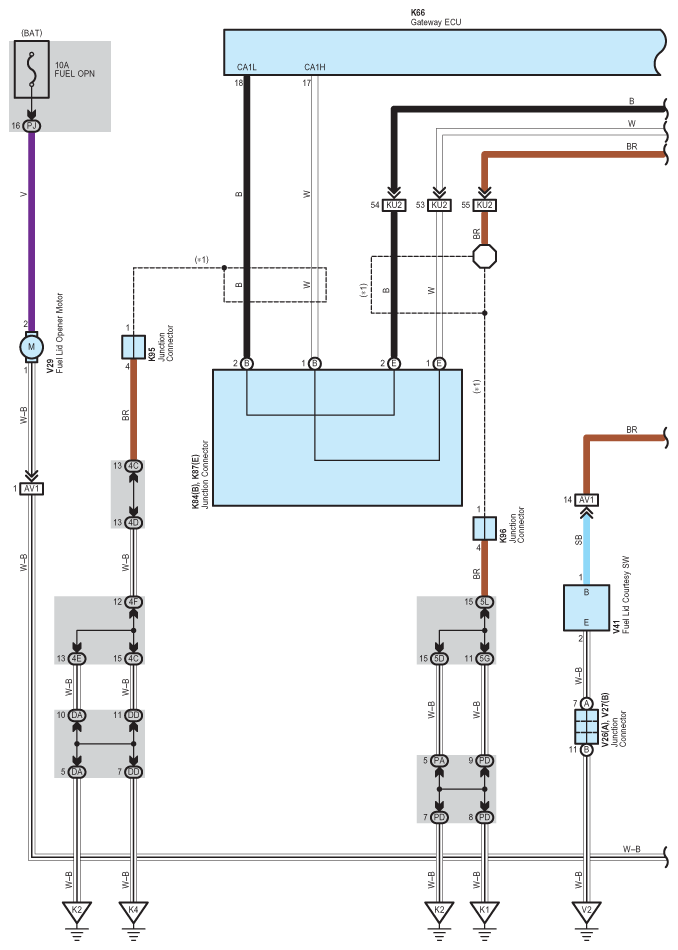

Fig 1: Fuel Lid Opener - Wiring Diagram (1 Of 3)
G07558029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

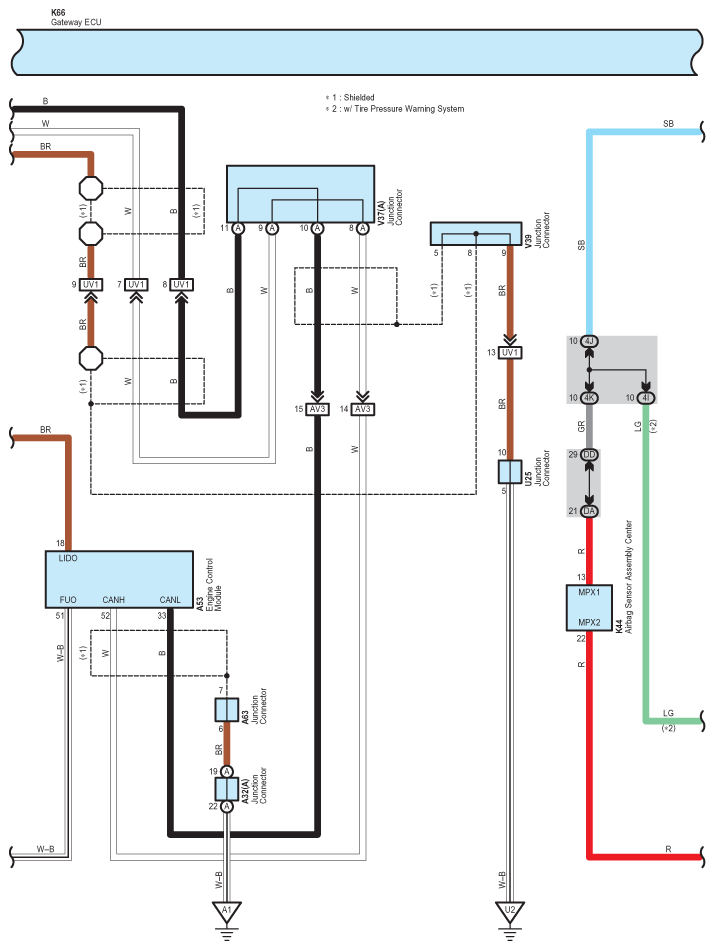

Fig 2: Fuel Lid Opener - Wiring Diagram (2 Of 3)
G07558030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

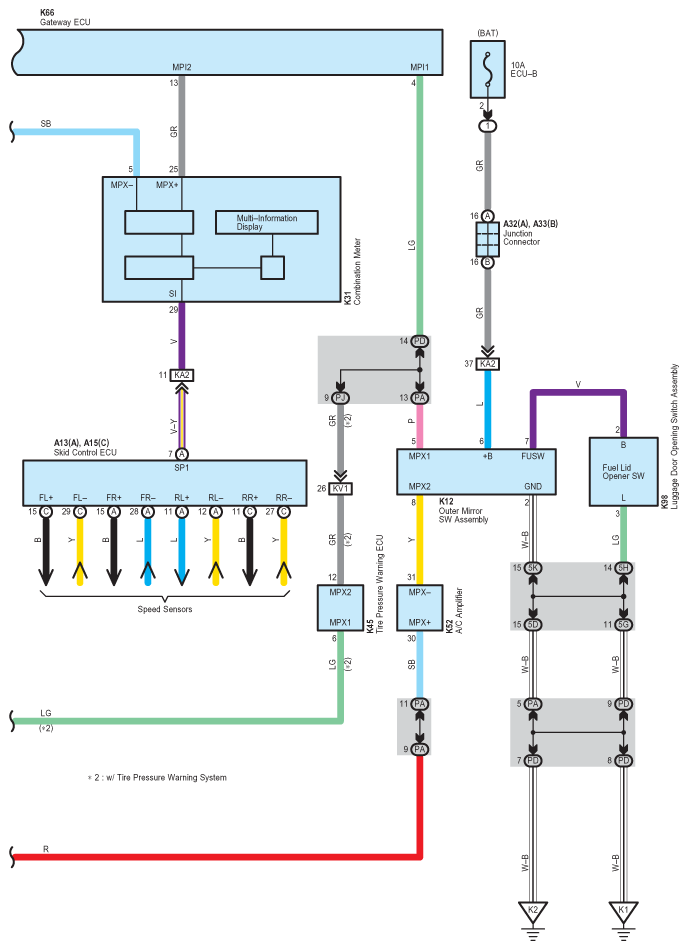

Fig 3: Fuel Lid Opener - Wiring Diagram (3 Of 3)
G07558031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
