Hybrid System and Shift Control System: Notes

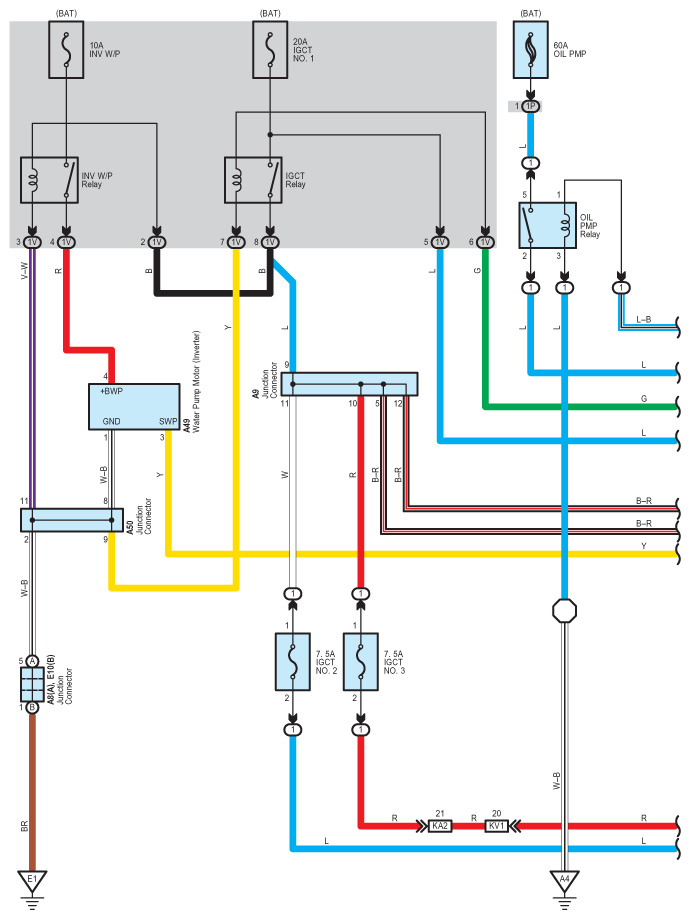

Fig 1: Hybrid System And Shift Control System - Wiring Diagram (1 Of 23)

G07557741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

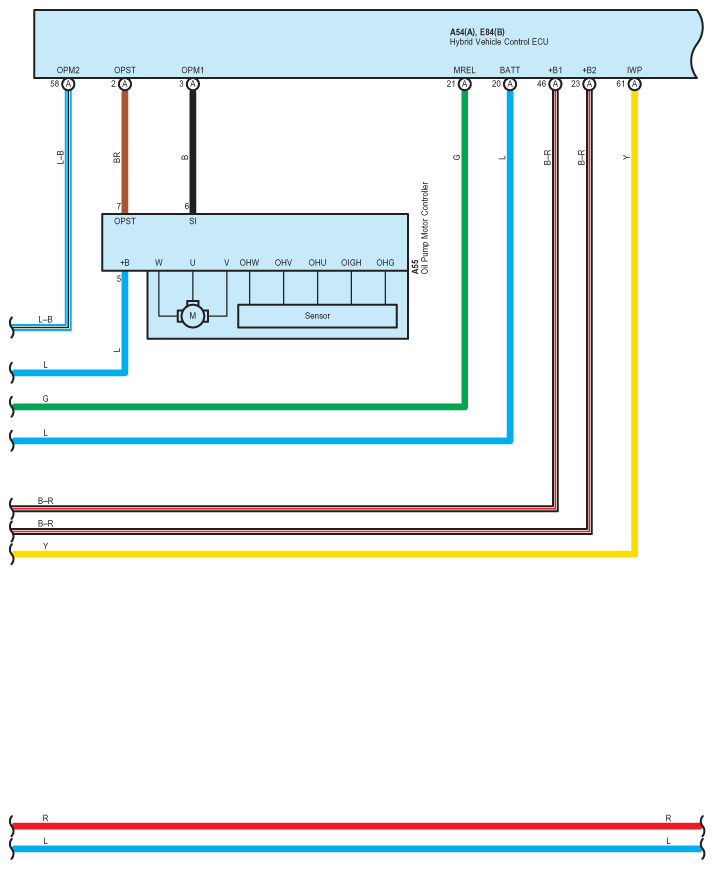

Fig 2: Hybrid System And Shift Control System - Wiring Diagram (2 Of 23)

G07557742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

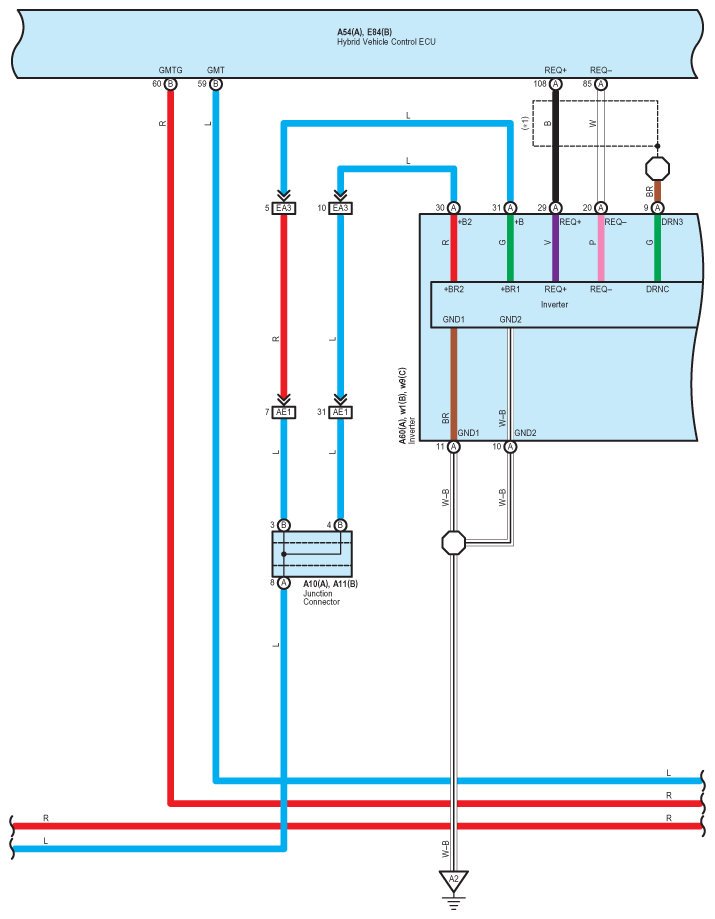

Fig 3: Hybrid System And Shift Control System - Wiring Diagram (3 Of 23)

G07557743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

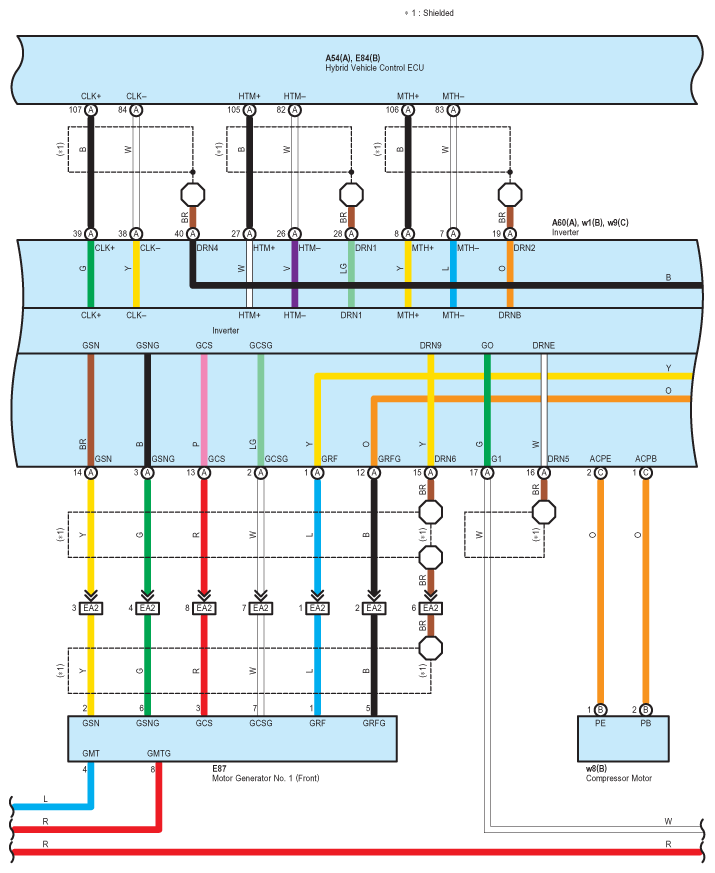

Fig 4: Hybrid System And Shift Control System - Wiring Diagram (4 Of 23)

G07557744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

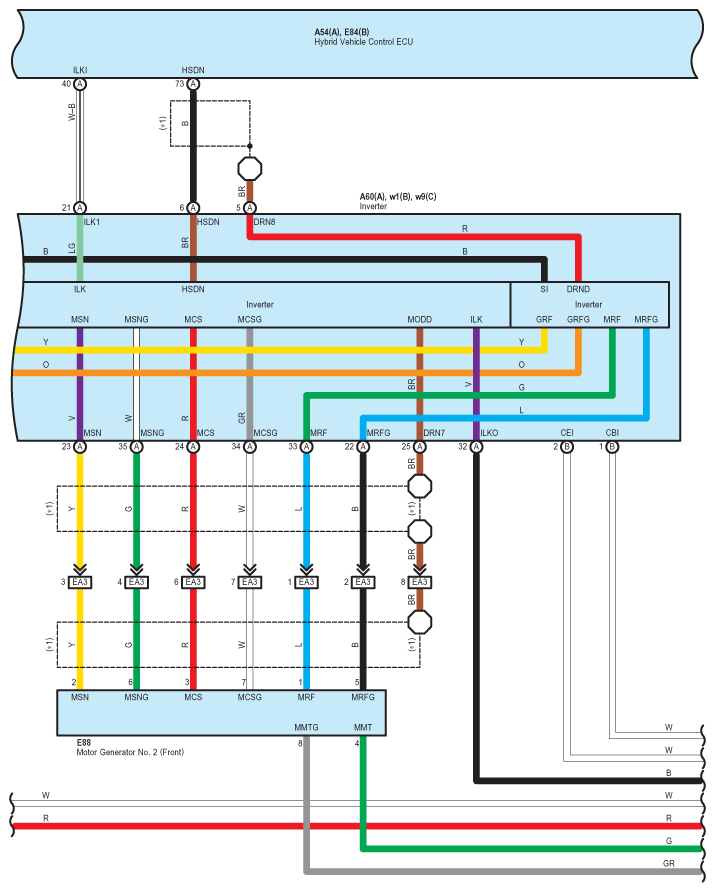

Fig 5: Hybrid System And Shift Control System - Wiring Diagram (5 Of 23)

G07557745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

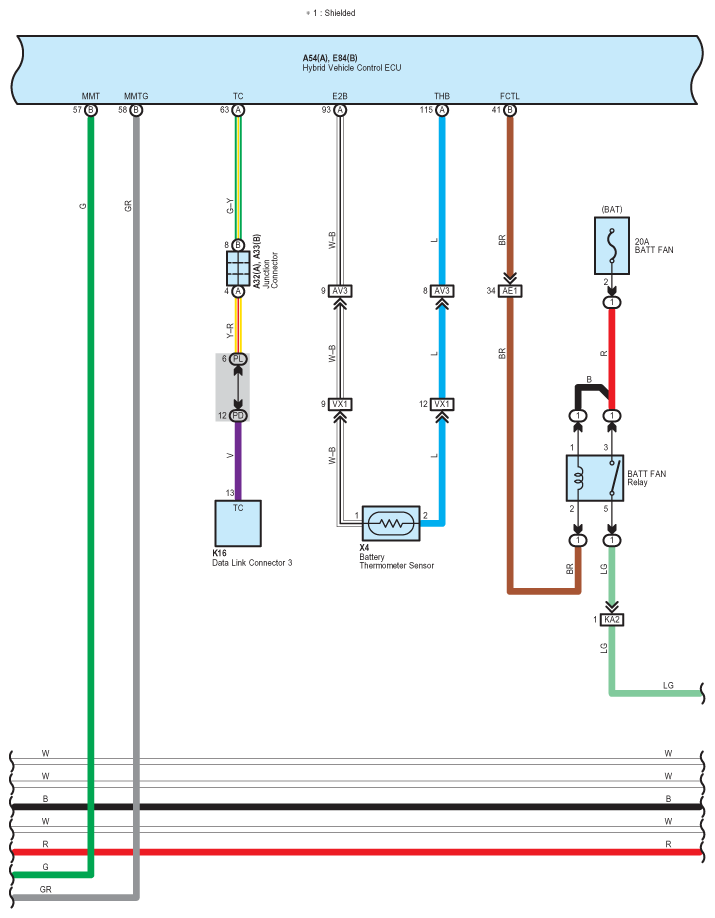

Fig 6: Hybrid System And Shift Control System - Wiring Diagram (6 Of 23)

G07557746

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

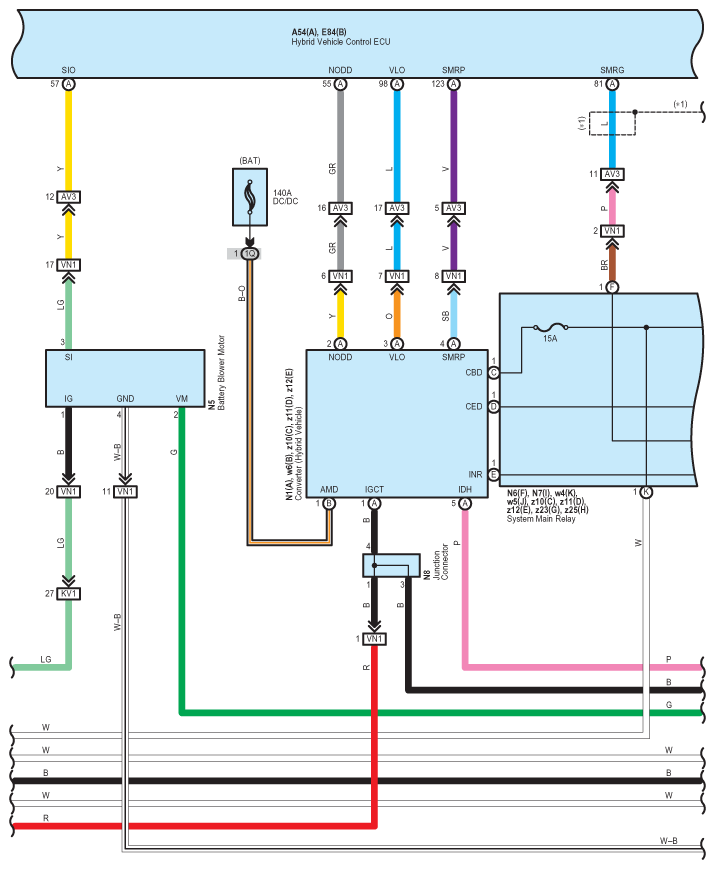

Fig 7: Hybrid System And Shift Control System - Wiring Diagram (7 Of 23)

G07557747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

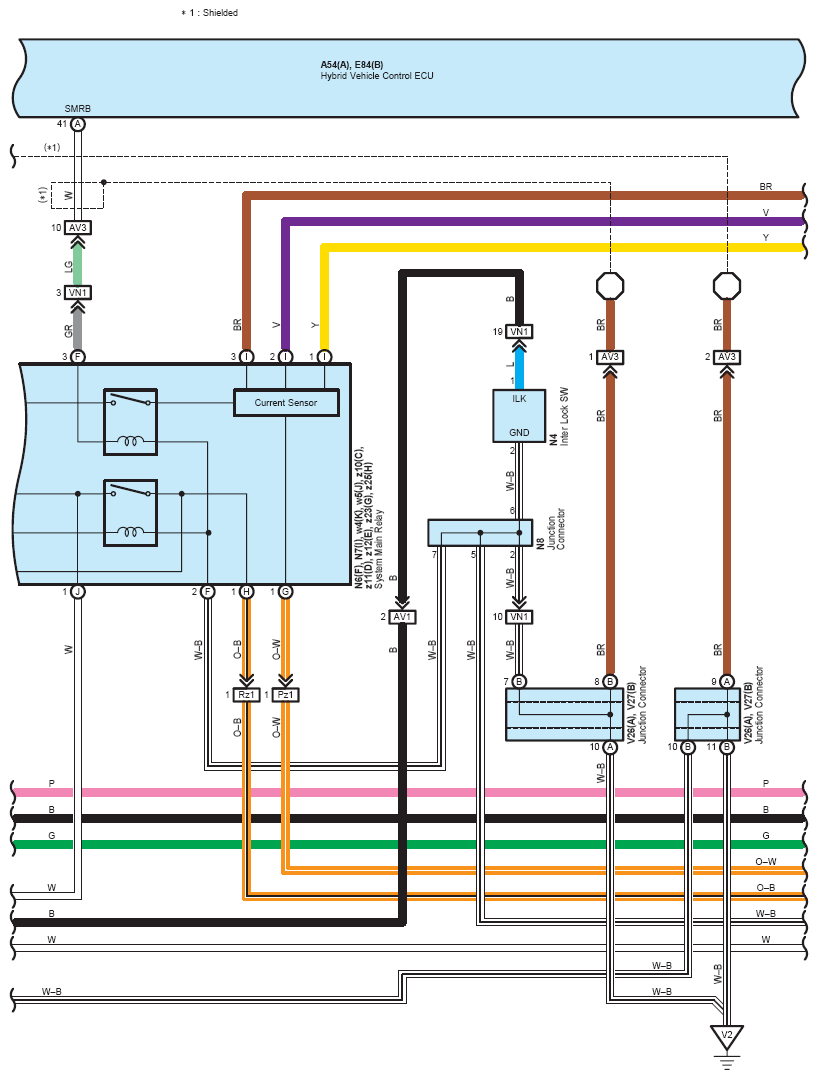

Fig 8: Hybrid System And Shift Control System - Wiring Diagram (8 Of 23)

G07557748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

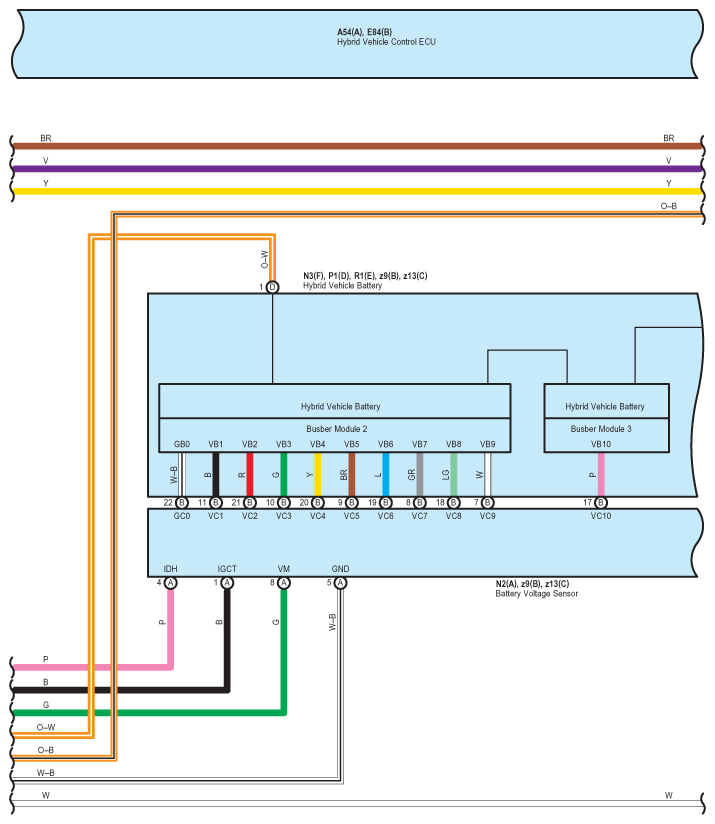

Fig 9: Hybrid System And Shift Control System - Wiring Diagram (9 Of 23)

G07557749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

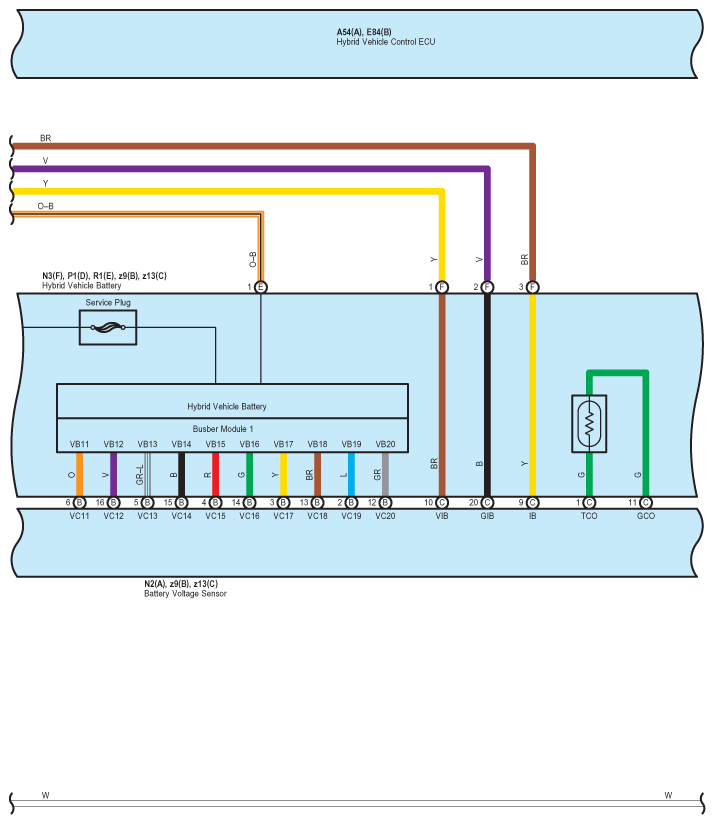

Fig 10: Hybrid System And Shift Control System - Wiring Diagram (10 Of 23)

G07557750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

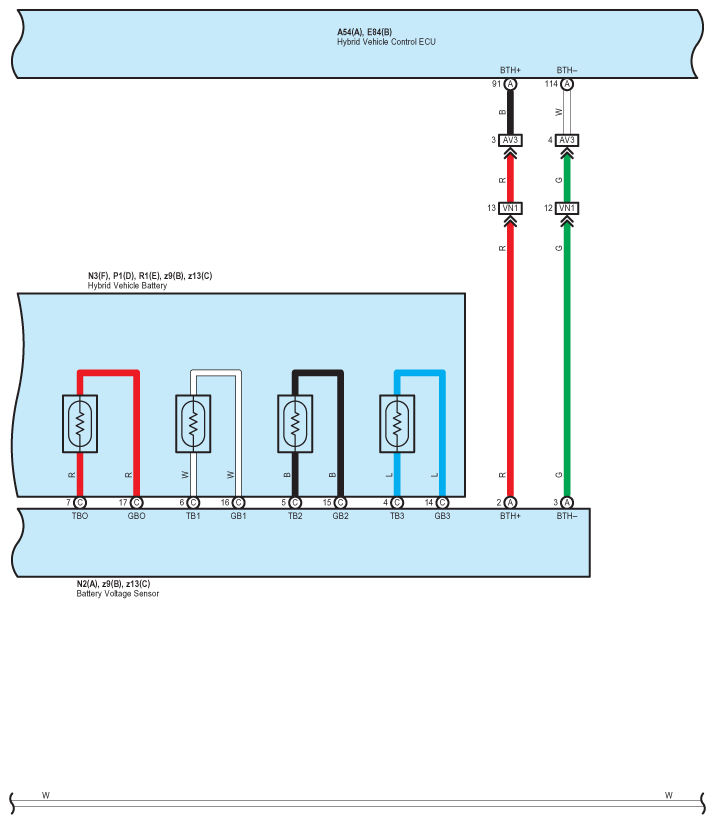

Fig 11: Hybrid System And Shift Control System - Wiring Diagram (11 Of 23)

G07557751

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Hybrid System And Shift Control System - Wiring Diagram (12 Of 23)

G07557752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

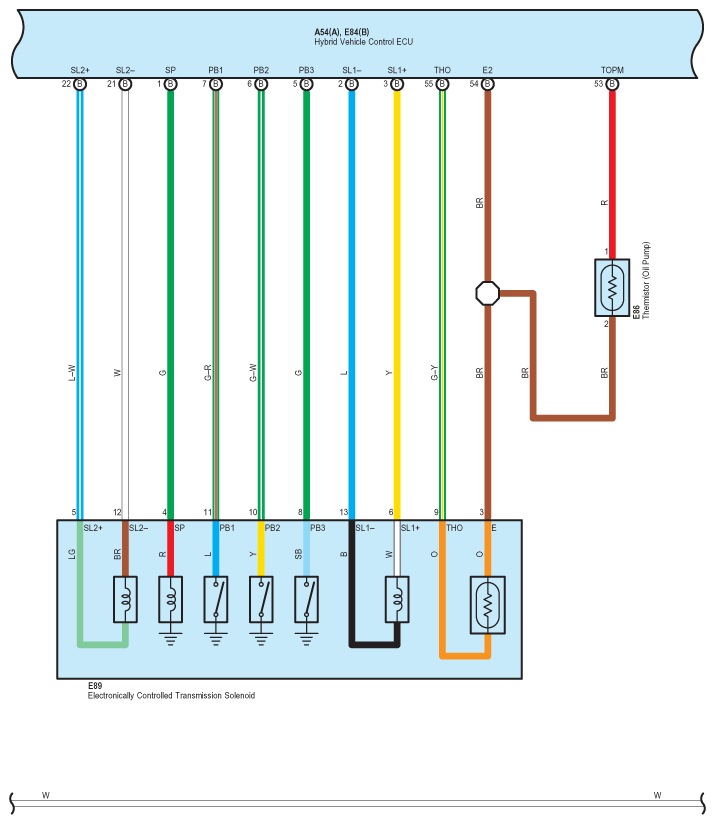

Fig 13: Hybrid System And Shift Control System - Wiring Diagram (13 Of 23)

G07557753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

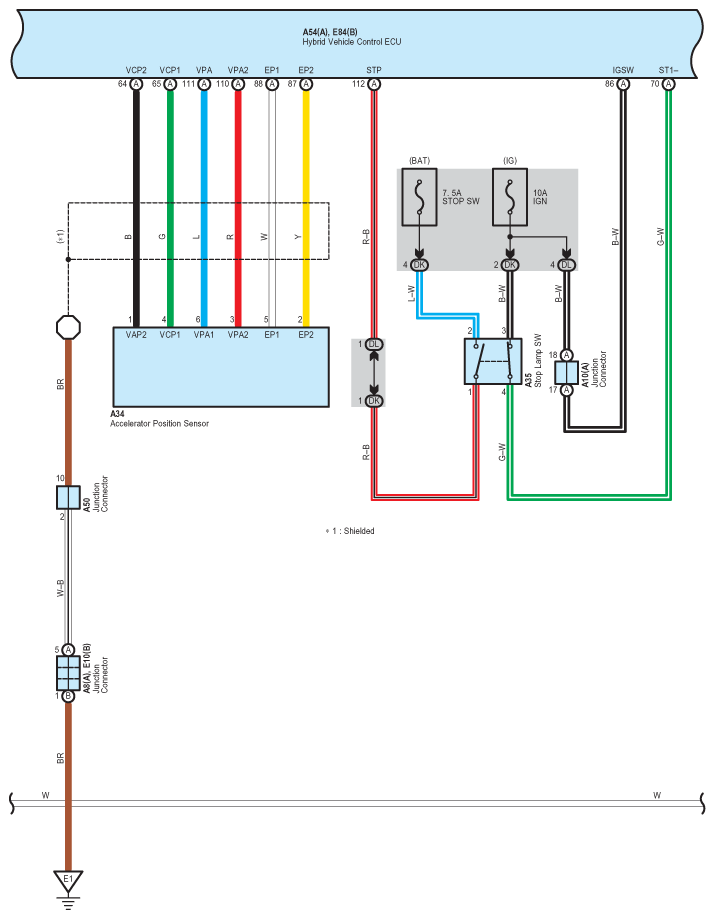

Fig 14: Hybrid System And Shift Control System - Wiring Diagram (14 Of 23)

G07557754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

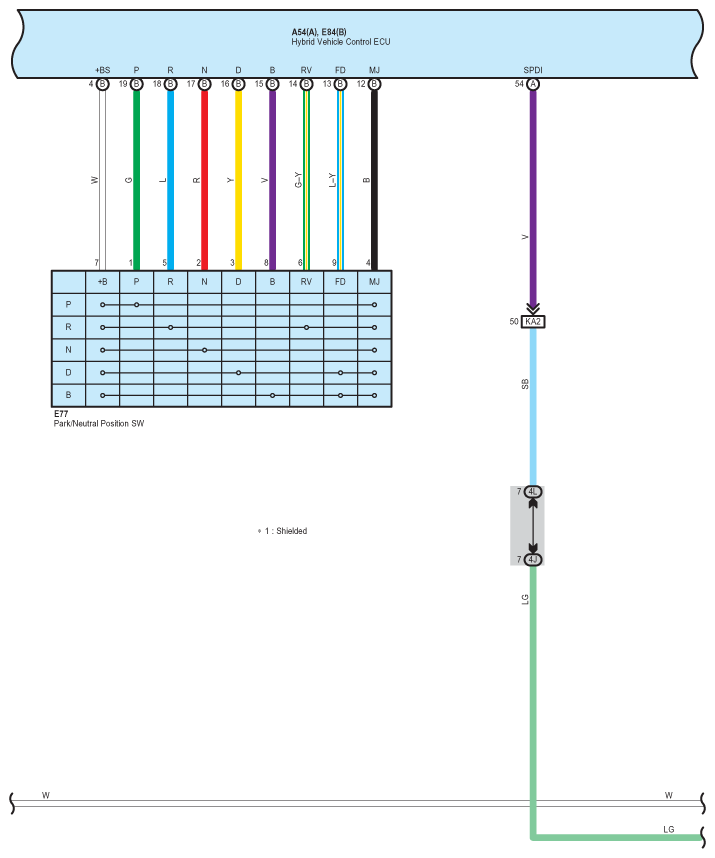

Fig 15: Hybrid System And Shift Control System - Wiring Diagram (15 Of 23)

G07557755

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

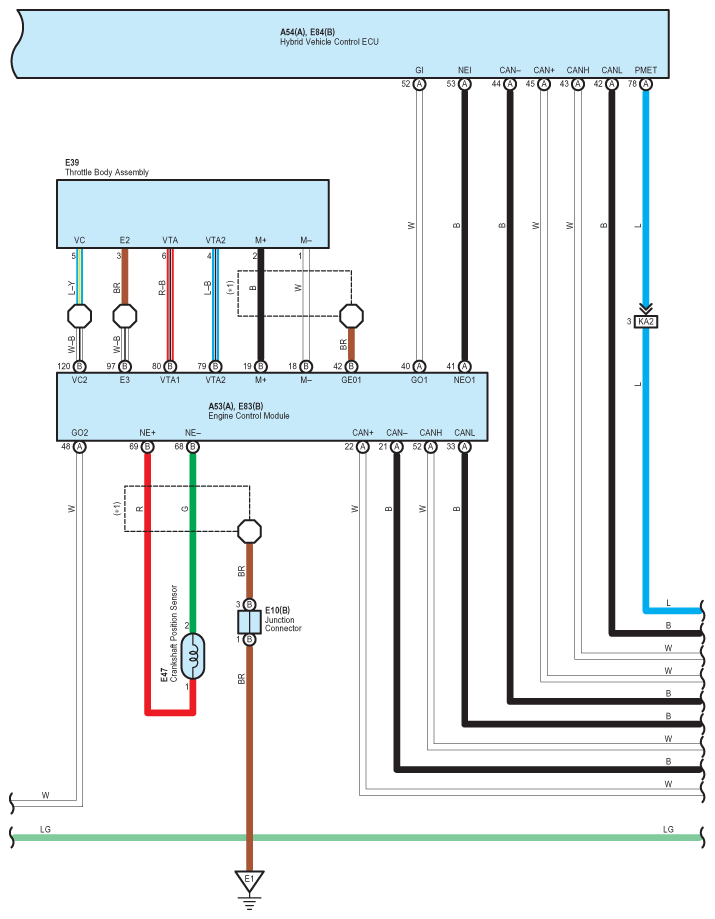

Fig 16: Hybrid System And Shift Control System - Wiring Diagram (16 Of 23)

G07557756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

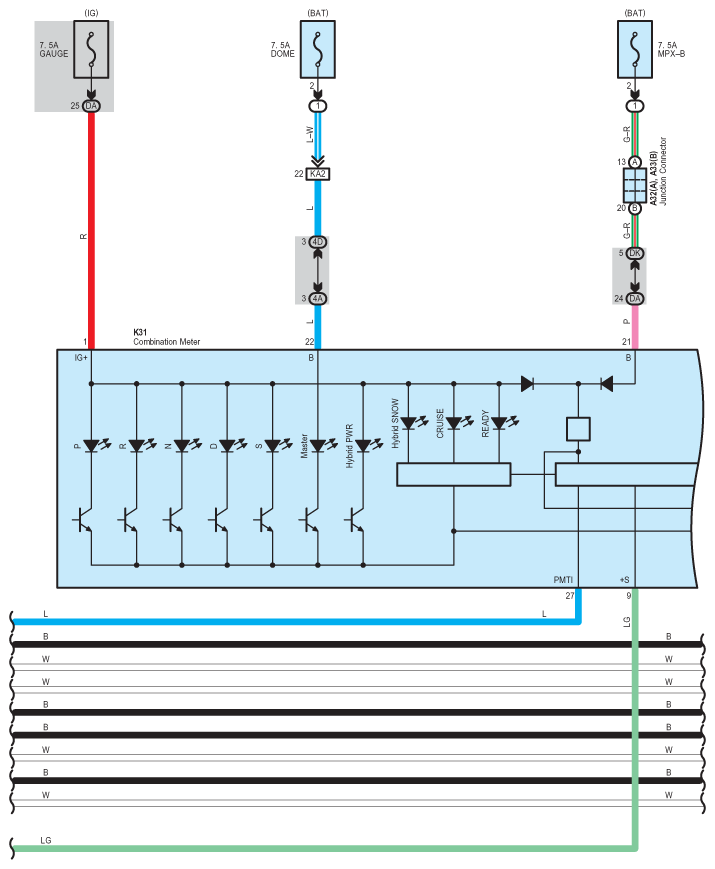

Fig 17: Hybrid System And Shift Control System - Wiring Diagram (17 Of 23)

G07557757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

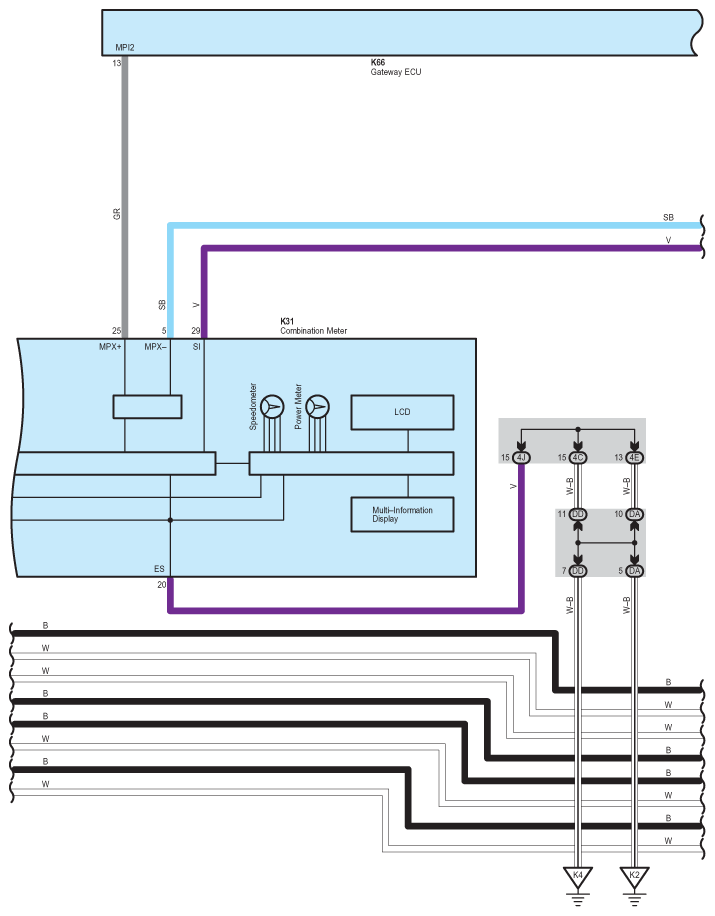

Fig 18: Hybrid System And Shift Control System - Wiring Diagram (18 Of 23)

G07557758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

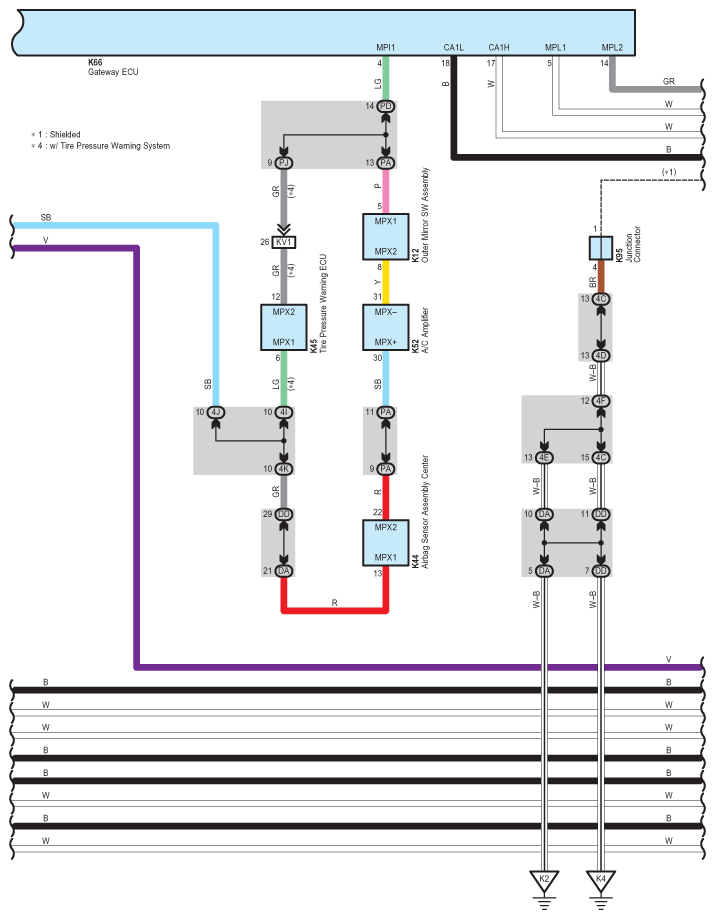

Fig 19: Hybrid System And Shift Control System - Wiring Diagram (19 Of 23)

G07557759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

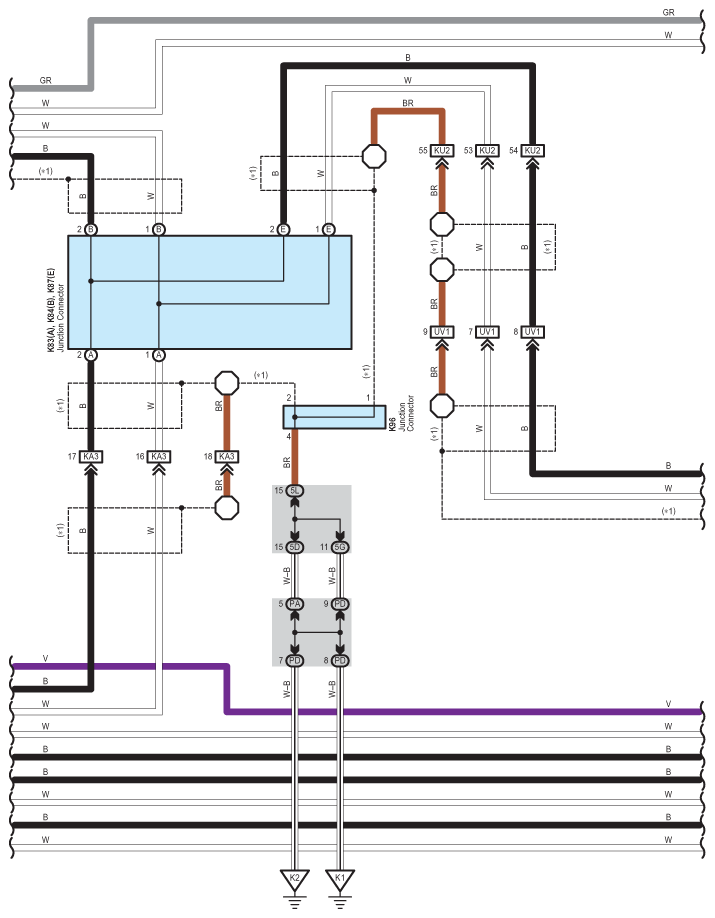

Fig 20: Hybrid System And Shift Control System - Wiring Diagram (20 Of 23)

G07557760

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

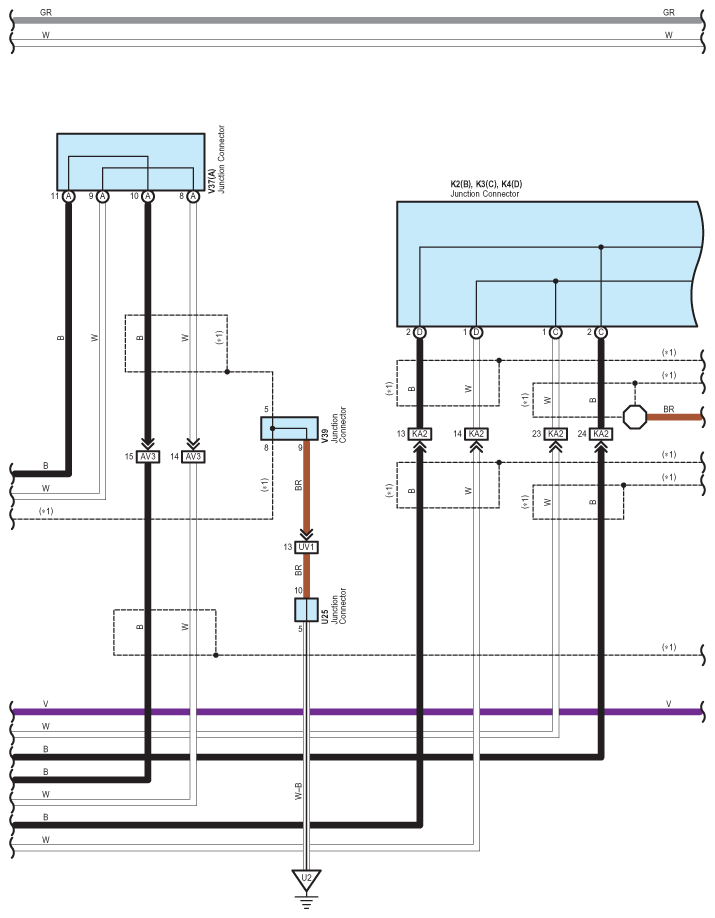

Fig 21: Hybrid System And Shift Control System - Wiring Diagram (21 Of 23)

G07557761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

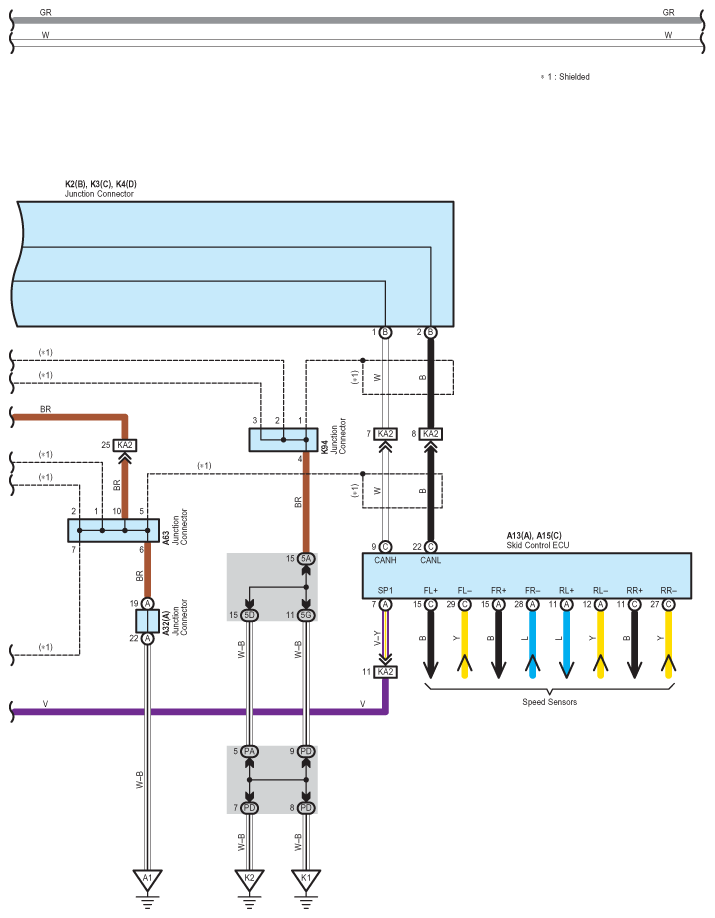

Fig 22: Hybrid System And Shift Control System - Wiring Diagram (22 Of 23)

G07557762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

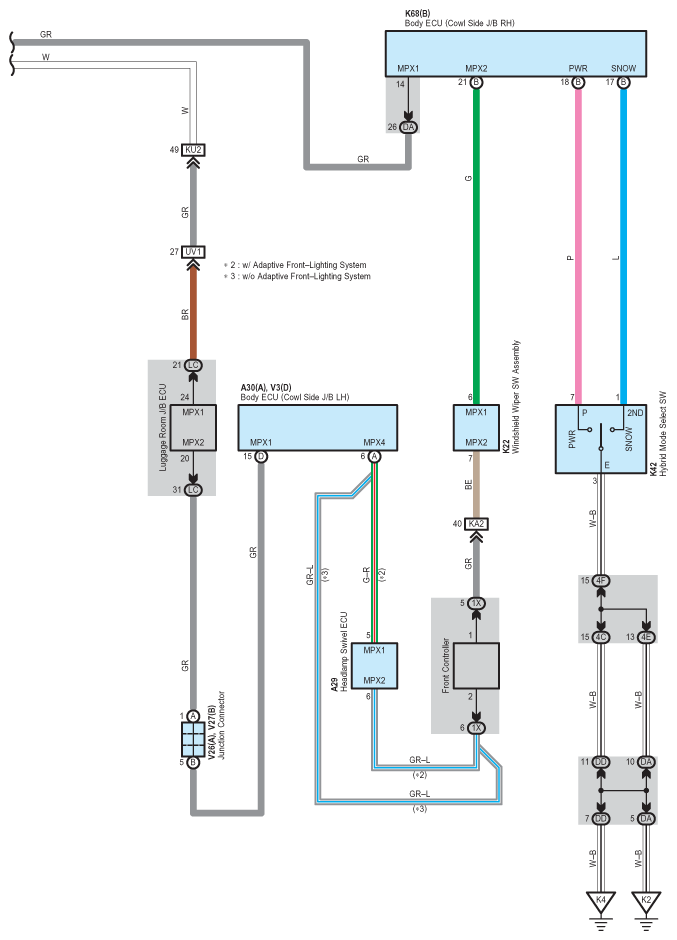

Fig 23: Hybrid System And Shift Control System - Wiring Diagram (23 Of 23)

G07557763

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
