OEM System Circuits: Illumination: Notes

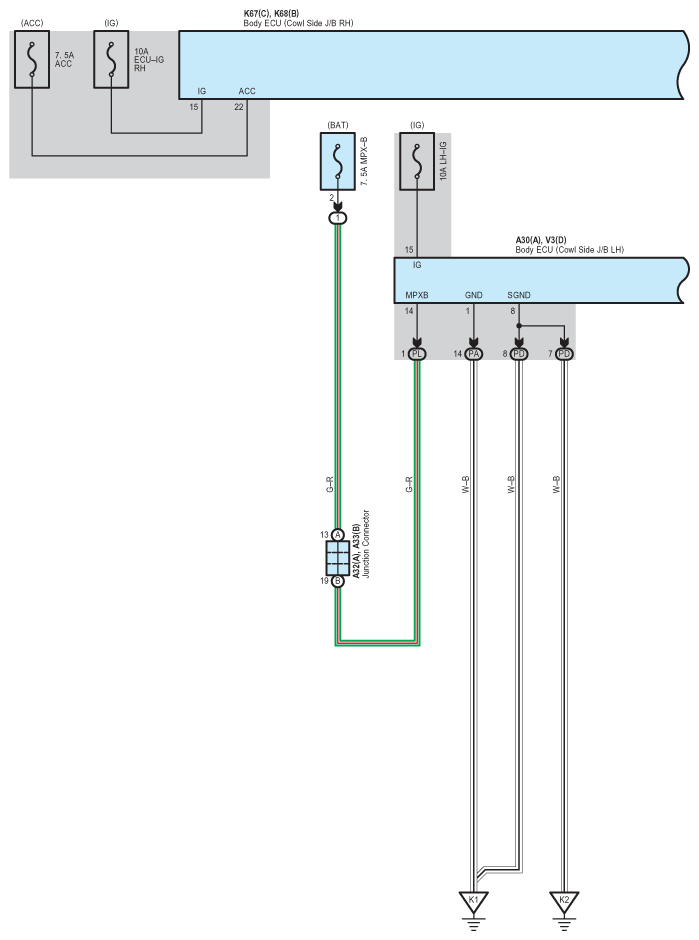

Fig 1: Illumination - Wiring Diagram (1 Of 10)

G07557826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

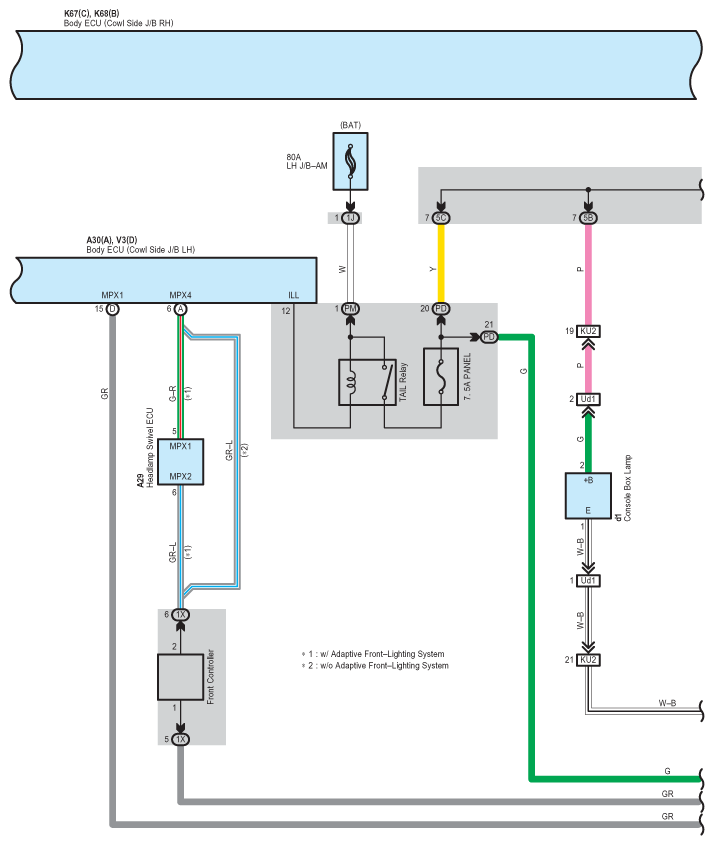

Fig 2: Illumination - Wiring Diagram (2 Of 10)

G07557827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

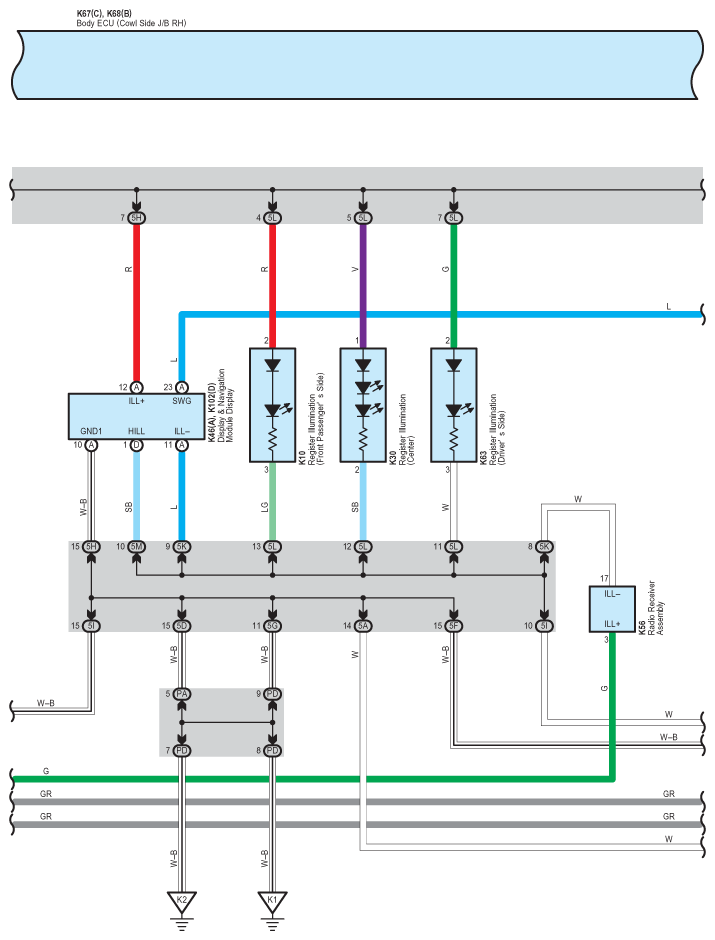

Fig 3: Illumination - Wiring Diagram (3 Of 10)

G07557828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

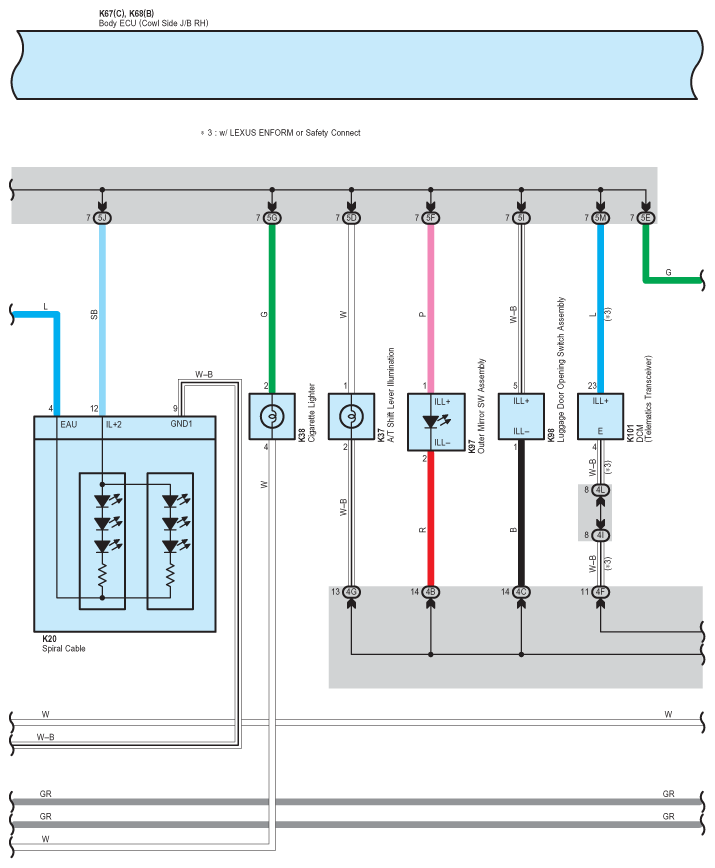

Fig 4: Illumination - Wiring Diagram (4 Of 10)

G07557829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

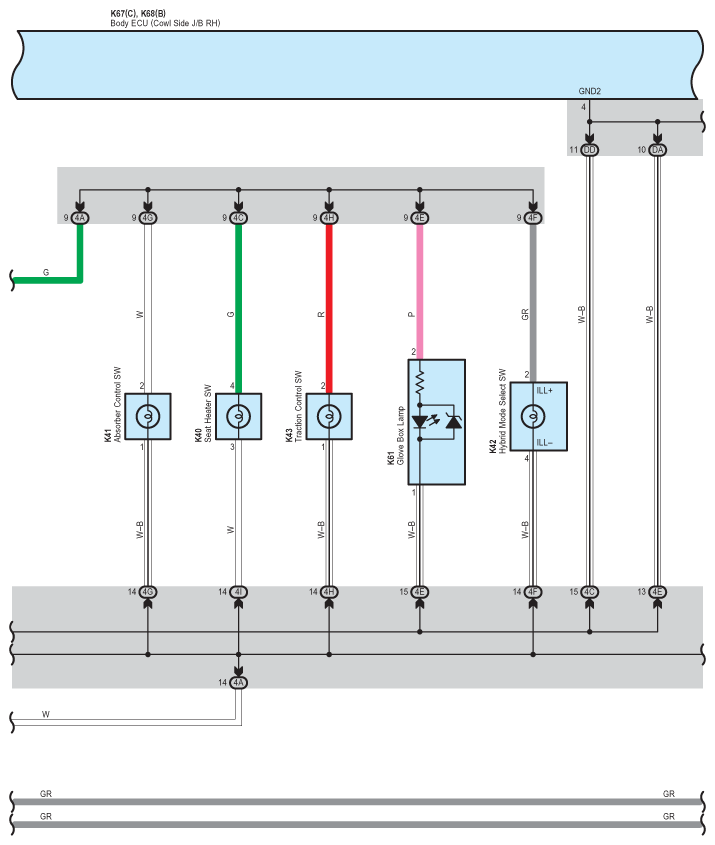

Fig 5: Illumination - Wiring Diagram (5 Of 10)

G07557830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

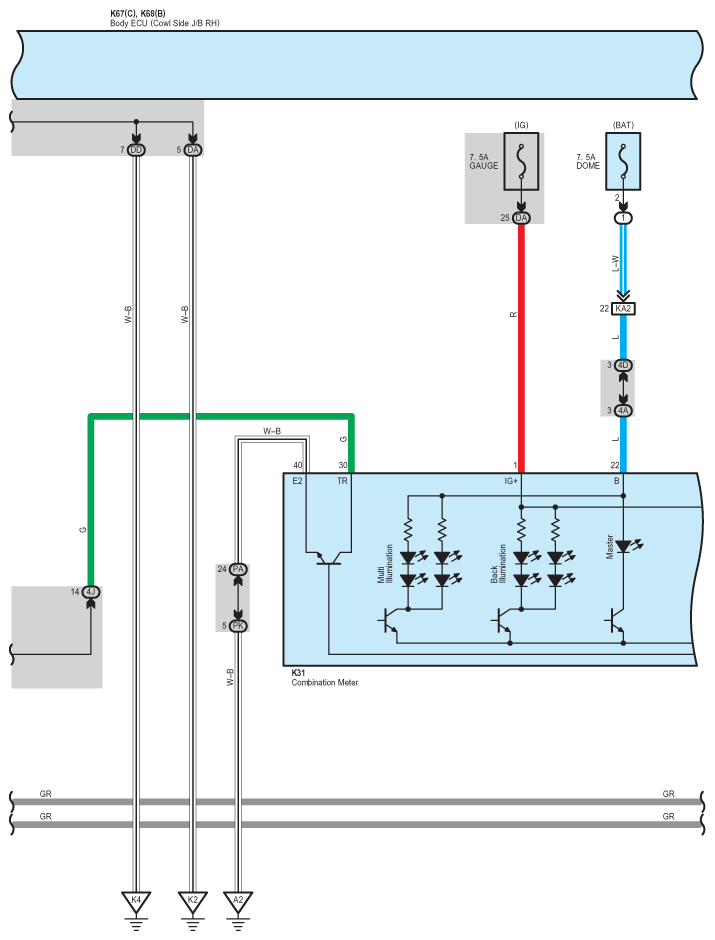

Fig 6: Illumination - Wiring Diagram (6 Of 10)

G07557831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

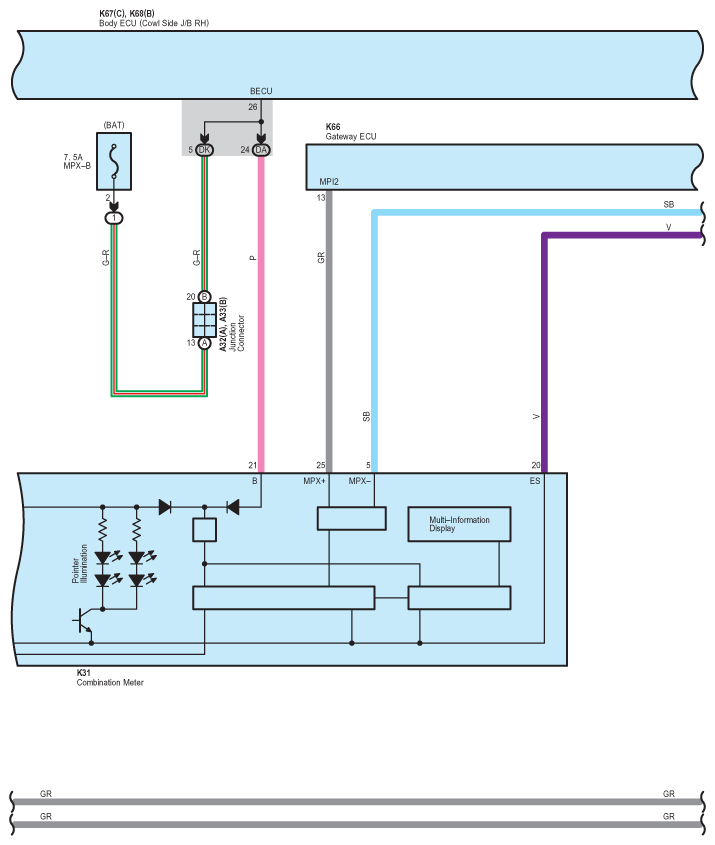

Fig 7: Illumination - Wiring Diagram (7 Of 10)

G07557832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

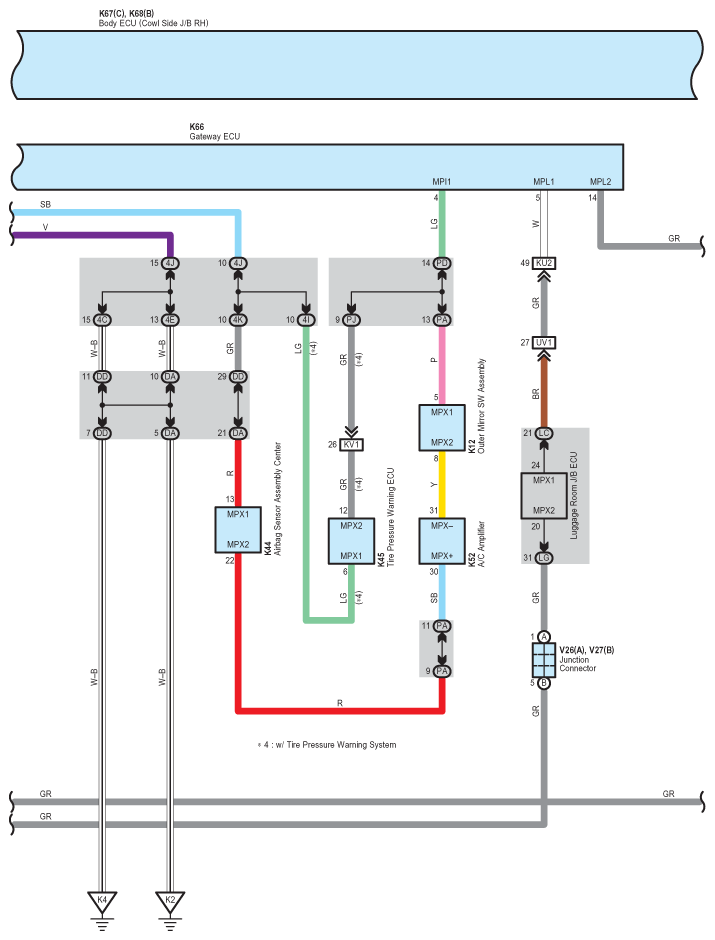

Fig 8: Illumination - Wiring Diagram (8 Of 10)

G07557833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

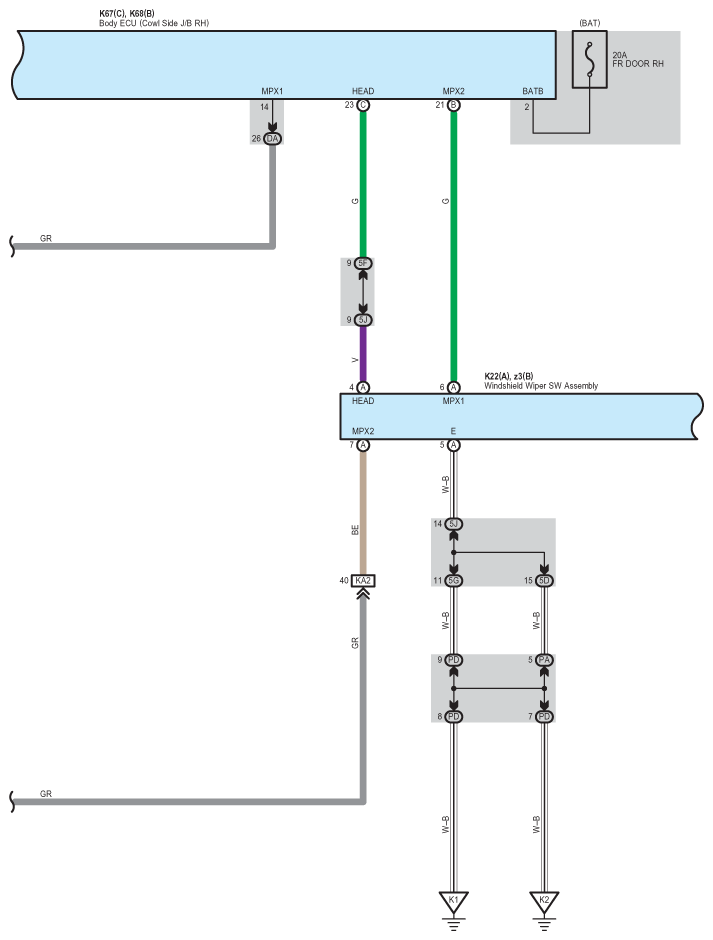

Fig 9: Illumination - Wiring Diagram (9 Of 10)

G07557834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

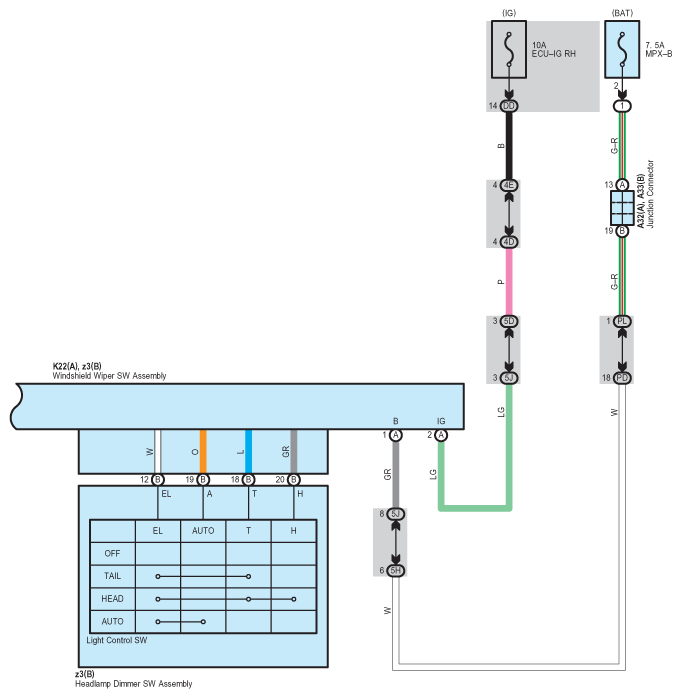

Fig 10: Illumination - Wiring Diagram (10 Of 10)

G07557835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
