LEXUS ENFORM or Safety Connect: Notes

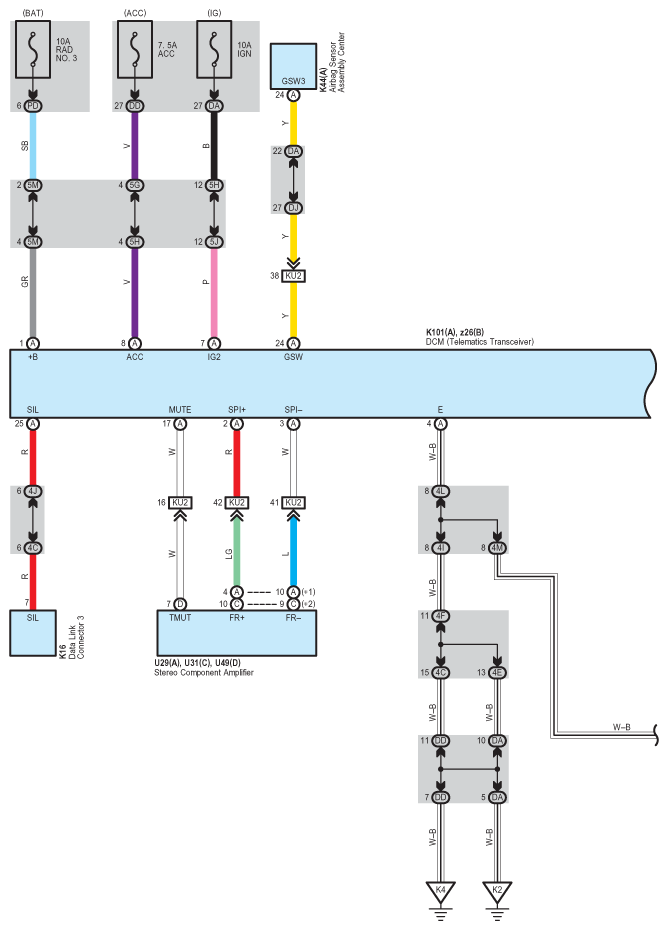

Fig 1: Lexus Enform Or Safety Connect - Wiring Diagram (1 Of 3)
G07558087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

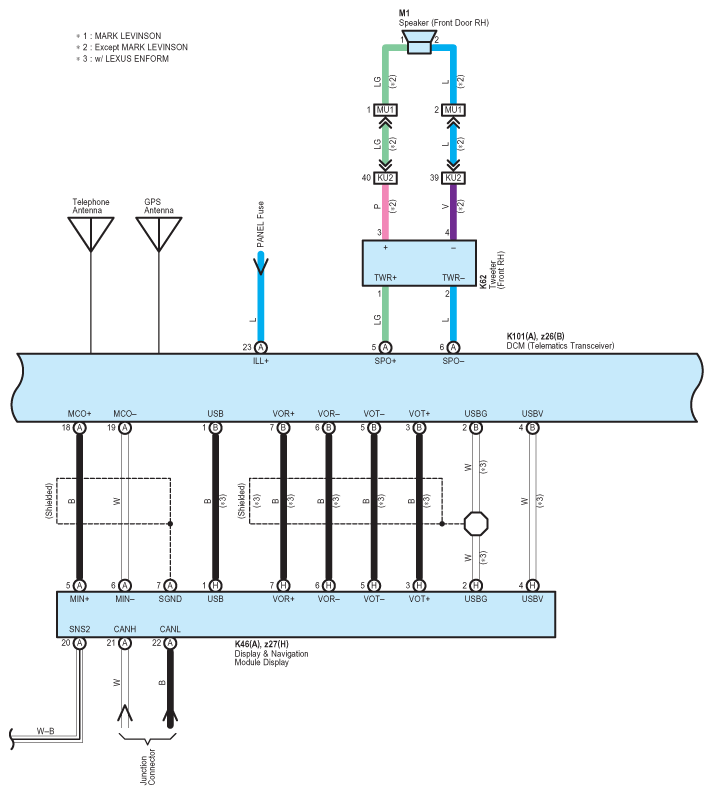

Fig 2: Lexus Enform Or Safety Connect - Wiring Diagram (2 Of 3)
G07558088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

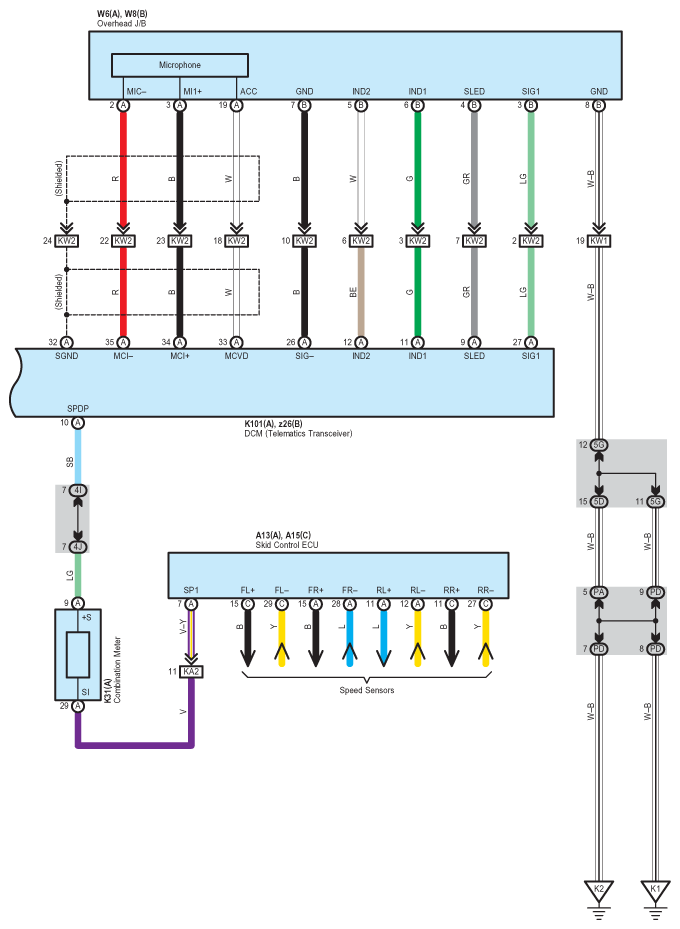

Fig 3: Lexus Enform Or Safety Connect - Wiring Diagram (3 Of 3)
G07558089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
