OEM System Circuits: SRS: Notes

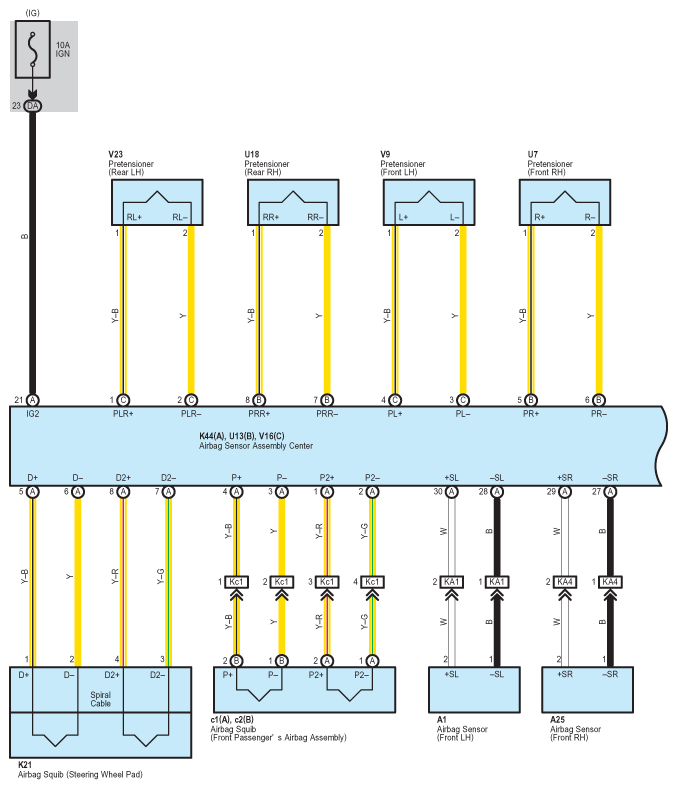

Fig 1: SRS - Wiring Diagram (1 Of 10)

G07557969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

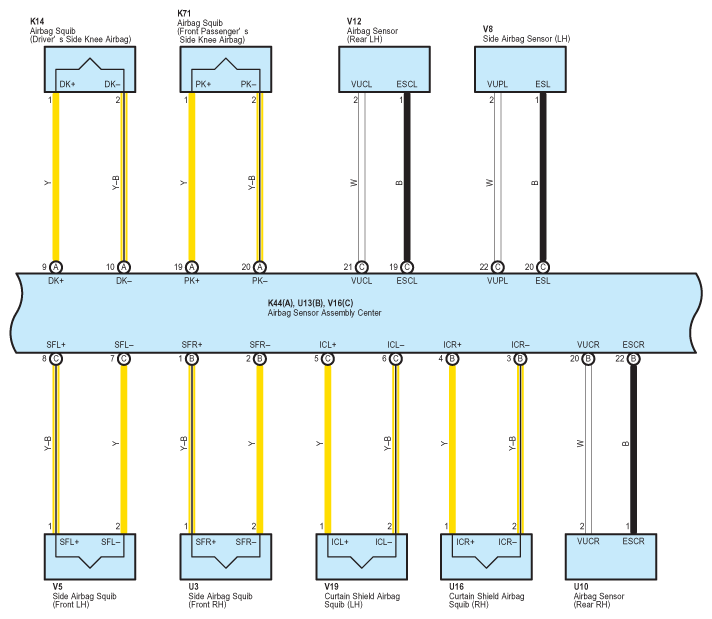

Fig 2: SRS - Wiring Diagram (2 Of 10)

G07557970

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

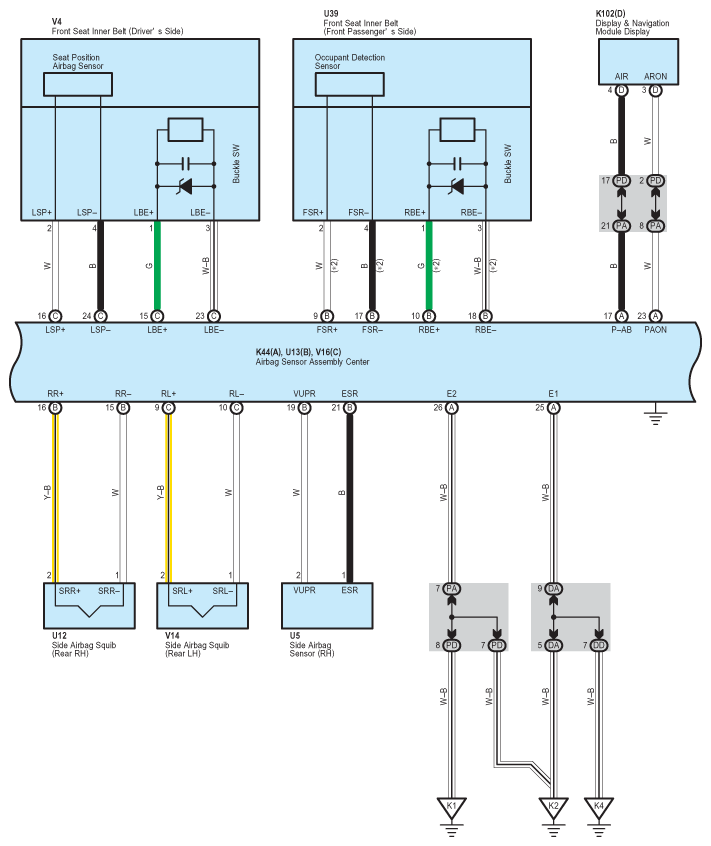

Fig 3: SRS - Wiring Diagram (3 Of 10)

G07557971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

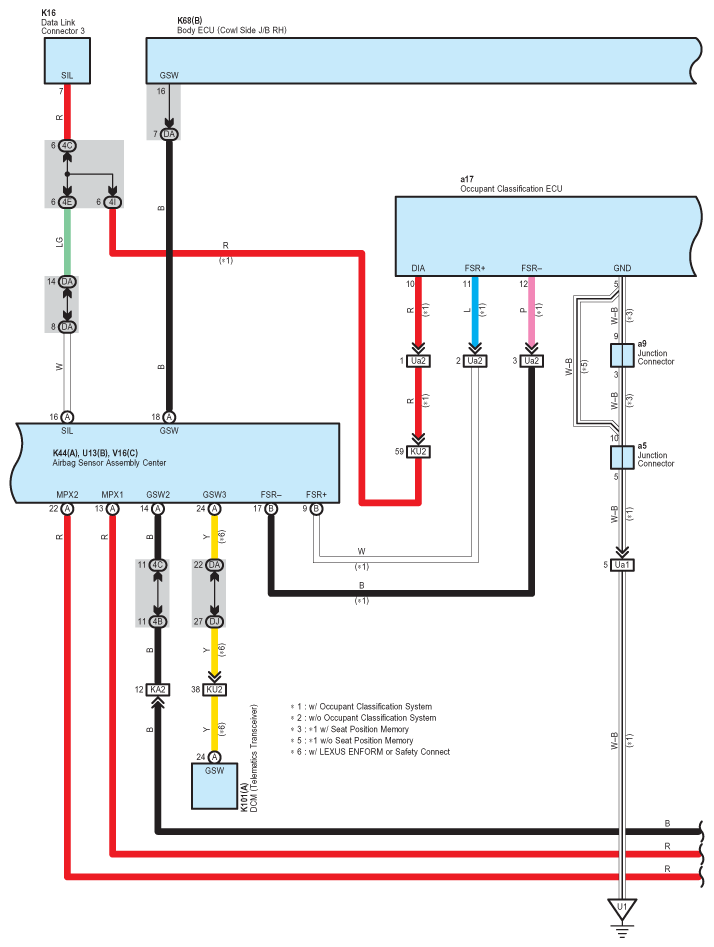

Fig 4: SRS - Wiring Diagram (4 Of 10)

G07557972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

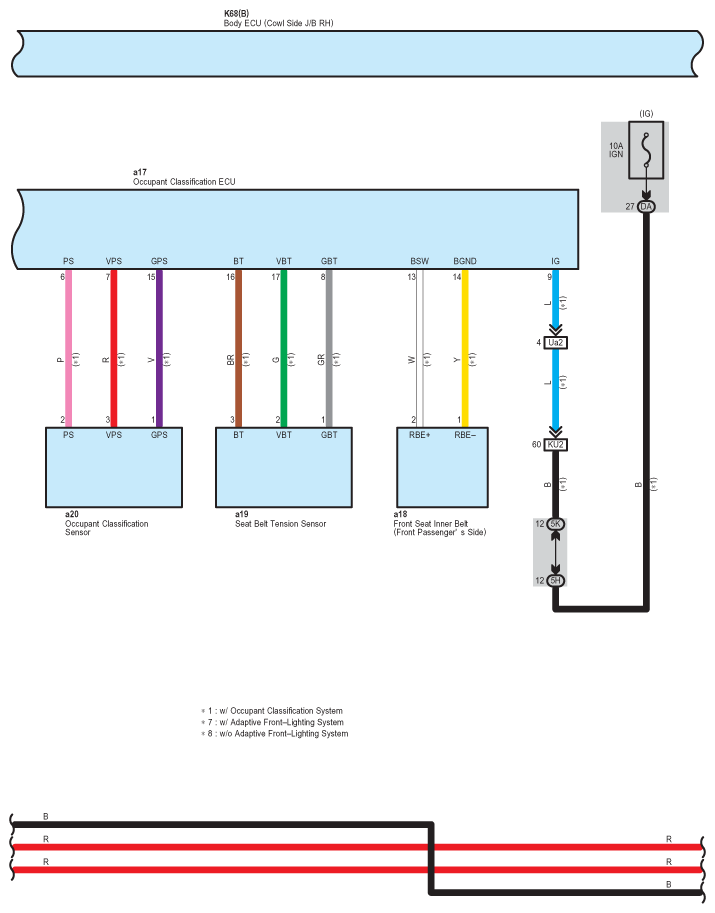

Fig 5: SRS - Wiring Diagram (5 Of 10)

G07557973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

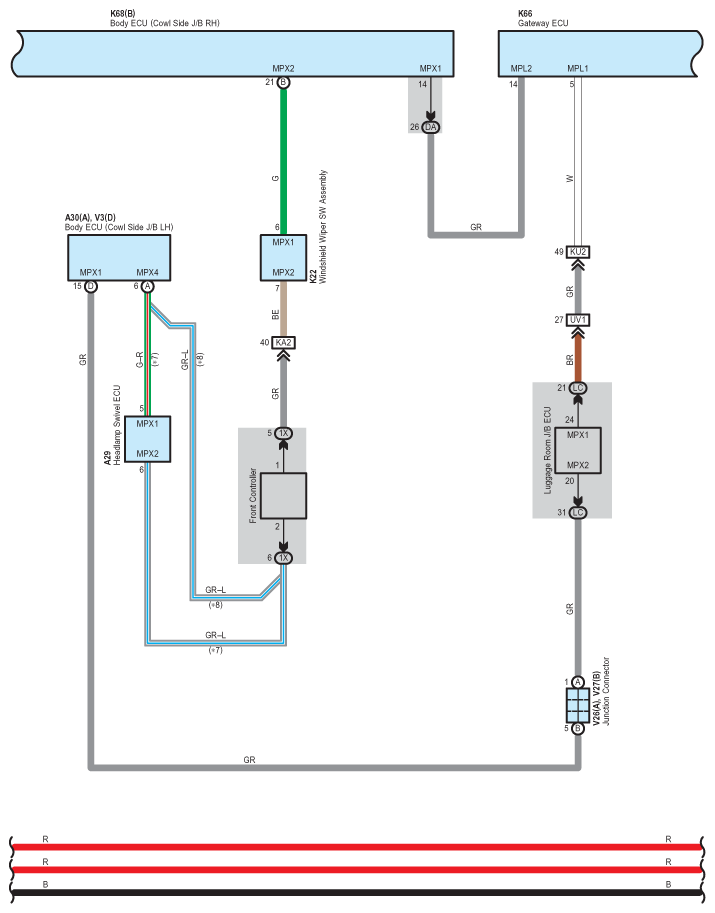

Fig 6: SRS - Wiring Diagram (6 Of 10)

G07557974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

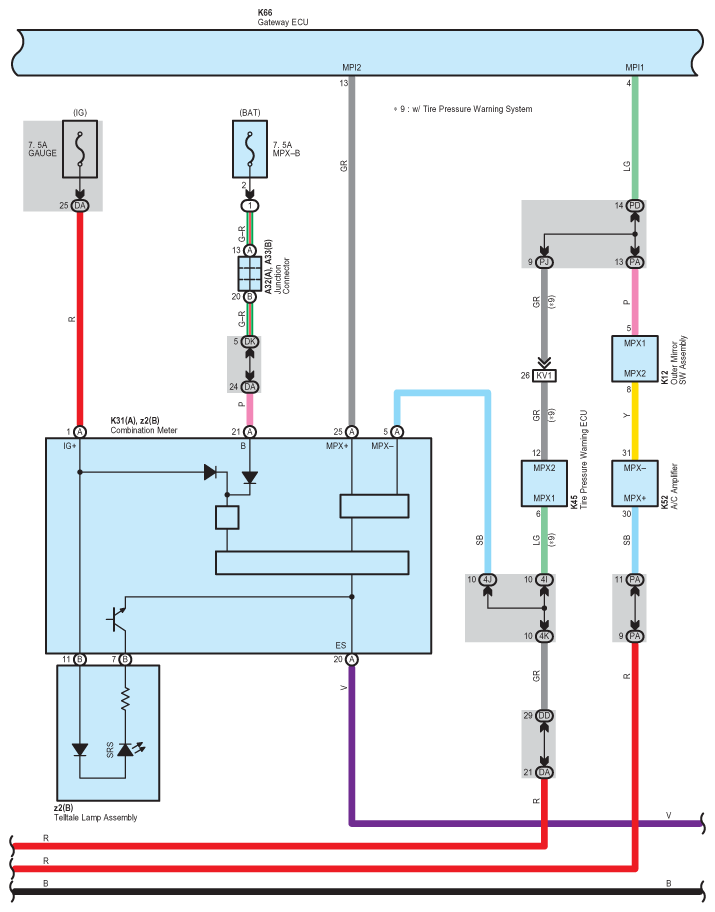

Fig 7: SRS - Wiring Diagram (7 Of 10)

G07557975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

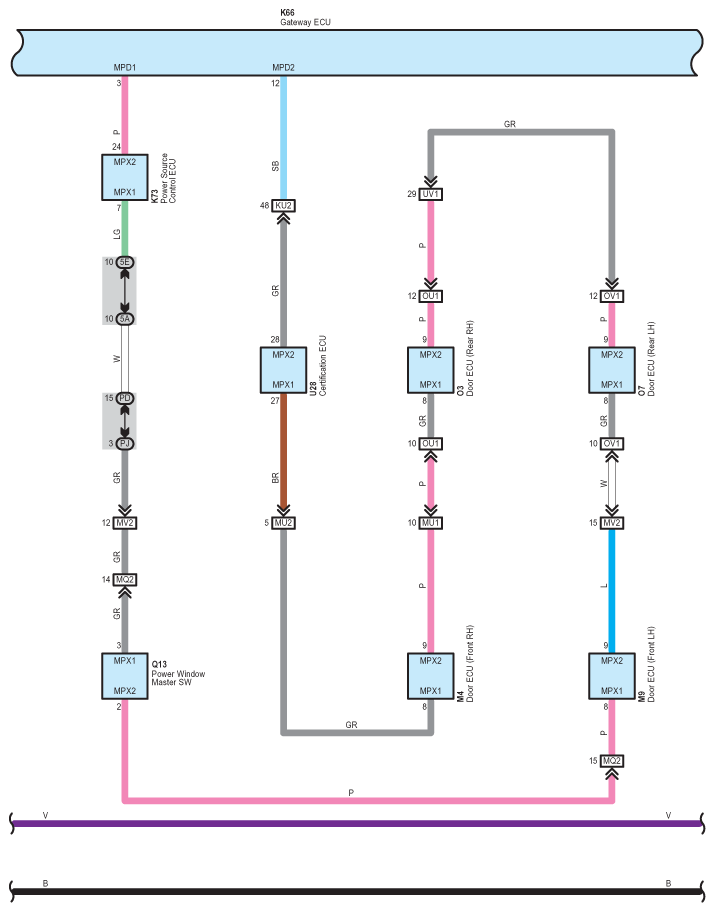

Fig 8: SRS - Wiring Diagram (8 Of 10)

G07557976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

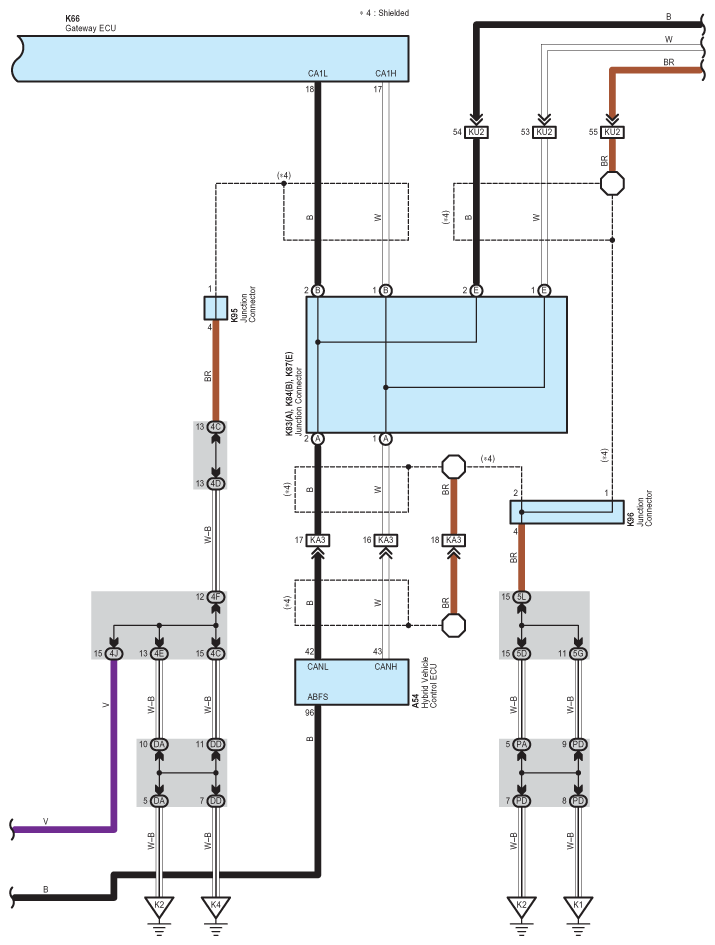

Fig 9: SRS - Wiring Diagram (9 Of 10)

G07557977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: SRS - Wiring Diagram (10 Of 10)

G07557978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
