Wireless Door Lock Control: Notes

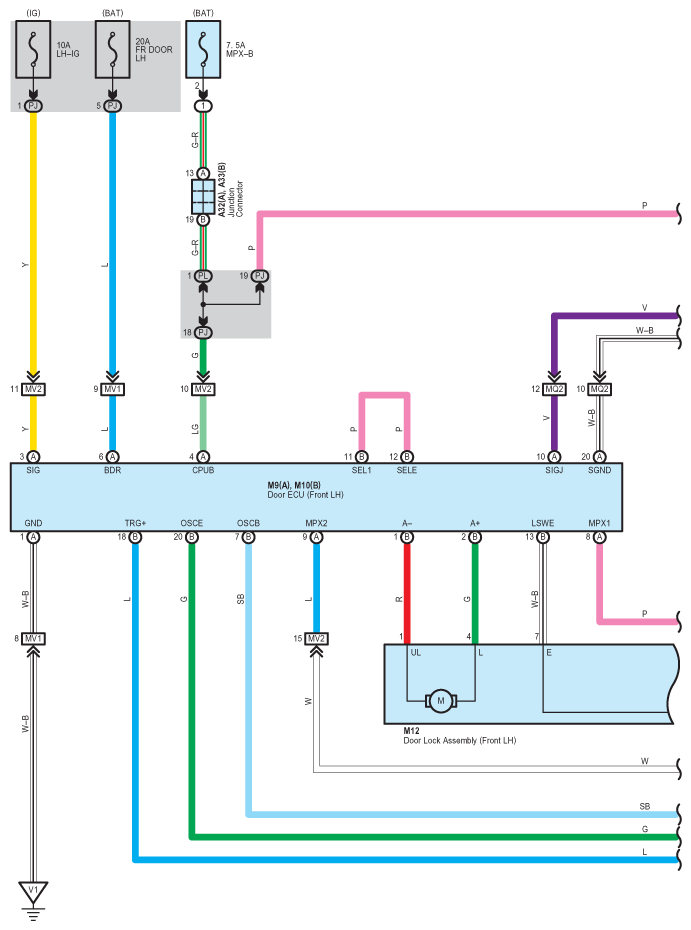

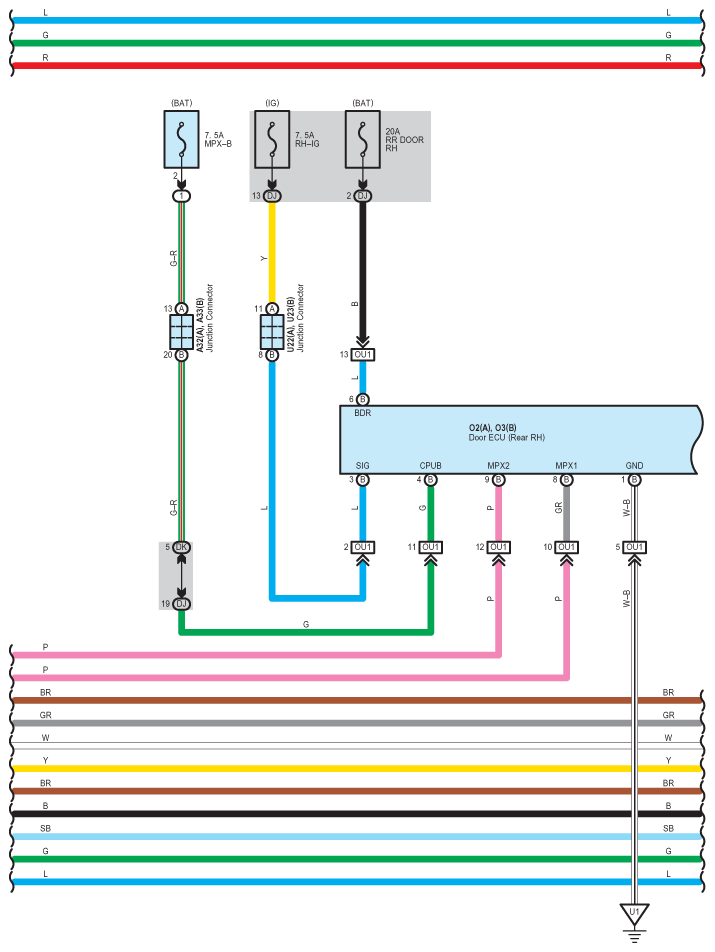

Fig 1: Wireless Door Lock Control - Wiring Diagram (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

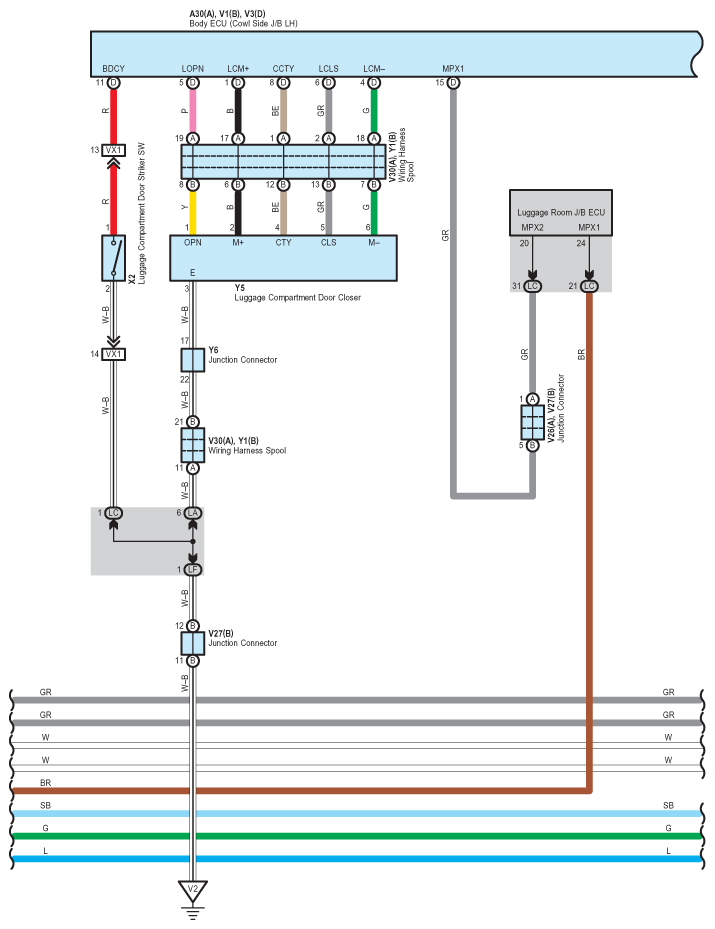

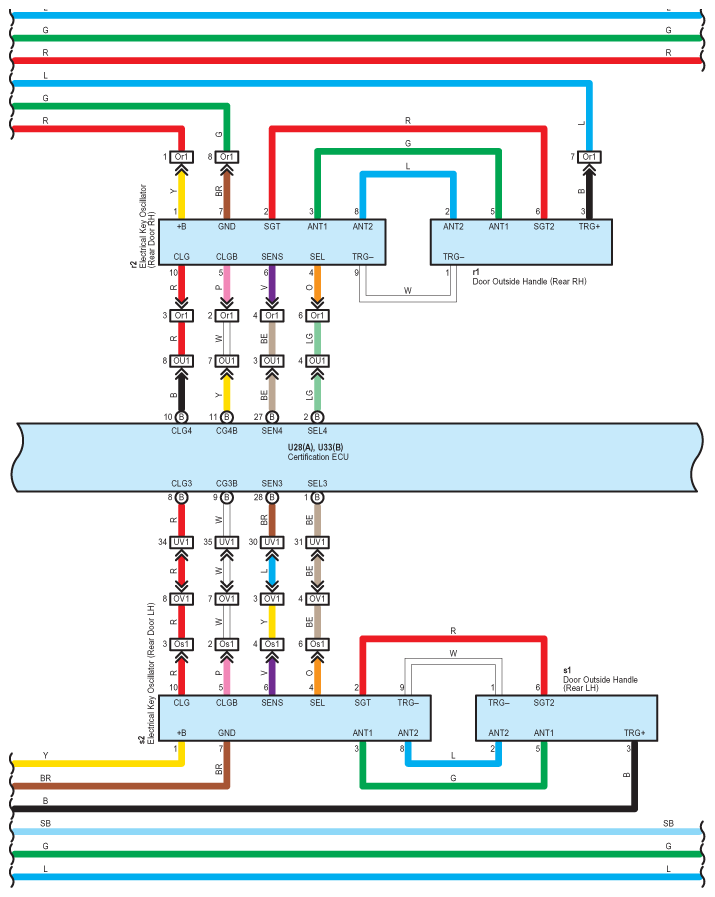

Fig 2: Wireless Door Lock Control - Wiring Diagram (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

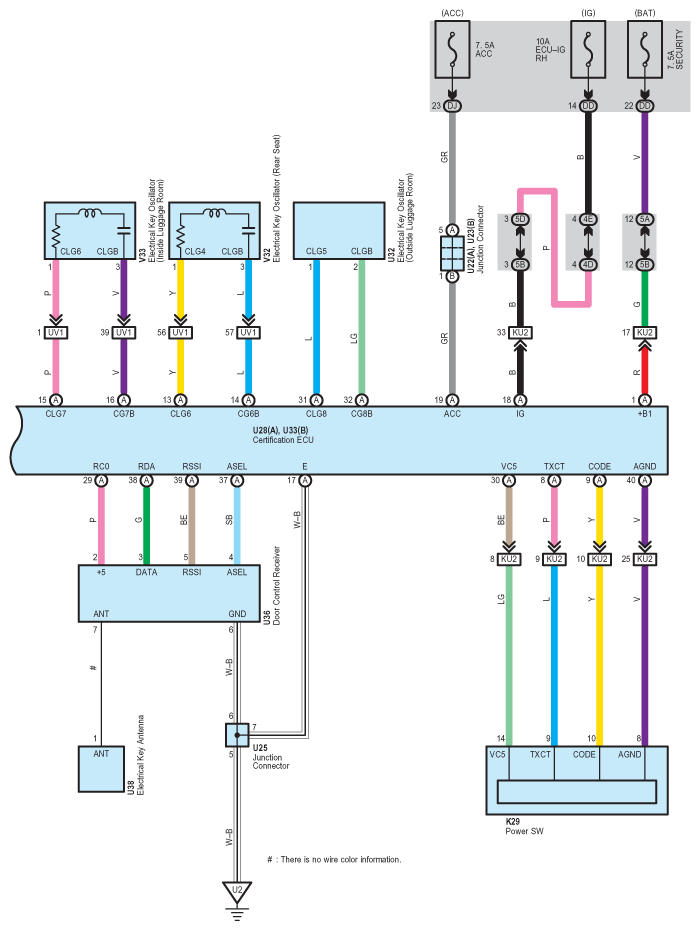

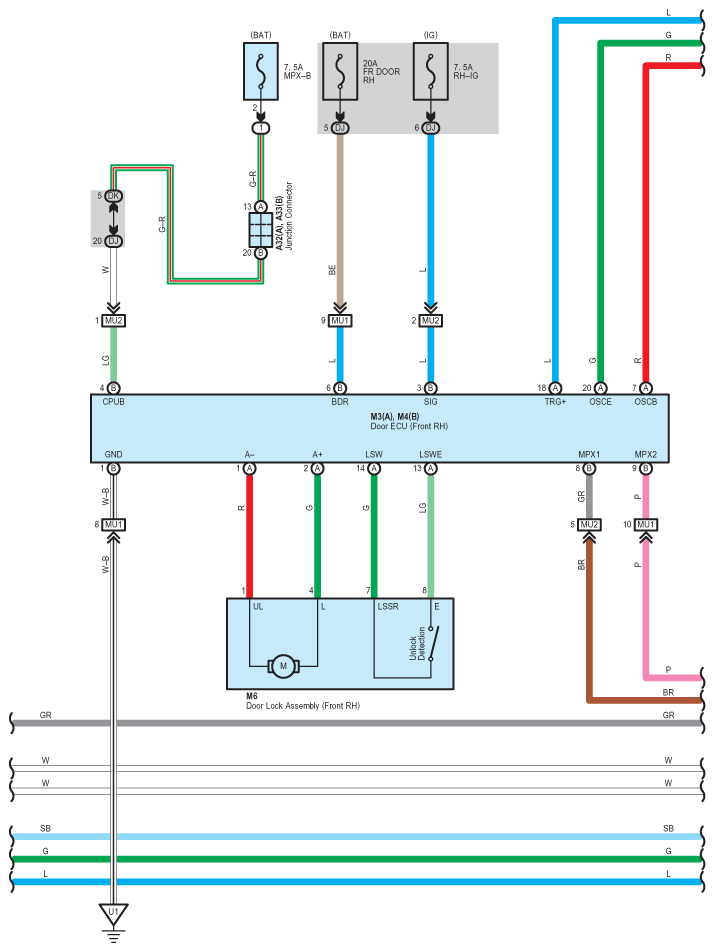

Fig 3: Wireless Door Lock Control - Wiring Diagram (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

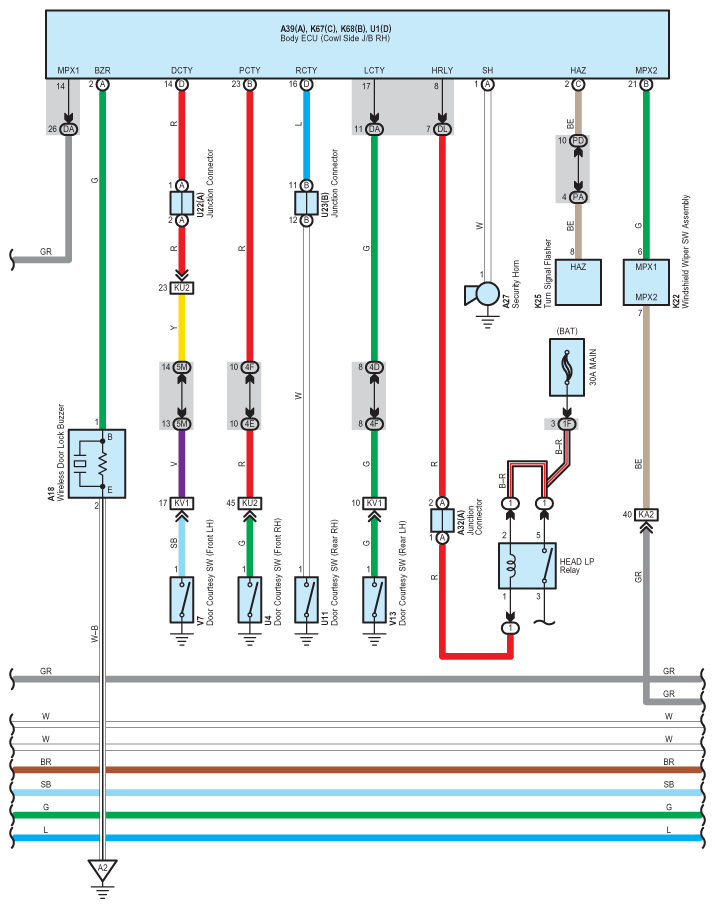

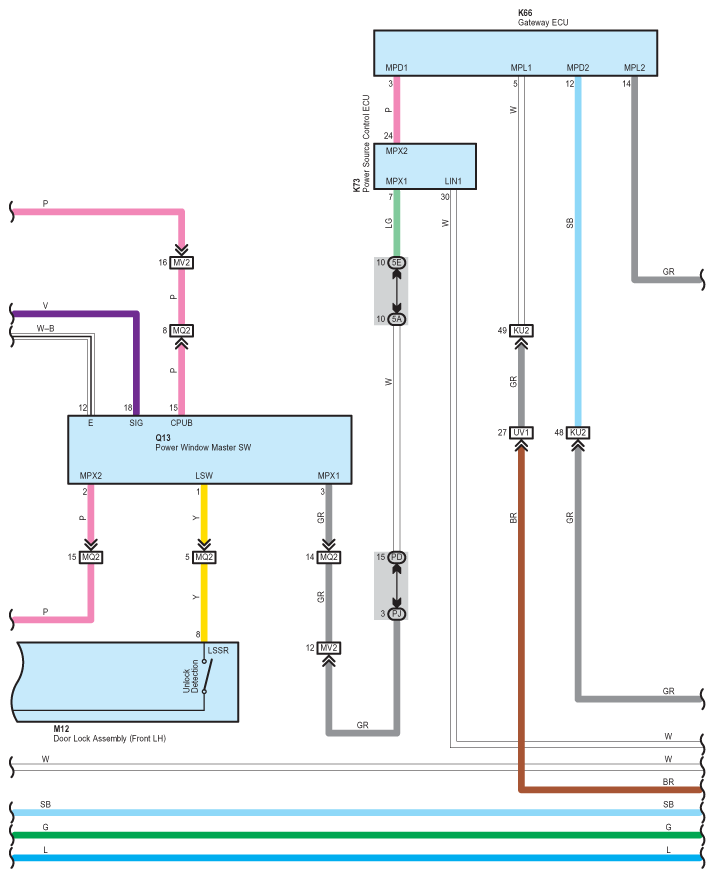

Fig 4: Wireless Door Lock Control - Wiring Diagram (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

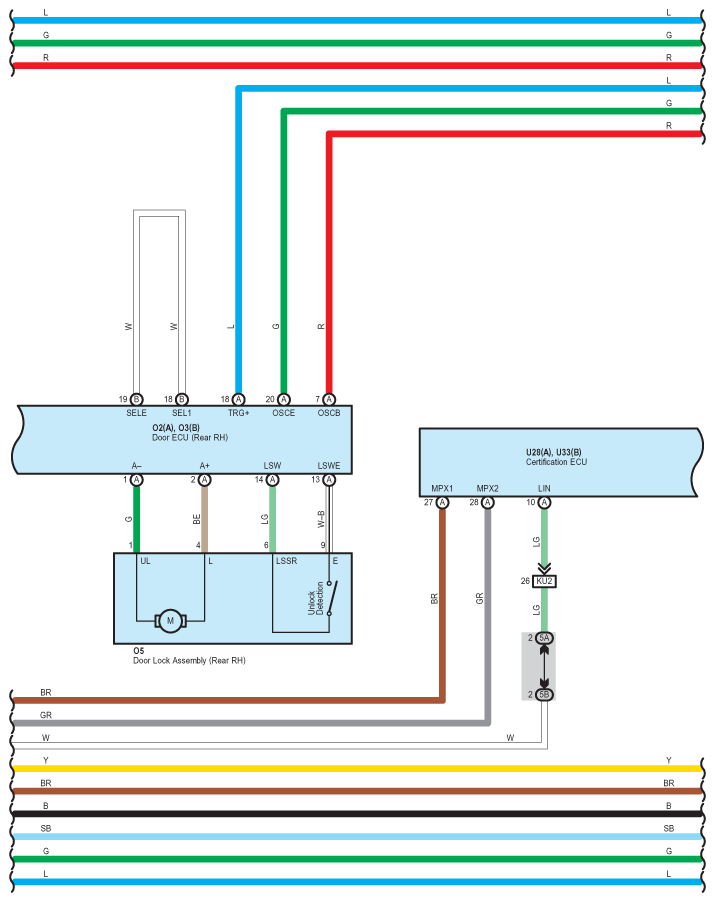

Fig 5: Wireless Door Lock Control - Wiring Diagram (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

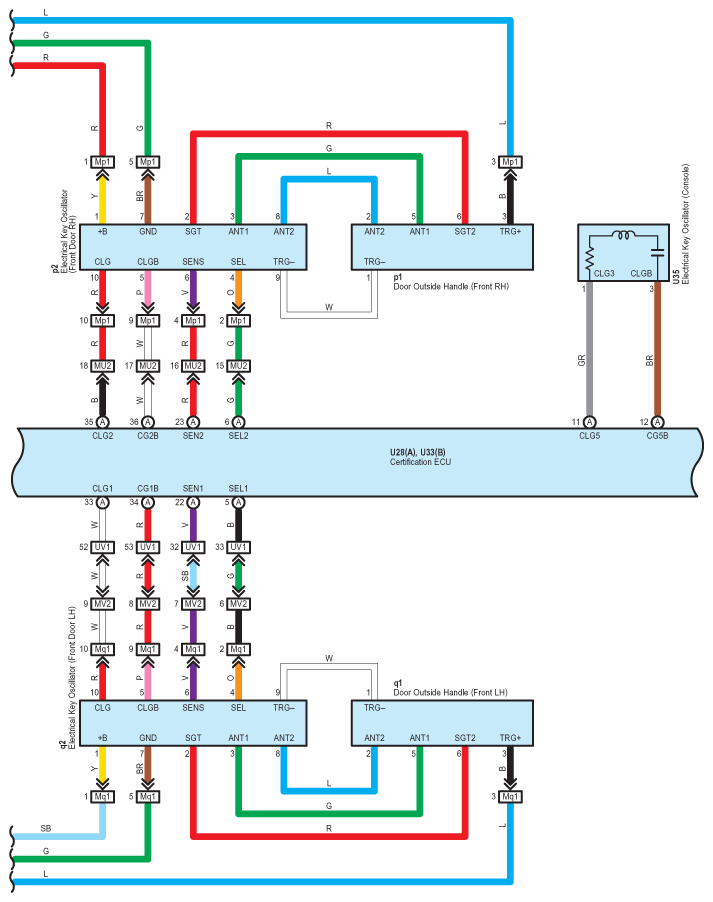

Fig 6: Wireless Door Lock Control - Wiring Diagram (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

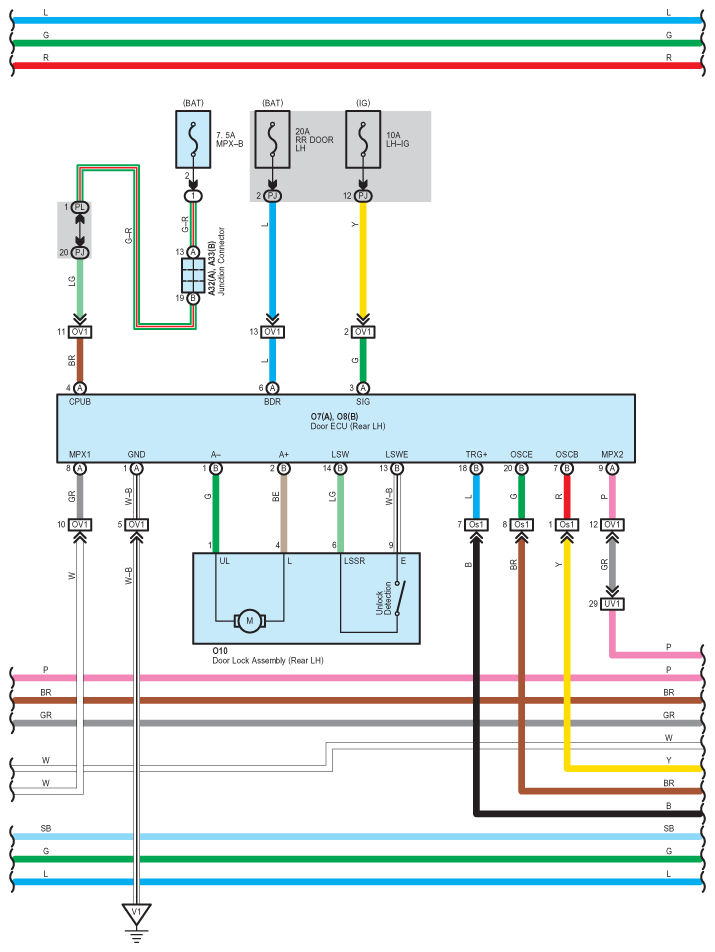

Fig 7: Wireless Door Lock Control - Wiring Diagram (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

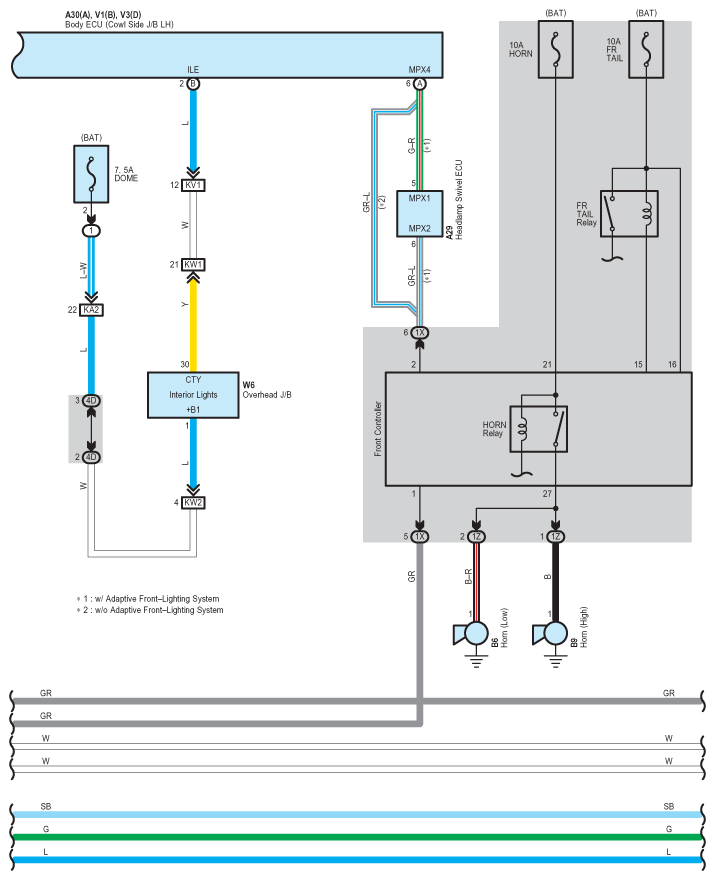

Fig 8: Wireless Door Lock Control - Wiring Diagram (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Wireless Door Lock Control - Wiring Diagram (9 Of 12)

Fig 10: Wireless Door Lock Control - Wiring Diagram (10 Of 12)

Fig 11: Wireless Door Lock Control - Wiring Diagram (11 Of 12)

Fig 12: Wireless Door Lock Control - Wiring Diagram (12 Of 12)
