Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Luggage Compartment

G00467674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment

G00446150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Dash & Floor Console

G00446151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash & Floor Console

G00446152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Vehicle Overview

G00446153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Vehicle Overview

G00446154

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Front Seats

G00446212

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

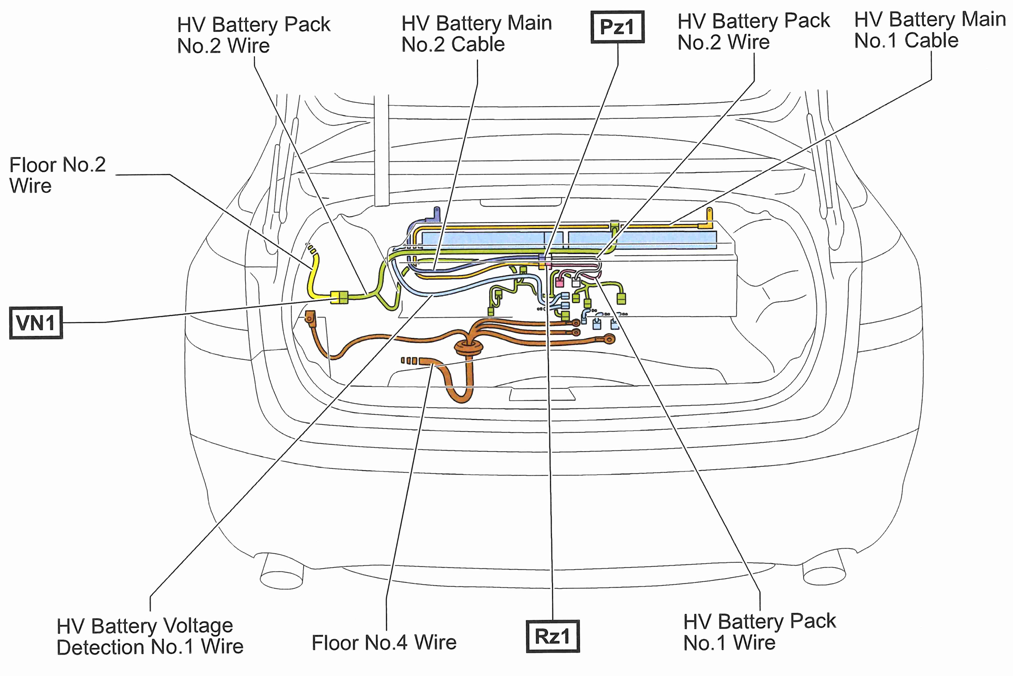

Fig 8: Luggage Compartment

G00476722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Compartment

G00446214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dash & Center Floor Console

G00476715

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Vehicle Overview

G00476716

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Front Seats

G00446217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Luggage Compartment

G00446218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Room R/B No. 1 (Unit G)

G00446219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

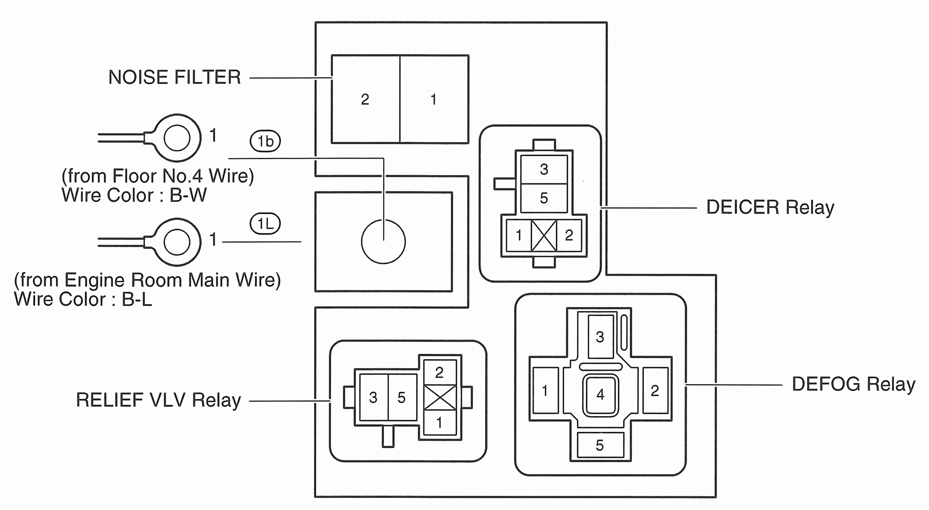

Fig 15: Engine Room R/B No. 1 (Unit H)

G00476717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Engine Room R/B No. 1 (Unit I)

G00446221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Room R/B No. 1 (Unit J)

G00446222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Room R/B No. 3

G00446223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Luggage Room R/B No. 6

G00446224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Engine Compartment

G00476718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Engine Compartment

G00446226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Engine Compartment

G00446227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Engine Compartment

G00446228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Dash

G00446229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Dash & Center Floor Console

G00446230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

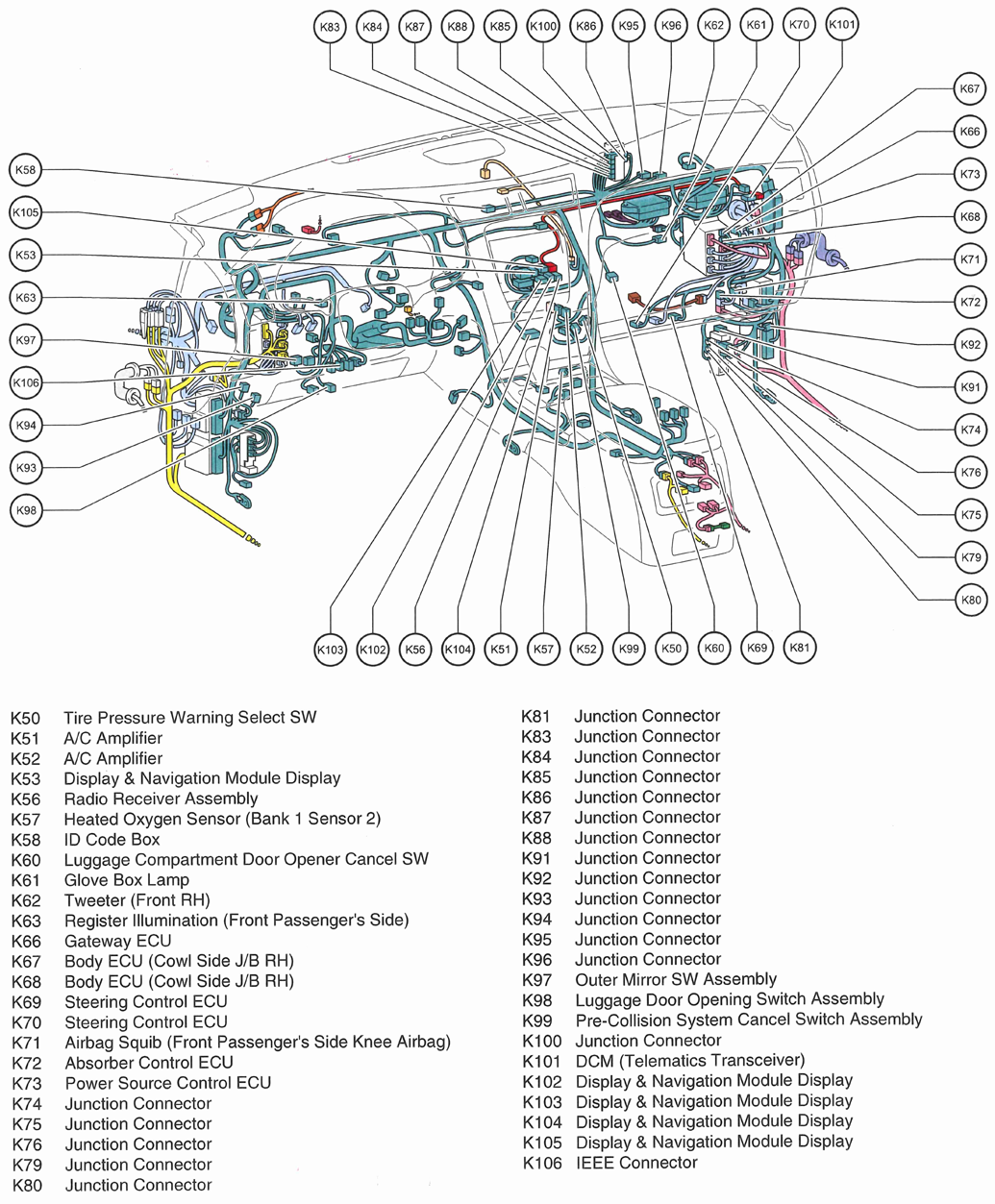

Fig 26: Dash & Center Floor Console

G00476719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Dash & Center Floor Console

G00446232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

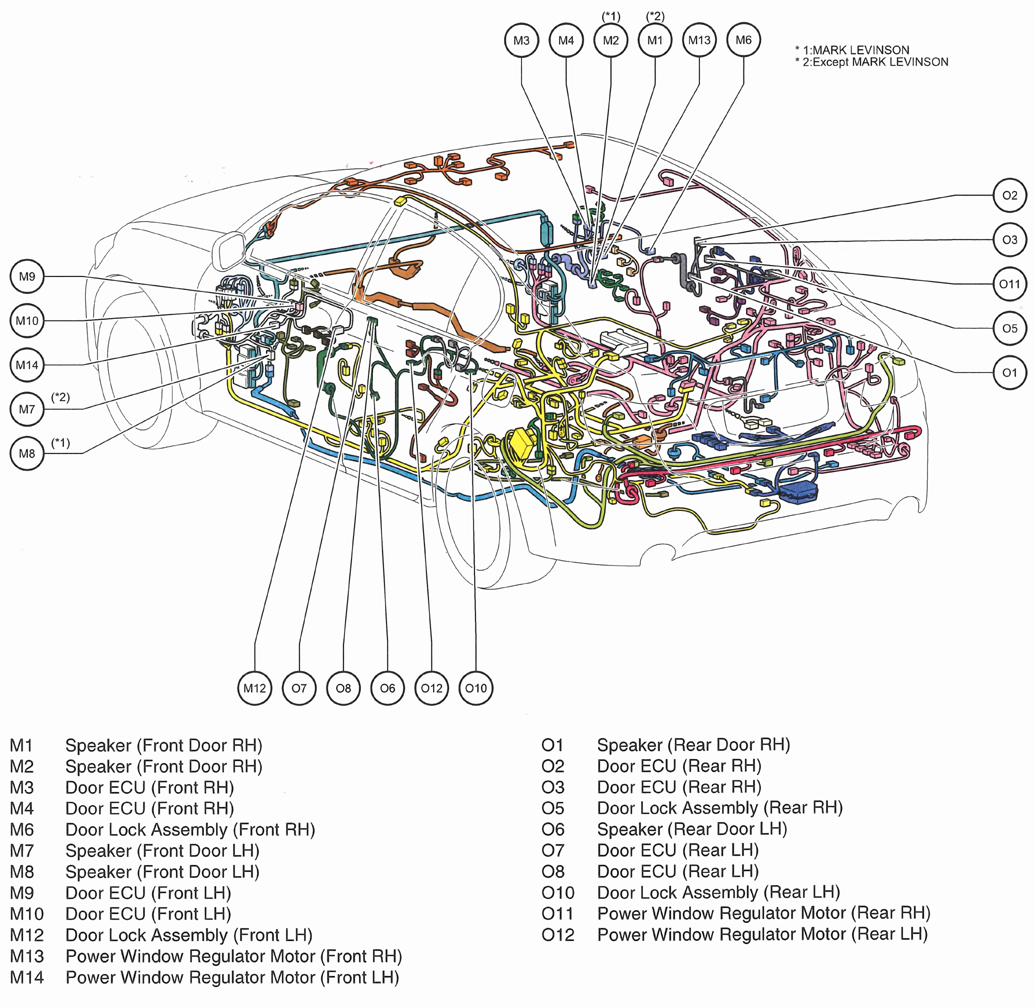

Fig 28: Vehicle Overview

G00476720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Vehicle Overview

G00446234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

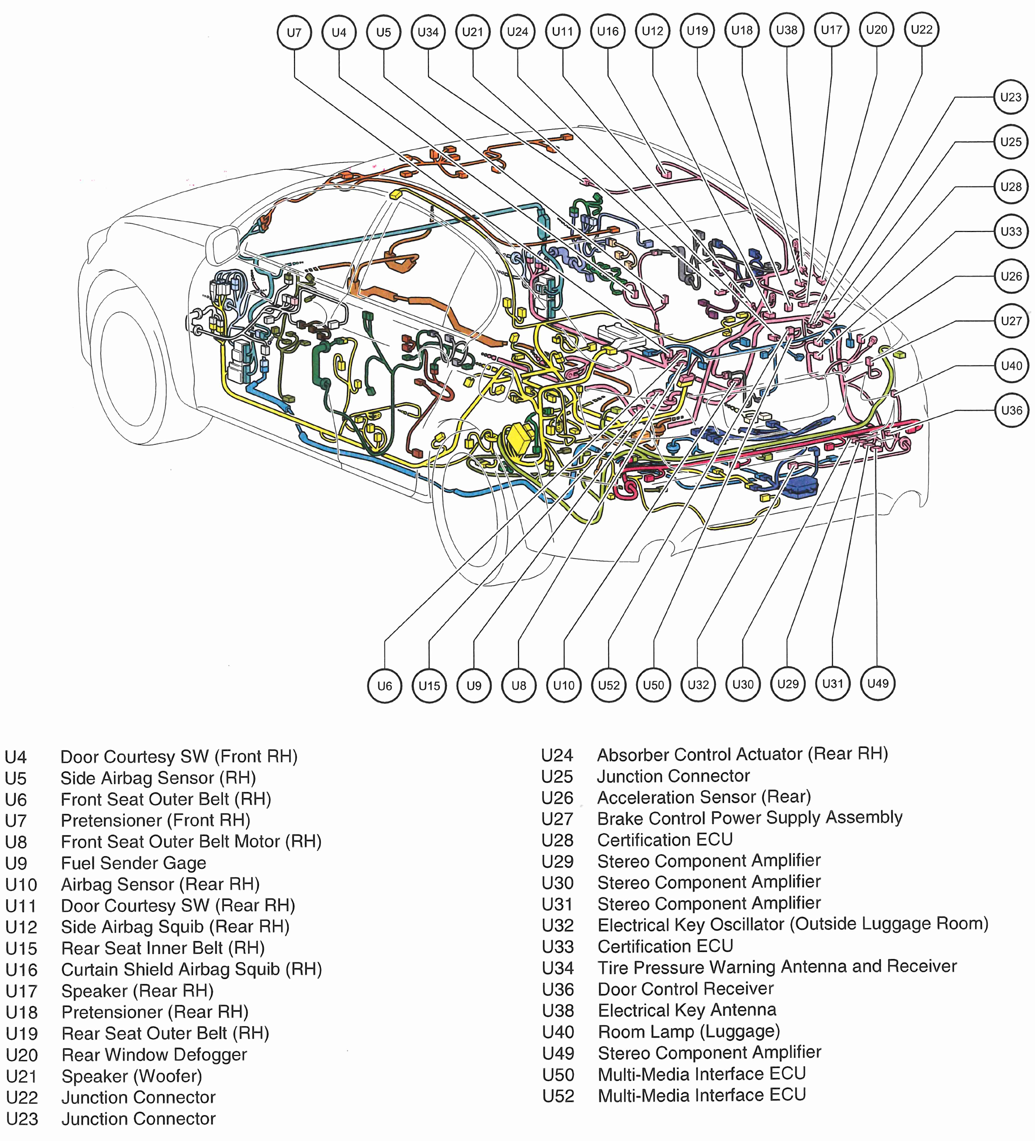

Fig 30: Vehicle Overview

G00476721

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 31: Vehicle Overview

G00446236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 32: Vehicle Overview

G00446237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 33: Vehicle Overview

G00446238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 34: Front Power Seats

G00446239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

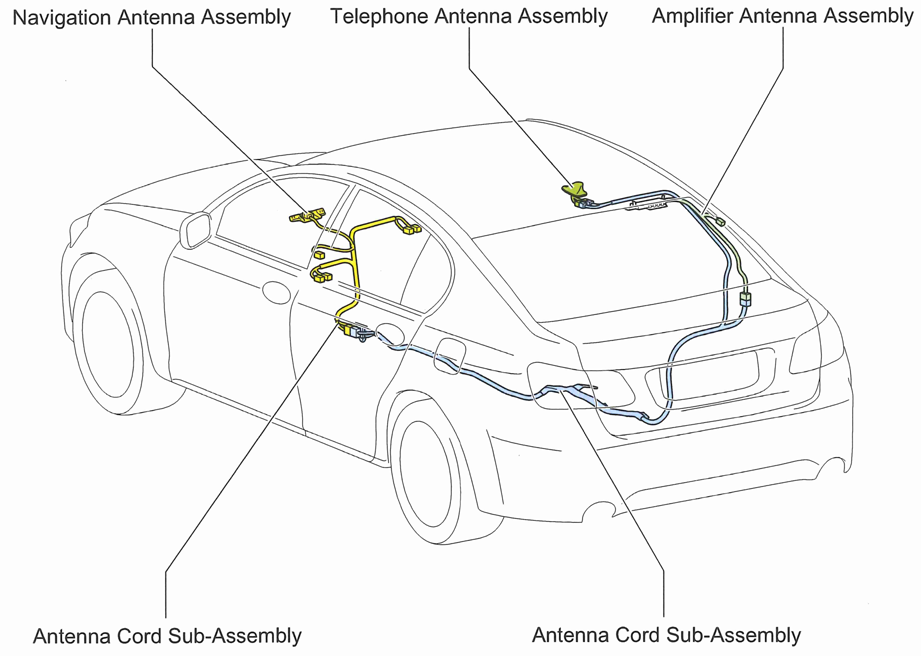

Fig 35: Vehicle Overview

G00476723

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
