Parts Location: Illustration

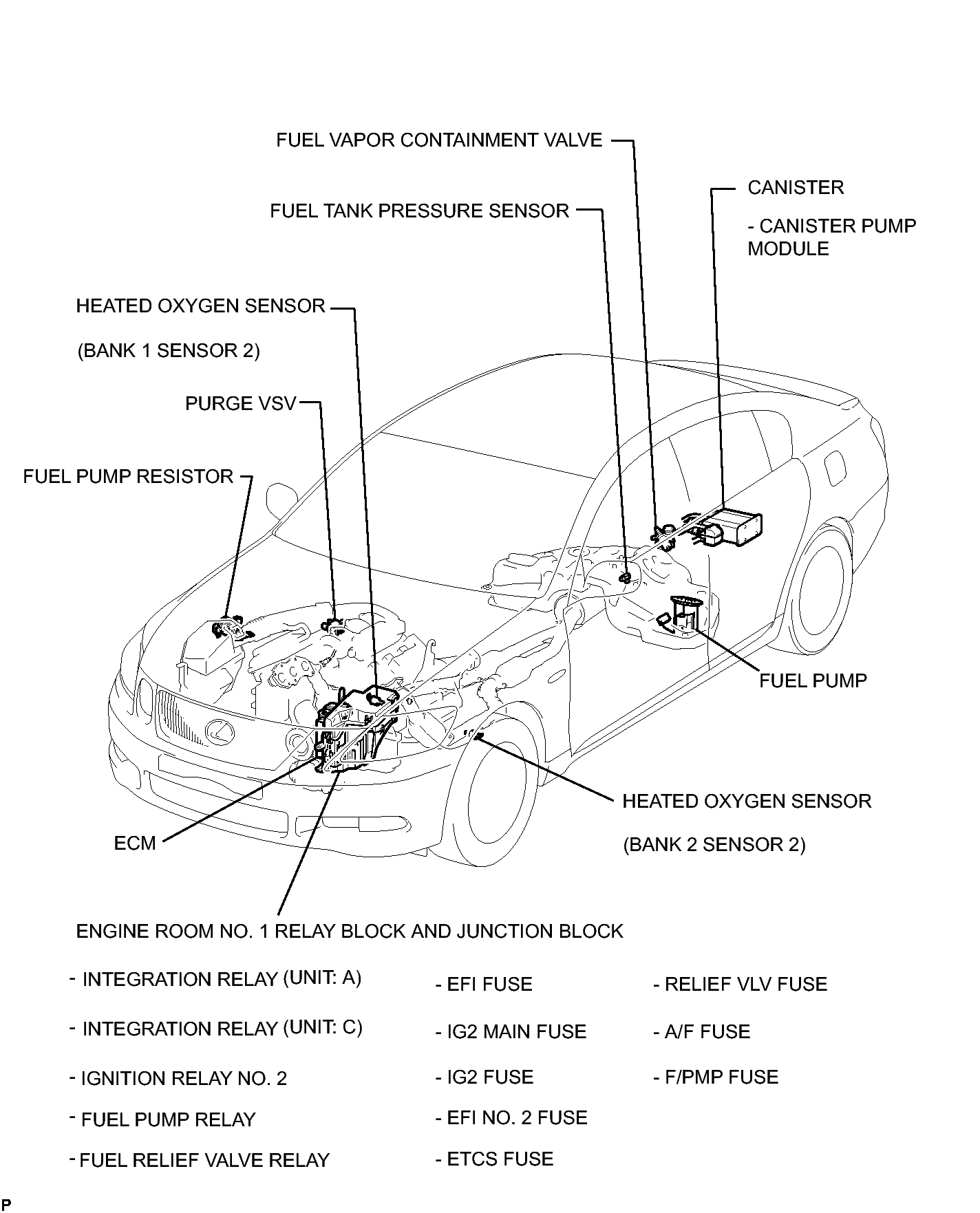

Fig 1: Identifying SFI System Parts Location (1 Of 4)
GTY261261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Parts Location (2 Of 4)
GTY276540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Parts Location (3 Of 4)
GTY140118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Parts Location (4 Of 4)
GTY146999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
