Front Speed Sensor (For 2WD): Components: Illustration

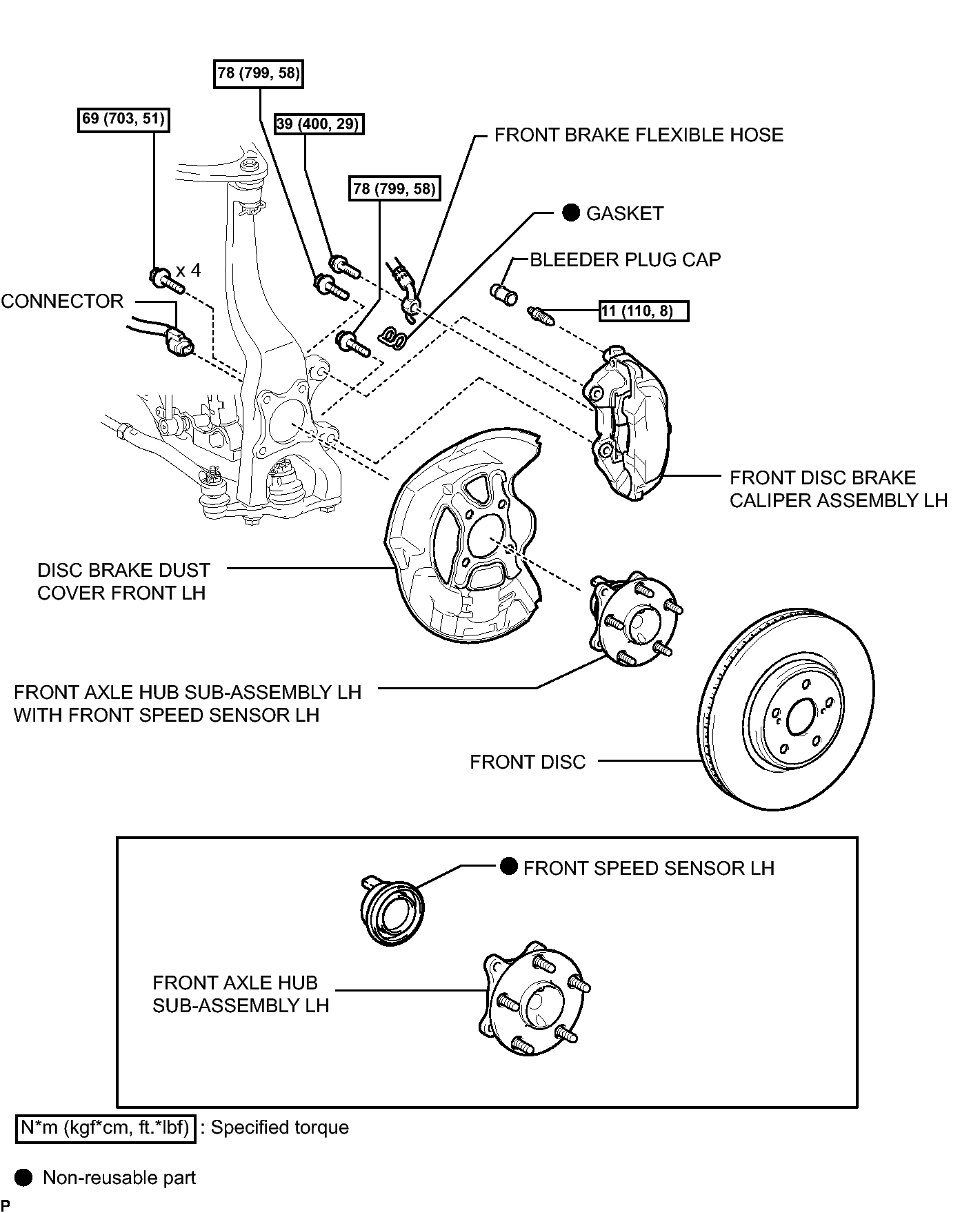

Fig 1: Identifying Front Speed Sensor (For 2WD) Replacement Components With Torque Specifications
GTY100272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
