Power Window: Notes

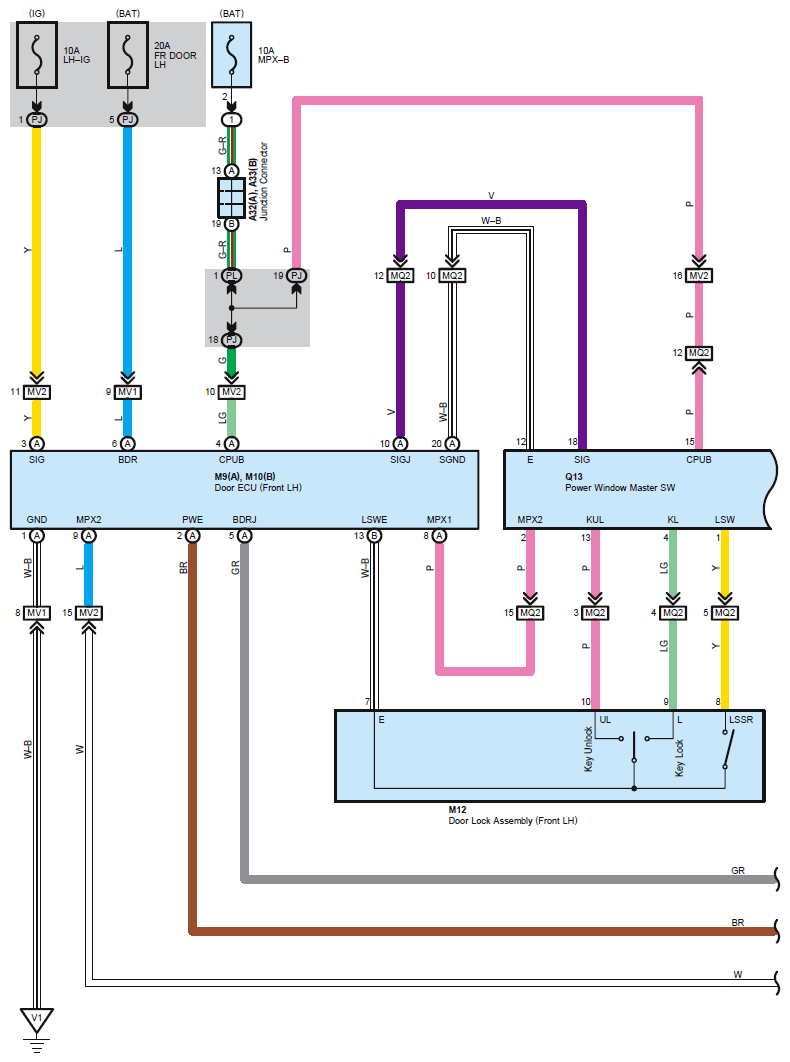

Fig 1: Power Window - Circuit Diagram (1 Of 9)

G07578933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Window - Circuit Diagram (2 Of 9)

G07578934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

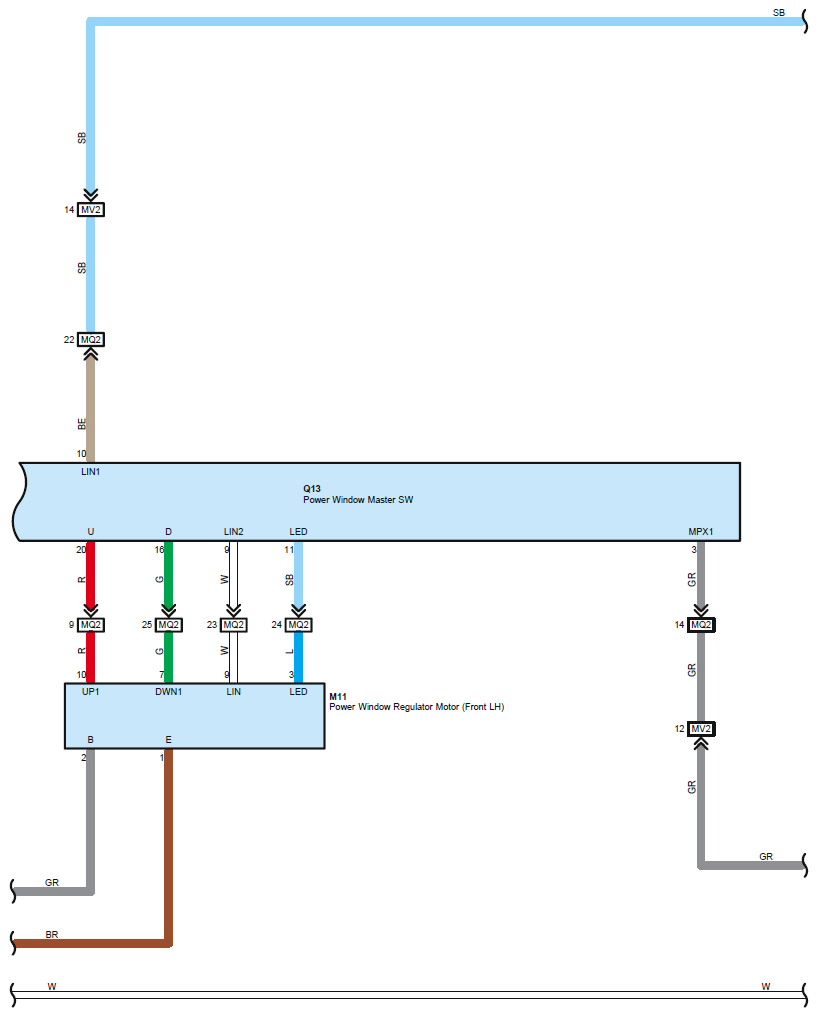

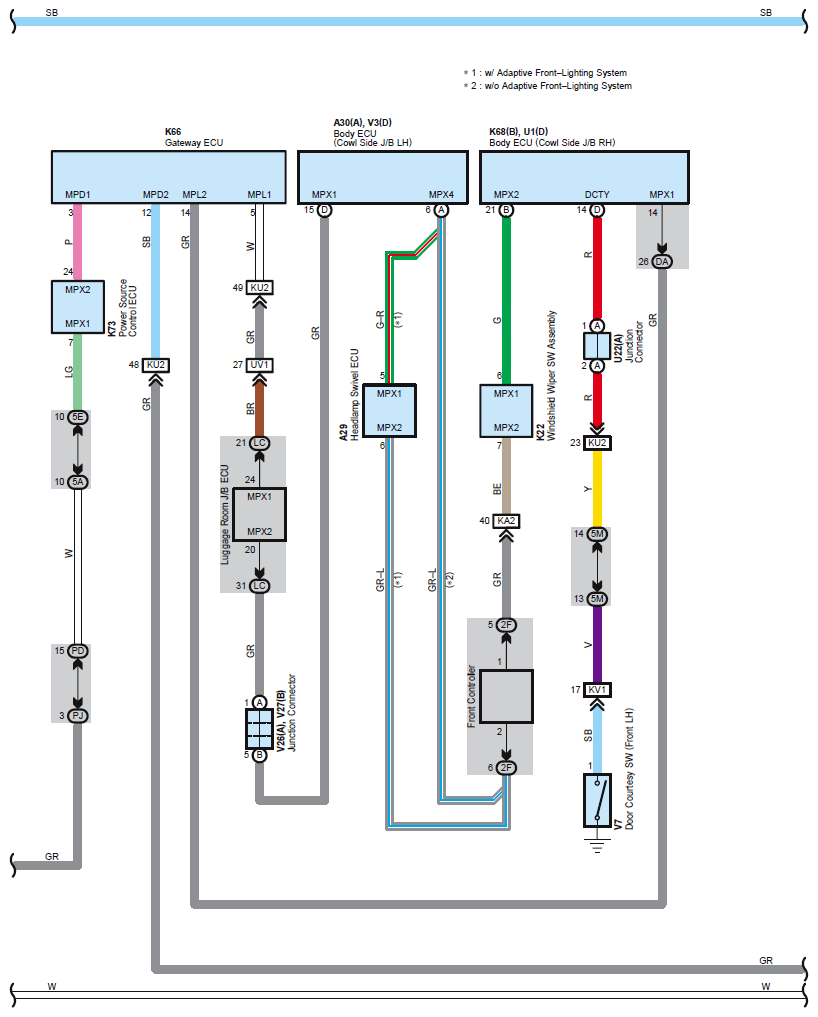

Fig 3: Power Window - Circuit Diagram (3 Of 9)

G07578935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

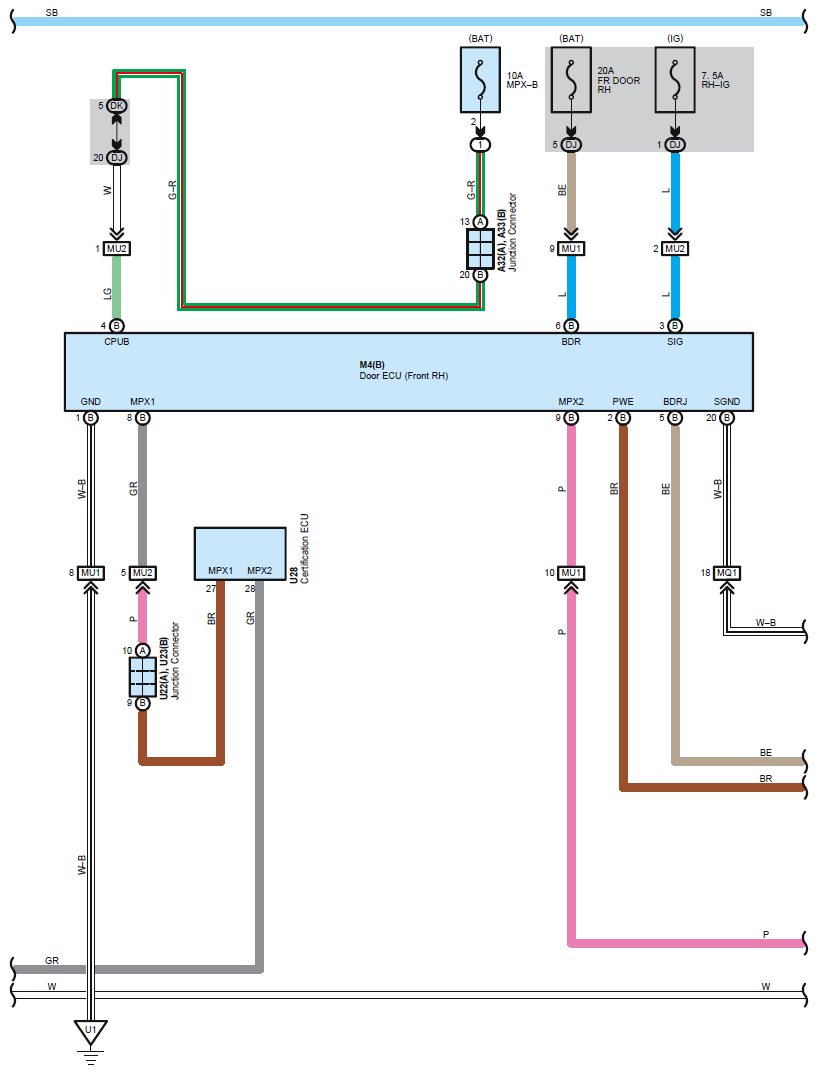

Fig 4: Power Window - Circuit Diagram (4 Of 9)

G07578936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

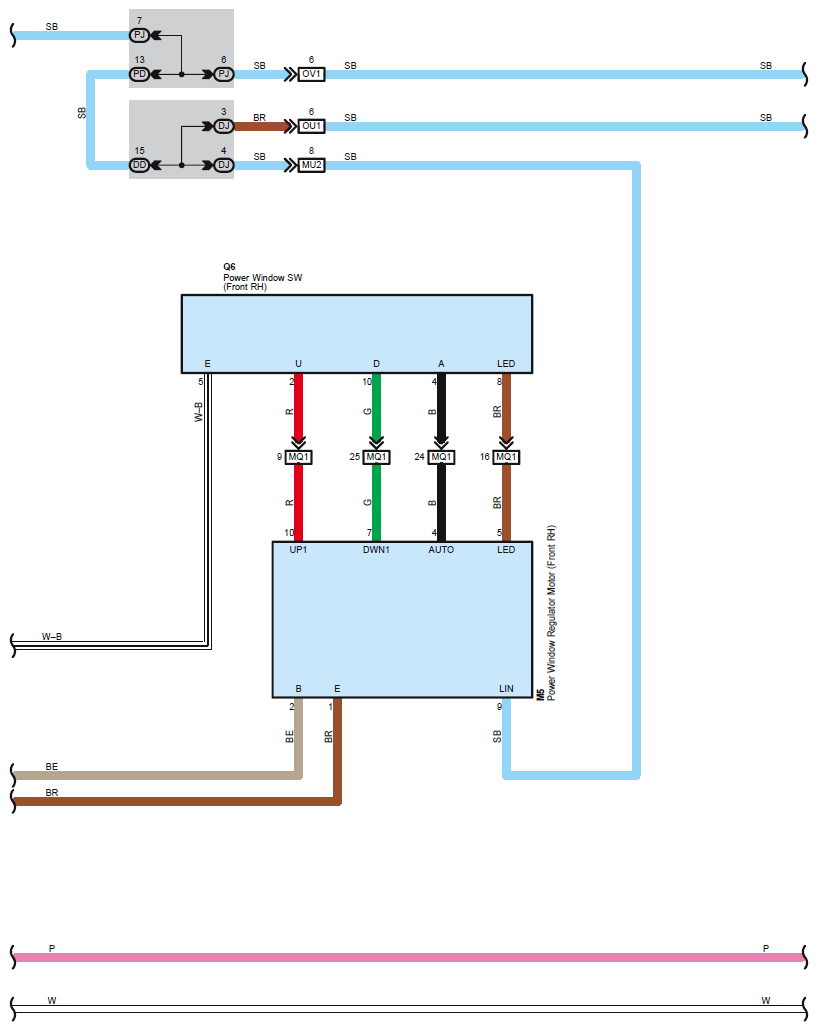

Fig 5: Power Window - Circuit Diagram (5 Of 9)

G07578937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

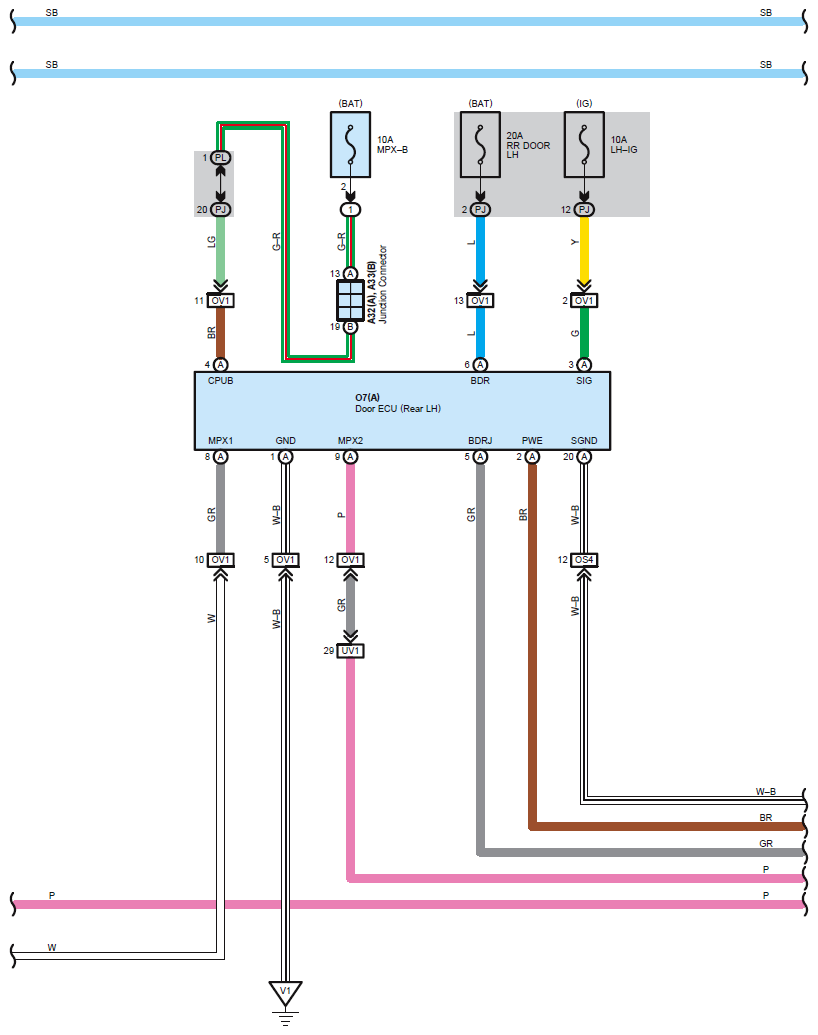

Fig 6: Power Window - Circuit Diagram (6 Of 9)

G07578938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

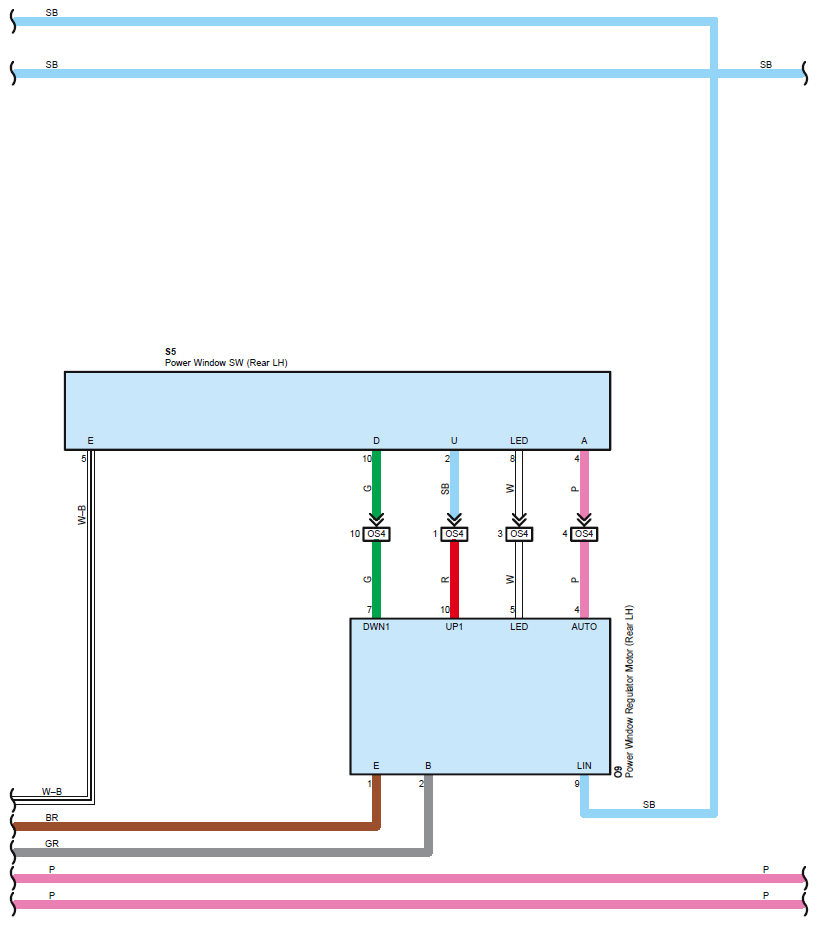

Fig 7: Power Window - Circuit Diagram (7 Of 9)

G07578939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

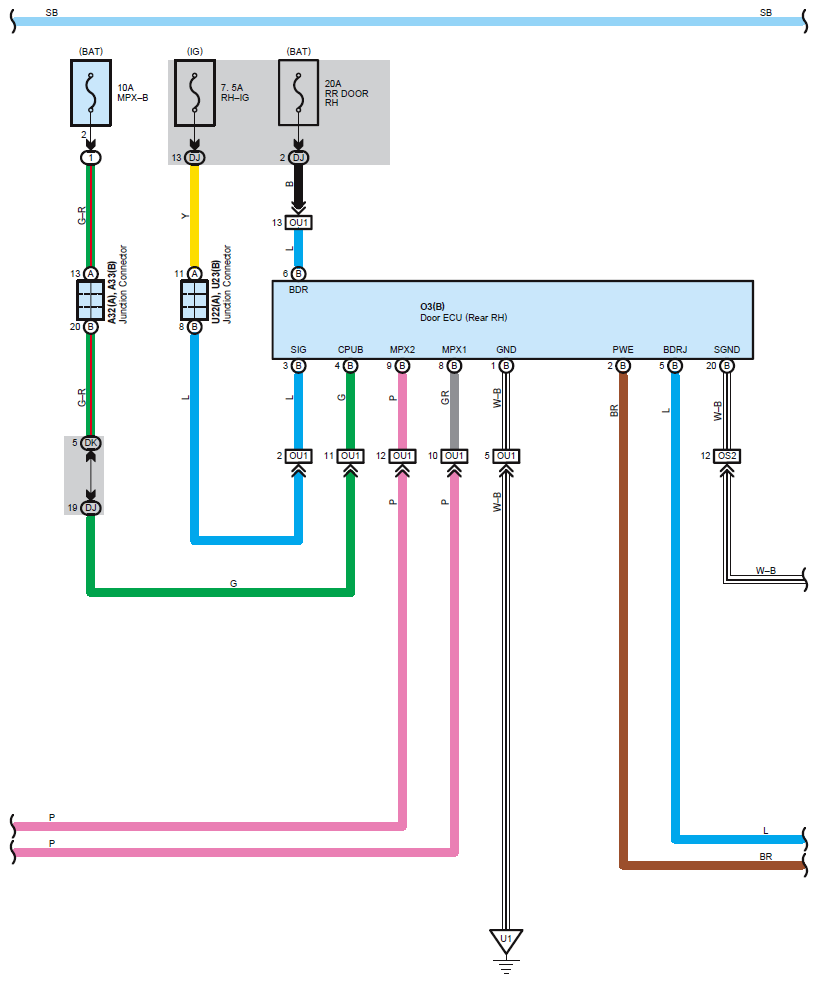

Fig 8: Power Window - Circuit Diagram (8 Of 9)

G07578940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

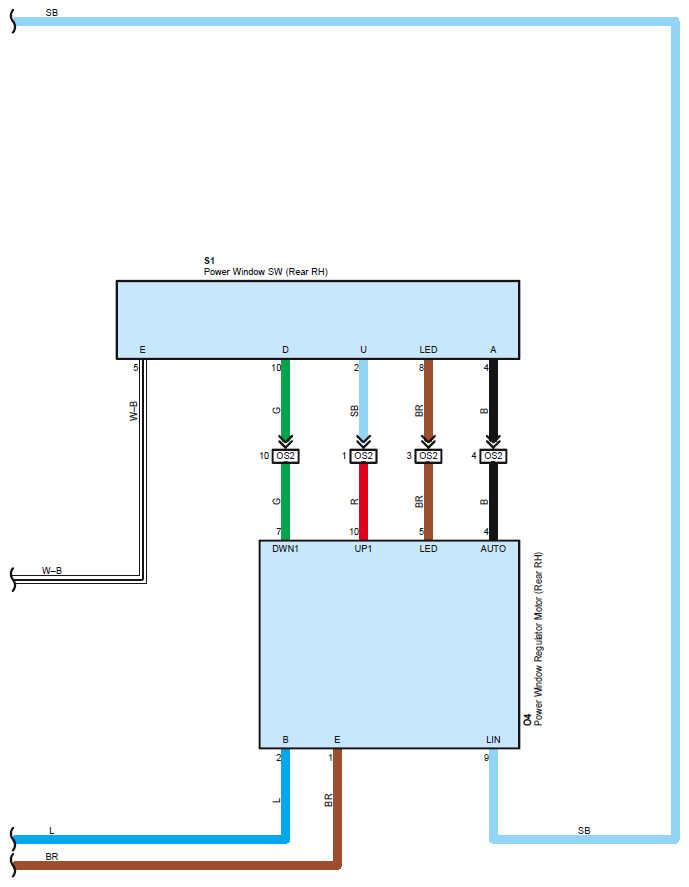

Fig 9: Power Window - Circuit Diagram (9 Of 9)

G07578941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
