Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Airbag Squib (Driver's Side Knee Airbag) | Under left side of dash. See Figure. |
| Airbag Squib (Front Passenger's Airbag Assembly) | Behind right side of dash. See Figure. |
| Airbag Squib (Front Passenger's Side Knee Airbag) | Under right side of dash. See Figure. |
| Airbag Squib (Steering Wheel Pad) | Center of steering wheel. See Figure. |
| Amplifier Antenna Assembly | Above rear windshield. See Figure. |
| Antenna Amplifier | Under center of dash. See Figure. |
| Brake Control Power Supply Assembly | Right rear of luggage compartment. See Figure. |
| Brake Stroke Simulator Cylinder | Left rear of engine compartment. See Figure. |
| Combustion Heater Glow Plugs (No. 1 & No. 2) | Rear of engine. See Figure. |
| Converter (Active Stabilizer) | Right side of luggage compartment. See Figure. |
| Curtain Shield Airbag Squib (LH) | Left "A" pillar. See Figure. |
| Curtain Shield Airbag Squib (RH) | Right "A" pillar. See Figure. |
| Data Link Connector 3 | Behind left side of dash. See Figure. |
| DCM Telematics Transceiver | Right end of dash. See Figure. |
| Electrical Key Antenna | Base of right "C" pillar. See Figure. |
| Electrical Key Oscillator (Console) | Rear of center floor console. See Figure. |
| Electrical Key Oscillator (Inside Luggage Room) | Left rear corner of luggage compartment. See Figure. |
| Electrical Key Oscillator (Left Front Door) | Left front door. See Figure. |
| Electrical Key Oscillator (Left Rear Door) | Left rear door. See Figure. |
| Electrical Key Oscillator (Outside Luggage Room) | Center rear of luggage compartment. See Figure. |
| Electrical Key Oscillator (Rear Seat) | Left "C" pillar. See Figure. |
| Electrical Key Oscillator (Right Front Door) | Right front door. See Figure. |
| Electrical Key Oscillator (Right Rear Door) | Right rear door. See Figure. |
| Fuel Pump Resistor (3.5L) | Right side of engine compartment. See Figure. |
| Fuel Pump Resistor (4.6L) | Right side of engine compartment. See Figure. |
| Generator (3.5L) | Left front of engine. See Figure. |
| Generator (4.6L) | Front of engine. See Figure. |

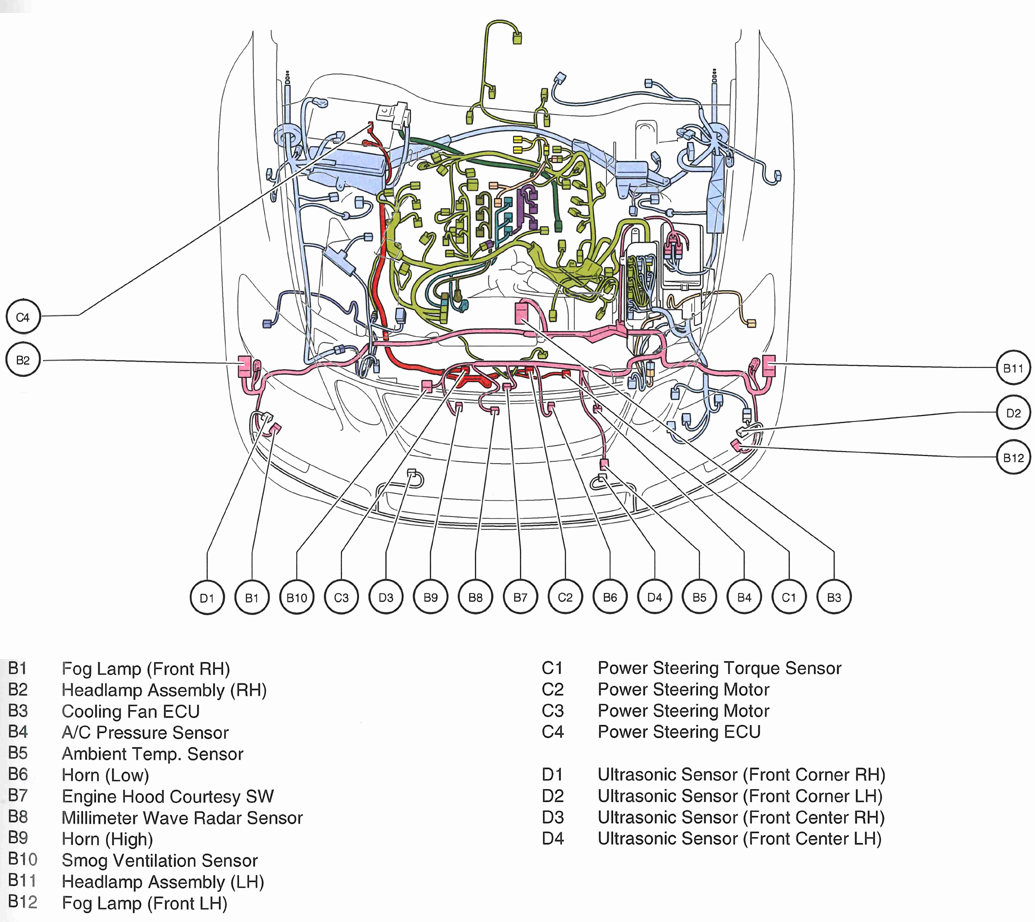

| Horn (High) (3.5L) | Front of radiator. See Figure. |
| Horn (High) (4.6L) | Front of radiator. See Figure. |
| Horn (Low) (3.5L) | Front of radiator. See Figure. |
| Horn (Low) (4.6L) | Front of radiator. See Figure. |
| ID Code Box | Behind center of dash. See Figure. |
| Ignition Coils No. 1, 3 & 5 (3.5L) | Top right side of engine. See Figure. |
| Ignition Coils No. 1, 3, 5 & 7 (4.6L) | Top left side of engine assembly. See Figure. |
| Ignition Coils No. 2, 4 & 6 (3.5L) | Top left side of engine. See Figure. |
| Ignition Coils No. 2, 4, 6 & 8 (4.6L) | Top right side of engine. See Figure. |
| Inner Rear View Mirror | Center front of roof. See Figure. |
| Junction Connector A5 | Under right side of front passenger's seat. See Figure. |
| Junction Connector A9 | Under left side of front passenger's seat. See Figure. |
| Junction Connector A17 (3.5L) | Left rear corner of engine compartment. See Figure. |
| Junction Connector A17 (4.6L) | Left rear corner of engine compartment. See Figure. |
| Junction Connector B5 | Under left side of driver's seat. See Figure. |
| Junction Connector B9 | Under right side of driver's seat. See Figure. |
| Junction Connector (CAN Center) | Behind right side of dash. See Figure. |
| Junction Connector (CAN LH) | Left kick panel. See Figure. |
| Junction Connector (CAN Luggage) | Base of left "C" pillar. See Figure. |
| Junction Connector (CAN RH) | Right kick panel. See Figure. |
| Junction Connector K87 | Behind left kick panel. See Figure. |
| Junction Connector No. V36 | Behind right kick panel. See Figure. |
| Junction Connectors A8, A9, A10 & A11 (3.5L) | Left side of engine compartment. See Figure. |
| Junction Connectors A8, A9, A10 & A11 (4.6L) | Left side of engine compartment. See Figure. |
| Junction Connectors A32 & A33 | Behind left end of dash. See Figure. |
| Junction Connectors E106 & E107 | Left side of engine compartment. See Figure. |
| Junction Connectors K1, K2, K3, K4, K5, K6, K7, K8 & K9 | Behind left kick panel. See Figure. |

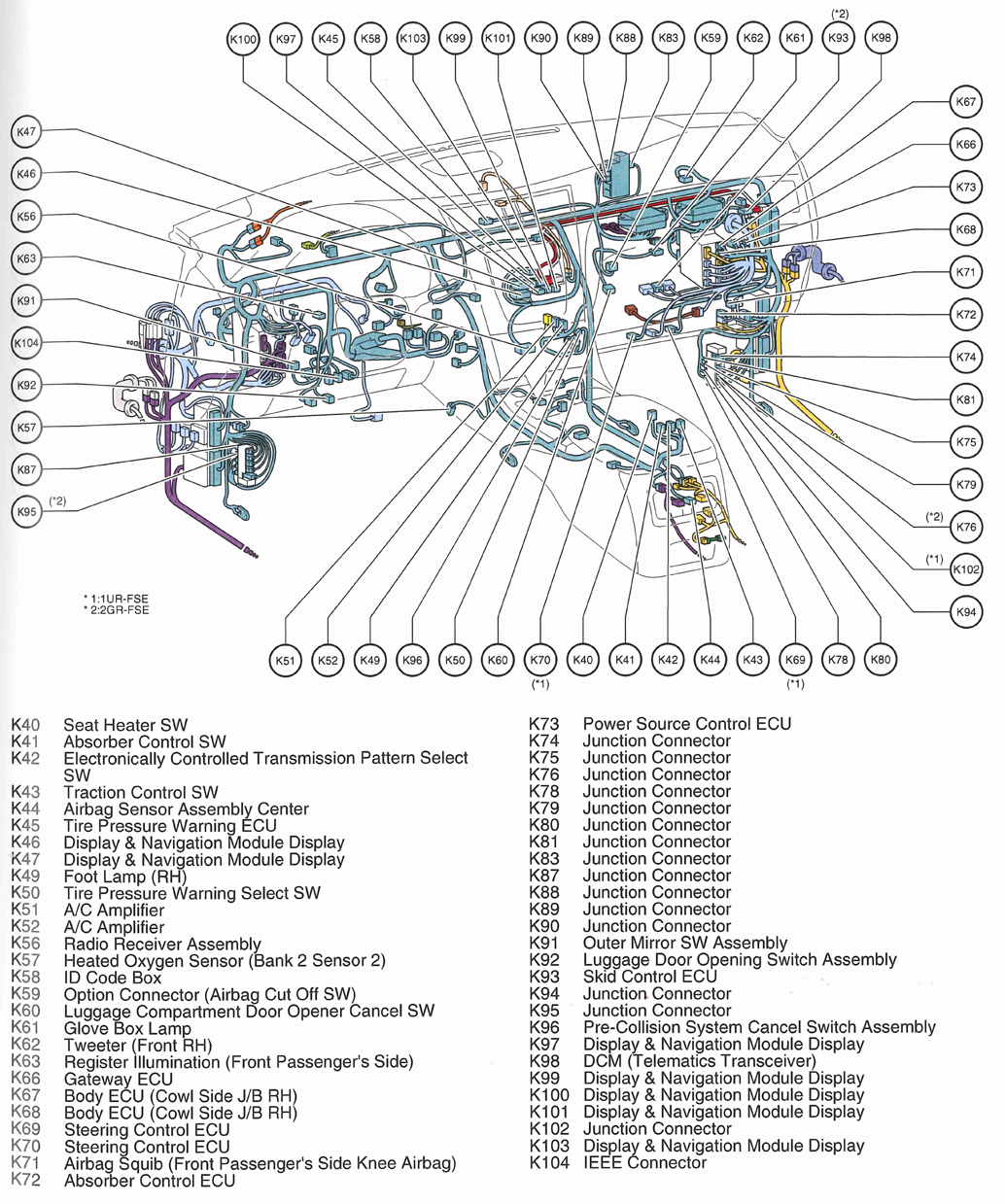

| Junction Connectors K74, K75, K76, K78, K79, K80, K81 & K102 | Right kick panel. See Figure. |
| Junction Connectors K83, K88, K89 & K90 | Right side of dash. See Figure. |
| Junction Connectors K87 & K95 | Left kick panel. See Figure. |
| Junction Connectors K91 & 92 | Left side of dash. See Figure. |
| Junction Connectors K94 | Right side of dash. See Figure. |
| Junction Connectors No. U22, U23 & U25 | Right front of luggage compartment. See Figure. |
| Junction Connectors Q4 & Q5 | Right front door. See Figure. |
| Junction Connectors Q11 & Q12 | Left front door. See Figure. |
| Junction Connectors U49, U50 & U51 | Right rear of vehicle chassis. See Figure. |
| Junction Connectors V26 & V27 | Left front of luggage compartment. See Figure. |
| Junction Connectors V38, V40, V41 & V42 | Left "C" pillar. See Figure. |
| Junction Connector Y6 | Center rear of luggage compartment lid. See Figure. |
| Mayday Battery | Right front of luggage compartment. See Figure. |
| Noise Filter (Center Stop Light) | Near left "C" pillar. See Figure. |
| Noise Filter (2) | Engine room R/B No. 1. See Figure. |
| Noise Filter (3.5L) | Right rear of engine compartment. See Figure. |
| Noise Filter (4.6L) | Right rear of engine compartment. See Figure. |
| Option Connector (Audio System) | Right rear corner of luggage compartment. See Figure. |
| Pretensioner (Front LH) | Base of left "B" pillar. See Figure. |
| Pretensioner (Front RH) | Base of right "B" pillar. See Figure. |
| Pretensioner (Rear LH) | Left "C" pillar. See Figure. |
| Pretensioner (Rear RH) | Right "C" pillar. See Figure. |
| Seat Heater (Front LH) | Driver's seat cushion. See Figure. |
| Seat Heater (Front RH) | Front passenger's seat cushion. See Figure. |
| Security Horn (3.5L) | Right side of engine compartment. See Figure. |
| Security Horn (4.6L) | Right side of engine compartment. See Figure. |
| Side Airbag Squib (Front LH) | Under left side of left front seat. See Figure. |
| Side Airbag Squib (Front RH) | Under right side of right front seat. See Figure. |
| Side Airbag Squib (Rear LH) | Under left rear seat. See Figure. |
| Side Airbag Squib (Rear RH) | Under right rear seat. See Figure. |
| Spiral Cable | Steering column. See Figure. |
| Stereo Component Amplifier | Right rear corner of luggage compartment. See Figure. |
| Television Camera | Right side of luggage compartment. See Figure. |
| Tire Pressure Warning Antenna & Receiver | Center of roof. See Figure. |
| Windshield Deicer | Left rear of engine compartment. See Figure. |
| Wiring Harness Spool | Under center of rear parcel shelf. See Figure. |
